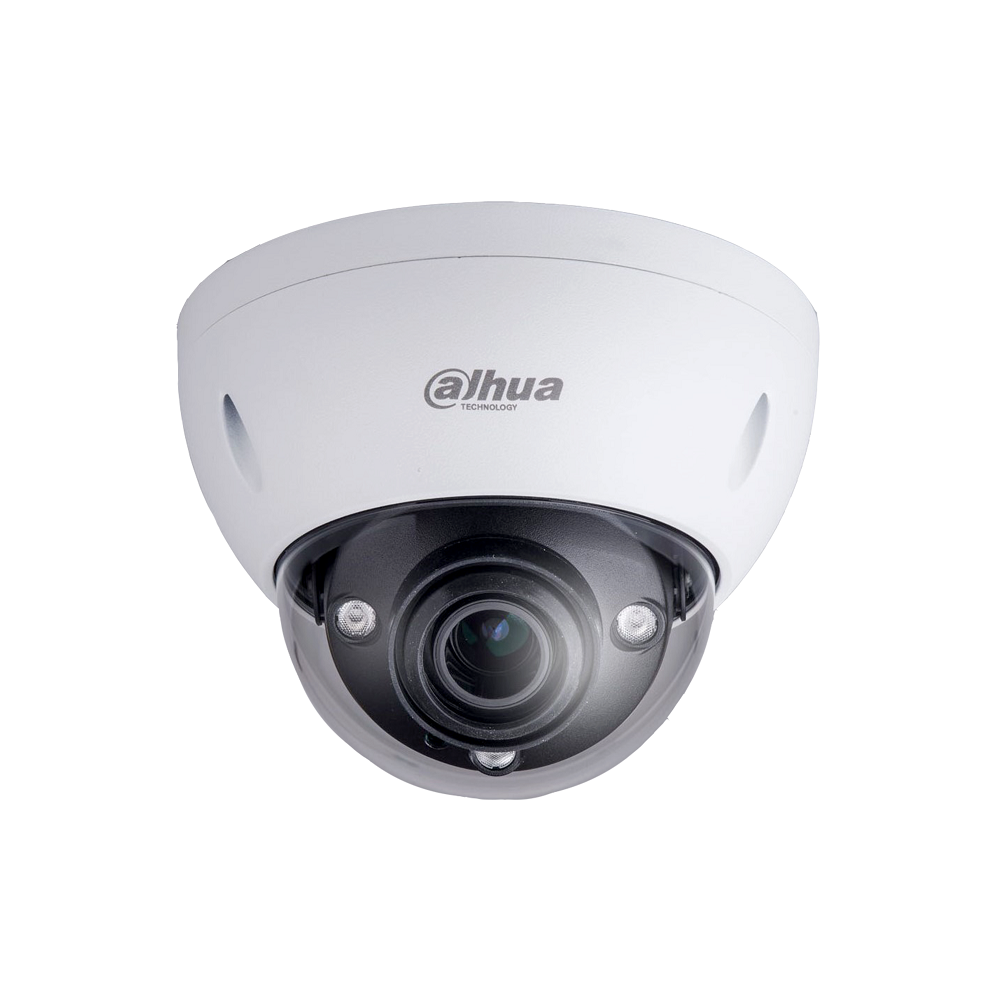

Dahua DH-IPC-HDBW5431E-ZE 4MP Motorised VF IR Dome Network Camera

The Dahua 4MP WDR IR Dome Network Camera (DH-IPC-HDBW5431E-ZE) is designed for high-quality surveillance with a 4-megapixel resolution, delivering sharp and clear images. It features Wide Dynamic Range (WDR) technology, which ensures excellent image performance in challenging lighting conditions by balancing bright and dark areas. The camera is equipped with an IR illumination range of up to 50 meters, allowing it to capture clear footage even in complete darkness. Its motorized varifocal lens offers flexibility in adjusting the field of view, making it suitable for various surveillance scenarios. The camera's IP67 weatherproof rating ensures reliable performance in harsh outdoor environments, while its IK10-rated vandal-resistant housing provides robust protection against physical impacts.

With support for H.265 and H.264 video compression, the camera efficiently reduces bandwidth and storage requirements. It also features Intelligent Video System (IVS) capabilities, including intrusion detection and tripwire, enhancing security through proactive monitoring. The camera is compatible with PoE (Power over Ethernet), simplifying installation by eliminating the need for separate power cables. Additionally, the camera supports edge storage with a built-in microSD card slot for local recording. Its Smart IR technology adjusts the intensity of the infrared LEDs to prevent overexposure in close-up shots. The camera is also ONVIF-compliant, ensuring interoperability with a wide range of third-party devices. Overall, the DH-IPC-HDBW5431E-ZE is a versatile and reliable solution for both indoor and outdoor security applications.

Features

• 1/3” 4 Megapixel progressive scan CMOS
• H.265 & H.264 triple-stream encoding
• 25/30fps @ 4MP (2688×1520)
• WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
• 2.7mm ~ 13.5mm motorized lens
• Max. IR LEDs Length 50m
• Micro SD card memory, IP67, IK10, PoE+

Functions

ePoE Technology
Dahua's internally designed ePoE technology utilizes advanced 2D-PAM3 coding modulation at the physical layer. This technology achieves full-duplex transmission over 800 meters at 10 Mbps, or 300 meters at 100 Mbps using Cat 5 or coaxial cables. It also supports PoE and PoC power supply, simplifying construction and wiring. ePoE provides an efficient solution for long-distance transmission between IP cameras and network switches, offering flexibility in surveillance system design, enhancing reliability, and reducing construction and wiring costs.

Wide Dynamic Range
The camera employs industry-leading wide dynamic range (WDR) technology to produce clear images even in extreme lighting conditions. True WDR (120 dB) adjusts both bright and dark areas of a scene simultaneously, ensuring usable video in environments with rapidly changing lighting conditions.

Intelligent Video System (IVS)
IVS features a built-in video analytic algorithm that provides intelligent functions for monitoring scenes. It detects Tripwire violations, intrusion, and abandoned or missing objects with quick and accurate responses. The camera supports face detection for capturing and uploading facial images to a server. Additionally, it includes tamper detection, which identifies significant scene changes and generates a warning to check the camera.

Protection (IP67, IK10, Wide Voltage)
The camera is designed to handle ±30% input voltage tolerance, making it suitable for unstable outdoor conditions. With a 6KV lightning rating, it offers robust protection against lightning strikes. It is certified for rigorous dust and immersion resistance (IP67) and impact resistance (IK10), making it ideal for use in harsh environments.

Smart H.265+
Smart H.265+ is an enhanced version of the H.265 codec that uses scene-adaptive encoding, dynamic GOP, dynamic ROI, flexible multi-frame reference structures, and intelligent noise reduction. This technology delivers high-quality video while minimizing network strain. Compared to standard H.265, Smart H.265+ reduces bit rate and storage requirements by up to 70%.
