  • Sku: DH-IPC-HDBW4431FP
  • Vendor: SecurityAustralia

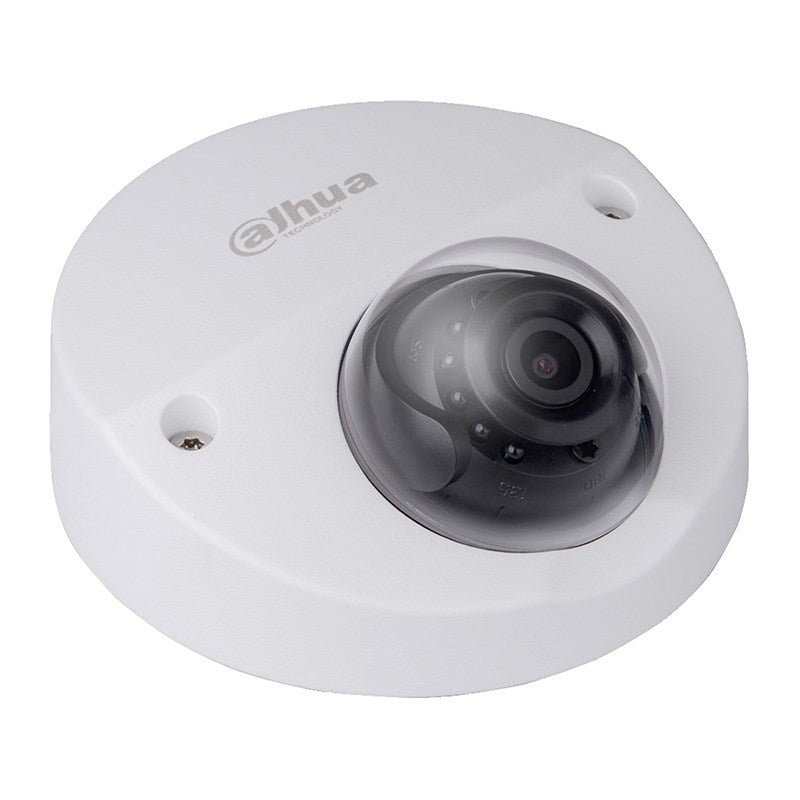

Dahua DH-IPC-HDBW4431FP 4MP IR Mini Dome Network Camera 20m IR, 2.8mm

$285.00 AUD
 per
Tax included.
Shipping calculated at checkout.
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

4MP IR Mini Dome Network Camera

The Dahua DH-IPC-HDBW4431F-AS is a 4MP IR Mini Dome Network Camera designed for high-quality surveillance in compact spaces. It features a 1/3" progressive scan CMOS sensor, delivering crisp 4MP video resolution. The camera's built-in IR LEDs provide up to 30 meters of night vision, ensuring clear images even in complete darkness. With its IP67 weatherproof and IK10 vandal-resistant ratings, the camera is highly durable, making it suitable for both indoor and outdoor installations.

Key Features

  • 1/3” 4Megapixel progressive scan CMOS
  • H.265&H.264 dual-stream encoding
  • 25/30fps@4M(2688×1520)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens (3.6mm, 6mm optional)
  • Max. IR LEDs Length 20m
  • Micro SD memory, IP67, IK10, PoE

Code/SKU: DH-IPC-HDBW4431F-AS
Quick Specs:

  • Lens Type: Fixed
  • Mount Type: Board-in
  • Focal Length: 2.8mm (3.6mm, 6mm optional)
  • Max. Aperture: F2.0 (F2.0, F2.0)

Addons

Dahua DH-PFB204W ...
$17.00 $30.00

Specifications

Camera

Image Sensor

1/3” 4Megapixel progressive scan CMOS

Effective Pixels

2688(H)x1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

1/3 s–1/100,000 s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 20m (66ft)

IR On/Off Control

Auto/ Manual

IR LEDs

10

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm, 6mm optional)

Max. Aperture

F2.0 (F2.0, F2.0)

Angle of View

H: 104° (87°, 55°), V:57° (48°, 31°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63m(207ft)

25m(82ft)

13m(43ft)

6m(20ft)

3.6 mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

6.0 mm

117m(384ft)

47m(154ft)

23m(75ft)

12m(39ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~60˚; Tilt:0˚~80˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4M(2688×1520)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~10240Kbps

H.265: 14~9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)/M12 D-Coding

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

E-mark(ECE-Regulation No.10)

EN50155(Optional)

Interface

Video Interface

N/A

Audio Interface

Built-in Mic

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<4.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ106mm×50.3mm (4.17”×1.98”)

Net Weight

0.4kg (0.88lb)

Gross Weight

0.44kg (0.97lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HDBW4431FP 4MP IR Mini Dome Network Camera 20m IR, 2.8mm

$285.00 AUD
 per

The Dahua DH-IPC-HDBW4431F-AS is a 4MP IR Mini Dome Network Camera designed for high-quality surveillance in compact spaces. It features a 1/3" progressive scan CMOS sensor, delivering crisp 4MP video resolution. The camera's built-in IR LEDs provide up to 30 meters of night vision, ensuring clear images even in complete darkness. With its IP67 weatherproof and IK10 vandal-resistant ratings, the camera is highly durable, making it suitable for both indoor and outdoor installations. It supports H.265 and H.264 video compression, which reduces bandwidth and storage requirements without compromising video quality. The camera includes a 2.8mm fixed lens, offering a wide field of view for comprehensive area coverage. Equipped with advanced image processing technologies like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (3D DNR), it delivers clear images in challenging lighting conditions.

The camera also features a built-in microphone, allowing for audio recording along with video surveillance. It supports Power over Ethernet (PoE), simplifying installation by using a single cable for power and data transmission. The DH-IPC-HDBW4431F-AS is also compatible with various intelligent video system (IVS) features, such as tripwire and intrusion detection, enhancing security monitoring capabilities. Its compact design and aesthetic appearance make it an ideal choice for discreet surveillance in areas like retail stores, offices, and residential properties. Overall, this mini dome camera combines robust features with ease of installation, making it a versatile and reliable security solution.

Features

  • 1/3” 4Megapixel progressive scan CMOS
  • H.265&H.264 dual-stream encoding
  • 25/30fps@4M(2688×1520)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens (3.6mm, 6mm optional)
  • Max. IR LEDs Length 20m
  • Micro SD memory, IP67, IK10, PoE



Functions

Wide Dynamic Range
Equipped with advanced wide dynamic range (WDR) technology, this camera ensures clear and vivid images even in the most challenging lighting conditions. True WDR (120dB) effectively balances both bright and dark areas in scenes with rapidly changing light levels, delivering usable video for environments with contrasting light conditions.

Intelligent Video System (IVS)
The camera features integrated intelligent video analytics that enhance surveillance by detecting and analyzing moving objects. This capability allows for the detection of multiple object behaviors, such as identifying abandoned or missing items. IVS also includes Tripwire analytics, enabling the camera to detect when a predefined line is crossed, which is beneficial for business intelligence, as well as Facial Detection for the identification and tracking of individuals.

Environmental
Built to operate in extreme temperatures ranging from -30 °C to +60 °C (-22 °F to +140 °F), this camera is ideal for harsh environments. It is IK10-rated, meaning it can withstand impacts equivalent to 55 kg (120 lbs) of force. The IP67 rating signifies its resilience against dust and water, making it perfect for demanding outdoor applications. Additionally, the camera includes an integrated wiper to maintain clear visibility in conditions such as rain, sleet, snow, and fog.

Protection
Designed to withstand challenging outdoor environments, the camera supports a ±30% input voltage tolerance, making it suitable for use in areas with unstable power conditions. Its 4KV lightning protection ensures that both the camera and its structure are safeguarded against lightning strikes.

Smart H.265+
Smart H.265+ is an enhanced version of the H.265 standard, optimized to deliver high-quality video while minimizing network strain. This encoding technology features scene-adaptive encoding, dynamic GOP, dynamic ROI, flexible multi-frame reference structures, and intelligent noise reduction, offering up to 70% savings in bandwidth and storage compared to standard H.265.

HEVC (H.265)
H.265, also known as High-Efficiency Video Coding (HEVC), is a cutting-edge video compression standard. Building upon the foundation of H.264, H.265 introduces advanced technology to improve compression efficiency, robustness, error recovery, and real-time performance. It reduces delay, optimizes channel acquisition time, enhances random access, and decreases complexity, resulting in superior video quality and efficiency.

Technical Specifications:

Model DH-IPC-HDBW4431FP
Image Sensor 1/3” 4 Megapixel progressive scan CMOS
Max Resolution 2560 x 1440 @ 25 fps/30 fps
IR Distance Up to 30 meters (98.4 ft)
Ingress Protection IP67 (weatherproof)
Vandal Resistance IK10 (impact-resistant)
Lens Type Fixed, 2.8mm (3.6mm and 6mm optional)
Power Supply 12V DC, PoE (Power over Ethernet)
Operating Temperature -30 °C to +60 °C (-22 °F to +140 °F)
Weight Approx. 0.8 kg (1.76 lb)
