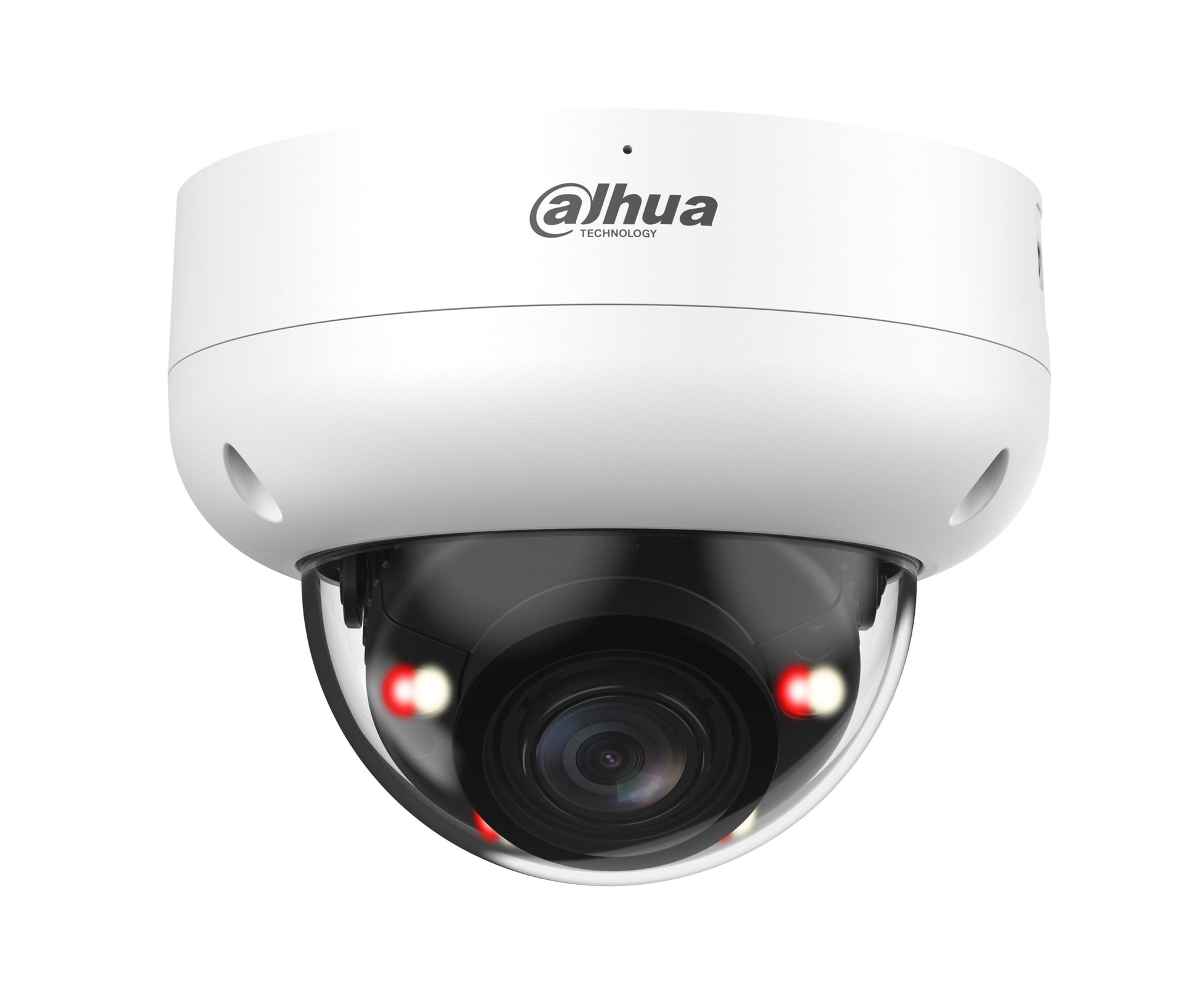

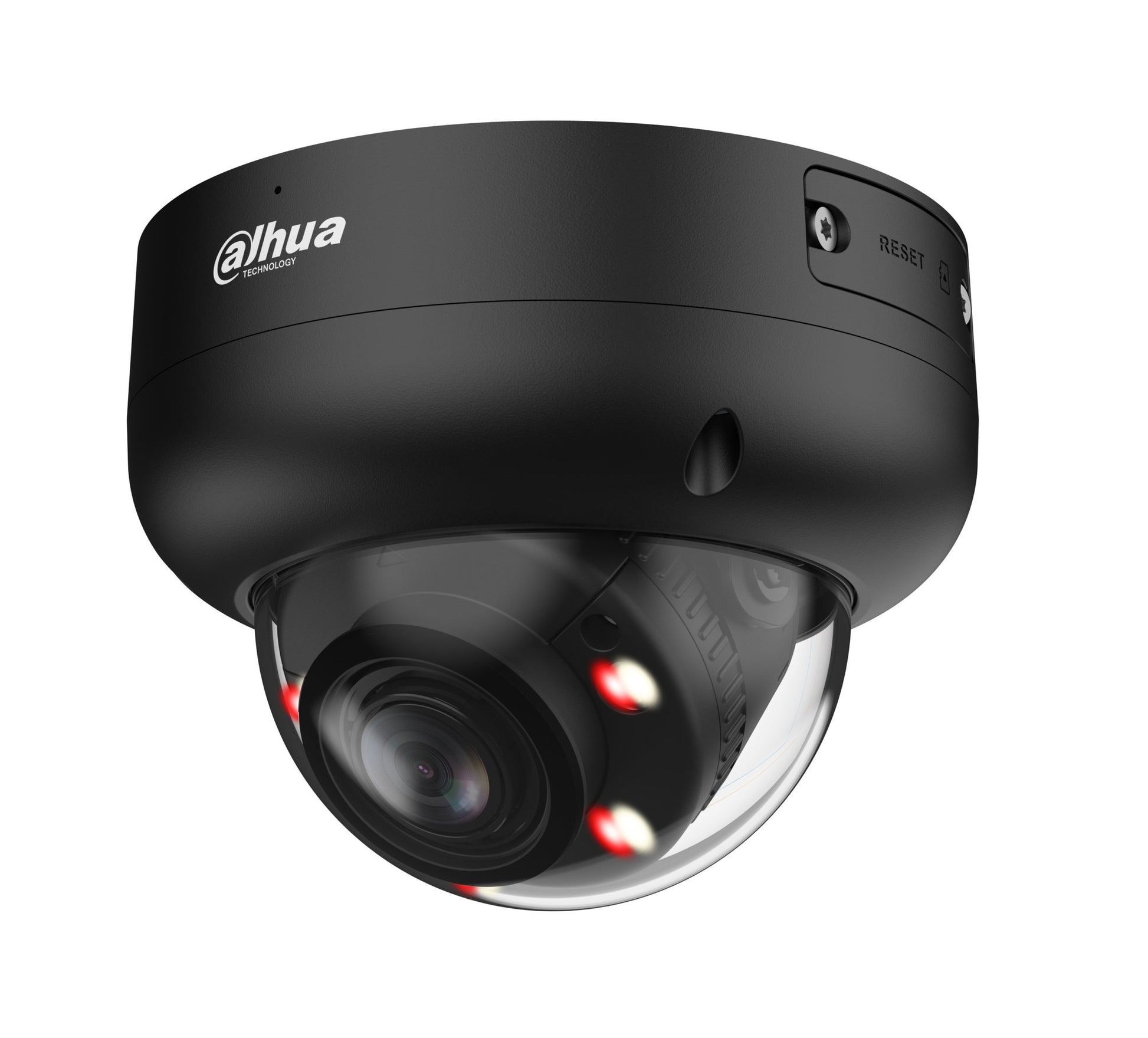

Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ 8MP Smart Dual-Light Vari-focal Dome WizSense Network Camera

Model: DH-IPC-HDBW3867R-ZAS-IL-ANZ

Who This Is For

For installers and security managers who need a single dome camera that handles both deterrence and identification without swapping hardware between sites. The Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ delivers 8MP resolution through a motorised vari-focal lens that adjusts from 2.7mm to 13.5mm during commissioning - useful when ceiling heights or coverage distances aren't locked in at the design stage. The dual-light system switches between IR for discreet overnight monitoring and white-light illumination when a visible deterrent or full-colour evidence capture is needed. WizSense AI runs SMD Plus on the camera itself, filtering out vehicles and people from irrelevant motion like branches or animals. IK10 vandal resistance makes it a practical fit for retail back-of-house, commercial stairwells, car park entry points, and external eave positions where a dome profile is preferred over a bullet. PoE simplifies cabling on both new installs and upgrades to existing structured cabling.

What This Camera Actually Does

Who Buys This Model

• Retail security managers: Needing full-colour evidence in after-hours incidents, using the white-light mode to capture usable footage inside poorly lit stockrooms or loading bays.
• Commercial property installers: Specifying a single dome SKU that covers both internal corridors and exposed external positions, relying on IP67 and IK10 ratings to remove the need for separate indoor and outdoor models.
• Car park operators: Using the motorised vari-focal lens to cover entry lanes or pedestrian paths from fixed ceiling or soffit mounting points where the exact distance to the target area varies by bay.
• Small business owners on Dahua WizSense NVRs: Wanting on-camera SMD Plus classification so their NVR's person and vehicle filtering works without additional server-side processing hardware.
• Industrial facility managers: Installing in stairwells, plant rooms, and perimeter fence lines where the IK10 vandal-resistant housing is a project specification requirement.

Honest Assessment

The DH-IPC-HDBW3867R-ZAS-IL-ANZ does two things well: it removes the choice between discreet IR monitoring and active white-light deterrence by offering both in one unit, and the motorised lens genuinely shortens commissioning time on sites where exact coverage distances aren't confirmed until installation day. At 8MP, the resolution holds up when cropping in post for identification purposes. SMD Plus on-camera AI is a meaningful upgrade over standard motion detection for sites that need reliable after-hours alerting. What this camera will not do is cover wide open areas like large car parks or sports fields from a single position - for that, a PTZ or multi-sensor panoramic camera would serve the requirement better. It also lacks a built-in speaker, so two-way audio applications will need a separate solution. Available through Security Australia, this model suits installers who want one dome camera to handle mixed indoor-outdoor deployments without compromising on resolution or night-time performance.

Before You Buy

Quick Fit Check

• Good match if: You need one dome camera to cover both indoor and outdoor positions on the same project, where IP67 and IK10 ratings remove the need to specify different models for different environments.
• Good match if: The installation distance to the target zone isn't confirmed at design stage - the motorised 2.7mm-13.5mm vari-focal lens lets you adjust field of view on-site without physically moving the camera.
• You may need a different model if: Your requirement is 180-degree or full-perimeter coverage from a single mounting point - a multi-sensor panoramic or fisheye camera will cover wide-area scenes more efficiently than a single-lens dome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need one dome camera that works across both indoor and outdoor positions, requires on-camera AI classification without additional hardware, and benefits from a motorised vari-focal lens that adjusts to the site during installation.
• You may need a different model if: Your priority is covering a large open area such as a car park, playing field, or warehouse floor from a single mounting point - a PTZ or multi-sensor panoramic camera will serve wide-area coverage more effectively than a single-lens dome.
• Pairs well with: A Dahua WizSense-compatible NVR with SMD Plus support, which allows person and vehicle filter rules to be managed centrally across all cameras in the system from one interface.

Common Questions

1. Does this camera need a PoE+ switch or will a standard PoE port work?

   IEEE 802.3at (PoE+) is recommended for reliable operation. The dual-light system and motorised lens together draw more current than a basic fixed-lens dome. Standard 802.3af ports may work at short cable runs but can cause instability or prevent the white-light illuminator from reaching full output at longer runs. Budget for 802.3at-capable ports or a 12V DC power supply as an alternative.

2. Will this camera work with a non-Dahua NVR?

   Yes, with limitations. The camera streams standard RTSP and supports ONVIF, so it will record to most third-party NVRs. However, SMD Plus AI classification, IVS rules, and smart event triggers only function fully when paired with a compatible Dahua NVR or VMS. On a non-Dahua recorder you'll get video recording but lose the on-camera AI alert filtering that makes this model distinct from a basic 8MP dome.

3. How does the dual-light system decide when to switch between IR and white light?

   It is configurable. You can set the camera to IR-only, white-light only, or smart mode, where the white-light illuminator activates based on an AI-detected trigger - such as a person being classified by SMD Plus. A time-based schedule is also available. This means the white light only fires when it's needed rather than illuminating continuously, which reduces power consumption and avoids unwanted light disturbance during quiet periods.

4. Does this camera support two-way audio?

   No. This model includes a built-in microphone for audio recording but does not have a built-in speaker. Audio can be recorded alongside video, but two-way communication requires a separate external speaker or intercom device connected to the camera's audio output. If two-way audio is a core requirement, a camera with both a built-in mic and built-in speaker would be more suitable.

5. What is the frame rate at full 8MP resolution?

   At maximum 8MP (3840 x 2160) the camera records at up to 15fps. If smooth motion at 25fps or 30fps is a priority - for example on a busy pedestrian thoroughfare or vehicle lane - dropping to a lower resolution sub-stream for live view while recording the main stream at 8MP/15fps is the practical approach. Most Dahua NVRs handle this dual-stream configuration natively.

6. How do I adjust the lens after installation?

   The motorised lens is adjusted remotely via the camera's web interface or through a compatible Dahua NVR interface - no physical access to the camera is required after mounting. Zoom and auto-focus are controlled digitally. This is a one-time setup step during commissioning. Once set, the lens position is retained until manually changed, so there's no ongoing adjustment required.

7. Is this camera suitable for use in extreme Australian summer heat?

   Yes. The operating temperature range extends to +60 degrees C, which covers direct sun exposure in most Australian outdoor environments including roof soffits and west-facing wall positions. For installations in direct unshaded sunlight in far north Queensland or desert locations where surface temperatures can exceed ambient air temperature, confirm the actual surface temperature at the mount point against the rated spec before finalising placement. This model is stocked by Security Australia and is the ANZ-specific variant, intended for local climate conditions.
