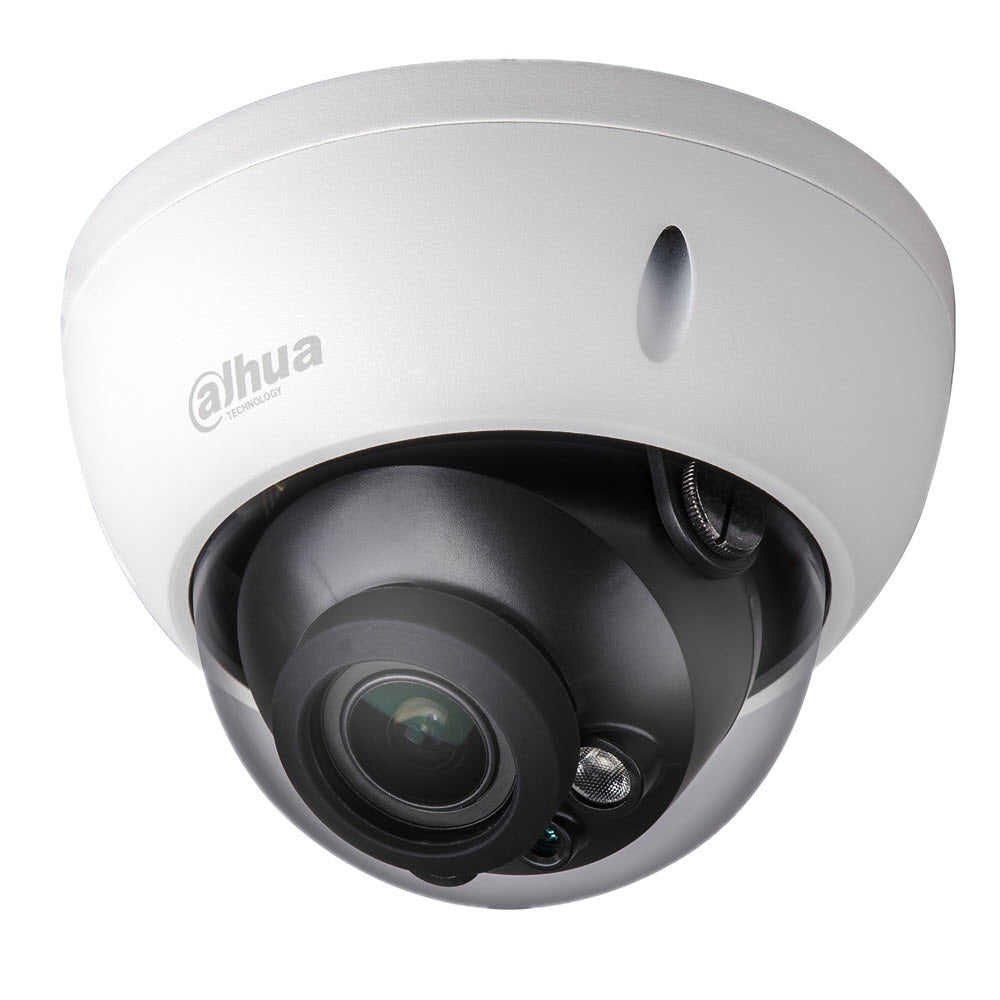

Dahua DH-IPC-HDBW3841RP-ZAS-27135 8MP Dome Motorised Network Camera, Zoom Function 50m IR WizSense

Model: IPC-HDBW3841R-ZAS

Who This Is For

Property managers specifying cameras for sites where a fixed-lens dome simply won't cut it - car parks with variable entry points, school corridors with awkward camera positions, or retail spaces where coverage zones shift - will find the Dahua IPC-HDBW3841R-ZAS built around exactly that problem. The 2.7-13.5mm motorised varifocal lens lets installers dial in the field of view remotely after mounting, removing the guesswork from placement and avoiding costly repositioning. At 8MP resolution with WizSense AI on board, this camera delivers SMD Plus detection that filters humans and vehicles from background movement, cutting down false alerts without requiring a separate AI appliance. The IK10 vandal-resistant housing and IP67 weatherproofing make it a solid choice for semi-exposed locations including covered walkways, building entries, and stairwells where some environmental exposure is unavoidable.

What This Camera Actually Does

Who Buys This Model

• Commercial property installers: Specifying cameras for mixed-use buildings where one mounting position needs to cover different zones depending on tenancy layout - the motorised lens handles zone adjustments without physical camera changes.
• School and childcare facility managers: Needing IK10-rated cameras in corridors and entry zones where vandal resistance matters and AI filtering reduces false motion alerts triggered by children moving through frame constantly.
• Retail chain security teams: Rolling out 8MP coverage across store floors and stockrooms where H.265+ compression keeps recording storage manageable across multiple sites without sacrificing resolution.
• Integrators building triggered-response systems: Using the alarm I/O and audio I/O on the ZAS variant to connect door sensors or PA outputs directly to the camera, reducing the relay hardware needed in a panel.

Honest Assessment

The IPC-HDBW3841R-ZAS earns its place in commercial installs through the combination of a motorised varifocal lens, genuine 8MP output, and onboard WizSense AI that actually changes how alerts behave day-to-day. The IK10 rating is confirmed and meaningful - this housing takes a hit without the dome shattering or the camera losing alignment. H.265+ compression keeps bitrates practical for 8MP footage, and the alarm and audio I/O ports on this ZAS variant make it more flexible than standard dome models in the same range. Available through Security Australia, it suits installs where coverage zones are not yet finalised at time of mounting. Where it has limits: the 40m IR range is adequate for most indoor and semi-covered outdoor use, but for long open approaches exceeding that distance, a bullet-format camera with a longer IR throw would serve better. This is also a dome form factor - if visible deterrence on a building exterior is the primary goal, a bullet housing makes a stronger visual statement.

Before You Buy

Quick Fit Check

• Good match if: You need ceiling-mounted 8MP coverage in a commercial space where the exact field of view cannot be confirmed until after installation - the 2.7-13.5mm motorised lens lets you fine-tune remotely once the camera is live.
• Good match if: Your site requires AI-filtered intrusion or tripwire alerts that distinguish humans from vehicles, and you want that processing on the camera itself without a separate AI appliance or server.
• You may need a different model if: Your primary requirement is wide-area outdoor perimeter coverage beyond 40m or highly visible deterrence on a building facade - a bullet or PTZ camera type would better serve those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need ceiling-mount 8MP coverage with a remotely adjustable field of view, onboard WizSense AI, and the alarm/audio I/O that the ZAS variant provides - all in an IK10-rated dome housing.
• You may need a different model if: Your site requires wide-area coverage of large open spaces, active camera steering to follow movement, or optical zoom beyond the 5x range this lens provides - a PTZ camera type handles those requirements more effectively.
• Pairs well with: A compatible Dahua WizSense NVR with AI event management to centralise SMD Plus alerts across multiple cameras and manage local Micro SD card failover recording.

Common Questions

1. Does this camera work with a standard PoE switch or does it need PoE+?

   Standard PoE (IEEE 802.3af) is sufficient. This camera accepts 12V DC or 802.3af PoE, so a regular PoE port on a managed or unmanaged switch will power it without needing a PoE+ (802.3at) budget. A single Cat5e or Cat6 run carries both power and data, keeping your cable count down.

2. Will the AI detection still work if I set the camera to record at 25fps?

   No, not at full resolution 25/30fps. When AI functions including SMD Plus, intrusion, and tripwire detection are enabled, the camera outputs at a maximum of 20fps at 8MP. If you require 25 or 30fps recording, AI functions must be disabled in the camera settings. Plan your recording profile around one or the other before finalising NVR storage calculations.

3. How does SMD Plus differ from standard motion detection?

   Standard motion detection triggers on any pixel change in the frame - shadows, headlights sweeping across a wall, or a branch moving will all generate events. SMD Plus uses the onboard AI chip and deep learning algorithm to classify detected objects as human or vehicle before deciding whether to raise an alert. The result is a significant reduction in false alarm events without requiring any server-side processing.

4. Does this camera work for outdoor installations?

   Yes, with the right mounting position. The IP67 rating confirms protection against dust ingress and sustained water jets, and the IK10 rating confirms resistance to impact. It is suitable for covered outdoor locations such as eaves, undercover walkways, and building entry canopies. For fully exposed open-sky positions with heavy rain or direct sun exposure, a bullet-format camera with a sun shield is generally a more suitable choice.

5. Can I adjust the zoom after the camera is installed without physically accessing it?

   Yes. The motorised varifocal lens is adjusted electronically through the camera's web interface or a compatible Dahua NVR. There is no manual adjustment ring to turn. Once the camera is cabled and live, the field of view can be set from any point on the network. This is one of the practical advantages this model has over a fixed-lens dome in installs where coverage zones are not confirmed at rough-in stage.

6. What is the maximum local storage this camera supports?

   256GB via a Micro SD card. That provides onboard failover recording if the NVR network connection drops, or can be used as the primary recording method for standalone single-camera installations. Storage duration at 8MP with H.265+ compression will vary with scene activity levels - higher motion scenes consume storage faster. If you have questions about storage sizing for your setup, the team at Security Australia can assist.

7. What does the IK10 rating mean in practical terms?

   IK10 is the highest rating in the IEC 62262 impact protection scale, meaning the housing is tested to withstand 20 joules of impact force - roughly equivalent to a 5kg mass dropped from 400mm. In practice, this means the dome cover and housing resist breakage from deliberate strikes, thrown objects, or accidental contact from tools or equipment. It does not mean the camera is indestructible, but it is meaningfully more robust than a standard dome with no IK rating.
