  • Sku: DH-IPC-HDBW2831EP-S-0280B-S2
  • Vendor: SecurityAustralia

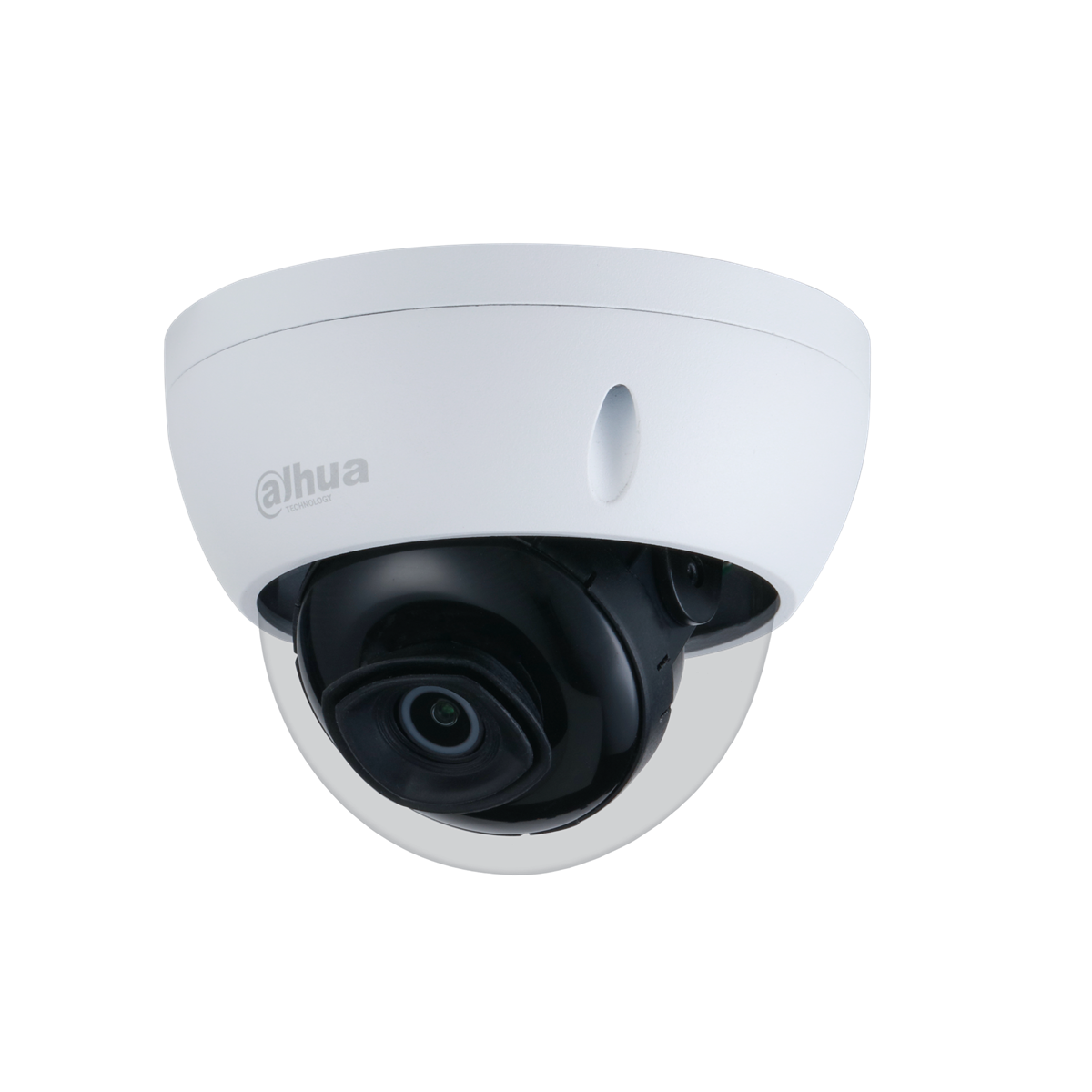

Dahua DH-IPC-HDBW2831EP-S-S2 8MP (4K Ultra HD) Fixed 2.8mm, Starlight + Lite, IR 30m Dome Camera

$211.00 AUD
$196.43 AUD
 per
Spend $100.00 to FREE SHIPPING

8MP Lite IR Fixed-focal Dome Network Camera

The Dahua DH-IPC-HDBW2831E-S-S2 is an 8MP Lite IR Fixed-focal Dome Network Camera, designed for reliable and high-resolution surveillance. It features an 8MP sensor that delivers clear and detailed video, making it ideal for monitoring large areas with precision. The camera's fixed-focal lens provides consistent focus and sharpness, ensuring that critical details are captured without distortion.

Key Features

  • 8MP, 1/2.7" CMOS image sensor for low light performance and high image definition.
  • Outputs maximum resolution of 8MP (3840 × 2160) @15 fps, supports 2688×1520 @25/30 fps.
  • H.265 codec with high compression rate and ultra-low bit rate.
  • Built-in IR LED with a maximum IR distance of 30 meters.
  • Features ROI, SMART H.264+/H.265+ for flexible coding, suitable for various bandwidth and storage environments.
  • Equipped with rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for versatile monitoring scenes.
  • Supports intelligent detection for intrusion and tripwire, along with abnormality detection for motion, video tampering, and other system errors.
  • Supports up to 256 GB Micro SD card.
  • Operates on 12V DC/PoE power supply.
  • IP67 and IK10 rated for robust protection against harsh environments.

Code/SKU: DH-IPC-HDBW2831E-S-S2
Quick Specs:

  • Max. Resolution: 3840 (H) × 2160 (V)
  • ROM: 128 MB
  • RAM: 256 MB
  • Scanning System: Progressive

Specifications

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 Lux@F2.0

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–65°

Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

F2.0

Field of View

2.8 mm: Horizontal 105° × Vertical 56° × Diagonal 125°

3.6 mm: Horizontal 87° × Vertical 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft)
3.6 mm: 1.9 m (6.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

74.7 m
(245.1 ft)

29.9 m
(98.1 ft)

14.9 m
(48.9 ft)

7.5 m
(24.6 ft)

3.6mm

106.7 m
(350.1 ft)

42.7 m
(140.1 ft)

21.3 m
(69.6 ft)

10.7 m
(35.1 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.2W

Environment

Power Consumption

–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.19" × Φ4.33")

Net Weight

0.350 kg (0.77 lb)

Gross Weight

0.491 kg (1.08 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HDBW2831EP-S-S2 8MP (4K Ultra HD) Fixed 2.8mm, Starlight + Lite, IR 30m Dome Camera

$211.00 AUD
$196.43 AUD
 per

The Dahua DH-IPC-HDBW2831E-S-S2 is an 8MP Lite IR Fixed-focal Dome Network Camera, designed for reliable and high-resolution surveillance. It features an 8MP sensor that delivers clear and detailed video, making it ideal for monitoring large areas with precision. The camera's fixed-focal lens provides consistent focus and sharpness, ensuring that critical details are captured without distortion. With its IR capabilities, the camera can perform well in low-light conditions, offering night vision up to 30 meters.

The camera is housed in an IP67-rated weatherproof and IK10-rated vandal-resistant dome, making it suitable for both indoor and outdoor environments. It supports H.265 video compression, which reduces bandwidth and storage requirements without compromising image quality. The camera also includes features like motion detection, region of interest (ROI), and smart IR to enhance its performance in various surveillance scenarios. Easy to install and integrate with existing security systems, this camera is a cost-effective solution for professional security needs. Additionally, the camera supports Power over Ethernet (PoE) for simplified installation, reducing the need for additional cabling. Its robust design and advanced features make it an excellent choice for various security applications.

Features

  • 8MP, 1/2.7" CMOS image sensor for low light performance and high image definition.
  • Outputs maximum resolution of 8MP (3840 × 2160) @15 fps, supports 2688×1520 @25/30 fps.
  • H.265 codec with high compression rate and ultra-low bit rate.
  • Built-in IR LED with a maximum IR distance of 30 meters.
  • Features ROI, SMART H.264+/H.265+ for flexible coding, suitable for various bandwidth and storage environments.
  • Equipped with rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for versatile monitoring scenes.
  • Supports intelligent detection for intrusion and tripwire, along with abnormality detection for motion, video tampering, and other system errors.
  • Supports up to 256 GB Micro SD card.
  • Operates on 12V DC/PoE power supply.
  • IP67 and IK10 rated for robust protection against harsh environments.



Functions

Smart Codec
Dahua’s Smart Codec technology, featuring an advanced scene-adaptive rate control algorithm, offers superior encoding efficiency compared to H.265 and H.264. This innovation delivers high-quality video while significantly reducing storage and transmission costs.

WDR
The advanced Wide Dynamic Range (WDR) technology in Dahua network cameras ensures clear details even in environments with extreme brightness contrasts. It provides clear video in both brightly lit and shadowed areas, handling high brightness and backlight conditions effectively.

Starlight
Dahua's Starlight technology excels in low-light conditions, delivering clear and vibrant color video even in extremely dark environments. It ensures high-quality image performance in near-total darkness.

IVS
Dahua’s Intelligent Video Surveillance (IVS) technology, powered by advanced video algorithms, supports intelligent features such as tripwire and intrusion detection for enhanced security monitoring.

Protection (IP67, IK10, Wide Voltage)

  • IP67: The camera is rigorously tested for dust and water resistance, remaining functional after immersion in up to 1 meter of water for 30 minutes.
  • IK10: The enclosure is built to withstand impacts from a 5 kg hammer dropped from 40 cm (20J impact energy), ensuring durability against physical attacks.
  • Wide Voltage: The camera accommodates a ±30% input voltage tolerance, making it suitable for use in outdoor environments with unstable power supplies.
Technical Specifications:

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 Lux@F2.0

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–65°

Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

F2.0

Field of View

2.8 mm: Horizontal 105° × Vertical 56° × Diagonal 125°

3.6 mm: Horizontal 87° × Vertical 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft)
3.6 mm: 1.9 m (6.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

74.7 m
(245.1 ft)

29.9 m
(98.1 ft)

14.9 m
(48.9 ft)

7.5 m
(24.6 ft)

3.6mm

106.7 m
(350.1 ft)

42.7 m
(140.1 ft)

21.3 m
(69.6 ft)

10.7 m
(35.1 ft)
