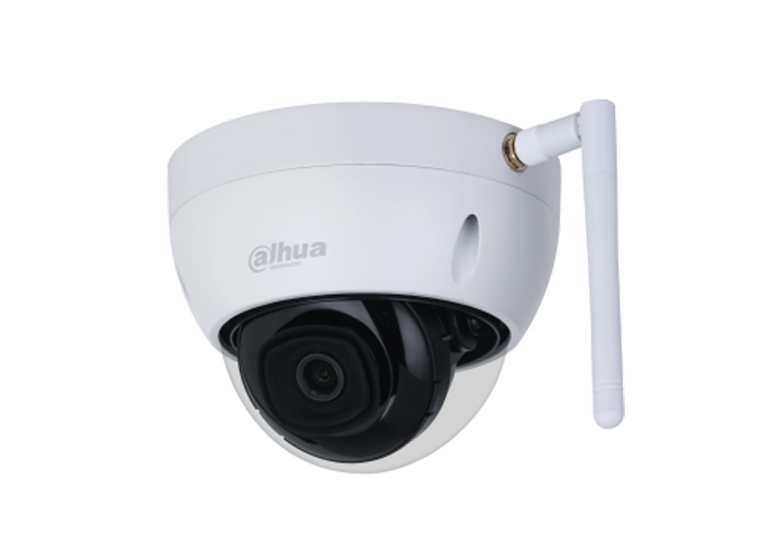

DAHUA DH-IPC-HDBW1430DE-SW 4MP Fixed Wifi Dome Camera

$130.00 AUD
In stock!
Spend $100.00 to FREE SHIPPING

4MP IR Fixed-focal Wi-Fi Dome Network Camera

The Dahua IPC-HDBW1430DE-SW is a 4MP IR Fixed-focal Wi-Fi Dome Network Camera designed for high-quality surveillance. It features a 4-MP 1/3" CMOS image sensor, providing low luminance and high-definition images. The camera can output a maximum resolution of 2560 × 1440 at 20 fps and supports 3 MP at 25/30 fps. Utilizing the H.265 codec, it offers a high compression rate and ultra-low bit rate, which is beneficial for saving storage space and bandwidth.

Key Features

  • 4MP 1/3″ CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED.
  • SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments.
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
  • Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
  • Supports max. 256 G Micro SD card.
  • 12 VDC power supply.
  • IP67, IK10 protection.

Code/SKU: DH-IPC-HDBW1430DE-SW
Quick Specs:

Video Compression: H.264B; H.264; H.264H; H.265

Pan/Tilt/Rotation Range

  • Pan: 0–355°
  • Tilt: 0–75°
  • Rotation: 0–355°

Specifications



Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.03 Lux@F2.0 (Color, 30 IRE)

0.003 Lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0–355°
Tilt: 0–75°
Rotation: 0–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:
Horizontal: 90°; Vertical: 50°; Diagonal: 107°
3.6 mm:
Horizontal: 76°; Vertical: 40°; Diagonal: 92°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

68 m

(223.10 ft)

27.2 m (89.24 ft)

13.6 m (44.62 ft)

6.8 m

(22.31 ft)

3.6 mm

85.2 m (279.53 ft)

34.1 m (111.88 ft)

17.0 m (55.78 ft)

8.5 m

(27.89 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+;Smart H.264+

Video Frame Rate

Main stream:
2560 × 1440@ (1–20 fps)
Sub stream:
640 × 480@(1–25 fps)

640 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz

Wireless Range

Up to 80 m (The performance varies based on actual environment)

SDK and API

Yes

Cyber Security

Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP

Interoperability

ONVIF (Profile S/Profile G); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB, sold separately)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 2 W (12 VDC);
Max. (H.265+IR intensity): 4.9 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

Φ110.7 mm × 88.7 mm (Φ4.33" × 3.49")

Net Weight

414 g (0.91 lb)

Gross Weight

592 g (1.31 lb)

Documentation

IPC-HDBW1430DE-SW_datasheet_20220706.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

DAHUA DH-IPC-HDBW1430DE-SW 4MP Fixed Wifi Dome Camera

$130.00 AUD

The Dahua IPC-HDBW1430DE-SW is a 4MP IR Fixed-focal Wi-Fi Dome Network Camera designed for high-quality surveillance. It features a 4-MP 1/3" CMOS image sensor, providing low luminance and high-definition images. The camera can output a maximum resolution of 2560 × 1440 at 20 fps and supports 3 MP at 25/30 fps. Utilizing the H.265 codec, it offers a high compression rate and ultra-low bit rate, which is beneficial for saving storage space and bandwidth.

The built-in IR LED enhances night vision capabilities, ensuring clear images even in low-light conditions. The camera supports SMART H.264+/H.265+ flexible coding, making it adaptable to various bandwidth and storage environments. It also includes several image enhancement technologies such as DWDR (Digital Wide Dynamic Range), 3D NR (3D Noise Reduction), and BLC (Backlight Compensation), which help maintain image quality in different lighting scenarios.

For security, it offers abnormality detection features like motion detection, video tampering, and alerts for SD card issues, network disconnection, IP conflict, and illegal access. The camera operates on a single antenna 2.4G Wi-Fi that covers up to 80 meters in an open area and supports up to 256 GB Micro SD cards for local storage. It is powered by a 12 VDC power supply and is built to withstand harsh conditions with its IP67 and IK10 protection ratings, ensuring it is dust-tight, water-resistant, and vandal-proof​

Features:

  • 4MP 1/3″ CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED.
  • SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments.
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
  • Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
  • Supports max. 256 G Micro SD card.
  • 12 VDC power supply.
  • IP67, IK10 protection.
Technical Specifications:

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.03 Lux@F2.0 (Color, 30 IRE)

0.003 Lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0–355°
Tilt: 0–75°
Rotation: 0–355°
