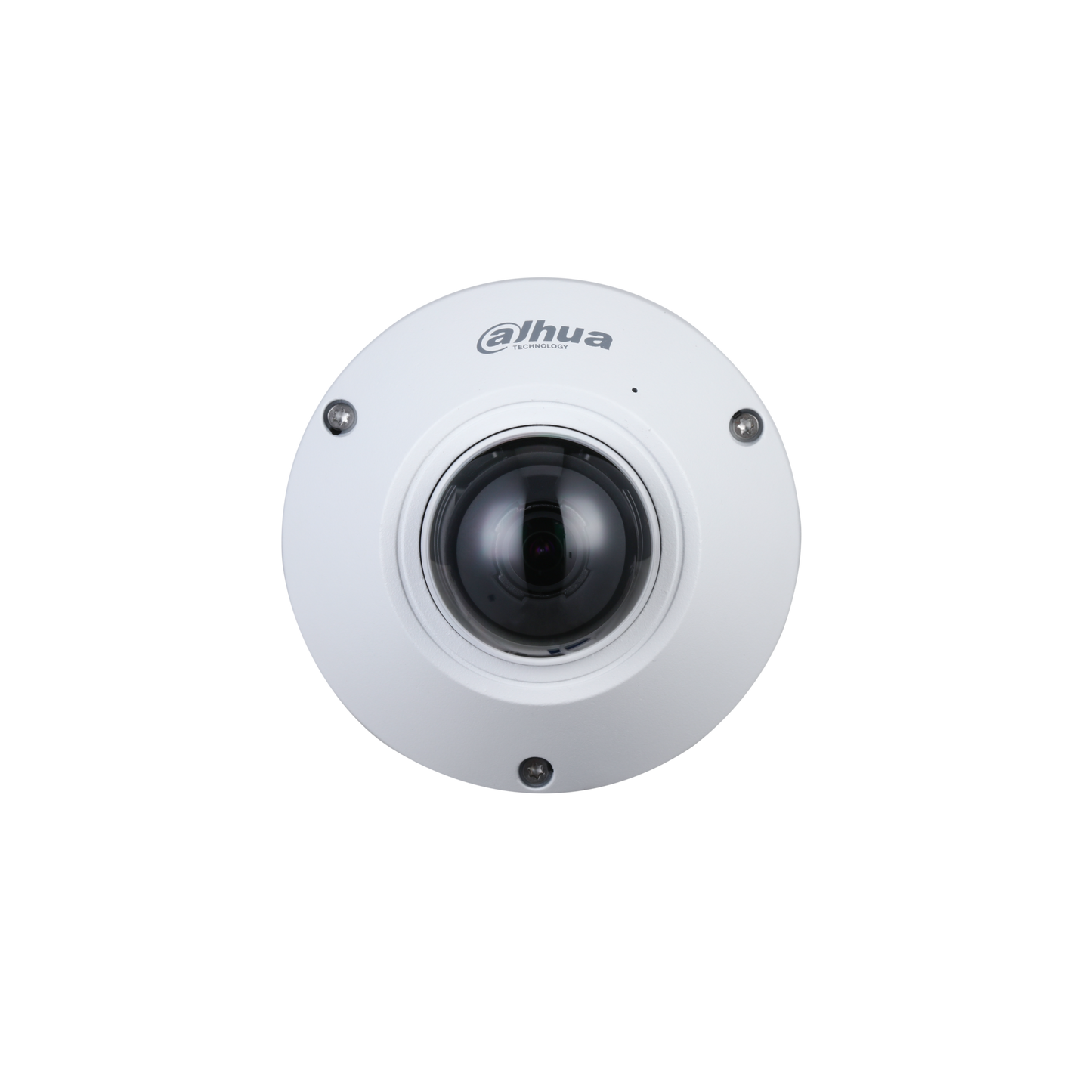

Dahua DH-IPC-EBW81242-AS-S2 12MP Fisheye 360 degree Camera

Model: DH-IPC-EBW81242-AS-S2

Who This Is For

When reducing camera count without reducing coverage is the priority, the Dahua DH-IPC-EBW81242-AS-S2 is the specification to reach for. This 12MP fisheye camera is built for installers and facility managers working in high-footfall environments - shopping centres, airport terminals, large open-plan offices, warehouses, and childcare facilities - where a single ceiling-mounted unit needs to deliver a complete 360-degree view of the space below. At 3840 x 3000 resolution, it captures enough detail across the full hemisphere that operators can dewarp and digitally pan to any zone in post. Beyond raw coverage, the integrated analytics suite - People Counting, Heat Map, Queuing Management, and IVS tripwire and intrusion detection - makes this a working operational tool, not just a recording device. IP67 and IK10 ratings mean it handles the exposure and knocks that come with public and semi-industrial environments.

What This Camera Actually Does

Who Buys This Model

• Retail and Shopping Centre Managers: Deploying above aisle intersections or entry atria to capture People Counting data and queue length alerts alongside standard security coverage - replacing 3 or 4 individual fixed cameras per installation point.
• Airport and Transport Hub Operators: Monitoring open terminal floors, gate lounges, and public waiting areas where a single overhead camera needs to cover a wide footprint and support intrusion detection rules at entry boundaries.
• Warehouse and Distribution Centre Installers: Positioning above packing floors, dispatch bays, or internal intersections where the IK10 rating and -30°C to +60°C operating range matter as much as the coverage footprint.
• Childcare and Education Facilities: Installing in play rooms, common areas, and reception spaces where a single ceiling unit needs to cover the full room without leaving corners unmonitored, and where the compact flush profile avoids visual disruption.
• Security Integrators on Commercial Fitouts: Specifying cameras that reduce cable runs and NVR channel counts on large open-plan floors - 1 fisheye unit consuming 1 PoE port in place of 4 standard cameras using 4 ports and 4 cable runs.

Honest Assessment

The DH-IPC-EBW81242-AS-S2 does a genuine job of consolidating coverage in open-plan spaces. The 12MP sensor gives the dewarping engine enough source resolution to produce watchable zoomed-in regions, and the People Counting and Heat Map analytics are onboard - no separate analytics server required. IK10 and IP67 ratings make it a credible choice for public-access and semi-outdoor locations, not just clean office interiors. The -30°C to +60°C operating range extends placement options into environments most dome cameras cannot handle. Where this camera has clear limits: the built-in IR range is 10 metres, so it is not suited to large dark warehouse floors or outdoor car parks where IR throw of 30m-50m is needed. The fisheye projection also means that identification-grade detail at the outer edge of a large room requires careful mounting height planning - this is not an ANPR or face-identification tool at range. For long-distance or perimeter-facing applications, a bullet or varifocal turret camera available through Security Australia would serve better.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open-plan floor - retail, transit, office, or warehouse - from a single ceiling point and need the People Counting or Heat Map analytics running without a separate analytics server.
• Good match if: Your install location is a covered outdoor area, canopy entrance, or cold-store environment where IP67 ingress protection and a -30°C to +60°C operating range are required alongside 360-degree coverage.
• You may need a different model if: Your priority is long-range identification at distance, perimeter monitoring across a large outdoor area, or car park coverage requiring IR throw beyond 10 metres - a bullet or varifocal turret camera would be better suited to those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single ceiling-mounted unit to cover a large open-plan area with onboard People Counting, Heat Map, and IVS analytics - and want to reduce camera count, cable runs, and NVR channel use in the same move.
• You may need a different model if: Your application requires long-range identification, perimeter coverage along a fence line, or IR throw beyond 10 metres - a bullet camera or motorised varifocal turret would be a better product type for those scenarios.
• Pairs well with: A Dahua-compatible PoE NVR with fisheye dewarp support, or a DSS/SmartPSS workstation for full access to the panoramic viewing modes and analytics dashboard.

Common Questions

1. Does this camera actually replace multiple cameras or is that marketing?

   In practice, yes - with clear limits. Mounted at a suitable ceiling height in an open-plan room with no obstructions, the 360-degree fisheye lens captures the full floor area beneath it from a single point. That genuinely replaces 3-4 fixed cameras covering the same space. The trade-off is that a fisheye camera provides excellent situational awareness and People Counting capability but does not match the identification-grade detail of a fixed camera aimed at a specific face or number plate at distance. If your goal is wide-area coverage and occupancy analytics from one ceiling point, the replacement argument holds. If you need identification at range, it does not.

2. Will this camera work outdoors in Australian conditions?

   Yes. The IP67 rating provides full protection against dust ingress and water immersion, and the IK10 rating confirms resistance to 20-joule impacts. The operating temperature range of -30°C to +60°C covers everything from alpine cold stores through to rooftop installations in northern Australia. For fully exposed outdoor use with no overhead shelter, confirm that the mounting surface can accommodate the ceiling-down fisheye orientation, as the lens is designed to point downward from a ceiling or soffit rather than outward from a wall.

3. What viewing modes are available and do I need special software to use them?

   The camera supports multiple dewarped output modes including full 360-degree panoramic, dual-180-degree corridor, quad-split, and virtual PTZ. The raw fisheye stream records to any compatible NVR or microSD card without issue. To use the interactive dewarped viewing modes and access the People Counting and Heat Map analytics dashboards, you need either a Dahua NVR with fisheye dewarp support or Dahua's DSS or SmartPSS platform. Third-party VMS compatibility varies - confirm fisheye dewarp support with your VMS vendor before installation if you are not using Dahua's own platform.

4. What is the recommended mounting height for People Counting to work accurately?

   Dahua's People Counting analytics are calibrated to perform most accurately in the 3m-5m ceiling height range for standard deployments. Below 3m the field of view narrows significantly; above 5-6m the per-pixel resolution allocated to each person in the dewarped frame decreases, which reduces counting accuracy. For warehouse or high-bay environments with ceilings above 6m, People Counting performance should be validated on-site before finalising the installation. At heights of 8m or more, this camera functions well as a wide-area situational awareness tool but People Counting accuracy at standard confidence thresholds is not guaranteed without on-site verification.

5. How does the fisheye dewarping work and what does DORI mean for this camera?

   The 1/1.7" 12MP sensor captures a full hemisphere in a single circular fisheye projection. Dewarping is the mathematical correction applied either in-camera or by the NVR/VMS that converts that distorted circular image into a flat rectilinear view - essentially unrolling the fish-eye into a conventional perspective. DORI refers to the Detection, Observation, Recognition, and Identification distances at which a person or object can be meaningfully seen in the image. For a fisheye camera, these distances are determined by a combination of total sensor megapixels, the proportion of pixels allocated to any given region after dewarping, and mounting height. Because the 12MP sensor distributes resolution across the entire hemisphere, the DORI performance in any single cropped zone is considerably less than a 12MP fixed camera aimed directly at that zone. Dahua's published DORI distances for this specific model should be consulted for your exact installation height - this data is available in the full technical datasheet from the product listing on Security Australia.

6. Does the microSD card storage work independently from the NVR?

   Yes. The microSD slot supports cards up to 256GB and operates as a standalone edge recording location. If the NVR connection is lost - due to network failure or power interruption - the camera continues recording locally to the card. When the NVR connection restores, footage can be retrieved from the card. This makes the local storage useful as a failover buffer in networked deployments, or as the primary storage in smaller standalone installations where an NVR is not part of the system.

7. Does this camera support two-way audio?

   Yes. The DH-IPC-EBW81242-AS-S2 includes both a built-in microphone and a built-in speaker, enabling two-way audio when accessed through a compatible Dahua platform such as DMSS or DSS. The "AS" suffix in the model name denotes audio and speaker capability. This allows an operator to listen to audio at the camera location and speak back through the unit - useful for reception areas, entry points, or any location where verbal communication without a separate intercom is needed.
