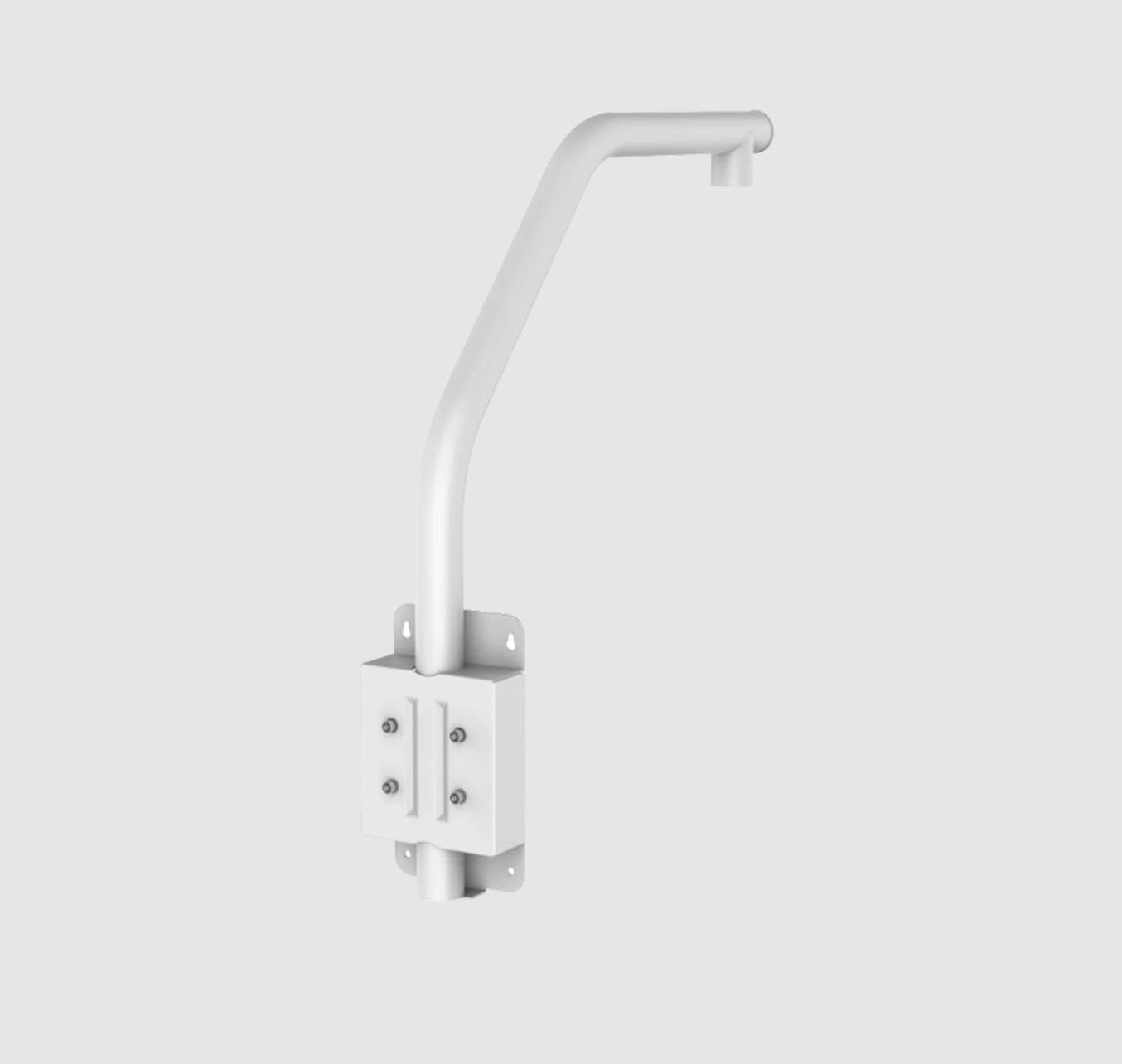

Dahua DH-AC-PFB303S Parapet Mount Bracket

Model: DH-AC-PFB303S

Who This Is For

For installers and integrators who need a dedicated mounting solution for cameras positioned on building parapets, the Dahua PFB303S is built specifically for that job. Parapet walls - the low barriers running along flat rooftops, commercial buildings, and multi-storey car parks - present a mounting challenge that standard wall brackets simply are not designed to handle. This bracket wraps over the parapet structure and provides a stable platform for camera deployment along rooflines where a fixed wall or ceiling mount point does not exist. At 879mm wide and rated to carry up to 7kg, it suits bullet, box, and PTZ cameras that need to overlook loading docks, car parks, perimeter fencing, or open ground below. The aluminium and SUS 430 stainless steel construction handles Australian outdoor conditions, and the -40°C to +60°C temperature rating means it stays structurally sound across the full range of local climates, from tropical north to alpine south.

What This Bracket Actually Does

Who Buys This Model

• Commercial Security Installers: Deploying cameras on flat-roofed retail centres, warehouses, and office buildings where parapet walls are the only viable camera position for perimeter coverage.
• Car Park and Facility Managers: Mounting cameras to overlook multi-storey car park rooftops and entry lanes where the parapet edge is the highest and most effective vantage point.
• Industrial Site Integrators: Installing long-range bullet or PTZ cameras on factory and distribution centre parapets to cover loading docks, yard areas, and perimeter fencing below.
• Body Corporate and Strata Managers: Specifying rooftop camera positions on residential apartment buildings where the parapet wall is the only suitable outdoor high-position mounting location.

Honest Assessment

The PFB303S does one specific job well: it gives you a secure, weather-rated camera mount on a parapet wall where no other bracket type is practical. The aluminium and SUS 430 stainless steel build is genuinely suited to rooftop exposure, and the 7kg load rating covers most camera types you would realistically deploy at height. The wide bracket arm provides proper clearance from the parapet face, which is a real functional advantage over improvised solutions. What this bracket will not do is adapt to standard walls, poles, or ceilings - it is purpose-built for parapet edge installations only. If your site has conventional wall surfaces available, a standard wall mount or corner bracket will be simpler to fit. It is also a large and heavy accessory at 4.3kg, so single-person installation at height will require appropriate equipment. The PFB303S is available through Security Australia as part of the Dahua accessories range.

Before You Buy

Quick Fit Check

• Good match if: Your site has a flat-roofed building with parapet walls and the camera needs to overlook ground level, a car park, or perimeter below - the PFB303S is the correct bracket type for this exact mounting scenario.
• Good match if: You are mounting a heavier camera assembly such as a PTZ or box camera with housing - the 7kg load rating and stainless steel hardware provide the structural margin needed for these camera types.
• You may need a different model if: Your mounting surface is a standard vertical wall, eave soffit, corner junction, or pole - a wall arm bracket, corner mount, or pole mount bracket will be the more suitable product type for those installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera position is on a parapet wall and you need a bracket purpose-built for that mounting configuration rather than a workaround solution - the PFB303S is engineered specifically for parapet edge deployment with a 7kg load capacity and full outdoor material spec.
• You may need a different model if: Your site uses vertical flat walls, corner junctions, or poles as the primary mounting surface - a wall arm bracket, corner bracket, or pole mount bracket type will be the more direct and practical solution for those scenarios.
• Pairs well with: Outdoor bullet cameras, box camera housings, or PTZ camera heads within the 7kg load rating - particularly long-range models deployed for perimeter and large-area coverage applications.

Common Questions

1. What is the maximum camera weight the PFB303S can support?

   The rated load bearing is 7kg. This covers most outdoor bullet cameras, box cameras with external housings, and mid-range PTZ heads. If your camera assembly - including any mounting adapter, housing, and cable gland hardware - approaches or exceeds 7kg, a heavier-duty bracket type should be considered instead.

2. Will this bracket suit a coastal or high-humidity environment?

   Yes. The PFB303S uses SUS 430 stainless steel hardware combined with an aluminium body, which provides meaningful corrosion resistance in coastal and high-humidity environments. The bracket is rated to 90% relative humidity. For heavily exposed marine environments, inspect hardware condition periodically as part of routine maintenance.

3. Does this bracket work with cameras from brands other than Dahua?

   Generally yes, provided the camera's mounting thread and base plate dimensions are compatible and the total camera weight remains under 7kg. The PFB303S provides a platform for camera head attachment - camera-to-bracket thread compatibility should be confirmed against your specific camera model's base specification before installation.

4. Will this bracket handle Australian summer rooftop temperatures?

   Yes. The operating temperature range of -40°C to +60°C accounts for the high surface temperatures that occur on exposed metal brackets on Australian rooftops during summer. Aluminium and stainless steel construction avoids the warping and fastener loosening that can occur with lower-grade materials under sustained heat exposure.

5. Does the PFB303S come with mounting hardware included?

   The bracket is supplied by Security Australia as a complete unit. Verify with your order documentation which fasteners are included in the package, as site-specific anchoring into masonry or concrete may require additional fixings appropriate to your parapet wall substrate.

6. How far does the bracket arm extend the camera from the parapet wall face?

   The bracket depth dimension is 180mm. This positions the camera head 180mm outward from the parapet, which in most standard parapet configurations is sufficient to clear the top of the parapet wall and provide an unobstructed downward field of view. Confirm against your specific parapet height and camera lens angle before finalising mounting position.

Downloads & Resources

No downloads available for this product.
