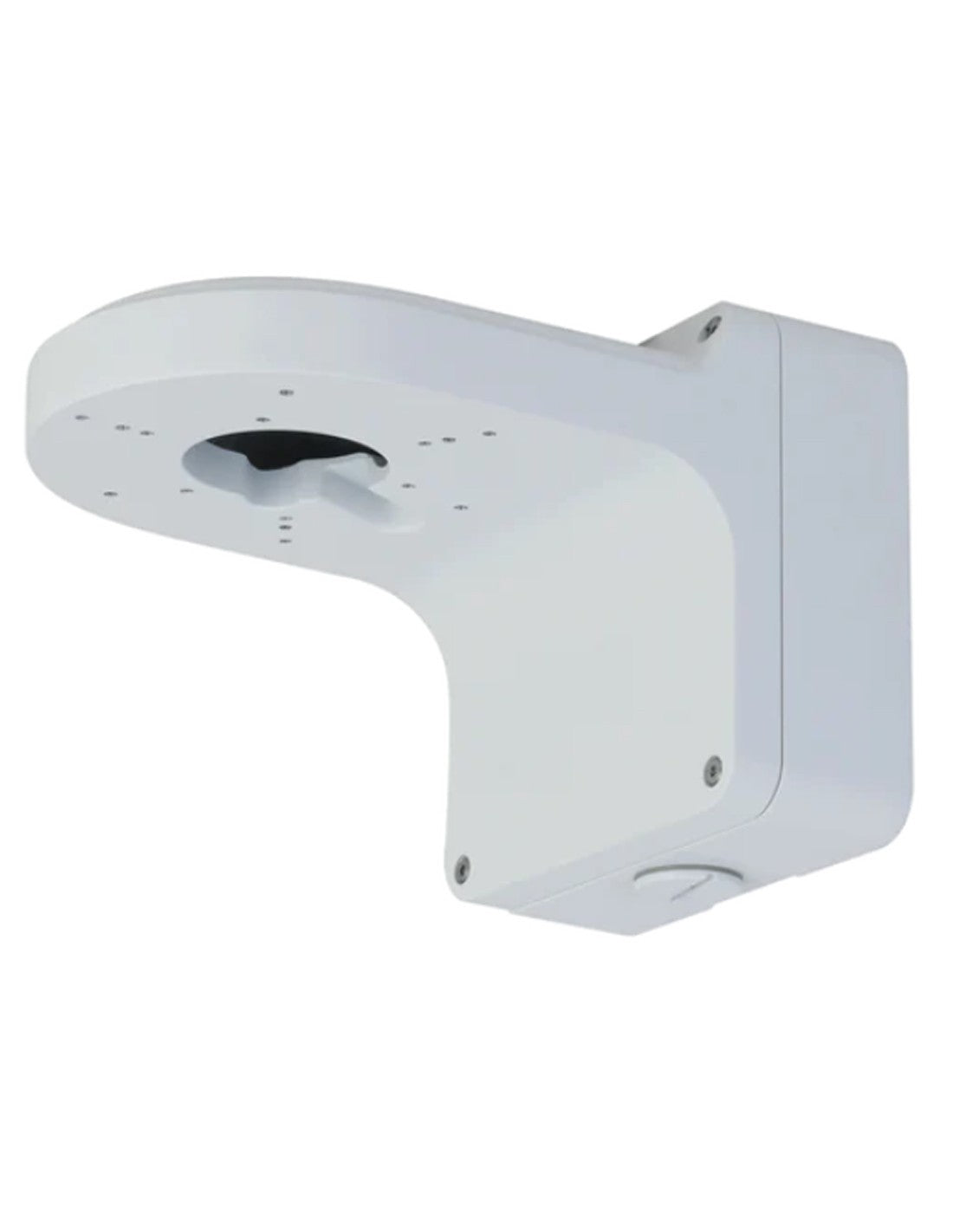

Dahua DH-AC-PFB206W Wall Mount Bracket

Model: DH-AC-PFB206W

Who This Is For

When wall mounting position is the priority and you need a bracket that handles both indoor and outdoor conditions without compromise, the Dahua PFB206W is the straightforward answer. Installers specifying Dahua cameras for external wall positions - eaves, building facades, perimeter walls, and entry points - need a bracket that tolerates temperature extremes, holds its mount over time, and keeps a clean profile. The PFB206W is constructed from aluminium alloy with a white finish, rated for operating temperatures from -40 °C to +60 °C, and carries a 3.0 kg load capacity that covers the majority of Dahua bullet and turret models. At 222 mm in length, it provides the standoff distance needed to angle cameras clear of wall obstructions and achieve the sightlines the installation requires.

What This Bracket Actually Does

Who Buys This Model

• Security installers completing Dahua outdoor camera runs: Specifying the matching Dahua bracket keeps the thread interface and mounting geometry confirmed, avoiding the fitment issues that come with generic third-party arms.
• Commercial site installers in exposed locations: The -40 °C to +60 °C operating range and aluminium alloy body make this suitable for facades, carparks, and plant areas where bracket longevity in harsh conditions matters.
• Installers replacing failed plastic or lightweight brackets: Sites where an existing lightweight bracket has corroded, cracked, or shifted camera angle benefit from the aluminium alloy construction and confirmed 3.0 kg load rating of the PFB206W.
• Project managers ordering accessory stock: The white finish matches Dahua's standard camera colour range, making this a direct-pull item for residential and commercial installs without colour-match decisions.

Honest Assessment

The PFB206W does its job without overcomplicating it. The aluminium alloy body, confirmed 3.0 kg load capacity, and -40 °C to +60 °C temperature range make it a dependable wall arm for standard Dahua bullet and turret installations. The white finish is consistent with Dahua's outdoor camera range, and the G 3/4 thread interface keeps the mounting straightforward. These are the specs that matter for day-to-day installation work, and they are all confirmed. What this bracket will not do is support heavier PTZ or multi-sensor camera heads that exceed the 3.0 kg load rating - a dedicated heavy-duty bracket or pole mount is the better choice for those applications. The basic anti-corrosion rating also means this bracket is not the right pick for coastal or marine environments where a higher corrosion-protection rating is warranted. Available through Security Australia as part of the Dahua accessories range.

Before You Buy

Quick Fit Check

• Good match if: You are wall-mounting a Dahua bullet or turret camera that weighs 3.0 kg or under and need a bracket rated for outdoor temperatures across all Australian climate zones.
• Good match if: The installation requires a clean white finish that matches standard Dahua camera housings and a G 3/4 thread interface for through-arm cable routing.
• You may need a different model if: You are mounting a PTZ or multi-sensor camera that exceeds 3.0 kg, or the site is in a coastal or high-salt environment - a heavy-duty or marine-rated bracket from the Dahua accessories range would be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are mounting a standard Dahua bullet or turret camera to a wall and need a confirmed G 3/4 thread interface, aluminium alloy construction, and outdoor temperature rating in a white finish.
• You may need a different model if: Your camera is a PTZ or multi-sensor unit that exceeds 3.0 kg, or the installation is in a coastal environment - a heavy-duty or higher corrosion-rated bracket from the Dahua accessory range would be the correct choice.
• Pairs well with: Dahua outdoor bullet cameras, turret cameras, and compact dome cameras rated up to 3.0 kg with a G 3/4 base thread.

Common Questions

1. Will this bracket fit my Dahua bullet or turret camera?

   It depends on your specific camera model. The PFB206W uses a G 3/4 screw thread interface and has a 3.0 kg load capacity. Most Dahua outdoor bullet and turret cameras use this thread standard and fall within the weight limit, but you should cross-reference your camera's SKU against Dahua's Accessory Selector tool to confirm fitment before ordering.

2. Is this bracket suitable for outdoor use in Australian conditions?

   Yes. The PFB206W is rated for operating temperatures from -40 °C to +60 °C and operating humidity up to 90% RH, which covers the full range of Australian outdoor climate conditions including far-north Queensland heat. The aluminium alloy body resists the thermal expansion issues that affect plastic brackets in sustained heat.

3. Does this bracket route cables through the arm?

   Yes, the G 3/4 thread interface is a hollow conduit-style connection that allows cabling to pass through the bracket arm. This keeps the cable run internal to the bracket rather than exposed externally, which is the standard approach for weatherproofing the cable entry point on outdoor Dahua camera installations.

4. Can this bracket support a Dahua PTZ camera?

   No, not reliably. PTZ cameras typically exceed the PFB206W's confirmed 3.0 kg load capacity. Mounting a PTZ on a bracket rated below its weight can lead to bracket flex, camera angle drift, and mounting failure over time. A dedicated heavy-duty wall bracket with an appropriate load rating is required for PTZ installations.

5. Is this bracket rated for coastal or salt-air environments?

   No. The PFB206W carries a basic anti-corrosion rating, which is adequate for standard outdoor environments but is not specified for coastal, marine, or high-salt-air conditions. For installations within close proximity to the ocean or industrial salt environments, a bracket with a higher corrosion protection rating is the correct choice. Security Australia stocks Dahua accessories across multiple protection grades.

6. What are the physical dimensions of the PFB206W?

   The bracket measures 222.0 mm x 160.7 mm x 144.4 mm (L x W x H) and weighs 1.1 kg net. The 222 mm arm length provides adequate standoff from most wall surfaces to achieve correct camera positioning without the housing touching the wall. Packaging dimensions are 219.0 mm x 218.0 mm x 275.0 mm with a gross weight of 1.5 kg.
