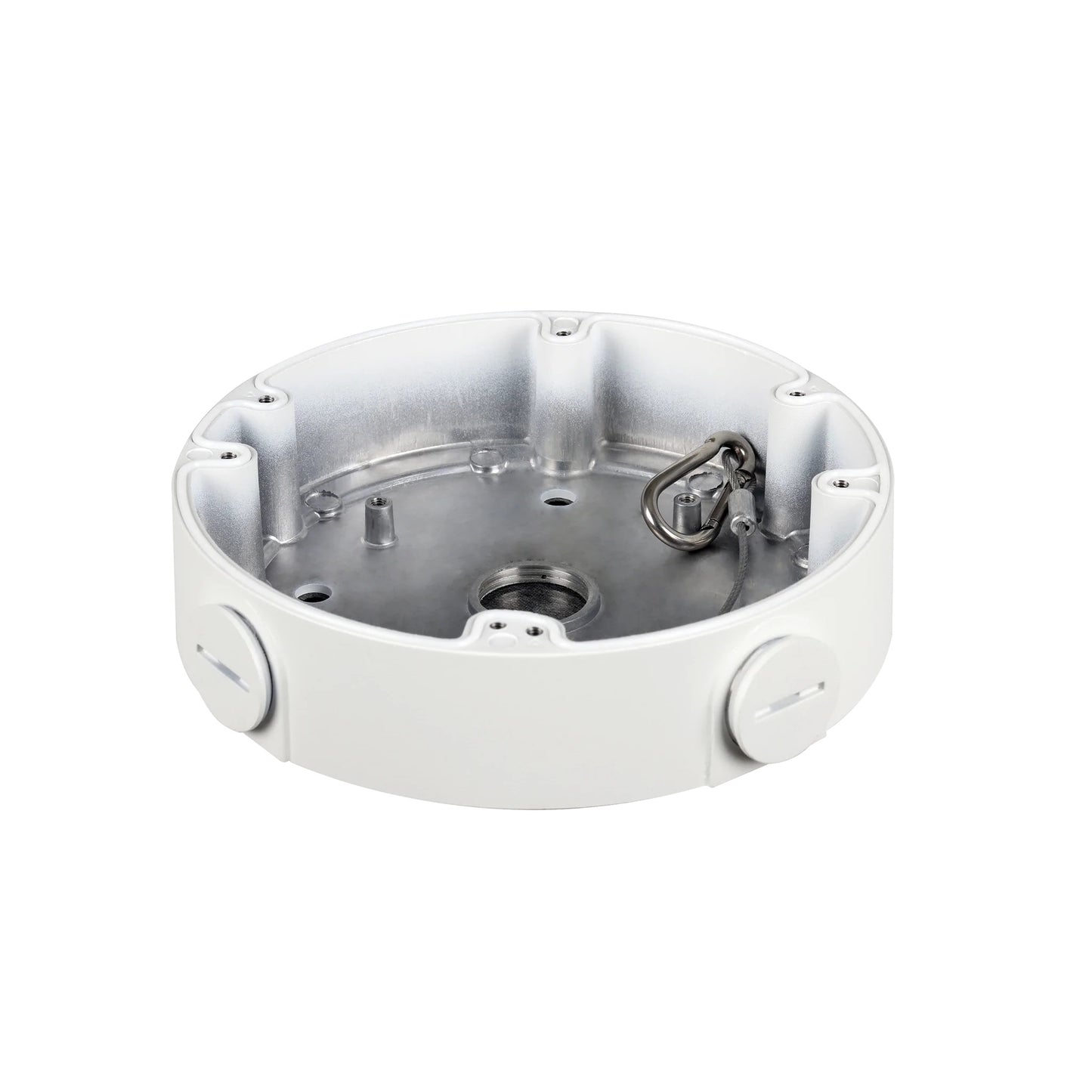

Dahua DH-AC-PFA138 Water proof Junction Box

Model: DH-AC-PFA138

Who This Is For

For installers and integrators who need a clean, weather-resistant cable management point behind wall-mounted or ceiling-mounted Dahua cameras, the DH-AC-PFA138 junction box is a purpose-built aluminium housing that keeps conduit entries, cable joins, and wiring terminations contained and protected. It suits outdoor installations where exposed cabling would otherwise be vulnerable to UV, moisture, or physical interference. The 161 x 37 mm profile sits flush against mounting surfaces, and the G3/4 inch thread accepts standard conduit fittings for a secure, finished entry point. The built-in safety rope hook adds a practical hold point during installation, particularly when working at height. With an operating range of -40°C to +60°C, it handles Australian conditions from alpine to tropical without issue. It is well suited to professional installs where a neat cable exit point matters as much as the camera itself.

What This Actually Does

Who Buys This Model

• CCTV Installers: Professionals fitting Dahua cameras in outdoor locations who need a conduit-compatible cable entry point that satisfies both tidy workmanship standards and client expectations.
• Commercial Site Managers: Facilities teams specifying camera accessories for multi-site rollouts who want consistent, weatherproof termination boxes matched to their Dahua camera fleet.
• Industrial Property Owners: Warehouses and manufacturing sites where exposed cabling behind cameras would be subject to dust, moisture, and occasional physical contact - environments where aluminium outperforms plastic.
• Residential Installers: Builders and electricians fitting cameras to rendered or brick external walls who need a neat conduit connection point rather than surface-run cable visible from the street.

Honest Assessment

The DH-AC-PFA138 does one job - it gives you a weatherproof, aluminium-bodied cable management point between your wall surface and the camera mount. The G3/4 conduit thread, -40°C to +60°C operating range, and 3.0 kg load bearing capacity make it a dependable choice for outdoor Dahua camera installations where exposed wiring is not acceptable. The safety rope hook is a practical detail that experienced installers will appreciate, particularly on roofline or elevated wall positions. What this box will not do is serve as a general-purpose electrical enclosure for large cable joins, splitters, or multi-port patch points - the 161 x 37 mm footprint is sized for camera-to-conduit connections specifically. If you need a larger enclosure for consolidating multiple runs, a dedicated outdoor cable management enclosure would be more appropriate. The DH-AC-PFA138 is supplied by Security Australia and is designed to work with Dahua's standard camera mounting footprints.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a Dahua camera on an external wall or eave and need a weatherproof aluminium junction point that accepts standard G3/4 conduit fittings for a clean, professional finish.
• Good match if: The installation site experiences extreme temperatures - the -40°C to +60°C operating range covers alpine through tropical Australian conditions without material degradation.
• You may need a different model if: You need to house multiple cable joins, a PoE splitter, or a connector block in the one enclosure - a larger outdoor equipment enclosure from the accessories range will better suit that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a purpose-built aluminium junction box with a standard G3/4 conduit entry designed to work with Dahua camera mounting footprints, particularly in outdoor or temperature-extreme locations.
• You may need a different model if: Your installation requires housing for multiple cable terminations, a PoE splitter, or additional components - a larger outdoor equipment enclosure from the accessories range would provide the internal space required.
• Pairs well with: Dahua wall-mount and ceiling-mount bracket accessories, and outdoor-rated Dahua dome or turret cameras where conduit entry is the preferred cable management method.

Common Questions

1. Will the DH-AC-PFA138 work with any Dahua camera, or only specific models?

   It is designed as a general Dahua camera accessory and fits the standard mounting footprint used across a wide range of Dahua dome and turret cameras. Check your specific camera's mounting dimensions against the 161 x 37 mm box profile to confirm compatibility before ordering, particularly with larger housing cameras that may require a different bracket configuration.

2. Does this junction box provide a weatherproof seal around the cable entry?

   Yes, it is described as a waterproof junction box and the conduit thread entry at G3/4 inch is designed for a sealed conduit connection. Ensure the conduit fitting is correctly engaged with the thread and that the conduit run itself is sealed at both ends to prevent moisture tracking through the cable.

3. What is the maximum camera weight the PFA138 can support?

   The rated load bearing capacity is 3.0 kg. Most standard Dahua dome and turret cameras fall well within this limit. If you are mounting a heavier housing camera or adding additional bracket weight, verify the total assembly weight before relying on this box as the primary support point.

4. Will this junction box handle the heat on a north-facing metal wall in summer?

   Yes. The operating temperature ceiling of +60°C covers the surface temperatures typically seen on north-facing or metal-clad walls in Australian summer conditions. The aluminium body conducts and dissipates heat rather than retaining it the way a plastic housing would, which helps keep the internal cable connections within operating range.

5. What does the safety rope hook actually do during installation?

   It gives the installer a rated anchor point to temporarily hang the camera body from during wiring. Rather than holding the camera in one hand while terminating the cable with the other - or resting the camera on a ladder rung - the hook holds the camera securely while both hands are free. It is a practical detail that reduces the risk of accidental drops during installation, especially when working at height. The PFA138 is available through Security Australia as part of the Dahua accessories range.

6. Can I use a non-Dahua camera with this junction box?

   Potentially, but it depends on the camera's mounting footprint. The PFA138 is engineered to align with Dahua's standard mounting dimensions. If a third-party camera uses the same footprint and your conduit is G3/4 inch, it may work mechanically - but compatibility is not guaranteed and should be physically verified before committing to an installation.
