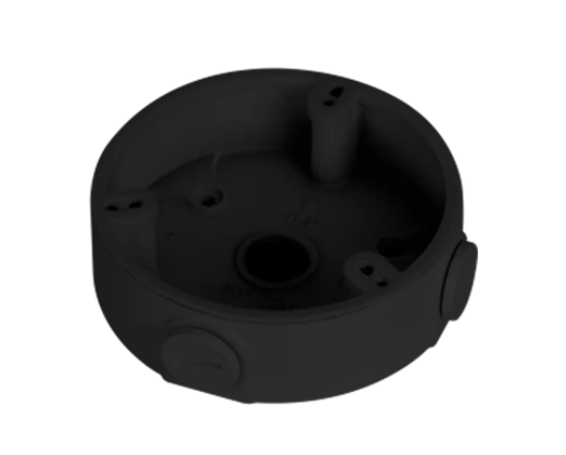

Dahua DH-AC-PFA136-B BLACK Water-Proof Junction Box

Model: DH-PFA136-B

Who This Is For

When weatherproofing and cable management at the camera mount point is the priority, the Dahua DH-PFA136-B junction box is the accessory installers reach for. Designed for outdoor dome camera installations where exposed cable entries create ingress risk, this black aluminium box sits between the mounting surface and the camera base, sealing the cable connection point to IP66 standard. It suits security installers working on external walls, soffits, and fascias where moisture, dust, and temperature extremes are a real concern. The compact 110mm diameter keeps the installation profile tight, and the M20 thread entry suits standard conduit fittings. With an operating range of -40°C to +60°C, it handles Australian climates from alpine to tropical. If you are spec'ing compatible dome cameras and need a tidy, weather-sealed cable exit point without fabricating a custom solution, the PFA136-B is the practical answer.

What This Actually Does

Who Buys This Model

• Security Installers: Specifying compatible Dahua dome cameras on external surfaces where a clean, weatherproof cable exit is required without relying on silicone alone.
• Electrical Contractors: Running conduit to camera positions and needing a direct M20 thread connection point that terminates neatly at the camera base.
• Commercial Property Teams: Maintaining installed camera systems in coastal or high-humidity environments where unprotected cable entries have caused recurring corrosion or ingress issues.
• System Integrators: Working on multi-site rollouts where standardising on a black junction box matches darker camera housings or architectural colour schemes on the building facade.

Honest Assessment

The DH-PFA136-B does its job well as a weatherproof cable management solution for compatible Dahua dome camera installations. The IP66 rating is a meaningful specification at this mount type - it addresses the most common point of moisture ingress on external dome mounts. The aluminium build handles heat dissipation better than plastic alternatives in direct sun exposure, and the M20 thread is a practical detail that saves time on conduit-fed installations. Available through Security Australia, the black colour option suits installations where a white junction box would stand out against darker cladding or painted surfaces. That said, this is a passive accessory with no electronic function - it does not enhance camera performance, provide surge protection, or replace a proper cable gland where one is required. Confirm camera compatibility before ordering, as the PFA136-B suits specific Dahua dome base diameters and is not a universal fit for all brands or mounting styles.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Dahua dome camera on an external surface and need an IP66-rated enclosure to seal the cable exit point from weather and dust ingress.
• Good match if: Your installation uses conduit runs terminating at the camera position and you need a direct M20 thread connection point for a clean, code-compliant finish.
• You may need a different model if: You are working with a non-Dahua camera or a dome with a significantly different base diameter - a universal or adjustable junction box type would be more appropriate for mixed-brand installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are mounting a compatible Dahua dome camera in an outdoor position and want an IP66-rated aluminium enclosure that terminates conduit via a standard M20 thread entry.
• You may need a different model if: Your installation uses cameras from multiple manufacturers with varying base diameters - a universal wall mount adapter type with adjustable cable entry would be a better fit.
• Pairs well with: Compatible Dahua fixed dome cameras and rigid or flexible conduit systems using standard M20 fittings.

Common Questions

1. Will this junction box work with any dome camera brand?

   No. The DH-PFA136-B is designed for use with compatible Dahua dome cameras and is sized to match Dahua's dome base dimensions at 110mm diameter. Cameras from other manufacturers or Dahua domes with different base sizes may not align correctly with the box footprint. Check the Dahua accessory compatibility list for your specific camera model before purchasing.

2. Does the IP66 rating mean it can be submerged in water?

   No. IP66 provides protection against powerful water jets from any direction, not submersion. It is the appropriate rating for exposed outdoor mounting points that face driven rain, hose-down cleaning, or heavy downpours, but the box is not intended for below-ground or submerged installations. For those environments, a higher IP-rated enclosure would be required.

3. What conduit size connects directly to the M20 thread entry?

   The M20 thread corresponds to G1/2" conduit fittings, which is one of the most common sizes used in Australian commercial security cabling. Standard M20 cable glands or conduit connectors thread directly into the entry point without adapters. If your conduit run uses a different size, a reducing fitting will be required.

4. Is the 1.0kg load rating sufficient for a typical security dome camera?

   Yes, for the vast majority of Dahua fixed dome cameras. Most compact dome models weigh between 0.2kg and 0.6kg, which sits well within the 1.0kg rated load bearing capacity. Heavier housings or PTZ cameras are not suited to this box - those require purpose-built mounting brackets rated to higher loads.

5. Does this junction box provide surge protection or any electrical function?

   No. The DH-PFA136-B is a passive mechanical enclosure only. It protects the cable connection point from weather and provides a conduit entry point but does not include surge suppression, terminal blocks, or any active electrical components. If surge protection is required at the camera position, a separate inline surge protector appropriate to the camera's interface type would need to be installed within or adjacent to the box.

6. Why choose the black version over the standard white PFA136?

   The black finish is specified when the camera and mounting surface are dark-coloured and a white junction box would create visible contrast. This is a common requirement on buildings with charcoal, grey, or dark bronze cladding, or where camera housings have been selected in black. Functionally both versions are identical - the difference is purely the anodised aluminium colour. The DH-PFA136-B is part of the Security Australia range for this reason, giving installers the colour choice to match site aesthetics.

Downloads & Resources

No downloads available for this product.
