DAHUA DH-AC-PFA111 MOUNT ADAPTER

Model: DH-AC-PFA111

Who This Is For

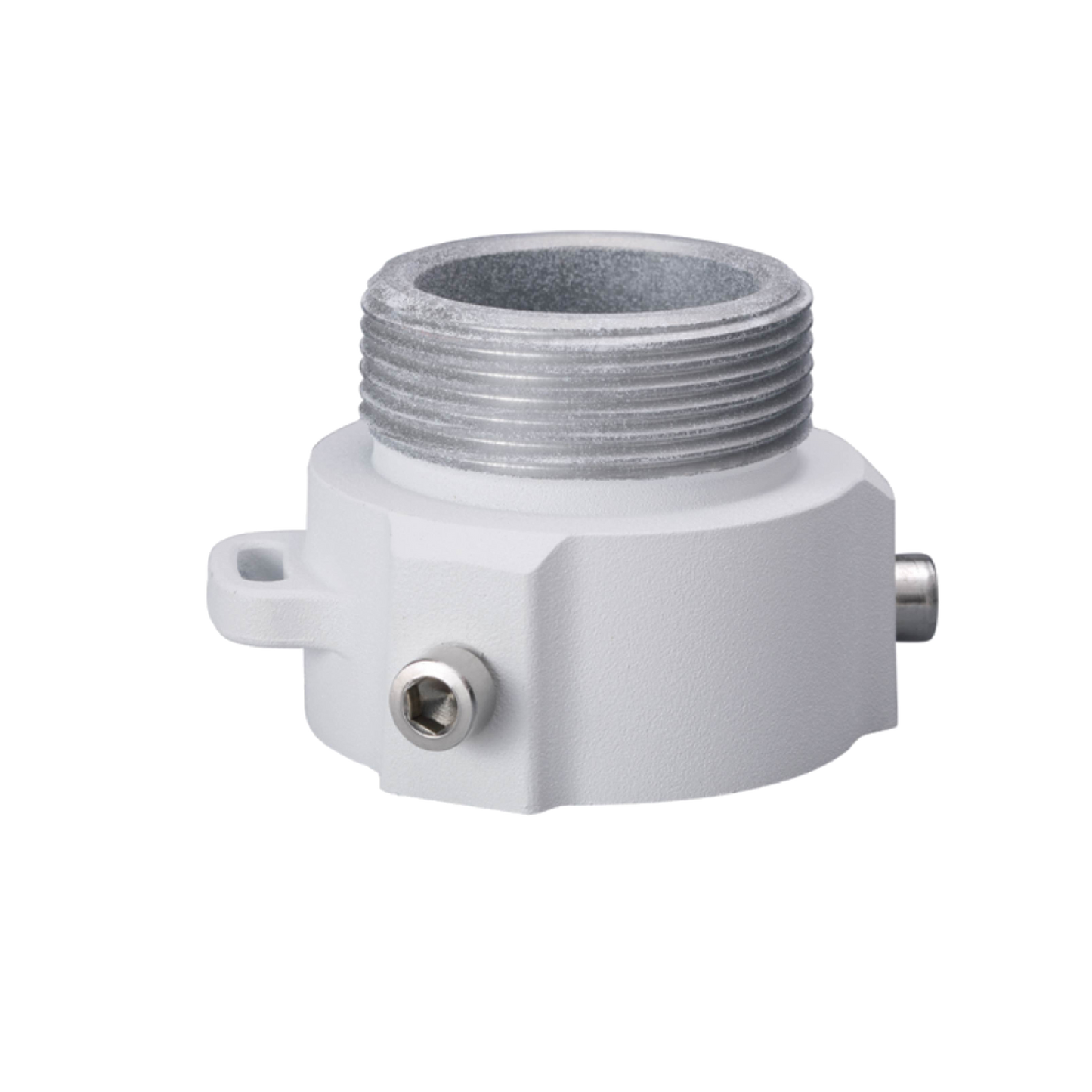

For installers who need a clean, low-profile mounting transition between a Dahua dome or turret camera and a conduit or pipe feed, the Dahua PFA111 Mount Adapter is the finishing piece that keeps an install looking deliberate rather than improvised. Sized at Φ60mm x 49mm with a G1 1/2" pipe thread interface, it accepts conduit runs directly and transfers the camera load - up to 7.0kg - to the surface behind it without flex or movement over time. The aluminium body handles operating temperatures from -40°C to +60°C, so it suits exposed outdoor locations just as comfortably as climate-controlled indoor plant rooms. If you are routing cable through conduit to a ceiling or wall-mounted Dahua camera and want the junction point to look finished rather than patched, this adapter is the component that makes that possible.

What This Adapter Actually Does

Who Buys This Model

• Security Installers on Conduit Runs: Installers routing Cat5e or Cat6 through rigid or flexible conduit to ceiling or wall positions who need a G1 1/2" threaded termination point that the camera base mounts directly onto.
• Commercial and Industrial Site Integrators: Integrators working on projects where exposed cable is not acceptable and surface conduit runs need a neat termination at every camera position, particularly in warehouses, car parks, and plant rooms.
• Installers Specifying Dahua Dome or Turret Cameras: Anyone building out a Dahua camera system who wants the mounting accessories to be factory-matched rather than field-fabricated, ensuring the junction between conduit and camera is rated for the camera's weight and the site's temperature range.
• Facilities and Maintenance Teams: In-house maintenance teams replacing or relocating cameras on existing conduit infrastructure who need a compatible adapter to finish the install to the same standard as the original.

Honest Assessment

The PFA111 does one thing well: it provides a rated, factory-matched termination point for conduit-fed Dahua camera installations. The aluminium body, 7.0kg load rating, and G1 1/2" thread spec mean there is no guesswork about whether it will hold the camera or fit the conduit - those numbers are confirmed. The white finish and compact 60mm diameter keep the install looking intentional rather than assembled from mismatched parts. Where it will not help you is if your install uses surface-mounted cable rather than conduit, or if you need a junction box with internal cable management - in those cases a dedicated back box or wall mount bracket is the more suitable product type. It is also specific to Dahua's mounting ecosystem, so it may not mate correctly with third-party camera bases even where the thread size matches. Available through Security Australia, it suits any installer already specifying Dahua cameras who wants the conduit termination component to be just as considered as the camera itself.

Before You Buy

Quick Fit Check

• Good match if: You are terminating a G1 1/2" conduit run at a Dahua dome or turret camera position and need a rated aluminium adapter that keeps the junction clean and the camera load properly transferred to the surface.
• Good match if: Your install is in an exposed outdoor or temperature-extreme environment and you need a mounting component confirmed to operate from -40°C to +60°C without degradation.
• You may need a different model if: You are installing without conduit and need a surface back box, a junction box with internal cable management, or a pendant mount arm - those are different product types better suited to non-conduit installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation uses G1 1/2" conduit terminating at the camera position and you need a factory-rated aluminium adapter that carries up to 7.0kg and is confirmed for the full Dahua mounting ecosystem.
• You may need a different model if: Your cabling is not run through conduit - in surface-cable or in-wall installations, a back box or flush wall mount bracket is a more suitable product type that provides the necessary cable management and surface fixing in a single component.
• Pairs well with: Dahua dome or turret cameras in the compatible weight range, combined with rigid or flexible conduit and appropriate wall or ceiling conduit brackets to complete the run.

Common Questions

1. Will the PFA111 work with any Dahua dome or turret camera?

   It is compatible with Dahua dome and turret cameras that use the matching G1 1/2" threaded base and fall within the 7.0kg load rating. Most Dahua IPC dome and turret housings in the standard range meet both criteria, but confirm your specific camera model's base thread spec and weight before ordering - heavier housings with large weather shields or integrated accessories may approach the load limit.

2. Does this adapter suit outdoor installation?

   Yes. The aluminium construction and operating temperature range of -40°C to +60°C make it suitable for exposed outdoor positions. It is not rated to a specific IP ingress protection standard on its own, so the camera housing above it carries the weather sealing responsibility - the adapter handles the structural and thermal demands of the mounting point.

3. What conduit thread type does the PFA111 use?

   The PFA111 uses a G1 1/2" BSP (British Standard Pipe) thread. This is not the same as NPT (National Pipe Thread) used in some North American conduit fittings. If your conduit system uses NPT-threaded terminations, you will need a BSP-to-NPT adapter before the PFA111 will seat correctly. Standard Australian electrical conduit fittings in G or BSP sizing will mate directly.

4. What is the maximum camera weight this adapter will support?

   The rated load bearing is 7.0kg (15.43lb). This covers the full weight range of standard Dahua dome and turret cameras. If you are specifying a heavier multi-sensor or large-format dome housing, verify the camera's total assembled weight - including any pendant arm, back box, or sun shield - against this figure before using the PFA111 as the primary mounting point.

5. Does this adapter include any cable management or seal for the conduit entry?

   No. The PFA111 provides the threaded mechanical connection between conduit and camera base - it does not include a built-in cable gland, conduit seal, or internal cable routing feature. If your installation requires weatherproofing at the conduit entry point, a conduit fitting or separate cable gland should be fitted to the conduit before it threads into the adapter. The team at Security Australia can advise on compatible conduit accessories for specific installation requirements.

6. Will this adapter work in a cold store or freezer environment?

   Yes. The confirmed operating temperature floor of -40°C means the PFA111 is suitable for cold storage, freezer rooms, and refrigerated loading dock environments. Aluminium maintains its structural properties at these temperatures, unlike some plastic mounting components that can become brittle in sustained sub-zero conditions.

Downloads & Resources

No downloads available for this product.
