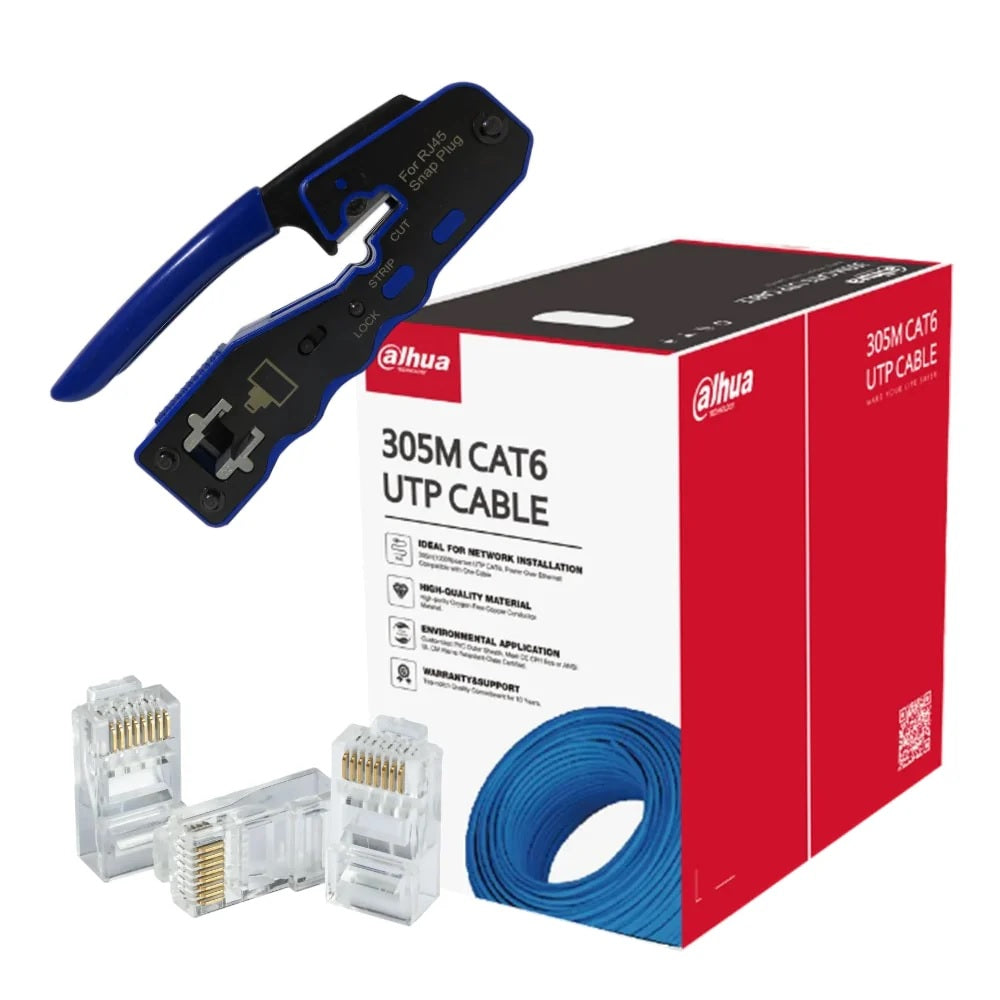

Enhance your network speed and reliability with the Dahua Cat6 Network Cable 305 meter Roll. This comprehensive kit includes the DH-PFM920I-6UN-C (Blue) cable, a DH-PFM976-631-PT RJ45 connector, and an AC-EZ4500 Crimp Thru Tool. Constructed with high-purity oxygen-free copper and a customized PVC outer sheath, this cable supports Power over Ethernet (PoE) and comes with a 10-year warranty. The pass-through connector, designed for effortless cable installation, features a trident brass sheet and gold plating for a lifespan of up to 750 cycles. The AC-EZ4500 tool simplifies the termination of Cat5e and Cat6 plugs by cutting the wires to the required length and securing the crimp in one motion. Enhance your network efficiency with this reliable and user-friendly kit!
UTP CAT6 Cable
Network cables are the most commonly used transmission mediums in generic cabling systems. It is usually composed of 4 pairs of twisted wires and is generally applied in system cabling within 100 meters.
Key Features
Code/SKU: DH-PFM920I-6UN-C
Quick Specs:
UTP CAT6 15U" Pass Through RJ45 Connector
The UTP CAT6 15U" Pass Through RJ45 Connector (DH-PFM976-631-PT) from Dahua Security is designed for high-speed data transmission, ensuring reliable network connections. This connector supports CAT6 UTP cables, providing enhanced performance for Ethernet networks with speeds up to 10 Gbps. Its pass-through design simplifies the installation process, allowing wires to be easily threaded through the connector for precise alignment and trimming.
Key Features
Code/SKU: DH-PFM976-631-PT
Quick Specs:
RJ45 Network Crimp Thru Tool
The RJ45 Network Crimp Thru Tool AC-EZ4500 from Dahua Security is a high-quality tool designed for efficient network cable installation. It features a pass-through function, allowing for easy verification of wire sequence before crimping, ensuring accurate and reliable connections.
Key Features
Code/SKU: DH-AC-EZ4500
Quick Specs: Pass through plugs required for the wires to be cut
Transmission Characteristics (100 m at 20°C) (328.08 ft at 68°F) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency (MHz) | Phase delay ≤ ns | IL ≤ dB | TCL≥ dB﹡ | EL TCTL≥ dB﹡ | NEXT ≥ dB | PS NEXT ≥ dB | |||||||||||||||||||||||||||||||||||||||||||||||||||||
1 | n/s | n/s | 50.0 | 35.0 | n/s | n/s | |||||||||||||||||||||||||||||||||||||||||||||||||||||
4 | 552.0 | 4.0 | 44.0 | 23.0 | 66.3 | 63.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
8 | 547.0 | 5.6 | 41.0 | 16.9 | 61.8 | 58.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | 545.0 | 6.4 | 40.0 | 15.0 | 60.3 | 57.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
16 | 543.0 | 8.1 | 38.0 | 10.9 | 57.2 | 54.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 542.0 | 9.0 | 37.0 | 9.0 | 55.8 | 52.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | 541.0 | 10.1 | 36.0 | 7.0 | 54.3 | 51.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
30﹡ | 540.6 | 11.0 | 35.2 | 5.5 | 53.1 | 50.1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
31.25 | 540.0 | 11.3 | 35.1 | n/s | 52.9 | 49.9 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
62.5 | 539.0 | 16.3 | 32.0 | n/s | 48.4 | 45.4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 538.0 | 21.0 | 30.0 | n/s | 45.3 | 42.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
200 | 537.0 | 30.7 | 27.0 | n/s | 40.8 | 37.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
250 | 536.0 | 34.8 | 26.0 | n/s | 39.3 | 36.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency (MHz) | EL FEXT ≥ dB | PS EL FEXT ≥ dB | RL ≥ dB | Delay skew ≤ ns | Zc(Ω) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
1 | n/s | n/s | n/s | n/s | n/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
4 | 56.0 | 53.0 | 23.0 | 45.0 | 100±15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
8 | 49.9 | 46.9 | 24.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | 48.0 | 45.0 | 25.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
16 | 43.9 | 40.9 | 25.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 42.0 | 39.0 | 25.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | 40.0 | 37.0 | 24.3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30﹡ | 38.5 | 35.5 | 23.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
31.25 | 38.1 | 35.1 | 23.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
62.5 | 32.1 | 29.1 | 21.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 28.0 | 25.0 | 20.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
200 | 22.0 | 19.0 | 18.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
250 | 20.0 | 17.0 | 17.3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Note: Executive standard for the above parameters: Q/DXJ 067-2019 "n/s"=Not Specified "﹡"=Unless otherwise customer stated the test results default to not shown in test report but comply with standard |
Material | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | PC + brass | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gold Plating Thickness | 15U" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flammability Rating | UL94V-2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage | 150 VAC RMS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current | 1.5 AMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contact Resistance | ≤ 20 mΩ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insulation Resistance | ≥1000 MΩ@500 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Withstands Voltage between Terminals | 1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mechanical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Retention Strength | 50 N for 60 s ± 5 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lifespan | 750 times | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insertion Force | ≤ 30 N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –25 °C to +55 °C (–13 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | < 80% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Time | 12 months | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structural | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Single Strand Cable Diameter | 21 AWG–23 AWG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Single Strand Insulated Cable Diameter | 1.09 mm–1.20 mm (0.043"–0.047") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Outer Sheath Diameter | ≤ 6.4 mm (0.25") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transport Package Dimensions | 500 mm × 350 mm × 270 mm (19.69" × 13.78" × 10.63") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Method | 100 pcs in 1 carton, and 50 cartons in 1 package | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.14 kg (0.31 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.18 kg (0.40 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua Cat6 Network Cable 305 meter Roll with RJ-45 Connector & Crimp Thru Tool Kit
The Dahua UTP CAT6 Cable DH-PFM920I-6UN-C is a high-quality networking solution designed to meet the demands of modern data transmission. This unshielded twisted pair (UTP) cable supports Gigabit Ethernet, ensuring high-speed and reliable network performance. It features 23 AWG solid copper conductors, providing excellent conductivity and durability for long-term use. The cable is compliant with TIA/EIA-568-C.2 standards, ensuring compatibility with a wide range of networking equipment. Its PVC jacket offers robust protection against physical damage and environmental factors. The cable length is 305 meters, making it suitable for extensive installations in commercial and residential environments. With a bandwidth capacity of up to 250 MHz, it ensures efficient data transfer with minimal interference. The cable is designed for easy installation, with sequential length markings to help track usage. It is ideal for applications such as IP cameras, data centers, and office networks. Dahua’s CAT6 cable provides a cost-effective solution for high-performance networking needs.
Features
Conductor |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
Oxygen free copper (99.97% purity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter |
0.53 mm ± 0.01 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insulation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
HDPE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Average Thickness |
0.21 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter |
0.95 mm ± 0.1 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color (4 Pairs) |
Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Separator |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
PE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specification |
Translucent 4.5 × 0.4 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rip Cord |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
Polyester |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specification |
500D |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sheath |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
PVC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Average Thickness |
0.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter |
6.0 mm ± 0.3 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Resistance of a Single Conductor |
8.7Ω/100 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Insulation Resistance |
5000MΩ·km |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Resistance Unbalance |
2% (pair intra), 4% (pairs inter) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dielectric Strength |
No breakdown with 1KV DC for 1 min |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Characteristic Impedance |
100 ± 15Ω |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Near End Cross Talk |
≥39.30 dB/100 m@250 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Attenuation |
34.8 dB/100 m@250 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Return Loss |
≥17.3 dB/100 m@250 MHz |
The UTP CAT6 15U" Pass Through RJ45 Connector (DH-PFM976-631-PT) from Dahua Security is designed for high-speed data transmission, ensuring reliable network connections. This connector supports CAT6 UTP cables, providing enhanced performance for Ethernet networks with speeds up to 10 Gbps. Its pass-through design simplifies the installation process, allowing wires to be easily threaded through the connector for precise alignment and trimming. The gold-plated contacts offer superior conductivity and corrosion resistance, ensuring long-lasting, stable connections. It features a durable construction that withstands frequent plugging and unplugging, making it suitable for various applications, including residential, commercial, and industrial environments. The connector is compatible with a wide range of networking devices, ensuring versatility and ease of integration into existing systems. It complies with industry standards, guaranteeing high performance and compatibility with other networking components. The transparent housing allows for easy verification of wire order, reducing installation errors. This connector is ideal for use in data centers, server rooms, and any setup requiring robust, high-speed network connections. Overall, the DH-PFM976-631-PT ensures optimal performance, durability, and ease of use for all your networking needs.
Features
Material |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
PC + brass |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gold Plating Thickness |
15U" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flammability Rating |
UL94V-2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
150 VAC RMS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
1.5 AMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contact Resistance |
≤ 20 mΩ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insulation Resistance |
≥1000 MΩ@500 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Withstands Voltage between Terminals |
1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mechanical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Retention Strength |
50 N for 60 s ± 5 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lifespan |
750 times |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insertion Force |
≤ 30 N |
The RJ45 Network Crimp Thru Tool AC-EZ4500 from Dahua Security is a high-quality tool designed for efficient network cable installation. It features a pass-through function, allowing for easy verification of wire sequence before crimping, ensuring accurate and reliable connections. This crimp tool is compatible with various RJ45 connectors, making it versatile for different networking tasks. Its ergonomic design provides comfortable handling and reduces hand fatigue during prolonged use. Additionally, the AC-EZ4500 is built with durable materials, ensuring longevity and consistent performance in professional settings.
Features
Enhance your network efficiency with this reliable and user-friendly Kit!
