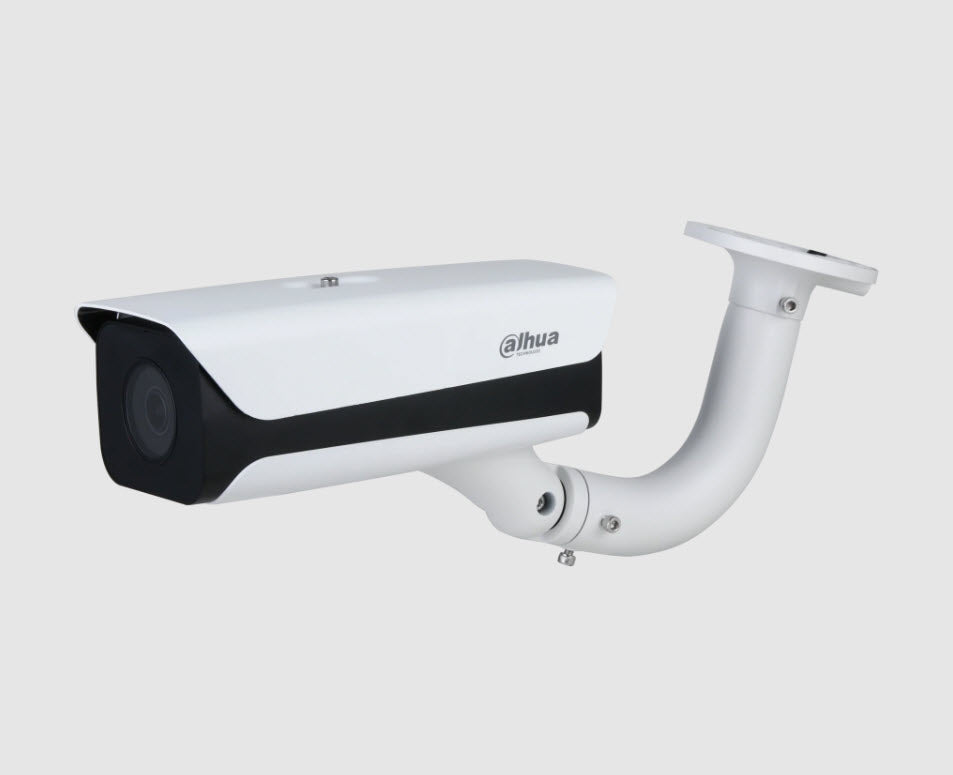

Dahua DHI-ITC215-PW6M-IRLZF-B ANPR Short Range Motorised Camera Max 8M Distance

Model: DHI-ITC215-PW6M-IRLZF-B

Who This Is For

Property managers specifying automated vehicle access control for carparks, gated facilities, or logistics yards will find the Dahua DHI-ITC215-PW6M-IRLZF-B built specifically for fixed-approach, short-range licence plate capture at entry and exit points up to 8 metres. This is not a general surveillance camera repurposed for ANPR - it is a dedicated intelligent traffic camera with a 1/2.8" CMOS sensor, 6mm-22mm motorised vari-focal lens, and a deep learning processor that reads and classifies vehicles 24/7. The motorised zoom simplifies commissioning at the lane: adjust focal length remotely without touching the camera housing once it is mounted. The IP67-rated enclosure handles outdoor exposure, and PoE support keeps the installation clean with a single Cat cable to each lane position. It connects directly to barrier gate controllers and access management platforms through its onboard signal and data interfaces.

What This Camera Actually Does

Who Buys This Model

• Carpark operators: Installing automated entry and exit control at boom gate lanes where short approach distances and consistent plate capture are the primary requirement.
• Logistics and warehouse facilities: Managing vehicle access at loading dock entry points where the deep learning processor's vehicle classification data supports delivery logging alongside plate reads.
• Strata and commercial property managers: Deploying gated resident or tenant access control where a barrier-integrated ANPR system eliminates the need for fobs, tags, or intercom interaction for known vehicles.
• Security integrators: Commissioning multi-lane access projects where the motorised vari-focal lens reduces on-site setup time and the PoE design simplifies cable infrastructure across multiple boom gate positions.

Honest Assessment

The DHI-ITC215-PW6M-IRLZF-B does the short-range fixed-approach ANPR task well. The motorised vari-focal lens is a genuine time-saver during commissioning - adjusting framing remotely is meaningfully faster than physical repositioning at height. The 96dB WDR and adjustable IR brightness address the two most common failure points in lane-based plate capture: backlit entry scenes and IR overexposure at close range. Deep learning vehicle classification adds genuine value beyond plate reading where audit trails matter. What this camera will not do is capture plates from fast-moving or free-flowing traffic - the 8-metre maximum distance and fixed-approach design suit controlled lane environments only. It is also not a general-purpose surveillance camera; image quality at a scene level is secondary to plate legibility within its designed operating zone. Sites needing long-range or multi-lane free-flow ANPR should look at higher-range purpose-built traffic cameras available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are installing a boom gate or barrier system with a fixed vehicle stop point within 8 metres of the camera position and need automated plate capture with direct barrier trigger capability.
• Good match if: Your site requires vehicle attribute logging (make, model, colour) alongside plate reads, and the deep learning classification data feeds into your access management or incident review workflow.
• You may need a different model if: Vehicles are approaching from beyond 8 metres, travelling at speed without stopping, or your application involves free-flow traffic monitoring - a long-range or free-flow ANPR camera type is more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your application is a fixed-approach controlled lane with a vehicle stop point within 8 metres and you need integrated barrier trigger capability alongside deep learning vehicle classification - not just basic plate reading.
• You may need a different model if: Vehicles approach at speed without stopping, or capture distances exceed 8 metres - a long-range ANPR camera type with extended IR distance and higher focal length range is the appropriate category for those applications.
• Pairs well with: PoE network switches for clean multi-lane power and data distribution, and an IP-based access control or video management platform that supports Dahua ANPR data integration for automated allow/deny logic.

Common Questions

1. Will this camera work at my entry lane if the approach distance is 10 metres?

   No. The DHI-ITC215-PW6M-IRLZF-B is rated to a maximum 8-metre capture distance. Beyond this, the sensor and IR combination will not reliably resolve plate characters to the standard required for accurate ANPR. If your vehicle stop point is further than 8 metres from the camera mounting position, a longer-range ANPR camera with a higher maximum distance rating is required.

2. Does this camera require a separate power supply or does it run on PoE?

   It runs on PoE. A single Cat5e or Cat6 cable delivers both power and network data to the camera. No separate power adapter or cabling run is required at the camera end, which simplifies installation at lane positions - particularly where running additional cable conduit is difficult.

3. Can this camera trigger a boom gate or barrier directly?

   Yes. The camera includes onboard signal, data, and communication interfaces that support direct connection to barrier gate controllers. When an authorised plate is recognised, the camera can output a trigger signal to open the barrier without requiring a separate relay or intermediate controller in the signal path.

4. What vehicle information does the deep learning processor capture beyond the licence plate?

   The deep learning algorithm classifies vehicle model, manufacturer logo, vehicle series, and colour in real time alongside the plate read. It also detects vehicles without a licence plate. This means every access event is logged with a full vehicle profile, not just the plate string - which is useful for both access management and retrospective incident investigation. This is confirmed functionality available through Security Australia as part of the DHI-ITC215-PW6M-IRLZF-B specification.

5. Is this a fixed-approach ANPR camera or can it read plates from free-flowing traffic?

   It is a fixed-approach camera only. This model is designed for controlled lane environments where vehicles slow to a stop or near-stop before a barrier. It is not suited to free-flow traffic monitoring on open roads or car parks without a physical vehicle stop mechanism. The 8-metre maximum distance and the IR illuminator design are both optimised for the stationary or slow-moving approach scenario.

6. How does the motorised vari-focal lens affect commissioning time compared to a fixed lens ANPR camera?

   The motorised vari-focal lens reduces commissioning time significantly on multi-lane sites. With a fixed lens, achieving the correct plate framing requires physical repositioning of the camera - which typically means adjusting the mounting bracket, checking the image, adjusting again, and repeating. With the 6mm-22mm motorised lens on this camera, the installer sets the mounting position once and then adjusts zoom and focus remotely through the management interface until the plate frame is correct. On a 4-lane site, this difference compounds considerably.

7. Does the 96dB WDR actually make a difference for licence plate capture at a sunlit entry?

   Yes, and it is one of the more practically important specs on this camera for Australian conditions. At east-facing entry points during morning peak, or under bright midday sun with shaded approach lanes, the contrast between the bright background and shadowed vehicle face is exactly the scenario where standard-WDR cameras lose the plate image. A 96dB rating handles the simultaneous exposure of bright sky and shadow effectively, maintaining plate legibility across the dynamic range that sunlit entry points produce.

Downloads & Resources

No downloads available for this product.
