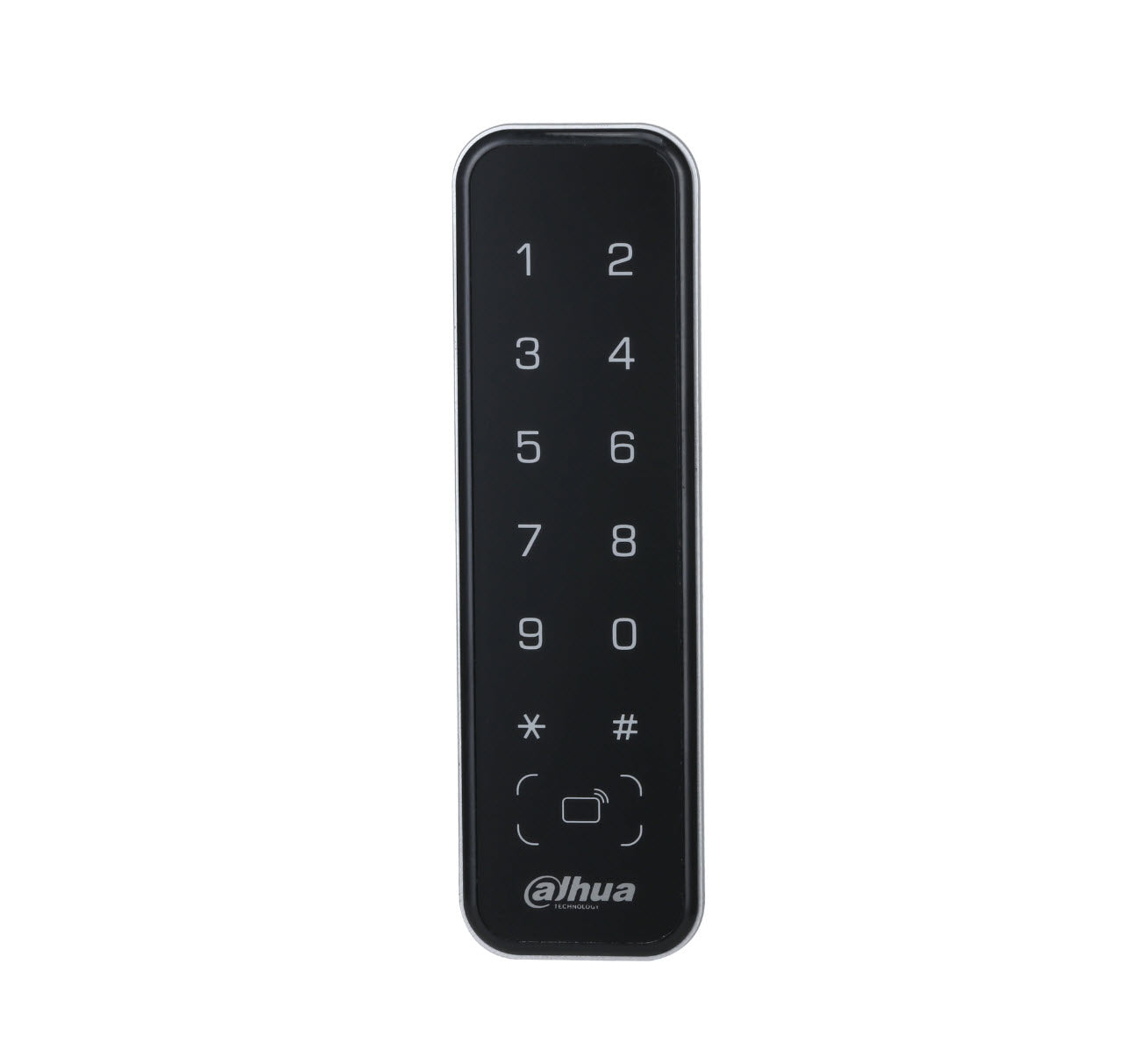

Dahua Access Reader ASR2201A ASR2201A-D DHI-ASR2201A
Access Reader
The DHI-ASR2201A Access Reader from Dahua Security offers advanced access control features with a sleek, modern design. It supports multiple authentication methods, including RFID, PIN, and smartphone-based access, ensuring versatile and secure entry options. The device is designed for easy integration with various access control systems, providing seamless management of entry points.
Key Features
- PC material, tempered glass panel, and IP66 rating, suitable for indoor and outdoor use.
- Supports contactless recognition of IC cards (Mifare cards).
- Supports card unlocking.
- Supports communication through RS-485 and Wiegand 34 (Wiegand 26 can be configured).
- Supports buzzer and indicator prompts.
- Supports anti-tampering alarm.
- Built-in watchdog detects and controls abnormal operation status of the equipment, performing recovery processing to ensure long-term operation.
- All connection ports feature overcurrent and overvoltage protection.
Code/SKU: DHI-ASR2201A
Quick Specs:
- Card Type: IC card
- Modulation Type: AM
- Frequency Range: 13.56 MHz
- Max Transmission Power: 42 dBuA/m @10 m
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The DHI-ASR2201A Access Reader from Dahua Security offers advanced access control features with a sleek, modern design. It supports multiple authentication methods, including RFID, PIN, and smartphone-based access, ensuring versatile and secure entry options. The device is designed for easy integration with various access control systems, providing seamless management of entry points. Its robust build ensures reliability in various environmental conditions, making it suitable for both indoor and outdoor installations. Additionally, the reader's intuitive interface and quick response time enhance user convenience and operational efficiency.
Features
- PC material, tempered glass panel, and IP66 rating, suitable for indoor and outdoor use.
- Supports contactless recognition of IC cards (Mifare cards).
- Supports card unlocking.
- Supports communication through RS-485 and Wiegand 34 (Wiegand 26 can be configured).
- Supports buzzer and indicator prompts.
- Supports anti-tampering alarm.
- Built-in watchdog detects and controls abnormal operation status of the equipment, performing recovery processing to ensure long-term operation.
- All connection ports feature overcurrent and overvoltage protection.
Technical Specifications:
| Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Type | Slim Card Reader | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buzzer | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Tempered glass/PC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Unlock Mode | Card swiping/password | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Type | IC card | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modulation Type | AM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | 13.56 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Transmission Power | 42 dBuA/m @10 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Response Time | 0.1 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Reading Distance | 0 cm–5 cm (0"–1.97") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wiegand | 1 output channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tamper Alarm | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V 0.5A DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP66 (silicon sealant is needed, see the manual) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Standby ≤ 0.9W, working ≤ 1.7W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × W× H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05") (L × W× H, 1 in inner carton) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%RH–95% (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Environment | Indoor; outdoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.16 kg (0.35 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Surface mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE; FCC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Access Reader
The DHI-ASR2201A Access Reader from Dahua Security offers advanced access control features with a sleek, modern design. It supports multiple authentication methods, including RFID, PIN, and smartphone-based access, ensuring versatile and secure entry options. The device is designed for easy integration with various access control systems, providing seamless management of entry points.
Key Features
- PC material, tempered glass panel, and IP66 rating, suitable for indoor and outdoor use.
- Supports contactless recognition of IC cards (Mifare cards).
- Supports card unlocking.
- Supports communication through RS-485 and Wiegand 34 (Wiegand 26 can be configured).
- Supports buzzer and indicator prompts.
- Supports anti-tampering alarm.
- Built-in watchdog detects and controls abnormal operation status of the equipment, performing recovery processing to ensure long-term operation.
- All connection ports feature overcurrent and overvoltage protection.
Code/SKU: DHI-ASR2201A
Quick Specs:
- Card Type: IC card
- Modulation Type: AM
- Frequency Range: 13.56 MHz
- Max Transmission Power: 42 dBuA/m @10 m
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Type | Slim Card Reader | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buzzer | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Tempered glass/PC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Unlock Mode | Card swiping/password | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Type | IC card | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modulation Type | AM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | 13.56 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Transmission Power | 42 dBuA/m @10 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Response Time | 0.1 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Reading Distance | 0 cm–5 cm (0"–1.97") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wiegand | 1 output channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tamper Alarm | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V 0.5A DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP66 (silicon sealant is needed, see the manual) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Standby ≤ 0.9W, working ≤ 1.7W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × W× H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05") (L × W× H, 1 in inner carton) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%RH–95% (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Environment | Indoor; outdoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.16 kg (0.35 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Surface mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE; FCC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
