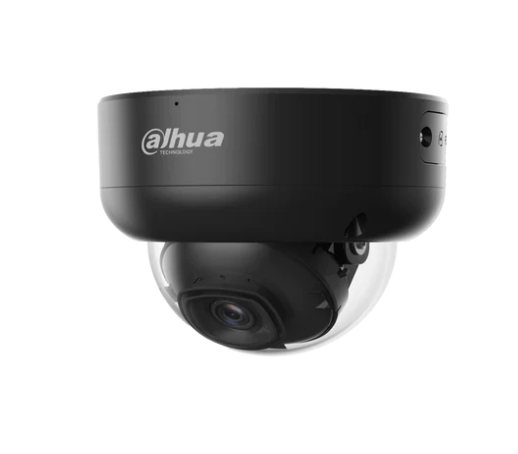

Dahua 8MP DH-IPC-HDBW3866EP-AS-AUS (4K) Starlight IP Dome WDR, IR 30m

Model: DH-IPC-HDBW3866EP-AS-AUS

Who This Is For

When ceiling-mount placement precision and genuine 4K detail are the priority, the Dahua DH-IPC-HDBW3866EP-AS-AUS sits in a practical sweet spot for installers specifying fixed-focal domes across retail, commercial offices, stairwells, and covered outdoor areas. The 8MP sensor resolves 3840 x 2160, which gives investigators meaningful detail when reviewing footage - a noticeably different outcome to 2MP or 4MP installs in the same positions. The WizSense perimeter protection engine classifies humans and vehicles rather than triggering on every shadow or tree movement, which matters in mixed indoor-outdoor zones like car park entries or loading bay access points. With IP67 and IK10 ratings confirmed, this dome handles both weather exposure and deliberate impact attempts. The built-in microphone, alarm I/O, and audio output on the -AS variant add flexibility for sites that need on-camera audio capture or local alarm connectivity without running separate cabling.

What This Camera Actually Does

Who Buys This Model

• Retail security managers: Specifying 4K domes above checkout lanes, entry points, or stock areas where the resolution jump over 2MP cameras makes a tangible difference to post-incident review - particularly for identifying individuals or reading handwritten notes and price tags at distance.
• Commercial office installers: Fitting cameras in lobbies, lift lobbies, and stairwells where a clean ceiling-profile dome is preferred and the IK10 rating provides confidence against accidental or deliberate impact in public-access areas.
• Facility managers at schools or childcare centres: Using WizSense perimeter protection with human/vehicle classification to monitor entry points and outdoor covered areas after hours, where nuisance alerts from wind or animals would otherwise make always-on alerting unworkable.
• Integrators building Dahua WizSense systems: Adding a cost-effective 4K fixed dome to an existing SMD 4.0-compatible NVR deployment, where Quick Pick search across human and vehicle events from this camera saves operators time during incident review.

Honest Assessment

This camera does 4K fixed-focal dome surveillance with a credible low-light sensor, confirmed IK10 vandal resistance, and a WizSense AI engine that delivers human/vehicle classification without requiring a premium camera tier. The -AS suffix matters for Australian integrators - it confirms built-in microphone, audio output, and alarm I/O, which are absent on non-AS variants. The F1.4 aperture is a genuine advantage in dimly lit indoor-outdoor transition zones. Smart H.265+ compression keeps storage and bandwidth demands manageable at 4K frame rates, and AI SSA handles scene self-adaptation for backlit or low-visibility conditions automatically. Where this camera will not serve as well: it is a fixed-focal dome, so applications needing zoom adjustment after installation, wide-area coverage from a single mounting point, or active PTZ tracking require a different product type - motorised varifocal domes or PTZ cameras available through Security Australia would be more appropriate for those scenarios.

Before You Buy

Quick Fit Check

• Good match if: You are ceiling-mounting a dome in a retail, office, or covered outdoor position and need 4K detail for post-incident identification - the 3840 x 2160 sensor and F1.4 low-light aperture deliver usable images across the full day/night cycle in those environments.
• Good match if: The installation site has a vandalism or tampering risk - the IK10 rating confirms the dome housing withstands a 20J impact, making it appropriate for public stairwells, car parks, or any exposed position where standard dome housings have been targeted before.
• You may need a different model if: Your brief requires post-install zoom adjustment, variable focal length to cover long approaches or wide-area carparks from a single point, or active pan-tilt tracking - a motorised varifocal dome or PTZ camera would serve those requirements better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need confirmed IK10 vandal resistance, 4K resolution, and WizSense human/vehicle AI in a ceiling-mount fixed-focal dome - the -AS variant adds built-in microphone, audio I/O, and alarm I/O, which are not present on non-AS versions of this model.
• You may need a different model if: The site requires adjustable zoom after installation, longer-range IR beyond 30m for open outdoor approaches, or active pan-tilt-zoom tracking - a motorised varifocal dome or PTZ camera would be a better fit for those requirements.
• Pairs well with: A Dahua WizSense-compatible AI NVR with SMD 4.0 support, which unlocks Quick Pick human and vehicle search across recorded events from this camera - a meaningful operational advantage over standard NVR playback.

Common Questions

1. Does this camera work on standard PoE without a PoE+ switch?

   Yes. The DH-IPC-HDBW3866EP-AS-AUS supports IEEE 802.3af standard PoE, so it draws power from any 802.3af-compliant switch or injector without requiring PoE+ (802.3at). A single Cat5e or Cat6 cable carries both power and data to the camera, which simplifies installation considerably compared to running a separate 12V DC power feed.

2. Will this camera record and store footage if the network goes down?

   Yes, provided a Micro SD card is installed. The camera supports edge recording to a Micro SD card up to 256GB. If the network connection drops or the NVR becomes unreachable, the camera continues recording locally. Smart H.265+ compression helps manage storage consumption at 4K resolution on the card.

3. What does WizSense perimeter protection actually do differently to standard motion detection?

   It classifies movement events before triggering an alert. Standard motion detection raises an alarm for any pixel change - wind in foliage, a passing animal, or lighting changes. WizSense uses a deep learning algorithm to identify whether the detected object is a human or a vehicle, and only the intrusion or tripwire event is raised if one of those target types is confirmed. In practice this substantially reduces the volume of nuisance alerts that operators need to review.

4. Does this camera have two-way audio?

   Yes. The -AS variant has both a built-in microphone and an audio output (1 in, 1 out), which supports two-way audio when connected to a compatible NVR or VMS with a speaker connected to the audio output terminal. This is specific to the -AS suffix version - confirm the model code before ordering, as non-AS variants do not include this functionality.

5. What is the recognition distance on this camera - can it identify a face at 10 metres?

   Yes, within the confirmed DORI figures. At 3.6mm, the identification distance is 10.2m - meaning the camera resolves enough detail to distinguish one individual from another at that range under good conditions. The recognition distance (sufficient to identify familiar features) is 20.4m. At 2.8mm those figures reduce to 8.8m identification and 17.5m recognition. DORI figures are calculated under standard conditions; real-world performance depends on lighting, angle, and target behaviour.

6. Does the AI SSA feature require any ongoing configuration or cloud subscription?

   No. AI Scene Self-adaptation (AI SSA) runs locally on the camera's processor using deep learning algorithms embedded in the firmware. It automatically adjusts image parameters for conditions including backlight, low light, fog, and flicker without requiring user intervention, cloud connectivity, or a subscription service. The camera's 1GB RAM and onboard processing handle this independently. The feature is confirmed available through Security Australia on this model as shipped.

Downloads & Resources

No downloads available for this product.
