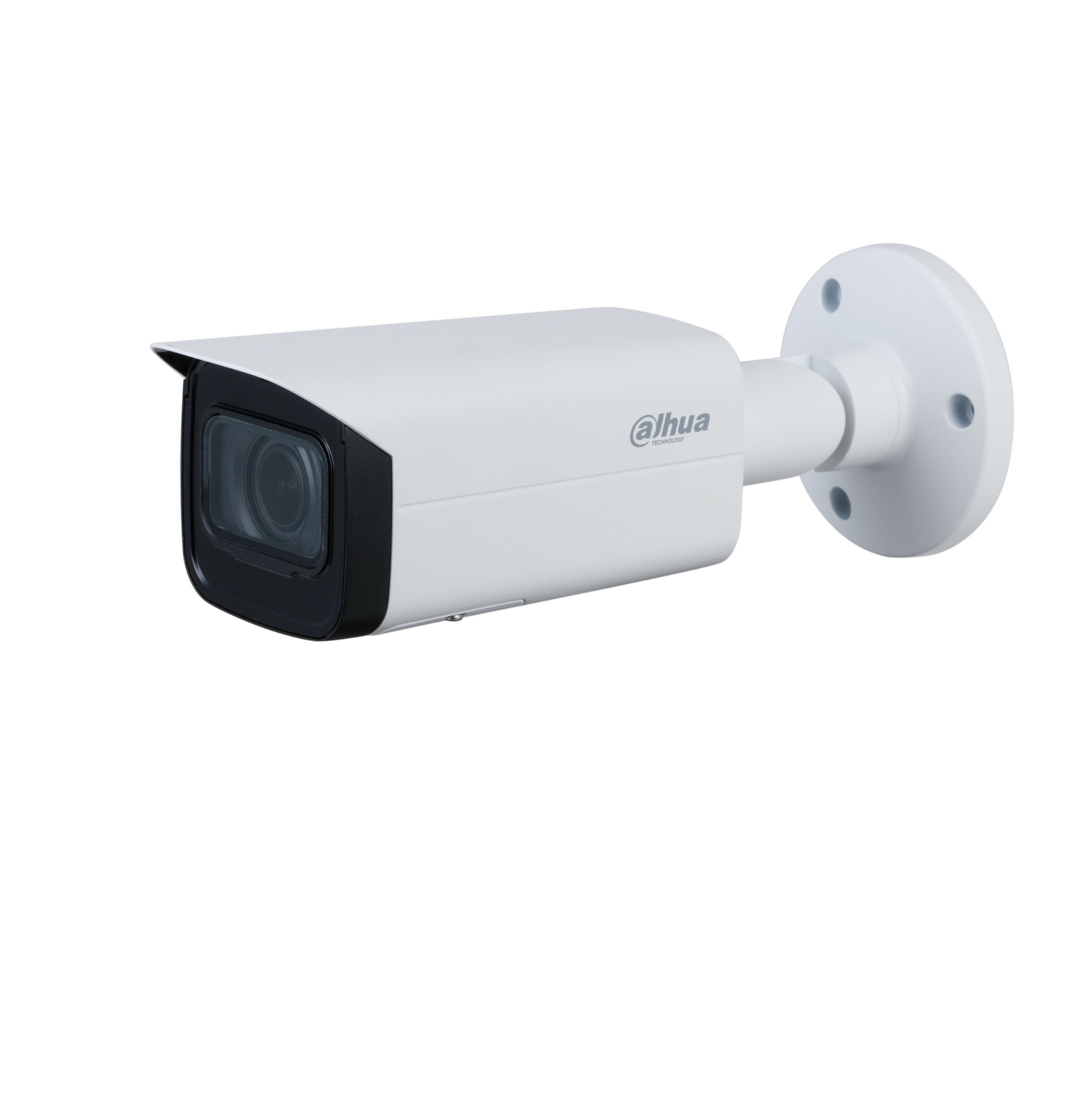

8MP IR Vari-focal Bullet WizSense Network Camera
The 8MP IR Vari-focal Bullet WizSense Network Camera DH-IPC-HFW3841T-ZAS from Dahua Security delivers exceptional high-definition surveillance with its 8-megapixel resolution, ensuring clear and detailed images. This camera features a vari-focal lens, allowing for flexible focus adjustments between 2.7mm and 13.5mm to capture both wide and narrow views as needed. Equipped with advanced IR technology, it provides superior night vision capabilities, with a range of up to 50 meters in complete darkness.
Key Features
Code/SKU: DH-IPC-HFW3841T-ZAS
Quick Specs: Lens Type: Motorized vari-focal, Mount Type: φ14, Focal Length: 2.7 mm–13.5 mm, Max. Aperture: F1.5
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8”8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.007 Lux@F1.5 (Color, 30IRE) 0.0007 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | > 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 60 m (197 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Motorized vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type | φ14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.7 mm–13.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | Horizontal: 113°–31° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.8 m (2.6 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
W | 85.3 m (279.9 ft) | 34.1 m (111.9 ft) | 17.0 m (55.8 ft) | 8.5 m (27.9 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
T | 280.0 m (918.6 ft) | 112.0 m (367.5 ft) | 56.0 m (183.7 ft) | 28.0 m (91.9 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Professional, intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 3840 × 2160 @(1–20 fps by default) 3840 × 2160 @(1–25/30 fps when AI function disabled) sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @(1–25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 3 kbps–8192 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; G726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | -ZAS: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: IE8; IE9; IE11 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (RCA port) (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (RCA port) (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 1 channel in: 5mA 3V–5V DC (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel out: 300mA 12V DC (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic power consumption: 3.0W (12V DC); 3.5W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 9.2W (12V DC); 10.7W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.6" × 3.1" × 3.0") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 820g (1.8 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 1090g (2.4 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DH-IPC-HFW3841TP-ZAS 8MP (4K) Starlight IP Bullet Motorized 2.7-13.5mm SMD Plus IR distance 60m
The 8MP IR Vari-focal Bullet WizSense Network Camera DH-IPC-HFW3841T-ZAS from Dahua Security delivers exceptional high-definition surveillance with its 8-megapixel resolution, ensuring clear and detailed images. This camera features a vari-focal lens, allowing for flexible focus adjustments between 2.7mm and 13.5mm to capture both wide and narrow views as needed. Equipped with advanced IR technology, it provides superior night vision capabilities, with a range of up to 50 meters in complete darkness. The WizSense technology integrated into the camera enhances its AI capabilities, offering intelligent features like perimeter protection, face detection, and people counting, improving security monitoring and efficiency. Its H.265 compression reduces bandwidth and storage requirements without compromising image quality.
The camera's durable IP67-rated housing ensures reliable performance in harsh weather conditions, making it suitable for outdoor use. It also supports a wide dynamic range (WDR) of 120dB, ensuring clear images even in challenging lighting situations. The built-in microphone allows for audio recording, adding another layer of security. With its Power over Ethernet (PoE) support, installation is simplified, requiring only a single cable for both power and data transmission. The camera is also compatible with the Dahua NVRs, ensuring seamless integration into existing security systems. It features intelligent motion detection, which reduces false alarms by accurately identifying human and vehicle targets. Overall, the DH-IPC-HFW3841T-ZAS is a versatile and robust security solution for both residential and commercial applications.
Features
Functions
SMD Plus
Dahua's Smart Motion Detection (SMD) technology uses advanced algorithms to classify targets and filter out irrelevant motion detection alerts. This ensures precise and effective alarm notifications by minimizing false positives from non-targets.
Smart H.265+ & Smart H.264+
Leveraging a sophisticated scene-adaptive rate control algorithm, Dahua’s smart encoding technology achieves greater efficiency than traditional H.265 and H.264. This results in high-quality video while reducing storage and transmission costs.
Perimeter Protection
Dahua’s Perimeter Protection technology, powered by deep learning algorithms, accurately identifies humans and vehicles. This reduces false alarms in restricted areas by effectively differentiating between various types of intelligent detection, such as tripwire and intrusion.
Starlight
Dahua’s Starlight technology excels in low-light conditions, delivering clear, colorful video even in minimal illumination. It ensures high-quality image capture regardless of the lighting environment.
Cyber Security
Dahua network cameras are equipped with essential security features, including authentication, authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These measures enhance security, protect data, and prevent unauthorized access and malware.
Protection (IP67, Wide Voltage)
IP67: The camera is rigorously tested for dust and water resistance, remaining operational after being submerged in 1 meter of water for up to 30 minutes.
Wide Voltage: With a tolerance for input voltage variations of ±30%, the camera is suitable for outdoor use in environments with unstable power supply.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8”8Megapixel progressive CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
3840 (H) × 2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
512 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.007 Lux@F1.5 (Color, 30IRE) 0.0007 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
> 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
60 m (197 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
4 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized vari-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
φ14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.7 mm–13.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: 113°–31° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.8 m (2.6 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
W |
85.3 m (279.9 ft) |
34.1 m (111.9 ft) |
17.0 m (55.8 ft) |
8.5 m (27.9 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
T |
280.0 m (918.6 ft) |
112.0 m (367.5 ft) |
56.0 m (183.7 ft) |
28.0 m (91.9 ft) |
