Dahua 8 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security Kit with 8CH Wizsense NVR 2.8mm lens

Model: 8xHDW3866EMP/DHI-NVR4108HS-8P-AI/ANZ

Who This Is For

Property managers specifying an 8-camera 4K system for small commercial premises, residential complexes, or multi-entrance retail sites will find this kit covers a full site without piecemeal component selection. The bundle pairs 8 x Dahua HDW3866EMP-S-AUS 8MP turret cameras with the Dahua NVR4108HS-8P-AI/ANZ 8-channel WizSense recorder - every camera connects directly to the NVR's built-in PoE ports, so there is no separate switch to source or configure. Each camera delivers 4K resolution at a wide 107-degree horizontal field of view with 30m IR coverage, and the NVR applies SMD Plus and AI-based perimeter protection across all 8 channels simultaneously. Installers working to a defined scope and budget get a matched, pre-validated system. Buyers comparing kit versus build-your-own will find the channel count, camera spec, and NVR AI capability balanced across the entire package.

What This System Actually Does

Who Buys This Model

• Small-to-medium business owners: Cafes, offices, and retail shops with up to 8 camera positions who want 4K resolution and AI-filtered alerts without managing a separate PoE switch infrastructure.
• Residential complex and strata managers: Sites with entry points, car parks, and common area corridors that require full-perimeter 4K coverage from a single matched system, centrally recorded and remotely viewable.
• Security installers on fixed-scope contracts: Installers quoting an 8-camera job who need a confirmed matched camera-to-NVR system where AI functions - SMD Plus, perimeter protection, Quick Pick - work across all channels without additional licensing or configuration overhead.
• Childcare centres and schools: Sites needing wide-angle 4K coverage of outdoor play areas and entry points, with human-classified alerts that reduce false alarms from wind movement or animals, and face recognition available at the NVR level for access event review.
• Warehouse and light industrial operators: Facilities needing IP67-rated cameras at loading bays, perimeter fences, and internal corridors with IR coverage to 30m - all managed from a single compact 1U NVR with one HDD for local storage.

Honest Assessment

This kit delivers genuine value at the 8-channel 4K tier. The HDW3866EMP-S-AUS cameras carry on-camera SMD 4.0 classification, so AI filtering runs even without NVR processing overhead, and the 2.8mm wide-angle lens suits most standard indoor and outdoor installs without requiring lens selection decisions. The NVR's built-in PoE eliminates switch procurement and simplifies cabling quoting. AI SSA is a practical feature for cameras facing variable outdoor conditions, where manual image tuning would otherwise be ongoing. Available through Security Australia, this system suits sites where the 8-channel boundary fits the layout cleanly. Where it has limits: the 30m IR range is appropriate for driveways and entry points but will not cover large open yards or extended car parks where 60m-plus IR bullet cameras would serve better. The single HDD bay means storage planning is critical before purchase - one drive fills faster at 4K continuous recording across 8 channels than buyers sometimes anticipate. Sites needing more than 8 cameras will require a second NVR or a higher-channel recorder.

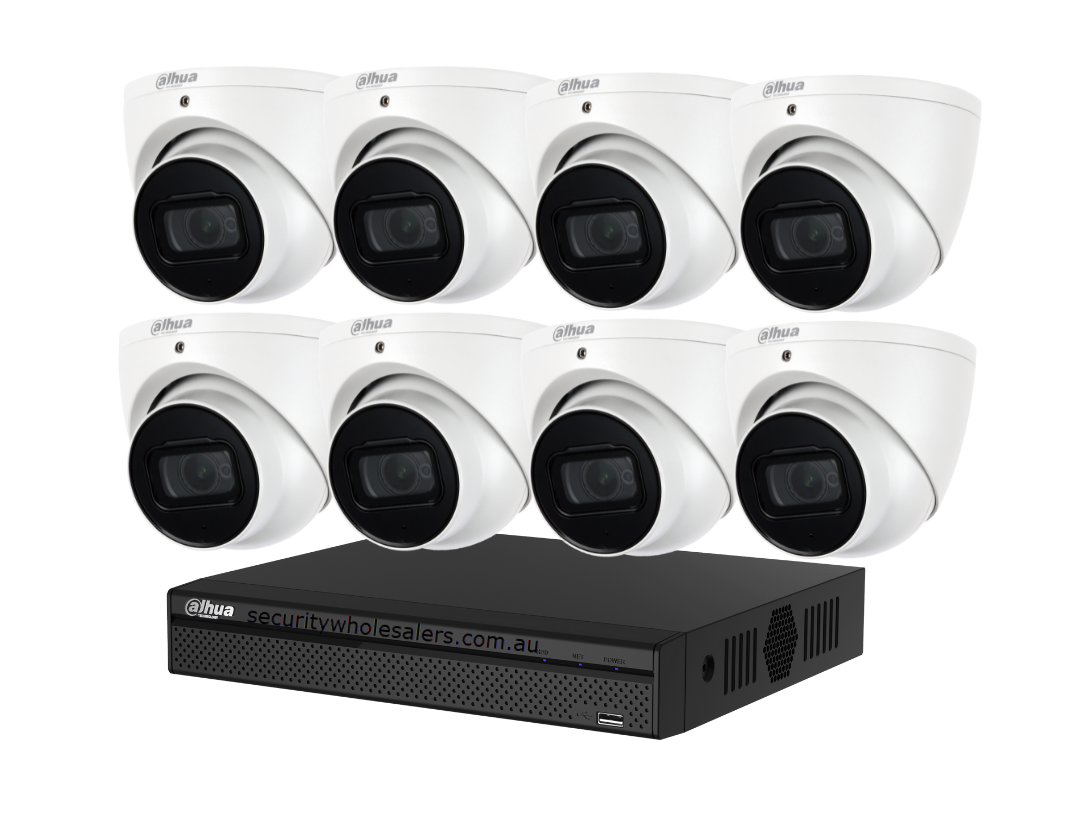

Complete Package Contents

• 8 x Dahua DH-IPC-HDW3866EMP-S-AUS - 8MP 4K WizSense Turret Camera, 2.8mm fixed lens, 107-degree HFOV, 30m IR, SMD 4.0, AI SSA, IP67, built-in mic, PoE/12VDC
• 1 x Dahua DHI-NVR4108HS-8P-AI/ANZ - 8-channel WizSense NVR, 8 built-in PoE ports, 1 HDD bay, face recognition, SMD Plus, perimeter protection, Quick Pick, compact 1U

Before You Buy

Quick Fit Check

• Good match if: Your site has exactly 8 camera positions within 100m cable runs of a central NVR location, and you want 4K resolution with AI-classified motion alerts without sourcing cameras, recorder, and switch separately.
• Good match if: You need on-camera SMD 4.0 classification so AI filtering works independently of NVR processing load - useful when all 8 channels are active simultaneously and NVR AI channel limits would otherwise restrict coverage.
• You may need a different model if: Your layout requires more than 8 cameras, demands IR range beyond 30m for open yards or long driveways, or needs multi-HDD storage for extended recording retention - a higher-channel NVR kit with bullet cameras and a multi-bay recorder would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete 8-camera 4K WizSense system with on-camera SMD 4.0 classification, AI SSA, and an NVR that runs face recognition and Quick Pick - all from a matched system with no additional switch required.
• You may need a different model if: Your site exceeds 8 camera positions, requires IR range beyond 30m for open outdoor areas, or demands more than 1 HDD of storage - a higher-channel NVR kit with extended-range cameras would better suit those requirements.
• Pairs well with: A surveillance-grade HDD (4TB to 8TB) for local storage, a UPS to protect the NVR during power fluctuations, and a managed PoE switch if any future camera expansion beyond 8 channels is planned.

Common Questions

1. Does this kit include a hard drive for recording?

   No. The NVR4108HS-8P-AI/ANZ supports 1 x HDD but does not ship with a drive included. You will need to purchase a surveillance-grade HDD separately before the system can record locally. For 8 cameras at 4K resolution, calculate your required storage based on your preferred retention period - a 6TB or 8TB surveillance-grade HDD is a common starting point for 7-14 days of motion-triggered recording across all 8 channels.

2. Does this system work for face recognition, and how many faces can it store?

   Yes. The NVR4108HS-8P-AI/ANZ supports face recognition with a database capacity of up to 10 separate databases holding a combined total of 200,000 face images. Face detection runs on all 8 channels simultaneously when processed by the cameras, and 1-channel face detection and recognition runs via the NVR's own processor. Name, gender, date of birth, address, and credential data can be attached to each face image in the database.

3. What is the difference between SMD 4.0 on the cameras and SMD Plus on the NVR - do I need both?

   They operate at different layers and complement each other. SMD 4.0 runs on each camera independently, classifying motion targets as human or vehicle before any data reaches the NVR. This means AI filtering happens at the edge across all 8 cameras simultaneously without consuming NVR processing resources. SMD Plus on the NVR provides a second layer of filtering for up to 4 channels using the NVR's own processor, enabling Quick Pick - the ability to search and retrieve human or vehicle targets from recorded SMD events. For most installs, the on-camera SMD 4.0 handles alert filtering, while the NVR's Quick Pick is used when reviewing footage after an event.

4. Will this camera identify someone at 30 metres in the dark?

   Not at identification level at 30m. The IR illumination range of 30m describes the distance at which the IR LEDs provide usable light for the sensor - not the distance at which a person's face can be identified. At 2.8mm focal length, DORI calculations show the identification distance is 8.8m, recognition distance is 17.5m, and detection distance reaches 87.7m. For face-level identification at greater distances, a longer focal length lens or a dedicated ANPR/face recognition camera would be more appropriate. This system is suited to detection and observation at range, with recognition and identification at shorter distances near entry points.

5. Can I expand beyond 8 cameras later?

   No, not on this NVR. The DHI-NVR4108HS-8P-AI/ANZ is an 8-channel recorder and cannot be licensed or upgraded to support additional cameras. If your site is likely to grow beyond 8 positions, specifying a 16-channel NVR from the outset avoids replacing the recorder later. Security Australia stocks higher-channel WizSense NVR options if your planned expansion requires it.

6. Does the NVR bandwidth limit performance when all 8 cameras are recording at 4K?

   Yes, bandwidth is a relevant planning consideration. The NVR4108HS-8P-AI/ANZ supports 256Mbps total bandwidth, which reduces to 180Mbps when AI functions are enabled. A single HDW3866EMP-S-AUS camera at 4K using Smart H.265+ typically operates well within per-channel budget at moderate bit rates, and Smart H.265+ compression significantly reduces throughput compared to standard H.265. In high-movement scenes with all 8 cameras active and AI enabled simultaneously, bit rate management via Smart H.265+ becomes important - configure each camera's encoding settings during commissioning to stay within the 180Mbps AI-active ceiling across the full 8-camera load.

7. Is the built-in microphone on the cameras useful, and does the system support two-way audio?

   The built-in microphone on the HDW3866EMP-S-AUS captures ambient audio at the camera location, which is recorded alongside video footage and is useful for evidence. Two-way audio is not supported by this camera - no built-in speaker is included on the HDW3866EMP-S-AUS. If real-time verbal communication from the camera position is a requirement, a separate audio device or a camera model with a built-in speaker would be needed.
