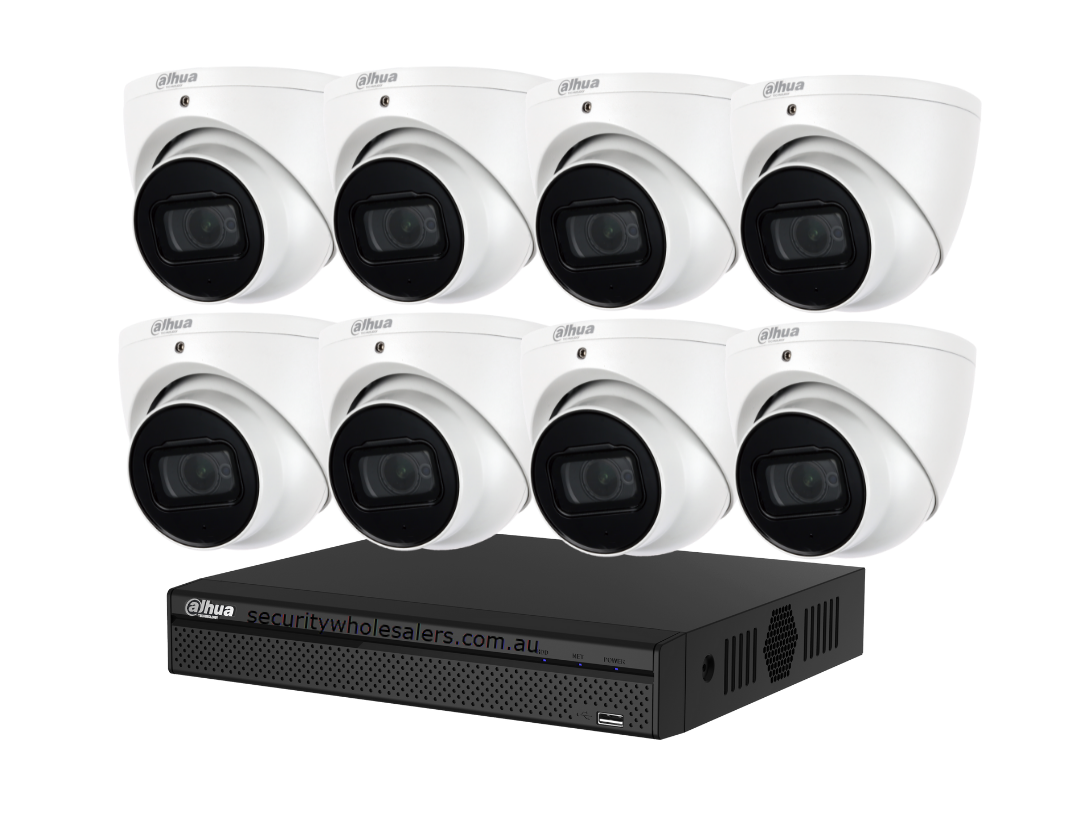

Dahua 8 x 8MP DH-IPC-HDW2831EMP-AS-0280B-S2 Turret CCTV Kit with 8CH NVR4208 NVR

The 8MP IR Fixed-focal Eyeball WizSense Network Camera DH-IPC-HDW3866EMP-S-AUS from Dahua Security is a high-resolution surveillance device designed for detailed image capture. Equipped with an 8MP sensor, it delivers exceptional 4K video quality, ensuring clear and precise monitoring. The camera features a fixed-focal lens that simplifies installation and maintenance. Its advanced IR capabilities provide excellent night vision, allowing for clear images even in complete darkness up to a range of 50 meters. The WizSense technology enhances intelligent detection, distinguishing between humans and vehicles to reduce false alarms. This camera supports H.265+ compression, significantly reducing bandwidth and storage requirements. It is built with IP67 weatherproof and IK10 vandal-proof ratings, making it suitable for both indoor and outdoor use.

The camera's compact eyeball design ensures discreet and flexible installation. With support for PoE (Power over Ethernet), the device simplifies cabling and power management. The camera also offers a wide dynamic range (WDR) of 120dB, ensuring balanced image quality in varying light conditions. Its Smart IR function adjusts the intensity of the infrared LEDs to prevent overexposure in close-up shots. Additionally, the camera is compatible with various Dahua software solutions for seamless integration into existing security systems.

Features

• 8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images.
• Outputs max. 8MP (3840 × 2160) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, max. IR distance: 30 m.
• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Max. 256 G Micro SD card. built-in Mic.
• 12 VDC/PoE power supply facilitates installation.
• IP67 protection.
• SMD 4.0, AI SSA.

Functions

SMD 4.0 Dahua's Smart Motion Detection technology utilizes intelligent algorithms to classify targets that trigger motion detection alarms. It filters out non-target objects, such as small and large animals, to reduce false alarms. With an AI NVR, Quick Pick technology becomes available, enabling easy search and selection of human and vehicle targets from SMD event videos, prioritizing the highest matches.

AI SSA Dahua's AI Scene Self-adaptation (AI SSA) employs deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light, and flicker. It adjusts image parameters accordingly, ensuring clear images are always produced.

Smart H.265+ & Smart H.264+ Dahua's smart encoding technology, with its advanced scene-adaptive rate control algorithm, achieves higher encoding efficiency than H.265 and H.264. It provides high-quality video while reducing storage and transmission costs.

Perimeter Protection Dahua's Perimeter Protection technology, powered by deep learning algorithms, accurately recognizes humans and vehicles. In restricted areas (such as pedestrian and vehicle zones), it significantly reduces false alarms by focusing on target types like tripwire and intrusion.

Protection (IP67, Wide Voltage) IP67: The camera undergoes rigorous testing for dust and water resistance. It is dust-proof and can function normally after being submerged in 1-meter deep water for 30 minutes. Wide Voltage: The camera supports ±30% input voltage tolerance (for certain power supplies), making it suitable for outdoor environments with unstable voltage.

Cyber Security Dahua network cameras incorporate a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies enhance the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Technical Specifications:

The Dahua NVR4208-8P-AI/ANZ is an 8-channel network video recorder designed for efficient surveillance management. It features 8 PoE (Power over Ethernet) ports, allowing for seamless integration with IP cameras while simultaneously providing power through the network cable. With a compact 1U rack-mountable design, it offers space-saving solutions for various installations. The recorder supports up to 2 HDDs (hard disk drives) for ample storage capacity, making it suitable for extensive video storage needs. Its WizSense technology enhances its capability by offering advanced AI features, such as human and vehicle classification, which improves the accuracy of detection and alerts.

The device provides high-definition video recording, ensuring clear and detailed footage. It supports various recording modes, including continuous, scheduled, and motion-based recording. The NVR4208-8P-AI/ANZ is equipped with intelligent analytics, including facial recognition and object removal detection, to bolster security measures. Remote access is facilitated through Dahua's mobile and web applications, enabling real-time monitoring from anywhere. The recorder is compatible with a wide range of IP cameras and integrates seamlessly into existing security systems. It also features a user-friendly interface for easy setup and management. This model is tailored for both residential and commercial applications, offering robust performance and reliability in security surveillance.

Features

• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• Access, storage, or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
• AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• Connected to third-party network cameras.
• Security baseline 2.3.

Functions

Face Detection
Face detection identifies human faces appearing in video footage. Utilizing a deep learning algorithm, it supports face detection, tracking, optimization, and capturing, and then provides the most accurate face snapshot.

Face Recognition
Dahua's Face Recognition technology extracts features from captured faces and compares them with those in a face database to determine the person's identity.

Perimeter Protection
This feature filters out false alarms triggered by animals, rustling leaves, bright lights, etc., and performs secondary recognition of targets to enhance alarm accuracy.

SMD Plus
Dahua's Smart Motion Detection (SMD) technology, powered by an intelligent algorithm, categorizes and filters targets that trigger motion detection. This minimizes false alarms from irrelevant targets and improves alarm precision.

AI Search
AI Search allows for searching by metadata or by uploading face pictures to the device to match with recorded faces. This feature enables quick and efficient searching through multiple channels and extended durations to locate persons of interest.

Heat Map by Camera
Dahua’s heat map technology displays crowd density and the probability of people appearing in specific areas. It exports and visualizes crowd status using different colors, reflecting the quantity of people in spatial and temporal dimensions.

ANPR by Camera
Using a deep learning algorithm, Dahua's Automatic Number Plate Recognition (ANPR) technology identifies vehicle number plates in images captured by ANPR cameras. It supports blocklist/allowlist modes and enables searching for target vehicles in recorded footage.

Quick Pick
Dahua's Quick Pick technology allows users to swiftly select human or vehicle targets of interest, facilitating easy retrieval from SMD events.

Technical Specifications:

Enhance your security with the Dahua Camera System Kit. Experience superior clarity, advanced analytics, and reliable performance. Upgrade your surveillance system today!
