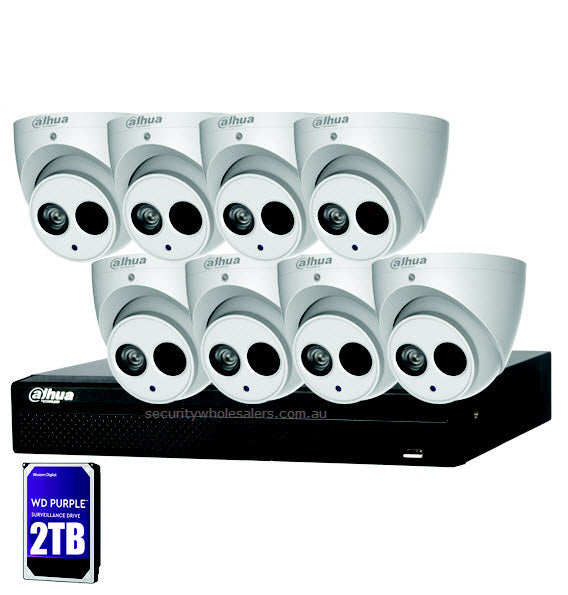

Dahua 8 x 6MP Turret Kit with 8CH NVR + 2TB HDD

$1,716.00 AUD
 per
Spend $100.00 to FREE SHIPPING

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

The Dahua 6 MP + 8 Channels Kit is a comprehensive surveillance solution featuring eight WizSense Fixed Starlight Turret Cameras. Each camera boasts 6 MP resolution, ensuring high-quality video capture even in low-light conditions. The kit includes an AI Network Video Recorder (NVR) with 8 channels, enabling efficient and intelligent monitoring.

Dahua Camera Kit includes:

8 x 6MP IR Fixed focal Eyeball WizSense Network Camera

The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities.

Key Features

  • 6MP, 1/2.7” progressive scan CMOS, low illuminance, high image definition
  • Outputs max. 6MP (3072 × 1728) @ 20 fps, and supports 4MP (2688 x 1520) @ 30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion
  • Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • IP67 protection
  • SMD Plus

Code/SKU: DH-IPC-HDW3641EM-S-S2
Quick Specs:

Pan/Tilt/Rotation Range

  • Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚

Field of View

  • 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
  • 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°



1 x 8 Channel Compact 1U 8PoE 4K & H.265 Lite Network Video Recorder

The 8 Channel Compact 1U 8PoE 4K & H.265 Lite Network Video Recorder, model DHI-NVR4108HS-8P-4KS2, from Dahua Security is a powerful and efficient NVR designed for small to medium-sized surveillance systems. It supports up to 8 channels of high-definition video input and offers 4K resolution for crystal-clear video playback and recording. Equipped with H.265 video compression technology, it significantly reduces bandwidth and storage requirements without compromising image quality.

Key Features

  • 4/8/16-channel IP video access
  • Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
  • Max 80 Mbps incoming bandwidth
  • Up to 8MP resolution for preview and playback
  • 8-channel decoding@1080p (30 fps)
  • AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
  • Support IPC UPnP, 8PoE ports

Code/SKU: DHI-NVR4108HS-8P-4KS2
Quick Specs:

Video: Smart H.265+; Smart H.264+; H.265; H.264

Audio: PCM; G.711A; G.711U; G.726

Specifications

Camera
Image Sensor 1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution 3072(H) x 2048 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio >56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type Auto
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
Professional and Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform a refined intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps)
Substream (704 × 576@1–25 fps/704 × 480@1–30 fps)
Third stream (1920 × 1080@1–25/30 fps)
Stream Capability 3 streams
Resolution 3072 × 1728
2592 × 1944
2688 × 1520
2560 × 1440
2304 × 1296
1080p (1920 × 1080)
1.3M (1280 × 960)
720p (1280 × 720)
D1 (704 × 576/704 × 480)
VGA (640 × 480)
CIF (354 × 288/354 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
User/Host 20 Users
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8 and later
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certification EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 50130-4
EN55035
Power
Power Supply 12V DC (±30%), PoE (802.3af)
Power Consumption <7.2W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40° C to +60° C (-40° F to +140° F)
Protection Grade IP67
Structure
Casing Metal
Dimensions Φ106 mm × 93.6 mm (4.17” × 3.69”)
Net Weight 0.55 kg (1.21 lb)
Gross Weight 0.71 kg (1.57 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua 8 x 6MP Turret Kit with 8CH NVR + 2TB HDD

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities. This camera is designed for versatility and durability, with an IP67 weatherproof rating that ensures reliable performance in various environmental conditions. Its infrared (IR) illumination enables night vision up to 30 meters, providing clear images even in complete darkness. The camera supports H.265 compression, reducing bandwidth and storage requirements without compromising video quality.

It has a fixed focal length of 2.8mm, offering a wide-angle view suitable for monitoring large areas. With its compact and sleek design, the DH-IPC-HDW3641EM-S-S2 is easy to install and integrate into existing security systems. The camera also supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables. Advanced image processing features, such as wide dynamic range (WDR) and 3D noise reduction, ensure optimal performance in challenging lighting conditions.

This model is part of Dahua's WizSense series, which focuses on human and vehicle classification to reduce false alarms and improve accuracy. The camera's robust construction and high-quality components make it a reliable choice for both indoor and outdoor applications. Additionally, it offers remote access and management through the Dahua mobile app, allowing users to monitor their property from anywhere. Overall, the DH-IPC-HDW3641EM-S-S2 provides a comprehensive and intelligent surveillance solution for various security needs.

Features

  • 6MP, 1/2.7” progressive scan CMOS, low illuminance, high image definition
  • Outputs max. 6MP (3072 × 1728) @ 20 fps, and supports 4MP (2688 x 1520) @ 30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion
  • Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • IP67 protection
  • SMD Plus



Functions

SMD Plus Dahua Smart Motion Detection (SMD) technology uses an intelligent algorithm to categorize targets that trigger motion detection, filtering out non-relevant targets to deliver accurate and effective alarms.

Smart H.265+ & Smart H.264+ Dahua's advanced scene-adaptive rate control algorithm in smart encoding technology offers higher encoding efficiency compared to H.265 and H.264, ensuring high-quality video while reducing storage and transmission costs.

Perimeter Protection Dahua Perimeter Protection technology leverages deep learning algorithms to accurately recognize humans and vehicles. It significantly reduces false alarms in restricted areas (such as pedestrian and vehicle zones) by intelligently detecting and filtering events like tripwire, intrusion, fast moving, parking, loitering, and gathering.

Starlight Dahua Starlight technology excels in low-light environments, providing clear, colorful video even under minimal illumination, ensuring good image quality.

WDR With advanced Wide Dynamic Range (WDR) technology, Dahua network cameras deliver clear details in high-contrast lighting conditions. Both bright and dark areas are captured clearly, even in challenging lighting scenarios or with backlight shadows.

Protection (IP67, Wide Voltage) IP67: The camera is rigorously tested for dust and water resistance, capable of operating normally after being submerged in 1 meter of water for 30 minutes.
Wide Voltage: The camera supports ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage conditions.

Technical Specifications:
Camera
Image Sensor 1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution 3072(H) x 1728(V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio >56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type Auto
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)



The 8 Channel Compact 1U 8PoE 4K & H.265 Lite Network Video Recorder, model DHI-NVR4108HS-8P-4KS2, from Dahua Security is a powerful and efficient NVR designed for small to medium-sized surveillance systems. It supports up to 8 channels of high-definition video input and offers 4K resolution for crystal-clear video playback and recording. Equipped with H.265 video compression technology, it significantly reduces bandwidth and storage requirements without compromising image quality. The NVR features 8 Power over Ethernet (PoE) ports, simplifying the installation process by providing power and data connectivity through a single cable for each connected camera. With a compact 1U form factor, it is ideal for installations with limited space. The NVR supports multiple recording modes, including manual, scheduled, motion detection, and alarm recording, ensuring comprehensive surveillance coverage. It also offers various playback options, such as time-slice, time, event, and tag search, making it easy to locate and review recorded footage.

The DHI-NVR4108HS-8P-4KS2 is compatible with a wide range of IP cameras and supports ONVIF standards for seamless integration with third-party devices. It features a user-friendly interface with easy-to-navigate menus and remote access capabilities via web browsers and mobile apps, allowing users to monitor their surveillance system from anywhere. The NVR is equipped with advanced security features, including password protection, IP filtering, and event notifications, ensuring that your surveillance data remains secure. With its robust performance, ease of use, and advanced features, the Dahua DHI-NVR4108HS-8P-4KS2 is an excellent choice for enhancing your security infrastructure. It supports up to 6TB of storage, providing ample space for extended video retention. Additionally, the NVR's smart search functionality helps quickly locate specific events, improving the efficiency of security operations.

Features

  • 4/8/16-channel IP video access
  • Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
  • Max 80 Mbps incoming bandwidth
  • Up to 8MP resolution for preview and playback
  • 8-channel decoding@1080p (30 fps)
  • AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
  • Support IPC UPnP, 8PoE ports



Functions

4K Resolution
4K resolution represents a significant advancement in image processing technology, offering four times the resolution of standard HDTV 1080p cameras. This higher resolution provides superior picture quality and greater detail, enhancing the clarity of magnified scenes for precise forensic video capture over large areas.

Smart H.265+
Smart H.265+ is an enhanced version of the H.265 codec, utilizing a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction. This optimization delivers high-quality video while reducing network strain, decreasing bit rate, and storage requirements by up to 70% compared to standard H.265 compression.

Intelligent Video System
The NVR, when used with IVS-enabled IP cameras, identifies and records video containing IVS data on all IP channels. It supports both standard intelligence features and advanced IVS functions, such as detecting abandoned or missing objects, Tripwire violations, and intrusion violations. Additionally, it can record business analysis data, including facial detection, people counting, and heat mapping, from IP cameras with built-in Intelligent Business Analytics.

ANR (Automatic Network Replenishment Technology)
NVRs equipped with ANR technology automatically save video data on an IP camera's SD card when the network connection is lost. Once the network is restored, the NVR retrieves the stored video data from the camera seamlessly.

DMSS
The DMSS app, available on the iOS App Store and Google Play, simplifies surveillance by allowing remote access to NVR devices. Users can view live video, receive event push notifications, and search for recorded videos from their iPhone, iPad, or Android phone anytime and from virtually anywhere.

Technical Specifications:


System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

8/16 channels

AI Search

Search for pictures by channel, time and event type

SMD Plus by Camera

Performance

8/16 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

8/16

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

8 channels@1080p (30 fps)

Video Output

HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

8-channel: 1/4/8/9
16-channel: 1/4/8/9/16

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

8-channel: 1/4/9
16-channel: 1/4/9/16

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; SMD; people counting; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which support voice intercom output

HDD

1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 3.0 port

HDMI

1

VGA

1

Network

1 independent 100 Mbps ethernet port

PoE

8 ports (IEEE802.3at/af)

General Parameter

Power Supply

48V/2A DC

Power Consumption

NVR: < 8.3W (without HDD)
PoE: Max 25.5W for single port, 72W in total

Net Weight

0.8 kg (1.76 lb) (without HDD)

Gross Weight

1.6 kg (3.53 lb) (without HDD)

Product Dimensions

260 mm × 232.5 mm × 47.6 mm (10.2" × 9.15" × 1.9")

Package Dimensions

331 mm × 312 mm × 87 mm (13.0" × 12.3" × 3.4")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Operating Altitude

3,000 m (9,843 ft)

Certifications

CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1



Enhance your security with the Dahua Camera System Kit. Experience superior clarity, advanced analytics, and reliable performance. Upgrade your surveillance system today!

Videos

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.

Sales Support & Enquiry Form

Got a question or just want to chat?
