Dahua 8 MP + 16 Channels Kit: 10 x WizSense Fixed Starlight Turret Cameras, AI NVR - Black

Model: DH-3866-K81610T-B-6TB

Who This Is For

Property managers specifying AI-capable surveillance across medium to large sites will find this kit well matched to their scope. The Dahua 8MP WizSense 16-Channel Kit pairs 10 fixed starlight turret cameras with a 16-channel AI NVR in a single package, covering warehouses, retail centres, commercial carparks, schools, and multi-building residential properties where human and vehicle classification matters as much as raw image quality. Each camera delivers 4K resolution with Starlight low-light performance and 30 m IR range, while the NVR's WizSense AI engine filters alarms by target type - reducing the volume of false motion triggers that frustrate operators on busy sites. The 16 PoE ports mean each camera runs on a single Cat cable with no separate power supply required, and 6 TB of pre-installed storage covers extended retention periods without an additional HDD purchase at commissioning.

What This System Actually Does

Who Buys This Model

• Commercial property managers: Multi-tenancy sites and office parks needing AI-filtered perimeter alerts across carparks, loading areas, and building entries - where reducing false alarm call-outs has a direct operational cost.
• School and childcare facility operators: Sites requiring full carpark and playground perimeter coverage with human/vehicle classification, where the 6 spare NVR channels allow future camera additions as facility use changes.
• Retail and hospitality owners: Medium-format stores or venues covering multiple internal zones and external approaches, where 4K resolution supports post-incident review of facial detail and vehicle plates at close to mid range.
• Strata and body corporate committees: Residential complexes with shared carparks, bin areas, entry foyers, and lift lobbies that need a scalable PoE system with pre-installed storage to avoid ongoing configuration cost.
• Security integrators on commercial fit-outs: Contractors who need a complete camera-plus-NVR package with matched AI capability to reduce site commissioning time and present a single-brand warranty to the end client.

Honest Assessment

This kit does a specific job well: it delivers a complete, AI-capable 4K surveillance system out of one box, with matched cameras and NVR and no gap in the storage or PoE infrastructure. The WizSense human and vehicle classification is genuinely useful on busy sites where standard motion detection generates too many false triggers. Smart H.265+ compression keeps storage use manageable on the pre-installed 6 TB drive, and the 6 spare NVR channels give the system room to grow. The built-in microphone on each camera adds audio detection without requiring separate devices. What this kit will not do is cover long approaches beyond 30 m in darkness - sites with extended perimeters or large open yards will benefit from dedicated bullet cameras with longer IR range alongside these turrets. It also does not include licence plate recognition capability; a site requiring vehicle entry logging will need ANPR-specific cameras. The system is available through Security Australia with the NVR pre-configured for the included cameras.

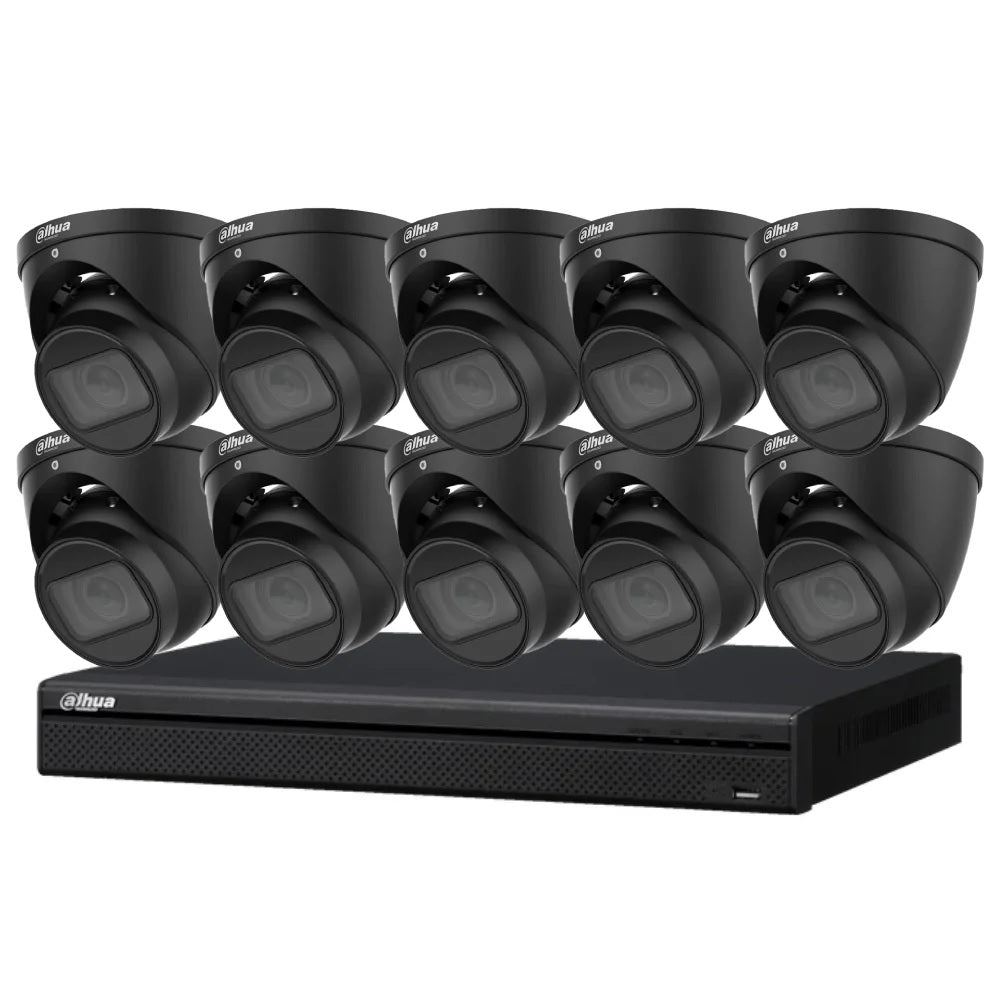

Complete Package Contents

• 10 x Dahua IPC-HDW3866EMP-S-AUS - 8MP WizSense Fixed Starlight Turret Camera, 30 m IR, IP67, built-in mic, PoE
• 1 x Dahua NVR4216-16P-AI/ANZ - 16-Channel 1U AI NVR, 16 PoE ports, dual HDD bays, 6 TB pre-installed, WizSense SMD 4.0

Before You Buy

Quick Fit Check

• Good match if: You are covering a medium to large site with 10 camera positions and want human/vehicle AI classification to reduce false alarms - the WizSense perimeter protection and SMD 4.0 on the AI NVR are designed exactly for this workload.
• Good match if: Your installation uses a single Cat5e or Cat6 run to each camera location - all 16 NVR PoE ports mean no separate power infrastructure is needed at any of the 10 camera mounting points.
• You may need a different model if: Your site requires IR coverage beyond 30 m, vehicle licence plate capture at distance, or more than 16 total camera channels - a kit built around bullet cameras with extended IR or an ANPR-specific system would be more appropriate; both are available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete 10-camera, 4K AI system with PoE infrastructure and pre-installed storage ready to commission, where human and vehicle classification is a priority over extended IR range or licence plate capture.
• You may need a different model if: Your site includes long outdoor approaches, loading dock lanes, or perimeter fences requiring IR coverage beyond 30 m - a kit based on bullet cameras with 60 m or 100 m IR would be more appropriate for those positions and is available on securityaustralia.com.au.
• Pairs well with: An additional PoE network switch if you need to extend camera cable runs beyond a central NVR location, or a UPS unit to maintain NVR operation during short power interruptions.

Common Questions

1. Does this kit include everything needed to get the system running, or do I need to buy additional components?

   The kit includes the 10 cameras, the NVR, and 6 TB of pre-installed storage, so the core system is complete. You will need to supply Cat5e or Cat6 cables for each camera run, a monitor or display connected to the NVR's video output, and a router or switch if you want remote viewing access. No additional PoE injectors or power adapters are required at the camera locations - all 10 cameras draw power directly from the NVR's built-in PoE ports.

2. Will these cameras work in outdoor environments with rain and dust exposure?

   Yes. Each IPC-HDW3866EMP-S-AUS carries an IP67 rating, meaning the housing is fully dust-tight and can withstand immersion in 1 m of water for 30 minutes. For standard Australian outdoor conditions including rain, wind-driven dust, and condensation, IP67 is the appropriate protection level for eave, soffit, and external wall mounting.

3. How does the WizSense AI actually reduce false alarms compared to standard motion detection?

   Standard motion detection triggers on any pixel change in the frame - including wind-moved foliage, insects passing close to the lens, or changes in ambient light. WizSense perimeter protection uses a deep learning algorithm to classify detected objects as human or vehicle before generating an alert. If the moving object does not match either classification - a branch, a shadow, an animal - no alarm is raised. On the NVR side, SMD 4.0 applies the same classification to recorded footage, so the event list shows only confirmed human or vehicle detections rather than hundreds of generic motion events.

4. Can I add more cameras to this system in the future?

   Yes. The NVR4216-16P-AI/ANZ has 16 channels and 16 PoE ports, with 10 used by the kit cameras and 6 remaining available. Additional WizSense-compatible cameras can be connected to the spare PoE ports without any hardware changes to the NVR. If you eventually exceed 16 cameras, a higher-channel NVR would be required.

5. How many days of footage will 6 TB store across 10 cameras?

   Retention days depend on several variables: recording mode (continuous vs. motion-triggered), resolution, frame rate, and scene complexity. With Smart H.265+ compression enabled and motion-triggered recording across 10 cameras at 8MP, most installations achieve between 30 and 60 days of retention on 6 TB. Continuous 24/7 recording at full resolution will produce fewer days. The NVR's second HDD bay can accommodate an additional drive if longer retention is required. Security Australia supplies compatible HDD options if extra capacity is needed at installation.

6. Does the system support remote viewing on a phone or tablet?

   Yes. The Dahua NVR4216-16P-AI/ANZ supports remote access via the Dahua DMSS app on iOS and Android. Once the NVR is connected to your network and configured for remote access, you can view live feeds, review recorded footage, and receive push notifications for AI-triggered events from any location with an internet connection.

7. Do the cameras record audio, and can I use them for two-way communication?

   The cameras include a built-in microphone and support audio detection as an abnormality trigger, so audio is recorded alongside video. However, the IPC-HDW3866EMP-S-AUS does not include a built-in speaker, so two-way audio communication is not supported on these cameras. If on-site audio communication is needed at a specific point - such as an entry door - a separate intercom or audio device would be required at that location.

8. What does the AI SSA feature do, and does it require any manual setup?

   AI Scene Self-Adaptation (AI SSA) automatically detects environmental conditions - including rain, fog, backlight, low light, and fluorescent flicker - and adjusts the camera's image parameters in real time to compensate. It operates without manual input once enabled in the camera settings. For Australian outdoor installations where lighting conditions shift significantly between seasons or during overcast weather, AI SSA removes the need to manually adjust image settings to maintain usable footage quality.
