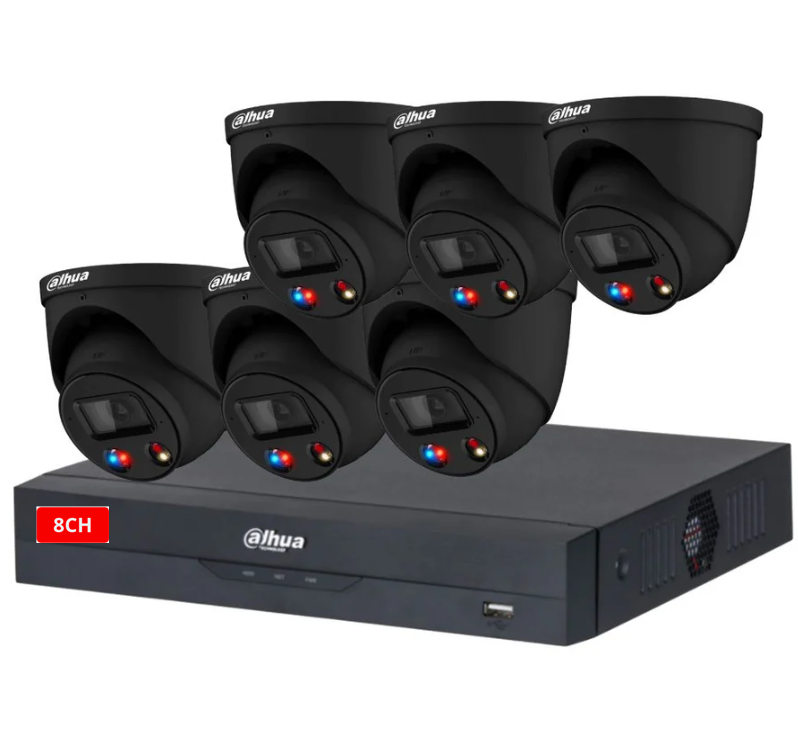

Dahua 6 x BLACK 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit with 8CH NVR Wizsense

Model: TIOC2.0TURRETx6+DHI-NVR4108HS-P-4KS2-BLACK

Who This Is For

When active deterrence across multiple external zones is the priority, this kit removes the guesswork from camera selection and system sizing. The Dahua 6-camera TiOC 3.0 kit pairs six IPC-HDW3849H-AS-PV-ANZ-S2 turret cameras in black housing with an 8-channel WizSense NVR, giving installers a matched, PoE-powered system ready for residential properties, small commercial sites, childcare centres, and light industrial premises. Each camera delivers 8MP full-colour imaging around the clock and triggers a visible red-blue strobe with an audible siren the moment Smart Motion Detection classifies a human or vehicle - before an intruder reaches a door or entry point. The black housing suits modern architectural finishes without the clinical look of white cameras. With 6 cameras occupying 6 of the 8 available NVR channels, there is headroom to add 2 additional cameras as the site or monitoring requirements expand.

What This System Actually Does

Who Buys This Model

• Residential Installers: Fitting out larger homes with multiple external zones - driveway, side gates, pool area, rear yard - where active deterrence replaces or supplements an alarm system.
• Small Business Owners: Retail shops, trade yards, and light industrial premises that need after-hours deterrence without a monitoring subscription, using the strobe and siren to respond to intrusions automatically.
• Childcare and Education Facilities: Sites needing full-colour footage for safeguarding compliance plus the black housing to blend with contemporary building exteriors rather than stand out as institutional white cameras.
• Property Developers and Strata Managers: New residential or commercial builds where a pre-matched 6-camera PoE kit simplifies procurement, avoids camera-NVR compatibility questions, and leaves 2 channels available for car park or basement additions.
• Security Integrators Managing Remote Sites: Unmanned facilities, machinery yards, or after-hours commercial premises where SMD+ reduces nuisance alerts and the TiOC strobe provides an autonomous on-site response without requiring a guard or monitoring station to initiate it.

Honest Assessment

This kit performs well in scenarios where the goal is deterrence and evidence quality in a single matched system. The TiOC 3.0 cameras deliver genuine full-colour night footage, the strobe-and-siren response is triggered by AI classification rather than raw motion, and the ANZ firmware variant confirms the cameras are spec'd for the Australian market. The 8-channel PoE NVR keeps installation clean - one cable per camera, no separate power supplies required - and the 2 spare channels give the system room to grow. Where this kit is less suited: if the priority is long-distance coverage of approaches beyond 30-40 metres, a bullet camera with extended IR would outperform the turret form factor at range. Similarly, if wide-angle panoramic coverage of a single large open space is the main requirement, a fisheye or multi-sensor camera would provide fewer blind spots with fewer devices. For most residential and small commercial installs, this kit available through Security Australia covers the brief without overcomplicating the specification.

Complete Package Contents

• 6 x Dahua IPC-HDW3849H-AS-PV-ANZ-S2 (Black) - 8MP TiOC 3.0 turret camera, full-colour, active deterrence, two-way audio, SMD+, IP67, PoE
• 1 x Dahua DHI-NVR4108HS-P-4KS2 - 8-channel WizSense NVR, built-in 8-port PoE switch, 4K recording support, H.265+

Before You Buy

Quick Fit Check

• Good match if: You are covering 4-6 external zones at a residential or small commercial site and want after-hours active deterrence that responds automatically without a monitoring station.
• Good match if: Full-colour night footage is a requirement for incident review or insurance purposes and you want a pre-matched system where camera and NVR compatibility is already confirmed.
• You may need a different model if: Your site requires coverage of long open approaches beyond 40-50 metres, or a large single open area - a bullet camera kit with extended IR range or a panoramic/multi-sensor system would be a better fit for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a pre-matched 6-camera system with full-colour night imaging, AI-triggered active deterrence, and PoE simplicity in a single procurement - particularly where black housing is specified for the building aesthetic.
• You may need a different model if: Your site has long open approaches requiring IR coverage beyond 40-50 metres - a bullet camera kit with extended IR would outperform the TiOC turret at those distances, or if 360-degree coverage of a large open area is the priority, a panoramic camera kit would reduce the number of units needed.
• Pairs well with: A surveillance-grade HDD (4TB minimum, 8TB recommended for 30-day retention at 8MP across 6 cameras) and a Cat6 cable run per camera for maximum bandwidth headroom.

Common Questions

1. Does the TiOC strobe fire on every motion event, or only when a person or vehicle is detected?

   Only on confirmed human or vehicle classification. The IPC-HDW3849H-AS-PV-ANZ-S2 uses SMD+ AI processing to distinguish between people, vehicles, and other movement before triggering the strobe and siren. Wind, animals, tree movement, and lighting changes do not activate the deterrence response. This is the practical difference between TiOC and standard motion-triggered systems - the strobe fires when there is a credible intrusion target, not on every pixel change in the scene.

2. Will this kit work with cameras I already own from a different brand?

   Partially, but with limitations. The DHI-NVR4108HS-P-4KS2 supports ONVIF-compliant cameras from other brands, so basic live view and recording is possible. However, WizSense AI features - SMD+, smart search, and AI event filtering - only function fully with Dahua WizSense cameras. Third-party cameras will not trigger the NVR's AI-based alerts. For a full-feature system, all cameras should be Dahua WizSense models.

3. Does the NVR include a hard drive?

   No. The DHI-NVR4108HS-P-4KS2 ships without a hard drive and requires a surveillance-grade HDD to record. At 8MP resolution across 6 cameras, a 4TB drive provides approximately 7-10 days of continuous recording using H.265+ compression; 8TB extends that to 14-20 days depending on scene activity. Drives should be selected from Dahua's approved HDD compatibility list - WD Purple and Seagate SkyHawk series are commonly specified.

4. Do these cameras produce colour footage at night without any external lighting?

   Yes. Each IPC-HDW3849H-AS-PV-ANZ-S2 has a built-in warm supplemental light that activates in low-light conditions to maintain full-colour imaging. Unlike IR-only cameras that switch to black-and-white after dark, these cameras retain colour detail throughout the night. The light output is warm-toned (less intrusive than a cold white spotlight) and operates automatically based on scene illumination levels.

5. Can I access live footage remotely on a phone?

   Yes. The NVR connects to the Dahua DMSS app (available on iOS and Android) for remote live view, playback, and push notifications. SMD+ alert notifications are sent to the app when a human or vehicle event is detected, meaning alerts are filtered to genuine events rather than constant motion triggers. Remote access requires the NVR to be connected to the internet via the site's router.

6. What is the TiOC 3.0 strobe trigger condition - does it require AI classification or can it be set to trigger on any motion?

   TiOC 3.0 on the IPC-HDW3849H-AS-PV-ANZ-S2 operates with AI classification as the default trigger condition - the strobe and siren fire when the camera's onboard processor confirms a human or vehicle in the detection zone. This differs from earlier TiOC versions where basic motion could trigger the response. The classification-first approach is specifically designed to reduce false deterrence events (strobe firing at a cat or blowing leaves) and is the primary practical improvement in the TiOC 3.0 generation. Configuration of detection zones, sensitivity, and strobe/siren behaviour is managed through the NVR interface or the DMSS app. Security Australia stocks this as part of the ANZ firmware variant confirmed for the Australian market.

7. Does the two-way audio work remotely, or only when someone is on-site at the NVR?

   Remotely. The built-in microphone and speaker on each camera support two-way audio through both the NVR interface on-site and the DMSS app remotely. An operator can listen to live audio from any camera position and speak through that camera in real time from a phone anywhere with an internet connection. This is useful for remote verbal warnings, communicating with staff at an unmanned site, or responding to a strobe event without dispatching someone to the location.
