Dahua 6 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security CCTV Kit with 8CH Wizsense NVR

Model: 6xHDW3866EMP/DHI-Wizsense-8P-4KS2-NOHDD

Who This Is For

When covering multiple zones across a small business, commercial tenancy, or light industrial site is the priority, this Dahua 6-camera WizSense kit removes the guesswork from system planning. It pairs 6 x DH-IPC-HDW3866EMP-S-AUS 8MP turret cameras with an 8-channel WizSense NVR that has 8 built-in PoE ports, so every camera runs on a single Cat5e or Cat6 cable with no separate power run required. The 8MP sensor captures 4K resolution across each view, and SMD 4.0 on both the cameras and the NVR filters out animals and environmental noise to deliver human and vehicle alerts that are actually worth acting on. With 2 channels remaining on the NVR after the 6 cameras are connected, there is room to add extra cameras as the site grows. Installers specifying a complete, AI-capable system for warehouses, trade premises, childcare centres, or retail fit-outs will find this kit covers the hardware side of the job in a single order.

What This System Actually Does

Who Buys This Model

• Electrical and security installers: Quoting a complete 4K system for a small commercial site where the client wants AI alerting and minimal false alarms - SMD 4.0 across all 6 cameras handles that without add-on licensing.
• Warehouse and logistics operators: Needing to cover multiple zones including loading areas, roller doors, and internal aisles with a single NVR and consistent camera type across the site.
• Retail business owners: Fitting out a shopfront, stockroom, and car park who want 4K detail for potential insurance or incident evidence without managing a mixed camera system.
• Childcare and education facilities: Requiring indoor and outdoor coverage with weather-rated cameras (IP67) and smart detection that avoids nuisance alerts from playground movement or passing traffic.
• Property developers and strata managers: Staging a camera fit-out across a commercial or mixed-use tenancy and wanting a single-box kit that covers the base system with 2 NVR channels free for future expansion.

Honest Assessment

This kit does two things well: it bundles consistent 4K AI cameras with an NVR that is actually capable of processing their intelligence, and it removes the compatibility guessing that comes with mixing brands or generations. SMD 4.0, perimeter protection, and Quick Pick search are confirmed across the full system, and the 8-port PoE NVR means the physical installation is straightforward. The 120dB WDR and AI SSA make these cameras practical in high-contrast and changeable outdoor conditions without extensive post-install adjustment. What this kit will not do is provide face recognition at the camera level - that function sits with the NVR and processes 1 channel by recorder. It also ships without a hard drive, so storage needs to be purchased and sized separately based on retention requirements. For sites needing long-distance coverage beyond 30 metres at night, a bullet-style camera with extended IR would be a better fit for those specific positions. Available through Security Australia, this kit suits sites where verified human and vehicle alerting, 4K resolution, and PoE simplicity are the core requirements.

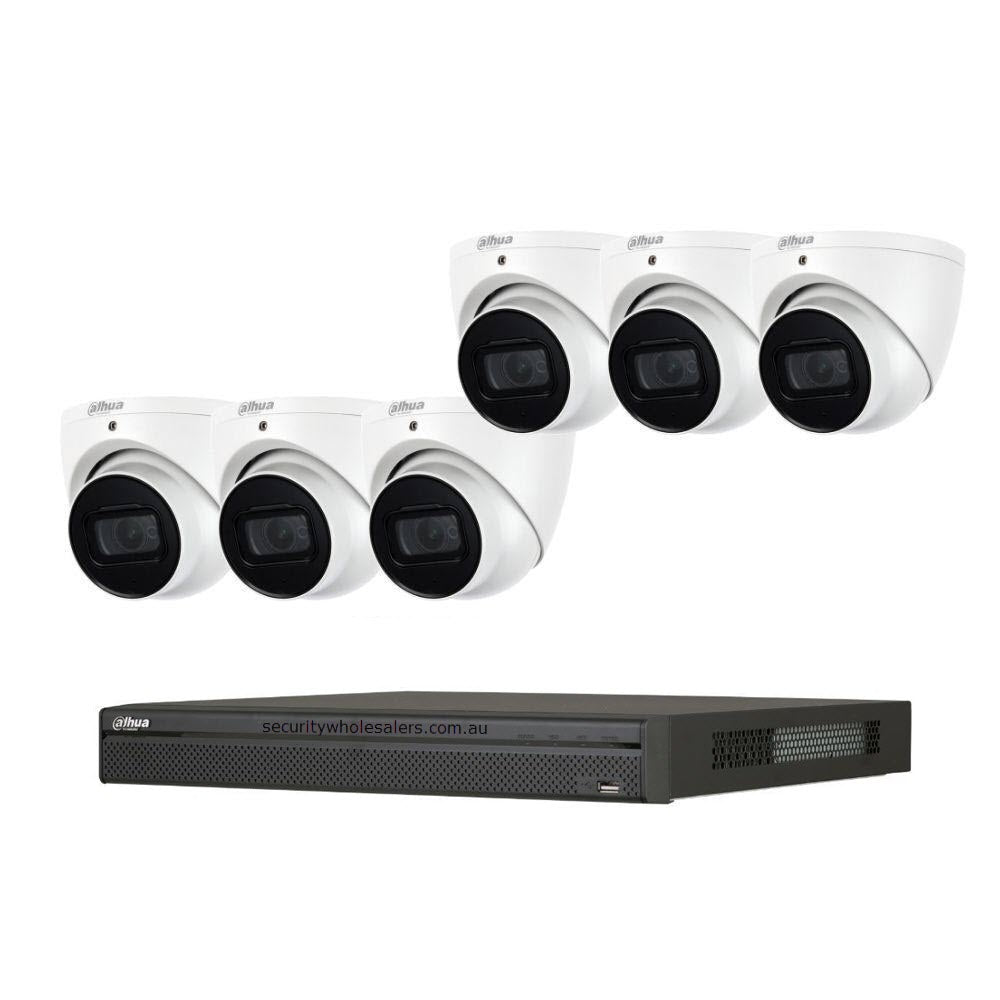

Complete Package Contents

• 6 x Dahua DH-IPC-HDW3866EMP-S-AUS - 8MP 4K WizSense SMD 4.0 IR Turret Camera, IP67, PoE, built-in mic, 2.8mm or 3.6mm fixed lens, 30m IR
• 1 x Dahua NVR4108HS-8P-AI/ANZ - 8-channel WizSense NVR, 8 x PoE ports, face detection, face recognition, SMD Plus, perimeter protection, 1 HDD bay (no HDD included)

Before You Buy

Quick Fit Check

• Good match if: You are covering 4-6 camera positions at a small commercial or light industrial site and want SMD 4.0 AI alerting with 4K resolution across every position without mixing camera types or sourcing a separate PoE switch.
• Good match if: You need outdoor-rated cameras (IP67) at covered entry points, eave mounts, or sheltered wall positions where the 30m IR range is sufficient and you want the NVR to handle perimeter protection tripwire rules without camera-by-camera configuration.
• You may need a different model if: Your site has long open approaches - driveways, car parks, or perimeter fences - where IR coverage beyond 30 metres is needed at night. A bullet-style camera kit with extended IR range would serve those positions better. Browse the bullet and long-range IR camera kits on securityaustralia.com.au for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete, pre-matched 4K AI system where all 6 cameras and the NVR share the same SMD 4.0 and perimeter protection intelligence, and you want 8 PoE ports built into the NVR without a separate switch.
• You may need a different model if: Your site has open outdoor approaches longer than 30 metres that need reliable IR coverage at night - a bullet-style camera kit with 60m-80m IR would suit those positions more effectively. Browse long-range bullet camera kits on securityaustralia.com.au for that application.
• Pairs well with: A Dahua-compatible surveillance-grade HDD (4TB-10TB) to complete the storage side of the system, and a dedicated PoE switch if additional cameras beyond the 8-channel NVR limit are needed in future.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR4108HS-8P-AI/ANZ has 1 x HDD bay but ships without a drive in this kit. You will need to purchase and install a surveillance-grade HDD separately. At 4K across 6 cameras using H.265+ compression, plan for a minimum of 6TB for 30 days of recording at moderate scene activity - more if cameras are in high-movement environments or continuous recording at full bitrate is required.

2. Will this camera work in complete darkness?

   Yes. The DH-IPC-HDW3866EMP-S-AUS reaches 0 lux minimum illumination when the IR LEDs are active, meaning the camera produces a usable greyscale image in total darkness up to 30 metres. The Smart IR function automatically adjusts LED intensity so close-range subjects are not overexposed as they approach the camera.

3. How does SMD 4.0 reduce false alarms compared to standard motion detection?

   SMD 4.0 uses deep learning to classify moving objects as human, vehicle, or neither before triggering an alert. Standard pixel-based motion detection fires on any movement - wind in trees, rain, animals, or passing headlights. SMD 4.0 filters all of those out. In this kit, both the cameras and the NVR run SMD classification, so alerts are processed at the camera edge and confirmed again at the recorder. The NVR's Quick Pick feature then lets you search SMD events by target type - human or vehicle - so reviewing relevant footage takes seconds rather than scrubbing through hours of recordings.

4. Does the NVR support face recognition across all 8 cameras?

   Partially. The NVR4108HS-8P-AI/ANZ supports face detection across all 8 channels and face recognition in 2 modes: 8-channel face detection by camera combined with face recognition by recorder (processing image streams), or 1-channel face detection and recognition entirely by the recorder (processing video stream). Face recognition is not processed independently across all 8 channels simultaneously by the recorder alone - if full 8-channel face recognition is a core requirement, a higher-tier NVR with greater AI processing capacity would be more appropriate.

5. What does AI SSA actually do on these cameras, and when does it matter?

   AI SSA (AI Scene Self-Adaptation) uses a deep learning model running on the camera itself to detect adverse image conditions - rain, fog, strong backlight, low light, and flicker - in real time. When it detects one of these conditions, it automatically adjusts exposure, contrast, and colour balance parameters to compensate without any manual input. This matters most for cameras facing west into afternoon sun, cameras covering external areas on overcast or rainy days, or indoor cameras near windows where the light changes dramatically throughout the day. It is distinct from standard WDR, which handles contrast in a single frame - AI SSA handles ongoing scene-level environmental changes.

6. Can I connect third-party IP cameras to the NVR alongside these Dahua cameras?

   Yes, with a limitation. The NVR4108HS-8P-AI/ANZ supports third-party ONVIF-compatible IP cameras on its 8 channels. However, AI functions including SMD Plus, perimeter protection processing by camera, and Quick Pick search only operate on cameras that support the relevant Dahua WizSense protocols. Third-party cameras connected to the NVR will record and play back normally but will not contribute to the AI-processed event system. For the full SMD and perimeter protection feature set across all positions, Dahua WizSense cameras are required. Contact Security Australia if you are mixing camera types and need to confirm AI feature compatibility before specifying the system.

7. What is the maximum cable run length from the NVR's PoE ports to each camera?

   The standard maximum for PoE over Cat5e or Cat6 is 100 metres per run, which is the IEEE standard limit for 100BASE-TX Ethernet. This applies to the NVR4108HS-8P-AI/ANZ's built-in PoE ports. If your camera positions are beyond 100 metres from the NVR location, you will need a PoE extender or a mid-span PoE injector at an intermediate point to maintain signal quality and power delivery. Plan cable routes before finalising NVR placement.

8. Does the NVR's bandwidth drop when AI features are enabled?

   Yes. The NVR4108HS-8P-AI/ANZ supports up to 256 Mbps for access, storage, and forwarding when AI functions are disabled. When AI processing is enabled, the available bandwidth reduces to 180 Mbps. For 6 x 8MP cameras running H.265+ at typical surveillance bitrates, 180 Mbps is sufficient under normal operating conditions. If you are configuring all 8 channels at maximum bitrate with AI fully active, monitor the NVR's bandwidth utilisation through the system interface during commissioning to confirm no channels are being throttled.
