Dahua 6 x 6MP DH-IPC-HDW3641EM Eyeball / Turret Kit 50m IR 2.8mm with SMD + 8CH NVR + 2TB HDD, Wizsense

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

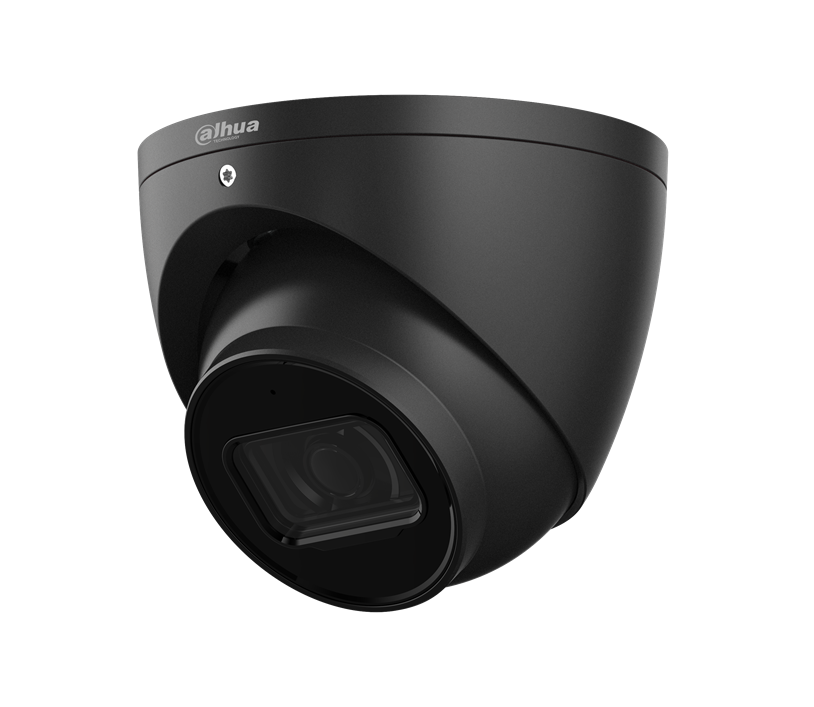

The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities. This camera is designed for versatility and durability, with an IP67 weatherproof rating that ensures reliable performance in various environmental conditions. Its infrared (IR) illumination enables night vision up to 30 meters, providing clear images even in complete darkness. The camera supports H.265 compression, reducing bandwidth and storage requirements without compromising video quality.

It has a fixed focal length of 2.8mm, offering a wide-angle view suitable for monitoring large areas. With its compact and sleek design, the DH-IPC-HDW3641EM-S-S2 is easy to install and integrate into existing security systems. The camera also supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables. Advanced image processing features, such as wide dynamic range (WDR) and 3D noise reduction, ensure optimal performance in challenging lighting conditions.

This model is part of Dahua's WizSense series, which focuses on human and vehicle classification to reduce false alarms and improve accuracy. The camera's robust construction and high-quality components make it a reliable choice for both indoor and outdoor applications. Additionally, it offers remote access and management through the Dahua mobile app, allowing users to monitor their property from anywhere. Overall, the DH-IPC-HDW3641EM-S-S2 provides a comprehensive and intelligent surveillance solution for various security needs.

Features

• 6MP, 1/2.7” progressive scan CMOS, low illuminance, high image definition
• Outputs max. 6MP (3072 × 1728) @ 20 fps, and supports 4MP (2688 x 1520) @ 30 fps
• H.265 codec, high compression rate, low bit rate
• Built-in IR LED, max. IR distance: 50 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Tripwire, intrusion
• Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
• Supports max. 256 G Micro SD card, built-in Mic
• 12V DC/PoE power supply
• IP67 protection
• SMD Plus

Functions

SMD Plus Dahua Smart Motion Detection (SMD) technology uses an intelligent algorithm to categorize targets that trigger motion detection, filtering out non-relevant targets to deliver accurate and effective alarms.

Smart H.265+ & Smart H.264+ Dahua's advanced scene-adaptive rate control algorithm in smart encoding technology offers higher encoding efficiency compared to H.265 and H.264, ensuring high-quality video while reducing storage and transmission costs.

Perimeter Protection Dahua Perimeter Protection technology leverages deep learning algorithms to accurately recognize humans and vehicles. It significantly reduces false alarms in restricted areas (such as pedestrian and vehicle zones) by intelligently detecting and filtering events like tripwire, intrusion, fast moving, parking, loitering, and gathering.

Starlight Dahua Starlight technology excels in low-light environments, providing clear, colorful video even under minimal illumination, ensuring good image quality.

WDR With advanced Wide Dynamic Range (WDR) technology, Dahua network cameras deliver clear details in high-contrast lighting conditions. Both bright and dark areas are captured clearly, even in challenging lighting scenarios or with backlight shadows.

Protection (IP67, Wide Voltage) IP67: The camera is rigorously tested for dust and water resistance, capable of operating normally after being submerged in 1 meter of water for 30 minutes.
Wide Voltage: The camera supports ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage conditions.

Technical Specifications:

The 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder, model DHI-NVR4108HS-8P-4KS2/L, from Dahua Security is a powerful and efficient surveillance solution designed for small to medium-sized installations. This NVR supports up to 8 IP cameras with a maximum resolution of 8MP, providing clear and detailed video footage. It features H.265+ video compression, significantly reducing storage and bandwidth requirements without compromising video quality. The device includes one SATA interface, supporting up to 10TB of storage, ensuring ample space for recording and archiving footage. Equipped with 8 PoE ports, it simplifies the installation process by delivering power and data over a single cable to each connected camera. The NVR offers intelligent video system (IVS) capabilities, such as intrusion detection, tripwire, and facial detection, enhancing security and monitoring effectiveness. With its easy-to-use web interface and support for mobile access via the Dahua DMSS app, users can manage and view their surveillance system remotely.

The NVR also supports various network protocols and has a built-in P2P feature for simplified network setup. Additionally, it provides multiple recording modes, including manual, schedule, and alarm-based recording, offering flexibility to meet different security needs. The compact 1U design ensures efficient use of space and easy integration into existing setups. High reliability is guaranteed with features like redundant power supply options and ANR (Automatic Network Replenishment) technology, which ensures continuous recording even during network interruptions. The DHI-NVR4108HS-8P-4KS2/L is an ideal choice for users seeking a robust and versatile network video recorder for their security infrastructure.

Features

• New 4.0 user interface, Security baseline 2.1
• H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
• Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
• Supports mainstream cameras of ONVIF and RTSP protocols
• P2P remote surveillance, video play on mobile device
• VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
• AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
• Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches

Functions

Perimeter Protection by Camera
This feature automatically filters out false alarms caused by animals, rustling leaves, bright lights, and other non-threats. It enhances the system's ability to recognize true threats, thereby improving alarm accuracy.

Face Detection by Camera
Utilizing deep learning algorithms, this technology detects human faces in the video feed. It supports face detection, tracking, optimization, and capturing, ultimately outputting the best face snapshot for identification purposes.

SMD Plus by Camera
Dahua's Smart Motion Detection technology uses intelligent algorithms to categorize motion detection targets, filtering out non-essential alarms. This ensures effective and accurate alerting for relevant movements.

People Counting by Camera
Employing deep learning algorithms, Dahua People Counting technology tracks and processes moving human targets. It provides accurate statistics on the number of people entering, leaving, and present in an area. Integrated with a management platform, it generates detailed yearly, monthly, weekly, and daily reports.

Smart Codec
Dahua's smart codec technology, featuring an advanced scene-adaptive rate control algorithm, offers higher encoding efficiency compared to H.265 and H.264 standards. This results in high-quality video while reducing storage and transmission costs.

DMSS
Available on the iOS App Store and Google Play, the DMSS app simplifies surveillance. It allows remote access to back-end devices, live video viewing, event push notifications, and recorded video searches from an iPhone, iPad, or Android device anytime, anywhere.

Technical Specifications:
