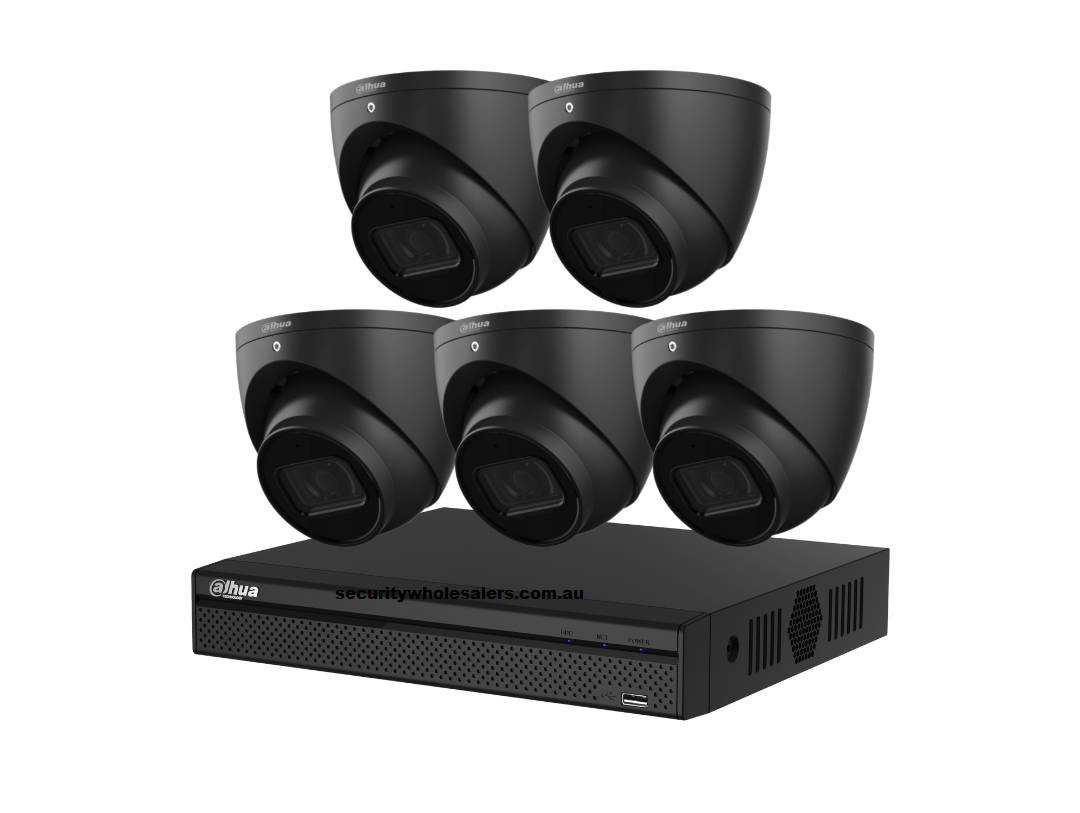

Dahua 5 x 6MP DH-IPC-HDW3666EMP Turret Security Kit 50m IR 2.8mm + 8CH NVR Wizsense

$1,118.00 AUD
$1,043.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

Dahua 6 MP + 8 Channels Kit is a comprehensive surveillance solution. It includes five 6 MP Turret Network Camera, offering high-resolution video capture. The kit is paired with a 8-channel NVR, allowing for efficient video recording and management. This setup ensures robust security coverage for various environments.

Dahua Camera Kit includes:

5 x 6MP IR Fixed-focal Eyeball WizSense Network Camera

The Dahua DH-IPC-HDW3666EMP-S-AUS Security Camera is a Lite series fixed lens turret with a 50m infrared range and a built-in mic. It supports motion, intrusion and tripwire detection. Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments. With advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Key Features

  • 6-MP 1/2.7" CMOS image sensor for excellent low luminance performance and high definition.
  • Outputs up to 6 MP (3072 × 2048) at 25/30 fps.
  • H.265 codec offers high compression rate and ultra-low bit rate.
  • Built-in IR LED with a maximum IR distance of 30 meters.
  • Supports ROI, SMART H.264+/H.265+, and AI H.264/H.265 for flexible coding, suitable for various bandwidth and storage environments.
  • Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenarios.
  • Intelligent detection capabilities include intrusion, tripwire, and accurate vehicle and human classification.
  • Abnormality detection includes motion detection, privacy masking, scene changes, audio detection, SD card issues, network disconnection, IP conflict, illegal access, and voltage detection.
  • Supports up to 256 GB Micro SD card and has a built-in microphone.
  • Powered by 12 VDC/PoE for easy installation.
  • IP67 protection rating.
  • Includes SMD 4.0 and AI SSA technology.

Code/SKU: DH-IPC-HDW3666EMP-S-AUS
Quick Specs: Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°; Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)



1 x 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder

The 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder, model DHI-NVR4108HS-8P-4KS2/L, from Dahua Security is a powerful and efficient surveillance solution designed for small to medium-sized installations. This NVR supports up to 8 IP cameras with a maximum resolution of 8MP, providing clear and detailed video footage. It features H.265+ video compression, significantly reducing storage and bandwidth requirements without compromising video quality.

Key Features

  • New 4.0 user interface, Security baseline 2.1
  • H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
  • Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • P2P remote surveillance, video play on mobile device
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
  • Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches

Code/SKU: DHI-NVR4108HS-8P-4KS2/L
Quick Specs: Main Processor: Industrial-grade embedded processor, OS: Embedded Linux, Operation Interface: Web/operating in local GUI

Specifications

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3072 (H) × 2048 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)

0.0005 lux@F1.4 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (164.04 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm;

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°

3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m

(208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m

(21.00 ft)

3.6 mm

85.4 m (280.18 ft)

34.2 m (112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)





Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Main stream: 3072× 2048 @ (1–25/30) fps

Sub stream 1: 704 × 576 @ (1–25 fps)/

704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

6M(3072x2048);5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE:IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4.3 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

93.6 mm × Φ106.0 mm (3.69" × Φ4.17")

Net Weight

500 g (1.10 lb)

Gross Weight

770 g (1.70 lb)




System

Main Processor

Industrial-grade embedded processor

OS

Embedded Linux

Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

8 channels

AI Search

Search for pictures by channel, time and event type

Face Detection by Camera

Performance

4 channels

Face Attributes

6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

8

Network Bandwidth

Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution

8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability

8 × 1080p@30 fps

Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display

1, 4, 8, 9 views

Third-party Camera Access

ONVIF; RTSP

Compression

Video

Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF(profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback

Up to 8 channels for playback

Record Mode

Manual record; alarm recording; SMD recording; smart recording

Storage

Local HDD; network

Backup

USB storage device

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (1 × front USB2.0; 1 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

POE

8

General Parameter

Power Supply

DC48 V/53 V, 2A/1.8 A

Power Consumption

< 10 W (HDD not included, idling)
Total output power of PoE is 72W, the maximum output power of a single port is 25.5W

Net Weight

0.92 kg (2.03 lb)

Gross Weight

2.07 kg (4.56 lb)

Product Dimensions

260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98") (W × L × H)

Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)

Operating Conditions

–10 °C to +55 °C (+10 °F to +131 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua 5 x 6MP DH-IPC-HDW3666EMP Turret Security Kit 50m IR 2.8mm + 8CH NVR Wizsense

$1,118.00 AUD
$1,043.00 AUD
 per

The DH-IPC-HDW3666EMP-S-AUS is a 6MP fixed-focal network camera that delivers high-resolution video with a 3072 x 2048 pixel resolution, thanks to its advanced 1/1.8” CMOS sensor. It features a fixed 3.6mm lens for a wide field of view and supports infrared night vision up to 50 meters for clear imaging in low-light conditions. With integrated WizSense technology, the camera enhances intelligent detection and analysis capabilities, while true WDR (Wide Dynamic Range) helps manage complex lighting conditions.

It uses H.265 and H.264 compression formats to reduce bandwidth and storage needs. The camera includes a built-in microphone for audio recording, is IP67 rated for dust and water resistance, and supports PoE (Power over Ethernet) for easy installation. It integrates with Dahua’s SmartPSS software and other VMS solutions, offers intelligent analytics features like line crossing and intrusion detection, and supports local recording via microSD card. Its compact, discreet design ensures it blends into various environments while providing reliable, high-performance surveillance.

Features:

  • Records up to 6MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • 2.8mm Fixed lens
  • Outputs max. 6 MP (3072 x 2048) @25/30 fps.
  • Supports Starlight technology, generates clear images in near-complete darkness.
  • Supports PoE "Power-Over-Ethernet" installations.
  • Built-In Mic
  • Intelligent Detection: Intrusion, tripwire and motion (Up to 4 areas)
  • Supports 50m Smart Infrared Range
  • 120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
  • Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • Metal Housing



Functions:

Smart (H.265+ & H.264+)

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Wide dynamic range (WDR) Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back- light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee a good image effect.

Intelligent Video Analysis (IVS)

With an advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage) IP67:

The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to the outdoor environment with unstable voltage.

Technical Specifications:

Camera

Image Sensor

1/2.7” 6Megapixel progressive CMOS

Max. Resolution

3072 (H) × 2048 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux @ F1.6

S/N Ratio

>56 dB

Illumination Distance

50 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Horizonal: 0°–360°
Vertical: 0°–78°
Rotation: 0°–360°



Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments. With advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

The 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder, model DHI-NVR4108HS-8P-4KS2/L, from Dahua Security is a powerful and efficient surveillance solution designed for small to medium-sized installations. This NVR supports up to 8 IP cameras with a maximum resolution of 8MP, providing clear and detailed video footage. It features H.265+ video compression, significantly reducing storage and bandwidth requirements without compromising video quality. The device includes one SATA interface, supporting up to 10TB of storage, ensuring ample space for recording and archiving footage. Equipped with 8 PoE ports, it simplifies the installation process by delivering power and data over a single cable to each connected camera. The NVR offers intelligent video system (IVS) capabilities, such as intrusion detection, tripwire, and facial detection, enhancing security and monitoring effectiveness. With its easy-to-use web interface and support for mobile access via the Dahua DMSS app, users can manage and view their surveillance system remotely.

The NVR also supports various network protocols and has a built-in P2P feature for simplified network setup. Additionally, it provides multiple recording modes, including manual, schedule, and alarm-based recording, offering flexibility to meet different security needs. The compact 1U design ensures efficient use of space and easy integration into existing setups. High reliability is guaranteed with features like redundant power supply options and ANR (Automatic Network Replenishment) technology, which ensures continuous recording even during network interruptions. The DHI-NVR4108HS-8P-4KS2/L is an ideal choice for users seeking a robust and versatile network video recorder for their security infrastructure.

Features

  • New 4.0 user interface, Security baseline 2.1
  • H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
  • Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • P2P remote surveillance, video play on mobile device
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
  • Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches



Functions

Perimeter Protection by Camera
This feature automatically filters out false alarms caused by animals, rustling leaves, bright lights, and other non-threats. It enhances the system's ability to recognize true threats, thereby improving alarm accuracy.

Face Detection by Camera
Utilizing deep learning algorithms, this technology detects human faces in the video feed. It supports face detection, tracking, optimization, and capturing, ultimately outputting the best face snapshot for identification purposes.

SMD Plus by Camera
Dahua's Smart Motion Detection technology uses intelligent algorithms to categorize motion detection targets, filtering out non-essential alarms. This ensures effective and accurate alerting for relevant movements.

People Counting by Camera
Employing deep learning algorithms, Dahua People Counting technology tracks and processes moving human targets. It provides accurate statistics on the number of people entering, leaving, and present in an area. Integrated with a management platform, it generates detailed yearly, monthly, weekly, and daily reports.

Smart Codec
Dahua's smart codec technology, featuring an advanced scene-adaptive rate control algorithm, offers higher encoding efficiency compared to H.265 and H.264 standards. This results in high-quality video while reducing storage and transmission costs.

DMSS
Available on the iOS App Store and Google Play, the DMSS app simplifies surveillance. It allows remote access to back-end devices, live video viewing, event push notifications, and recorded video searches from an iPhone, iPad, or Android device anytime, anywhere.

Technical Specifications:


System

Main Processor

Industrial-grade embedded processor

OS

Embedded Linux

Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

8 channels

AI Search

Search for pictures by channel, time and event type

Face Detection by Camera

Performance

4 channels

Face Attributes

6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

8

Network Bandwidth

Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution

8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability

8 × 1080p@30 fps

Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display

1, 4, 8, 9 views

Third-party Camera Access

ONVIF; RTSP

Compression

Video

Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF(profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback

Up to 8 channels for playback

Record Mode

Manual record; alarm recording; SMD recording; smart recording

Storage

Local HDD; network

Backup

USB storage device

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (1 × front USB2.0; 1 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

POE

8

General Parameter

Power Supply

DC48 V/53 V, 2A/1.8 A

Power Consumption

< 10 W (HDD not included, idling)
Total output power of PoE is 72W, the maximum output power of a single port is 25.5W

Net Weight

0.92 kg (2.03 lb)

Gross Weight

2.07 kg (4.56 lb)

Product Dimensions

260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98") (W × L × H)

Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)

Operating Conditions

–10 °C to +55 °C (+10 °F to +131 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B



Enhance your security with the Dahua Camera System Kit. Experience superior clarity, advanced analytics, and reliable performance. Upgrade your surveillance system today!

Videos

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.

Sales Support & Enquiry Form

Got a question or just want to chat?
