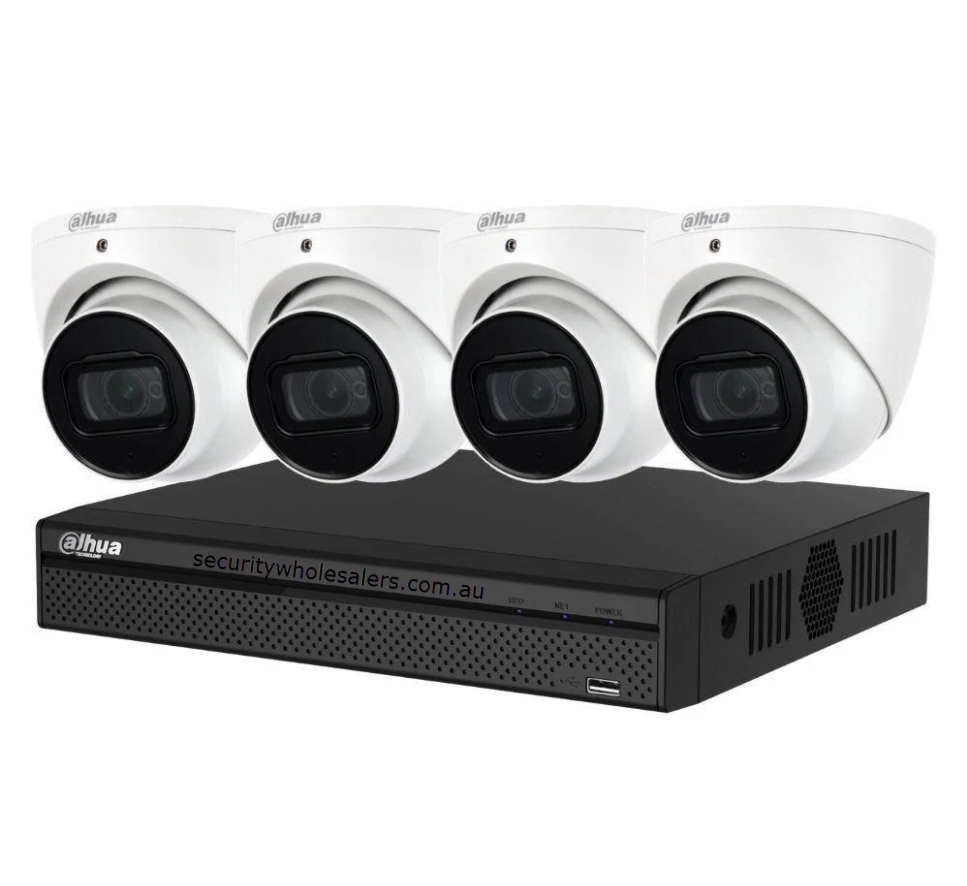

Dahua 4 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security CCTV Kit with 8CH Wizsense NVR

Model: 4xHDW38466MP/DHI-WizsenseNVR_8CH

Who This Is For

When replacing a patchwork of older cameras with a properly integrated, AI-capable system is the priority, this kit delivers a complete starting point without the guesswork. The bundle pairs 4 Dahua DH-IPC-HDW3866EMP-S-AUS 8MP turret cameras with an 8-channel WizSense NVR that has 8 built-in PoE ports, meaning a single Cat6 run to each camera handles both power and data. At 4K resolution with SMD 4.0 human-and-vehicle classification on every camera channel, this setup suits small business owners, property managers, and self-installing homeowners who want genuine AI-driven detection rather than basic motion alerts. It suits sites with up to 4 camera positions now and room to add up to 4 more cameras later, including warehouses, small retail premises, childcare facilities, and residential properties needing 30m IR night coverage across key entry and outdoor areas.

What This System Actually Does

Who Buys This Model

• Small Business Owners: Retail stores, cafes, and warehouses wanting 4K footage with AI-classified alerts that won't fire every time a bird or a passing car triggers motion detection.
• Residential Installers and Self-Installers: Homeowners running Cat6 to 4 camera positions who want a PoE system that comes pre-matched - cameras, NVR, and AI all from the same WizSense ecosystem.
• Property Managers: Strata and rental property managers specifying a system that can expand to 8 channels as the site evolves without replacing the NVR.
• Childcare and Education Facilities: Sites needing 4K detail indoors and under eaves, with IP67-rated cameras that handle Queensland and coastal humidity without extra weatherproofing.
• Light Industrial and Warehouse Sites: Loading dock and perimeter installs where 30m IR reach and tripwire/intrusion detection by camera covers approaches without needing a PTZ.

Honest Assessment

This kit delivers genuine 4K AI surveillance at a price point that previously required compromising on either resolution or analytics. SMD 4.0 on all 4 cameras, combined with the NVR's perimeter protection and Quick Pick retrieval, makes incident review significantly faster than scrolling through hours of unclassified motion footage. The IP67-rated turret housings are well suited to outdoor eave and soffit mounting, and the 2.8mm and 3.6mm lens options give installers real flexibility across different site geometries. The 30m IR range is appropriate for residential and small commercial sites - if you need to cover a long driveway approach beyond 30m, or require optical zoom for identification at distance, a bullet or PTZ camera would serve that position better. This kit also ships with 1 HDD bay on the NVR; storage capacity depends entirely on the drive you install, so plan that before purchase. Available through Security Australia, this bundle is a strong fit for sites where 4 to 8 cameras, PoE simplicity, and SMD-level AI are the core requirements.

Complete Package Contents

• 4 x Dahua DH-IPC-HDW3866EMP-S-AUS - 8MP 4K WizSense SMD 4.0 Turret Camera, IP67, 30m IR, Fixed Focal (2.8mm or 3.6mm), Built-in Mic, PoE/12VDC
• 1 x Dahua NVR4108HS-8P-AI/ANZ - 8-Channel Compact 1U WizSense NVR, 8 PoE Ports, 1 HDD Bay (HDD not included), 256 Mbps Bandwidth, AI by NVR and AI by Camera

Before You Buy

Quick Fit Check

• Good match if: You have 4 camera positions now with potential to grow to 8, and want PoE simplicity with SMD 4.0 human-and-vehicle classification active on every channel from day one.
• Good match if: You need 4K outdoor turret cameras rated IP67 for eave or soffit mounting, where 30m IR night coverage is sufficient for the approaches being monitored.
• You may need a different model if: Your site has long perimeter runs beyond 30m requiring optical zoom identification, or requires active deterrence with white light and audio warnings - a TiOC or bullet camera system would be a better fit for those positions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a pre-matched 4K WizSense system with on-board PoE, SMD 4.0 classification across all 4 cameras, and room to grow to 8 channels on the same NVR without additional switching hardware.
• You may need a different model if: Your site requires active deterrence (white light strobes and audio warnings on intrusion detection) or long-range identification beyond 30m - a TiOC kit or a bullet camera system with extended IR would be more appropriate for those applications.
• Pairs well with: A surveillance-grade 3.5" SATA HDD sized to your recording retention requirements, and a UPS unit to protect the NVR from power interruptions in areas prone to outages.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR4108HS-8P-AI/ANZ ships with 1 HDD bay but no drive installed. You will need to purchase a compatible 3.5" SATA surveillance-grade HDD separately. For 4 cameras recording at 4K using Smart H.265+, a 4TB drive is a practical starting point for several days of continuous recording retention, depending on motion frequency and scene complexity.

2. Will these cameras work without the NVR - can I connect them directly to a router and record to the cloud?

   Yes, each DH-IPC-HDW3866EMP-S-AUS can operate as a standalone IP camera on a network and record locally to a MicroSD card (up to 256GB per camera). However, the SMD 4.0 Quick Pick search function, centralised AI by NVR features, and multi-camera event timeline all require the paired NVR. Running the cameras standalone removes the NVR-level intelligence and unified recording interface that make this kit's AI functions practical.

3. What is the difference between "AI by Camera" and "AI by NVR" on this system?

   AI by Camera means each DH-IPC-HDW3866EMP-S-AUS processes SMD 4.0 classification and perimeter protection locally on its own chipset - all 8 camera channels can run these functions simultaneously without burdening the NVR. AI by NVR means the NVR4108HS-8P-AI/ANZ adds its own processing layer on top: face detection and recognition runs on 1 channel by the recorder, perimeter protection on 2 channels, and SMD Plus on 4 channels. The split architecture means you are not limited to a small number of AI-enabled camera positions - the cameras carry their own AI load for the functions they support natively. Note the bandwidth drops from 256 Mbps to 180 Mbps when NVR AI functions are active, which is still sufficient for 4 to 8 x 4K camera streams.

4. How does SMD 4.0 reduce false alarms compared to standard motion detection?

   SMD 4.0 uses deep learning on the camera's own processor to classify every motion event before generating an alert. Standard motion detection triggers on any pixel change - a car headlight sweeping across a wall, a cat walking past, rain on the lens. SMD 4.0 filters those out and only flags events classified as human or vehicle. When connected to this NVR, Quick Pick lets you retrieve those classified events by type directly from the timeline, instead of scrubbing through hours of continuous footage to find a relevant incident.

5. Can I view and manage this system remotely on a phone?

   Yes. The NVR4108HS-8P-AI/ANZ supports remote access via Dahua's DMSS mobile application and web browser interface. Live view, playback, and event notifications are accessible remotely provided the NVR has a stable internet connection. Network configuration including port forwarding or P2P cloud access will need to be set up during installation - this is standard for any IP NVR system.

6. What are the DORI distances for these cameras - can they actually identify a face at the IR range?

   No. IR range and identification distance are different measurements. The 30m IR figure is the maximum illumination reach for visibility in darkness. DORI identification distance - the range at which a face can be identified to a forensic standard - is 8.8m for the 2.8mm lens and 10.2m for the 3.6mm lens. For perimeter detection at longer ranges, the 2.8mm lens detects a human presence up to 87.7m and the 3.6mm up to 102.1m. Plan camera positions with these figures in mind: if face identification at an entry point is a priority, mount the camera within 8-10m of where subjects will pass. Part of the Security Australia range, this kit's spec sheet confirms all DORI values per the standard lens configurations.

7. Does the NVR support third-party cameras, or is it locked to Dahua?

   The NVR4108HS-8P-AI/ANZ supports ONVIF-compliant third-party cameras for basic recording functions. However, AI features - SMD Plus, perimeter protection by camera, Quick Pick, face recognition, and ANPR by camera - require Dahua WizSense-compatible cameras. Non-Dahua cameras added to the remaining 4 channels will record video but will not pass AI event metadata to the NVR for classification or Quick Pick retrieval.

Cabling Considerations

• Cable Type: Cat5e minimum; Cat6 recommended for 4K streams and future-proofing additional camera positions.
• Max Cable Run: 100m per camera from the NVR PoE port to the camera, per IEEE 802.3af PoE specification. Runs longer than 100m will require a PoE extender - the NVR cannot compensate for excessive cable length.
• PoE Notes: All 8 PoE ports are built into the NVR4108HS-8P-AI/ANZ. The cameras draw standard PoE (IEEE 802.3af); no PoE+ injectors or external switches are needed for this kit. Check the NVR's total PoE budget before adding cameras beyond the included 4.
• Wiring Tips: Pull cable through conduit where possible on outdoor runs to protect against UV degradation and rodent damage. Terminate with shielded (STP) connectors at outdoor entry points, and seal any wall penetrations with weatherproof compound to prevent moisture ingress to the building structure.
