Dahua 4 x 8MP TiOC CCTV Kit: Full Colour Night Vision, Audible Warning 4CH PoE AI NVR

Model: DH-TiOC4kit-4CH

Who This Is For

When active deterrence is the priority - not just recording after the fact - this kit is built around that outcome. The Dahua 4 x 8MP TiOC 4CH PoE AI NVR Kit is designed for homeowners, small business operators, and installers who want cameras that respond to detected intrusions with a visible strobe and audible warning, not just store footage. TiOC combines full-colour night vision, AI human and vehicle detection, and active deterrence in a single camera body - removing the need for separate floodlights or external sirens. The 4-channel PoE NVR ties the system together with AI-filtered event recording, cutting through motion noise from trees, animals, and passing headlights. Typical installs include residential properties with side access concerns, small retail and warehouse premises, and light commercial sites where a visible deterrent response matters as much as post-event evidence.

What This Camera Actually Does

Who Buys This Model

• Residential installers: Fitting out homes where the client wants a visible, immediate response to after-hours intrusions - driveways, side gates, and back yards where passive recording alone is not sufficient.
• Small retail and hospitality operators: Businesses that experience after-hours break-in attempts and want cameras that actively challenge intruders at the point of entry rather than purely document the event.
• Light industrial and warehouse sites: Operators monitoring yards, loading areas, or perimeter fencing where vehicle and human intrusion detection tied to an immediate alarm response reduces the risk of theft or vandalism going uncontested.
• DIY-capable property owners: Those comfortable running Cat6 cable who want a complete, matched system - cameras, NVR, and AI processing - without sourcing compatible components separately.

Honest Assessment

This kit does something most standard CCTV packages do not: it responds to intrusions in real time. The combination of full-colour night vision, AI human and vehicle classification, and built-in strobe and audible deterrence removes the need to pair standard cameras with separate floodlights or alarm sirens. The 8MP resolution gives useful detail for review, and the PoE architecture keeps the install clean. For a 4-camera perimeter covering a residential or small commercial site, this is a well-matched, purpose-built system available through Security Australia.

Where this kit reaches its limits: it covers 4 channels only, so larger sites needing 8 or more camera positions will require a different NVR. The TiOC deterrence function is designed for outdoor perimeter use - it is not suited to internal areas such as server rooms or retail floors where strobe and audible alarms would be disruptive or inappropriate. Sites needing long-range detection beyond the cameras' rated IR distance, or requiring optical zoom coverage, should look at PTZ or bullet camera options instead.

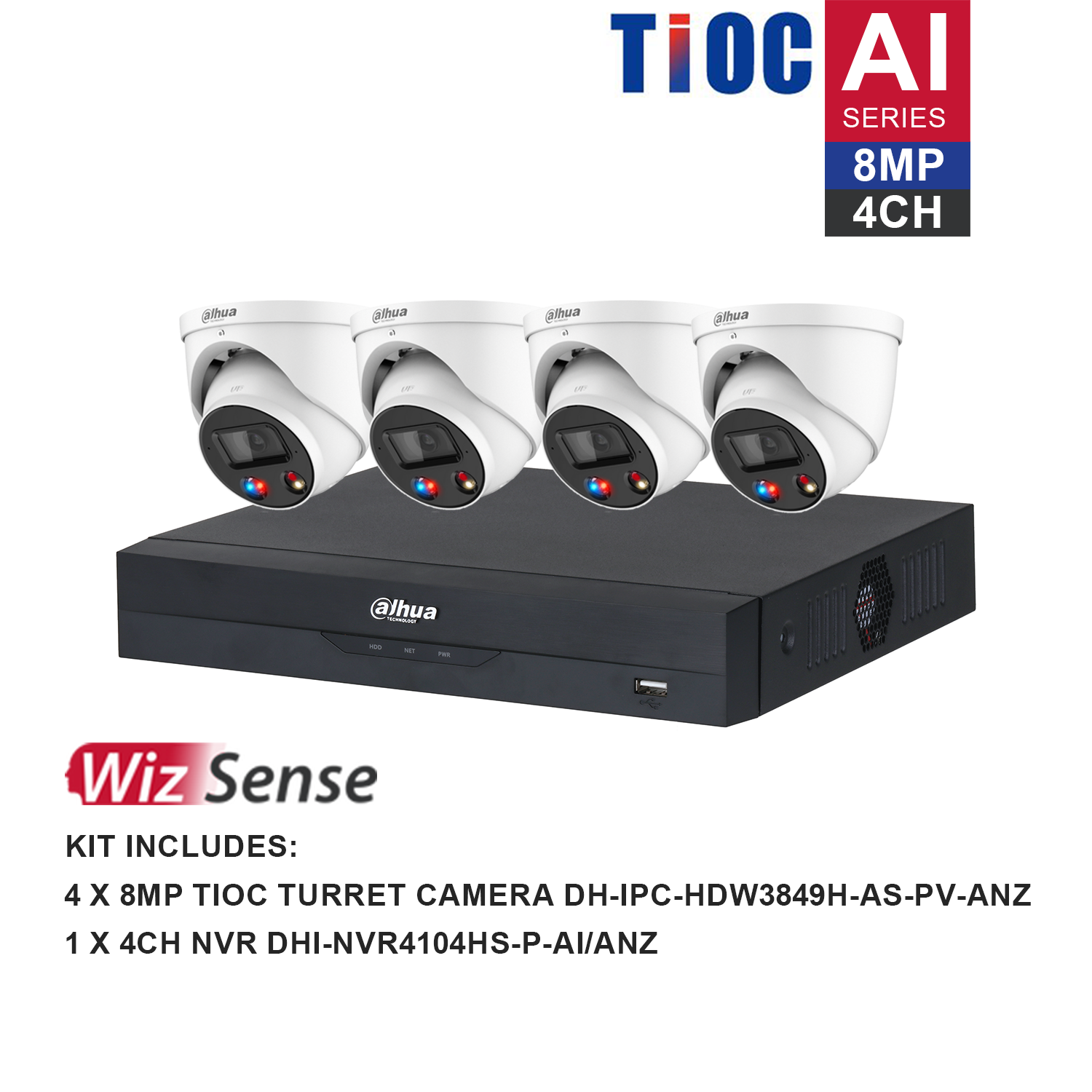

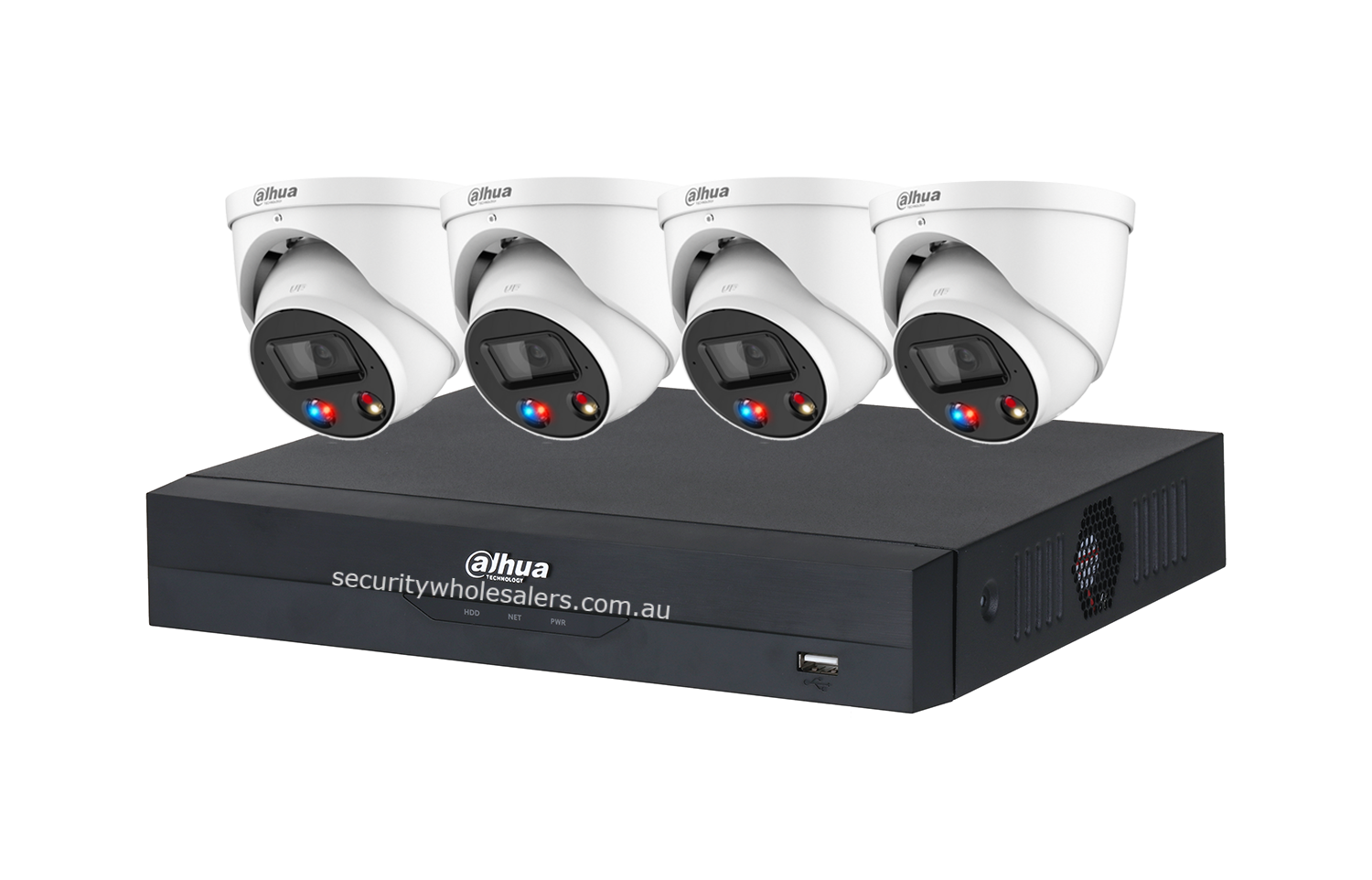

Complete Package Contents

• 4 x Dahua TiOC 8MP Turret Camera - full-colour night vision, active strobe and audible deterrence, WizSense AI, PoE
• 1 x Dahua 4-Channel PoE AI NVR - WizSense AI processing, powers all cameras via PoE, smart search and event management

Before You Buy

Quick Fit Check

• Good match if: You need a complete 4-camera outdoor perimeter system where the cameras actively challenge intruders with strobe and audio at the moment of detection, not just after the fact.
• Good match if: Your site runs Cat5e or Cat6 cabling back to a central point and you want a single-cable-per-camera install with no separate power supplies at each camera position.
• You may need a different model if: Your site requires more than 4 cameras, needs indoor-optimised cameras without active strobe deterrence, or demands long-range coverage where a bullet camera or PTZ system would serve the geometry better - additional options are available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need cameras that actively deter intruders with a real-time strobe and audible alarm triggered by AI-confirmed human or vehicle detection - not just passive recording with motion alerts.
• You may need a different model if: Your site has more than 4 camera positions, requires long-range detection coverage beyond a standard fixed lens, or needs a PTZ camera to track movement across a large open area - larger channel kits and PTZ system options are available on securityaustralia.com.au.
• Pairs well with: A compatible PoE network switch if additional cameras are added to a separate NVR in future, or a UPS to maintain NVR operation and camera power during brief power interruptions.

Common Questions

1. Does the audible warning trigger automatically, or does someone have to activate it manually?

   Automatically - no human intervention is needed at the moment of detection. Once the deterrence function is configured in the NVR's AI event settings, the strobe and audible alarm trigger as soon as the WizSense AI classifies a detection as a human or vehicle within the defined zone. The system responds in real time, independent of whether anyone is monitoring the NVR live.

2. Will this kit work with cameras or NVRs I already own?

   It depends on compatibility. The TiOC cameras and AI NVR in this kit are matched to work together as a system. While Dahua NVRs generally support ONVIF-compatible third-party cameras, the TiOC active deterrence features - strobe triggering, audible alarm, and WizSense AI event processing - are only fully functional when TiOC cameras are paired with a compatible Dahua AI NVR. Mixing with non-Dahua equipment may result in loss of these specific functions.

3. How does the TiOC active deterrence differ from standard motion-triggered cameras with a siren accessory?

   The key difference is classification accuracy and integration. Standard motion detection triggers on any movement - including animals, wind, and passing vehicles - which leads to frequent false activations that reduce the siren's deterrence value over time. TiOC uses WizSense AI to classify specifically humans and vehicles before triggering the strobe and alarm. The deterrence hardware is also built directly into the camera body, removing the reliability dependency on a separate wired or wireless siren accessory. This is a meaningfully different operational outcome, not just a feature label difference.

4. Does the full-colour night vision mean the cameras always have the warm light on?

   Not necessarily - it depends on how the camera is configured. TiOC cameras can be set to activate the warm light illuminator only when the AI detects a human or vehicle (event-triggered mode), which means the light remains off during quiet periods and activates as part of the deterrence response. Alternatively, they can run in continuous full-colour mode where the warm light stays on throughout low-light periods. The appropriate mode depends on the site and the end user's preference for visible versus discreet operation.

5. Will this system work for a site where false alarms from animals or wind have been a problem with previous cameras?

   Yes, this is specifically where WizSense AI addresses a real operational issue. Standard pixel-change motion detection cannot distinguish a person from a dog, a swaying tree, or headlight wash across a wall. WizSense classifies detections by human or vehicle shape and movement pattern before any alert or deterrence response is triggered. Sites that have experienced persistent false activations from standard cameras typically see a substantial reduction in unwanted events when AI-classified detection is used in its place.

6. What hard drive does the NVR require, and is one included in this kit?

   A surveillance-grade HDD needs to be added separately - the NVR ships without a pre-installed hard drive. Standard desktop HDDs are not recommended for continuous CCTV recording due to drive wear; a surveillance-grade NAS or CCTV-rated HDD is the appropriate choice. For 4 x 8MP cameras recording continuously, storage requirements are significant - calculate your target retention period (typically 30 days minimum) against the cameras' recording bitrate to determine the correct drive capacity. Security Australia stocks compatible surveillance hard drives separately if required.

7. What is the maximum PoE cable run length for these cameras, and does cable quality affect the TiOC functions?

   The standard maximum PoE cable run is 100 metres per camera from the NVR's PoE port to the camera, using Cat5e or Cat6 cable. Exceeding this distance without a PoE extender will cause the camera to drop off the network or fail to power on reliably. Cable quality is relevant beyond just connectivity - poor-quality or damaged cable can cause intermittent drops that interrupt the AI processing link between camera and NVR, which would affect the reliability of TiOC deterrence event triggering. Use quality-rated cable and keep runs within specification.
