Dahua 4 x 6MP TIOC Advanced 2.0 DH-IPC-HDW3649H-AS-PV-ANZ Turret Kit 4CH NVR

Model: 4xTIOC2.0DH-DH-IPC-HDW3649H-AS-PV-ANZ+4CH_WIZ_NVR-NOHDD

Who This Is For

Small business owners and residential property managers who want visible, active deterrence rather than passive recording will find this kit purpose-built for that outcome. The Dahua 4 x 6MP TiOC Advanced 2.0 kit pairs four DH-IPC-HDW3649H-AS-PV-ANZ turret cameras with a 4-channel WizSense NVR, giving you a complete, AI-driven system out of the box. Each camera uses smart dual illumination to deliver full-colour footage at night, and when the onboard AI detects a genuine intrusion or tripwire event, the built-in siren and red/blue strobe lights activate automatically - warning intruders before any damage is done. The 4-channel PoE NVR powers and connects all 4 cameras over a single Cat cable run per camera, keeping installation straightforward. This is the kit for driveways, side gates, retail shopfronts, and small commercial yards where the goal is deterrence first, evidence second.

What This System Actually Does

Who Buys This Model

• Retail shopfront owners: Who need after-hours deterrence at entry points and car parks - the siren and strobe activate on confirmed human detection rather than every passing car.
• Residential property owners with larger blocks: Monitoring driveways, sheds, and perimeter gates where 30 m dual illumination covers the full approach in colour at night.
• Small warehouse and trade business operators: Protecting goods stored outdoors or in yards, using tripwire and intrusion zones mapped to specific areas like loading bays and storage compounds.
• Installers fitting a complete system for first-time buyers: The 4-channel PoE NVR and 4 matching cameras arrive as a tested, compatible bundle - reducing configuration time and support calls post-installation.
• Strata and body corporate managers: Covering common areas, basement entry points, and bin enclosures where two-way audio and active deterrence add a response capability without dedicated security staff.

Honest Assessment

This kit does active deterrence properly. The TiOC Advanced 2.0 cameras combine AI target classification, full-colour smart illumination, and a siren-and-strobe alarm in a single turret housing - and the WizSense NVR is specifically designed to work with these cameras, meaning AI events are passed through and logged correctly at the recorder without third-party compatibility workarounds. The 6MP sensor, 30 m dual-illumination range, and IP67 rating make these cameras genuinely capable outdoors across Australian conditions. Two-way audio on each camera adds remote communication without additional hardware.

What this system will not do: the NVR ships without a hard drive, so storage must be purchased and fitted separately before recordings are retained beyond any microSD capacity in the cameras. The kit covers exactly 4 camera positions - if your site needs 6 or 8 cameras, you will be looking at a larger-channel NVR. And if long-range deterrence beyond 30 m is the priority, a bullet-style camera with extended IR reach suits that application better. Available through Security Australia, this kit is a strong match for sites where 4 positions and active deterrence are the brief.

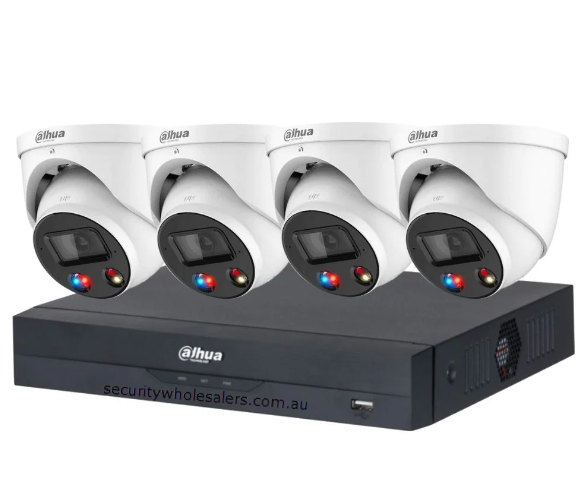

Complete Package Contents

• 4 x Dahua DH-IPC-HDW3649H-AS-PV-ANZ - 6MP TiOC Advanced 2.0 turret camera, 30 m IR and warm-light dual illumination, IP67, built-in siren, red/blue strobe, dual microphones, speaker, PoE
• 1 x Dahua WizSense 4-Channel PoE NVR - 4x PoE ports, supports up to 8MP, H.265+, AI analytics, 1x HDD bay (no HDD included), DMSS remote access

Before You Buy

Quick Fit Check

• Good match if: You need active deterrence at up to 4 camera positions - driveways, entry points, or yard perimeters - where the siren and strobe need to trigger automatically on AI-confirmed human or vehicle events.
• Good match if: You want full-colour night footage without leaving lights on permanently - the smart dual illumination switches from IR to warm light only when a person or vehicle is detected, then reverts automatically.
• You may need a different model if: Your site requires more than 4 camera positions - a larger-channel NVR kit from the Security Australia range will give you the expansion capacity without mixing NVR generations mid-system.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete 4-camera system with built-in active deterrence - siren, strobe, full-colour night imaging, and AI event classification are all included in the camera hardware rather than added separately.
• You may need a different model if: Your site requires coverage at more than 4 positions - a larger-channel NVR kit will handle 8 or 16 camera positions without requiring a second NVR running in parallel.
• Pairs well with: A surveillance-grade NAS HDD (2TB minimum, 4TB recommended) for the NVR, and a PoE-capable network switch if you later expand beyond the 4 onboard PoE ports.

Common Questions

1. Does the siren trigger automatically, or do I have to manually activate it?

   It triggers automatically when the AI detects a confirmed intrusion or tripwire event - no manual action is required. The TiOC Advanced 2.0 cameras use onboard AI to classify the target as human or vehicle first, then activate the siren and strobe. You can also configure one-tap arming and disarming through the DMSS app, which lets you suppress the alarm for specific periods without changing the underlying zone settings.

2. Will the warm-light colour illumination stay on all night?

   No. The warm light only activates when the AI detects a person or vehicle in the scene. By default, the camera operates in IR mode after dark, switching to warm light on target detection and returning to IR once the target leaves. This is the Smart Dual Light behaviour built into the TiOC Advanced 2.0 cameras - it avoids continuous light pollution and preserves deterrence impact for genuine events.

3. Does this kit include a hard drive?

   No. The NVR in this kit ships without a HDD - this is reflected in the SKU. You will need to purchase a compatible surveillance-grade hard drive separately and install it in the NVR's single HDD bay before the unit records to local storage. Each camera does include a microSD card slot supporting up to 256GB, which provides edge recording as a backup but is not a replacement for an NVR-connected drive on a 4-camera system running continuously.

4. How does SMD 4.0 reduce false alarms compared to standard motion detection?

   SMD 4.0 uses AI on the camera itself to classify detected motion as human, vehicle, or neither before triggering an alarm. Standard motion detection responds to any pixel change - wind, shadows, animals, and headlight sweeps all generate alerts. With SMD 4.0, the camera discards detections that do not match a human or vehicle body shape. When paired with the WizSense NVR, the system also enables Quick Pick search - filtering recorded footage by SMD event type so you can locate human or vehicle events quickly without scrubbing through continuous footage.

5. What are the TiOC strobe trigger conditions and can I control when deterrence is active?

   The strobe and siren trigger on confirmed AI perimeter events - specifically intrusion detection (person or vehicle entering a defined zone) and tripwire (crossing a defined line). The AI classification runs onboard the camera, meaning the deterrence response does not depend on NVR connectivity at the moment of detection. You control when the alarm linkage is active using the one-tap arming and disarming function in the DMSS app, which allows you to suppress deterrence during business hours while keeping it armed overnight - without disabling the camera's recording or AI event logging.

6. Can I access the cameras and NVR remotely when I am not on site?

   Yes. The WizSense NVR connects to the Dahua DMSS app over your internet connection, giving you live view of all 4 cameras, NVR playback, AI event notifications, and two-way audio through each camera - all from a smartphone. The NVR does not require a static IP address; it uses Dahua's cloud relay for remote connectivity. DMSS is available for both iOS and Android and is part of the Security Australia supported Dahua ecosystem.

7. Will this NVR work with non-Dahua cameras I already have installed?

   It will work with many ONVIF-compliant cameras from other brands, but with limitations. AI analytics, SMD 4.0 event classification, and TiOC active deterrence features are only fully functional with Dahua WizSense-compatible cameras. Third-party cameras connected over ONVIF will typically provide basic live view and recording but will not pass AI event data through to the NVR's analytics or Quick Pick search. If integrating existing cameras is a requirement, confirm ONVIF profile compatibility before purchase.

Downloads & Resources

No downloads available for this product.
