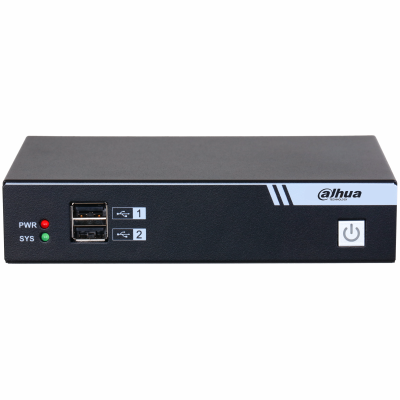

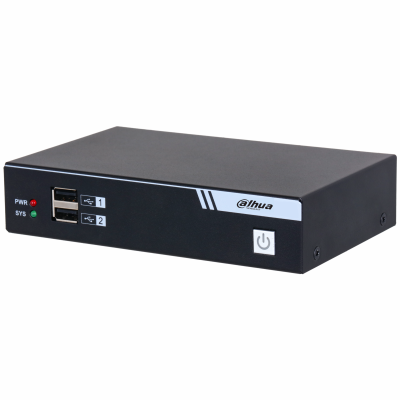

Dahua 2CH UHD Network Video Decoder

Model: NVD0200FX-A01

Who This Is For

For security integrators and monitoring centre operators who need to display live IP camera feeds on screens without routing everything through a PC or NVR workstation, the Dahua NVD0200FX-A01 2CH UHD Network Video Decoder is a purpose-built decoding appliance that sits between your IP network and your display. It pulls 2 camera streams directly over the network and outputs them at UHD resolution to a connected monitor or video wall panel. This suits control rooms adding supplementary display positions, retail operations running a dedicated customer-facing or back-office screen, and installers who need a clean, low-footprint decoding solution where running a full PC or NVR to a secondary display position is impractical or cost-inefficient.

What This Decoder Actually Does

Who Buys This Model

• Security Integrators: Adding a secondary or remote display position to an existing Dahua IP camera system without the cost of extending a VMS workstation to that location.
• Retail Operations Managers: Running a dedicated loss-prevention screen at a back-office desk or stockroom showing 2 specific camera views at full UHD quality.
• Control Room Specifiers: Expanding video wall capacity by adding dedicated decode nodes for specific camera pairs, keeping the main NVR or VMS server load separate from display functions.
• Small Business Owners: Displaying 2 IP camera feeds on a reception or front-desk monitor without purchasing a full NVR or leaving a PC running continuously.

Honest Assessment

The NVD0200FX-A01 does one thing well: it decodes 2 UHD IP camera streams and displays them cleanly on a monitor without requiring a PC or NVR at that location. For installers who regularly face the problem of adding a display position to an existing networked camera system, this is a practical and low-overhead solution. The UHD output means full-resolution rendering rather than downscaled display, which is a real advantage when the viewing position needs to monitor fine detail continuously. What it will not do is record footage, manage cameras, or handle more than 2 channels - if your display requirement grows beyond 2 feeds or if local storage is also needed, a multi-channel decoder or a compact NVR with HDMI output would be the more appropriate path. The NVD0200FX-A01 is available through Security Australia and suits integrators who want a clean, dedicated decode appliance rather than a general-purpose device.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a dedicated, low-footprint display device for 2 IP camera channels at UHD resolution without a PC or NVR at that location.
• You may need a different model if: You need to decode more than 2 channels simultaneously - a higher-channel network video decoder would be the more appropriate device type for larger display walls or multi-feed monitoring positions.
• Pairs well with: A Dahua IP NVR or Dahua IP cameras already on your network, and a UHD-capable HDMI monitor at the display position.

Common Questions

1. Does this decoder record footage, or does it only display live streams?

   It only displays live streams - there is no recording function on the NVD0200FX-A01. It is a display appliance, not a storage device. If you need recording, that must be handled by a separate NVR or VMS server elsewhere on the network. The decoder simply pulls the live feed from cameras and renders it on a connected monitor at UHD resolution.

2. Will this decoder work with non-Dahua IP cameras?

   It may work with ONVIF-compatible cameras from other brands, but this is not guaranteed. The NVD0200FX-A01 is designed and optimised for the Dahua IP camera ecosystem. If you are running a mixed-brand system, verify ONVIF profile compatibility with your specific camera models before purchasing to avoid integration issues.

3. Does the decoder need a PC or software to operate?

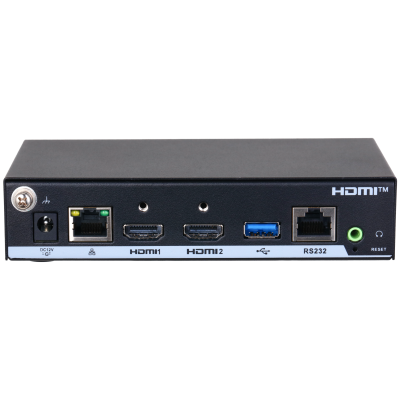

   No. The NVD0200FX-A01 operates as a standalone appliance - it connects to your IP network via RJ45, receives camera streams directly, and outputs to a monitor via HDMI without any PC, software installation, or VMS licence at the display location. Initial configuration is typically performed through a web browser interface from another device on the same network.

4. What video compression formats does the NVD0200FX-A01 support?

   The NVD0200FX-A01 supports H.265 and H.264 decoding. H.265 is the more bandwidth-efficient format and is used by most current Dahua IP cameras - if your cameras are already streaming in H.265, the decoder will handle those streams without needing to transcode them to a less efficient format.

5. Can both channels display at the same time on one monitor?

   Yes. Both channels can display simultaneously in a split-screen layout on a single UHD monitor. This means you do not need 2 separate screens - the 2 camera views can be tiled on the one display, which suits compact monitoring positions such as reception desks or gatehouses where screen real estate is limited.

6. Is the NVD0200FX-A01 suitable for a video wall installation?

   Yes, for a 2-channel input panel it is. The NVD0200FX-A01 is well-suited as a decode node driving a single UHD panel in a video wall configuration, supplied by Security Australia for integration projects requiring distributed decode architecture. For larger video walls needing more than 2 channels per panel, a higher-channel decoder model would be required.

Downloads & Resources

No downloads available for this product.
