Dahua 2 x 6MP DH-IPC-HDW3666EM Turret Security Kit 50m IR 2.8mm + 4CH NVR Wizsense

Model: 2xDH-IPC-HDW3641EM-AS-KIT-NOHDD-1

Who This Is For

Small business owners and residential installers putting together a compact, manageable surveillance system will find this 2-camera kit a practical starting point. The Dahua 2 x 6MP WizSense Turret Security Kit pairs 2 high-resolution turret cameras with a 4-channel NVR, giving buyers an immediately functional setup that still leaves room to expand. Each camera delivers 6MP resolution with 50m IR range and a 2.8mm wide-angle lens, making them well-suited to driveways, entry points, car parks, and shopfronts where broad coverage is the priority. The 4-channel NVR provides 2 spare channels, so adding cameras later requires no recorder upgrade. WizSense AI classification reduces false alerts by distinguishing people and vehicles from general motion triggers - useful for anyone who wants event-based recording without sifting through footage of swaying branches or passing headlights.

What This System Actually Does

Who Buys This Model

• Homeowners covering 2 key entry points: Front door and driveway, or side gate and garage - 2 cameras handle the most common residential priority positions, with 2 spare NVR channels ready for future additions.
• Small retail and office operators: Shopfronts, car parks, and rear loading areas where 6MP WizSense AI classification cuts down after-hours false alerts while keeping footage usable for incident review.
• Installers completing a first-stage system: The 4-channel NVR allows the job to be quoted and completed as a 2-camera system with a documented upgrade path - no recorder swap required when the client adds cameras.
• Rental property managers: Compact kits with pre-matched cameras and recorder reduce sourcing complexity. The 50m IR range handles poorly lit car parks and entry paths without requiring supplemental lighting.

Honest Assessment

This kit does a solid job of delivering 6MP WizSense surveillance in a pre-matched, ready-to-deploy package. The combination of AI-based human and vehicle classification, 50m IR reach, and a 4-channel NVR with 2 spare ports gives small sites a system that handles immediate needs without hitting a ceiling quickly. The 2.8mm lens is a strong choice for wide-area entry coverage but is not suited to long corridors, narrow lanes, or scenarios where subject identification at distance beyond 15-20 metres is the priority - a varifocal or longer fixed lens camera would serve those applications better. The kit arrives without a hard drive, so budget for storage separately before installation day. For sites requiring more than 4 cameras, a higher-channel NVR bundled with a matching camera count will offer better value. This kit is part of the Security Australia range and targets installs where simplicity and scalability matter more than maximum channel count from day one.

Complete Package Contents

• 2 x Dahua DH-IPC-HDW3666EM Turret Camera - 6MP, 2.8mm fixed lens, 50m IR, WizSense AI
• 1 x Dahua 4-Channel WizSense NVR - no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need to cover 2 entry points now with a clear upgrade path - the 4-channel NVR leaves 2 spare ports for future cameras without any recorder replacement.
• Good match if: Your site experiences frequent false motion alerts - WizSense AI classification at the camera level filters recording and push notifications to confirmed person and vehicle events only.
• You may need a different model if: You are planning to cover more than 4 camera positions at this site - an 8-channel or 16-channel NVR kit will offer better per-channel value and avoid a recorder upgrade cost later.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You want a pre-matched 6MP WizSense system that is functional from day one, with 2 spare NVR channels already in place for future camera additions at the same site.
• You may need a different model if: Your site requires 6 or more camera positions - a higher-channel NVR kit will deliver better overall value and avoid a recorder upgrade cost later.
• Pairs well with: A surveillance-rated hard drive (2TB-6TB depending on retention needs), and a PoE network switch if cameras need to be distributed beyond the NVR's built-in ports.

Common Questions

1. Does this kit include a hard drive?

   No. This kit ships without a hard drive. The NVR is ready to accept a standard 3.5-inch surveillance-rated SATA HDD. For 2 cameras recording at 6MP, a 4TB surveillance HDD is a practical starting point and will provide approximately 14-20 days of continuous footage depending on scene activity and compression settings. Avoid using desktop-grade drives, as they are not rated for the continuous read/write cycles of NVR operation.

2. Will this system work if I want to add more cameras later?

   Yes. The 4-channel NVR included in this kit has 2 spare channels after the 2 included cameras are connected. Additional compatible Dahua IP cameras can be added to those ports without replacing the recorder. If you anticipate needing more than 4 cameras total at this site, an 8-channel kit would be a more cost-effective base to start from.

3. What does WizSense actually do differently from standard motion detection?

   WizSense uses AI classification at the camera level to distinguish between a person, a vehicle, and other motion sources such as animals, foliage, or passing headlights. Standard pixel-based motion detection triggers on any movement. WizSense means alerts and recordings are tied to confirmed human or vehicle activity, which significantly reduces the volume of irrelevant events to review, particularly at sites with high ambient movement like driveways near roads or outdoor retail areas.

4. How far does the 2.8mm lens actually see clearly at 6MP?

   At 6MP with a 2.8mm lens, the camera delivers a wide field of view - suitable for scene overview and general area coverage. At practical distances up to 10-15 metres, subject detail is strong enough for identification purposes. Beyond that, the wide lens angle means subjects appear smaller in the frame. If your priority is reading faces or number plates at 20 metres or more, a narrower fixed lens or varifocal variant would be a better fit for that specific camera position. The Security Australia range includes alternative lens options for these scenarios.

5. Do the cameras require a separate power supply, or does the NVR power them?

   The cameras are powered via PoE (Power over Ethernet). If the included NVR has built-in PoE ports - which is standard for Dahua NVR kits in this range - the NVR supplies both power and data to each camera through a single Cat5e or Cat6 cable. No separate power adapters or electrician work is required for the cameras themselves. Confirm the cable run from NVR to each camera position is within 100 metres per standard Ethernet specification.

6. Can I access live and recorded footage remotely on my phone?

   Yes. Dahua NVRs in the WizSense range support remote access via the Dahua DMSS mobile app on iOS and Android. After initial network configuration, live view and playback are accessible from a smartphone or tablet over Wi-Fi or mobile data. Remote access requires the NVR to have a stable internet connection, and port forwarding or P2P cloud connection configured during setup.

7. Are these cameras suitable for outdoor installation in Australian conditions?

   Yes, provided the confirmed IP rating supports outdoor exposure - Dahua turret cameras in this series are typically rated IP67, meaning they are fully dust-tight and protected against water immersion. The turret housing is compact and low-profile, making it suitable for eave, soffit, and fascia mounting where the housing itself provides some additional weather shelter. Verify the IP rating on the camera datasheet for this exact model before specifying for exposed coastal or high-rainfall locations.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera - standard Ethernet specification. Runs exceeding 100 metres require a PoE extender or intermediate switch.
• PoE Notes: Cameras are powered directly from the NVR's built-in PoE ports. No separate power adapters required for the cameras. Confirm the NVR's total PoE budget if adding a third or fourth camera later.

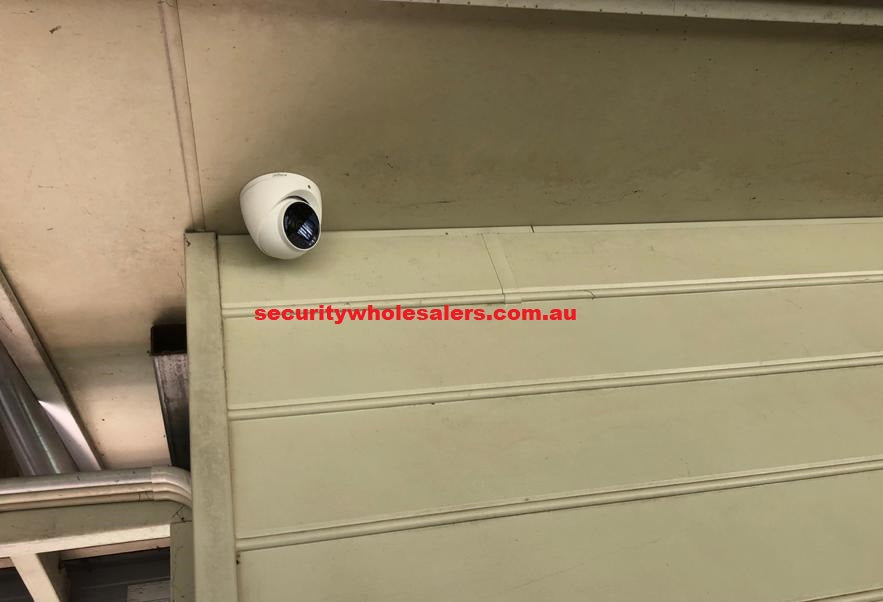

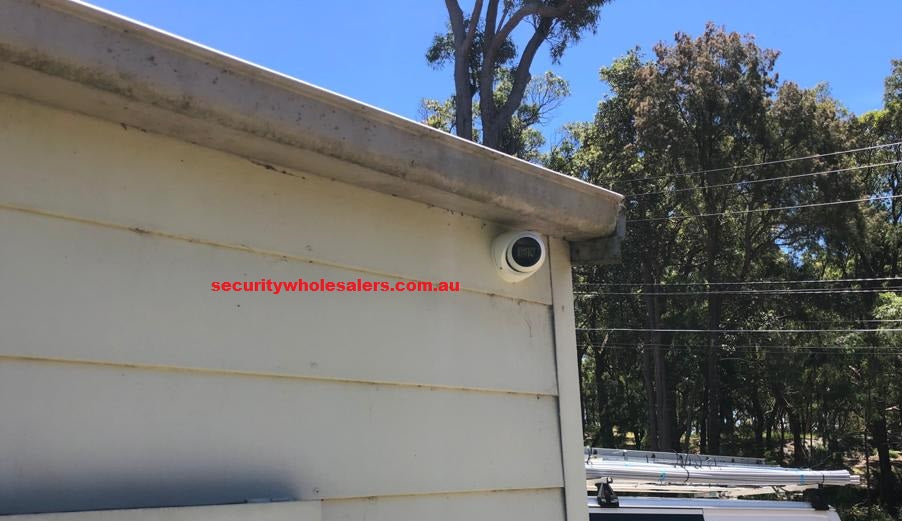

• Wiring Tips: Run cable before finalising camera mount positions. Turret cameras require only a single cable entry point, making them straightforward to install on timber fascia, brick, or concrete with a surface conduit or in-wall run. Use weatherproof conduit for any exposed outdoor sections to protect cable longevity.
