Dahua 2 Wire Intercom Kit, DHI-KTX01(S) IP Villa Door Station

$500.00 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

The newly designed EACH series represents Dahua’s latest advancements in intelligent building technology, redefining the 2-wire video intercom system with exceptional Extensibility, Accessibility, Convenience, and HD video quality. This cost-effective solution offers a low technical barrier and significantly enhances the user experience for all.

Dahua 2 Wire Intercom Kit includes:

2-wire Wi-Fi Hybrid Indoor Monitor:

  • 7" TFT capacitive touch screen.
  • Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex.
  • Supports recording videos and capturing snapshots. (SD card is required).
  • 6-channel alarm input and 1-channel alarm output.
  • The app can be used to receive calls and alarm notifications.
  • Connects to HDCVI camera.

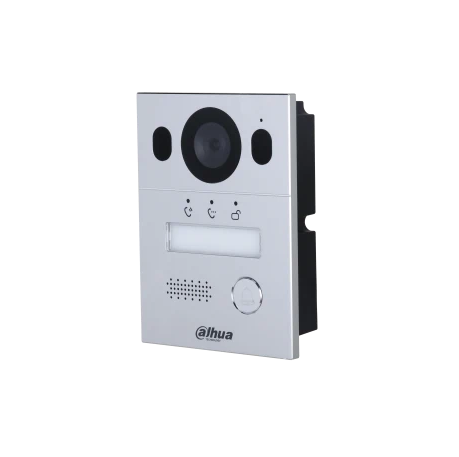

2-wire Hybrid Villa Door Station:

  • Aluminum alloy front panel.
  • Auto IR illumination.
  • Video messages can be left for unanswered calls. (SD card is required for VTH).
  • Features nameplate and DWDR.
  • Supports local lock and second lock.
  • Offers anti-tampering alarm.
  • IP65 and IK07 rated.

Specifications

DHI-VTO2003F

System

Main Processor

Embedded Processor

Button Type

Mechanical

Basic

Camera

1/2.8" 2 MP CMOS HDR Camera

Field of View

H: 110°; V: 60°

WDR

DWDR

Noise Reduction

3D NR

Video Resolution

P: 960 (H) × 576 (V)
N: 960 (H) × 480 (V)

Video Frame Rate

P: 25 fps
N: 30 fps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio (half–duplex)

Function

Unlock Mode

Remote unlock

Leave Videos

Yes (SD card inserted in VTH is needed)

Performance

Casing Material

Aluminum Alloy

Port

RS-485

1

Alarm Output

1

Power Output

1 × 12 VDC output, 200 mA

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Tamper Alarm

Yes

General

Appearance Color

Silver

Power Supply

2-wire controller

Installation

Flush mount; surface mount

Certifications

CE; FCC

Product Dimensions

130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

IP65
IK07

Operating Temperature

–40 °C to +60°C (–40 °F to +140 °F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Altitude

0 m–3000 m (0 ft – 9842.52 ft)

Power Consumption

≤ 1.5 W (standby), ≤ 10 W(working)

Gross Weight

0.502 kg (1.11 lb)

Storage Temperature

–40 °C to +70°C (–40 °F to +158 °F)

Storage Humidity

95% (RH), non-condensing

DHI-VTH5123H-W

System

Main Processor

Embedded Processor

Operating System

Embedded operating system

Network Protocol

IPv4; UDP; DNS; TCP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7" TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex)

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz; 16 bit

Function

Leave Videos

Yes (SD card needed)

DND Mode

Do not disturb period can be set; Do not disturb mode can be set.

Number of Extensions

5

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Storage

Micro SD card (up to 64 GB)

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V, 200 mA)

Door Bell

Yes (use the alarm input port)

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

2-wire controller

Installation

Surface Mount

Certifications

CE; FCC

Product Dimensions

130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")

Operating Temperature

–10 °C to +55°C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft – 4265.09 ft)

Power Consumption

≤ 2.5 W (standby), ≤ 10 W(working)

Gross Weight

0.633 kg (1.40 lb)

Storage Temperature

–40 °C to +70°C (–40 °F to +158 °F)

Storage Humidity

95% (RH), non-condensing

VTNC1003C

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

48 VDC

Certifications

CE; FCC

Accessory

Included: Line termination terminal

Product Dimensions

65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")

Operating Temperature

–10 °C to +55°C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft – 4265.09 ft)

Power Consumption

3.5 W

Gross Weight

0.13 kg (0.29 lb)

Documentation

VTO2003F_datasheet_20221220.pdf
VTH5123H-W_datasheet_20221118.pdf
