Dahua 120W Integrated Solar Monitoring System with Lithium Battery Kit

$4,150.00 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

The Dahua 120W Integrated Solar Monitoring System with Lithium Battery Kit is a comprehensive solution for efficient energy management. It combines solar panels, a lithium battery, and advanced monitoring technology into a single package. With 120 watts of power, it’s suitable for various applications, from residential to commercial.

Dahua Solar Monitoring System Kit Includes:

Integrated Solar Monitoring System

The integrated solar monitoring system (without lithium battery), all in one design, uses 4G to transfer monitoring data and solar to power, which is easy and quick to install and can save wiring to the greatest extent. It includes three parts: a 4G network camera, an integrated solar power system, and the camera's mounting bracket, making it more convenient for sale, order, and transportation.

THIS PRODUCT HAS A 6-8 WEEK LEAD TIME

Key Features

  • Integrated design, easy to install
  • Pole mount
  • Angle flexible adjustment of solar panel and camera mount
  • 125W monocrystalline solar panel
  • Aluminum alloy frame
  • Built sturdy to resist storms with sustained winds up to 117 km/h
  • Remote monitoring available through the mobile app
  • Maximum Power Point Tracking (MPPT) charging controller
  • RS-485 communication function
  • Electric protection

Code/SKU: DH-PFM378-B125-CB
Quick Specs: Type: Monocrystalline silicon; Max. Power: 125 W; Solar Cell Efficiency: 21%; Max. Mechanical Load: 5400 Pa



4MP 32x Starlight IR WizSense Network PTZ Camera

Designed with Starlight technology and a 1/2.8" CMOS, the camera delivers high-quality monitoring images even in environments with low lighting, and provides back-end applications with round-the-clock, state-of-the-art data services. It supports a variety of AI functions for improved detection accuracy through its built-in neural network processor and is compatible with solar power supplies, meeting the heavy demands of long working hours.

Key Features

  • 1/2.8" 4Megapixel STARVIS™ CMOS
  • 32x optical zoom
  • Starlight technology
  • Max. 25/30 fps@1080p
  • IR distance up to 150 m
  • Auto-tracking
  • Perimeter protection
  • Face detection
  • 4G
  • Sound and light alarm
  • Low power consumption

Code/SKU: DH-SD6C3432XB-HNR-AGQ-PV
Quick Specs: Smart H.265+; H.265; Smart H.264+; H.264B; H.264M;H.264H; MJPEG (Sub Stream 1)



Integrated Solar Lithium Battery

The PFM372-L45-4S14P is an integrated solar lithium battery designed by Dahua Security, featuring a die-cast aluminum construction that provides robust IP66-grade protection against dust and water. This compact and lightweight battery is specifically designed for integration with Dahua's solar systems, including models DH-PFM364L-D1, DH-PFM363L-D1, and DH-PFM363L-SD1.

Key Features

  • Die casting aluminium material, IP66 protection grade
  • Simple structure, compact and light
  • Applicable to the integrated solar system DH-PFM364L-D1, DH- PFM363L-D1, and DH-PFM363L-SD1

Code/SKU: PFM372-L45-4S14P
Quick Specs: Operating Temperature: –20°C to 60°C (–4°F to 140°F); Operating Humidity: <95% (RH)



Ceiling Mount Bracket

The DH-PFB301C Ceiling Mount Bracket from Dahua Security is designed to offer robust and versatile mounting solutions for your security cameras. Its durable construction ensures stability and support, making it suitable for various indoor and outdoor environments.

Key Features

  • Aluminium alloy.
  • Convenient Installation.
  • Simple and elegant design.
  • Wires in the bracket.
  • 8-inch ball, need to be used with mount adapter.

Code/SKU: DH-PFB301C
Quick Specs: Material Aluminum & PC; Dimension (W x H x D) Φ133mm(W) x 41mm(H)

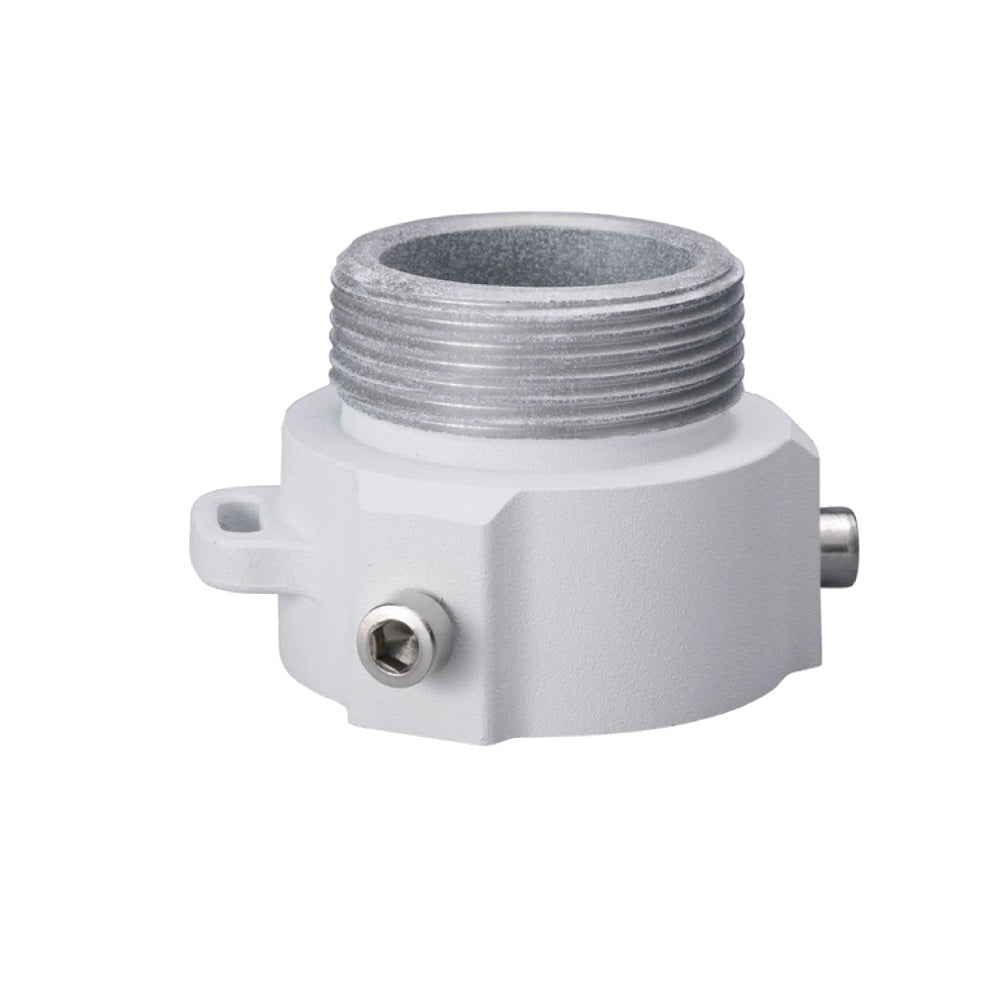

Mount Adapter

The Dahua DH-AC-PFA111 Mount Adapter is a versatile accessory designed to enhance the installation of DAHUA cameras. This mount adapter offers a robust solution for wall or ceiling mounting, ensuring a secure and stable installation.

Key Features

  • Aesthetic design
  • Material: aluminum
  • Mount adapter

Code/SKU: DH-AC-PFA111
Quick Specs: Pipe Thread G1 1/2’’; Load Bearing 7.0kg(15.43lb); Weight 0.25kg(0.55lb)



Specifications



Integrated Solar Power System

Model

DH-PFM378-B125-CB

Solar Panel

Type

Monocrystalline silicon

Max. Power

125 W

Solar Cell Efficiency

21%

Max. Mechanical Load

5400 Pa

Controller

Type

MPPT

Operating Voltage

12 VDC

Rated Charging Current

10 A

Rated discharge current

10 A

MPPT Tracking Efficiency

≥ 99%

Communication Mode

RS485

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Rated Charging Power

130 W

Over-discharge Protection Voltage

11.1 VDC

Others

Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load.

Port

Power Output

Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22" × Φ0.08" × 0.47")

RS–485

Red: RS485-A
Black: RS485-B

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

General

Main Body Material

Q235 steel/aluminum

IP Rating

IP65

Installation

Pole mount, Φ80mm~Φ150mm

Adjustable Angle

Solar panel: H: 360°, V: 10°/20°/30°/40°/50°

Product Dimensions

965.0 mm × 910.5 mm × 786.4 mm (37.99" × 35.85" × 30.96")

Packaging Dimensions

1,280 mm × 775 mm × 280 mm (50.39" × 30.51" × 11.02")

Packaging Method

1 pc in each carton

Net Weight

20.1 kg (44.31 lb)

Gross Weight

26 kg (57.32 lb)

Environment

Operating Altitude

< 3000 m (9842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

< 95% (RH)

Certifications

Certifications

CE: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020
FCC: 47 CFR Part 15, Subpart B
UKCA: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020

4 MP 32x Startlight IR WizSense Network PTZ Camera

Model

DH-SD6C3432XB-HNR-AGQ-PV

Camera

Image Sensor

1/2.8” CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)
80 m (262.47 ft) (white light)

Illuminator Number

4 (IR)
2 (white light)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.3°
V: 31.9°–1.3°
D: 63.7°–2.7°

Optical Zoom

32×

Focus Control

Auto; Semi-Auto; Manual

Close Focus Distance

0.1m-1.5m

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

3,080 m (10104.99

ft)

1,216.6 m (3991.47

ft)

616 m (2021.00

ft)

308 m (1010.50

ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–160°/s; Tilt: 0.1°–120°/s

Preset Speed

Pan: 240°/s; Tilt: 150°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Smart Event

IVS

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking

Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Yes

People Counting

Yes

Auto Tracking

Preset; Pattern; Tour; Scan

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 2816 kbps–8192 kbps
H.265: 1024 kbps–7936 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Electronic defog

Digital Zoom

16 ×

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

4G-Wireless Frequency Range

LTE-FDD: B1/3/5/7/8/20
LTE-TDD: Band 38/40
WCDMA: Band 1/5/8
GSM: 850/900/1800 MHz

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS

Interoperability

ONVIF (Profile S&G&T); CGI; Dahua SDK; GA/T 1400; SDK; API

User/Host

20 (total bandwidth: 64 MB)

Storage

FTP; Micro SD card (256 GB); NAS

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; Imou; NetSDK

Mobile Client

iOS; Android; iPhone; iPad; Windows Phone

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

RS-485

1 (baud rate: 1200 bps–9600 bps)

Two-way Audio

Yes

Alarm Linkage

Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

12 VDC, 4 A (–10% to +25%)

Power Consumption

Sleep: ≤ 1 W
Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G)
Max.: 27 W (illuminator+heater+PTZ+speaker+pulling stream in 4G)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Casing

ADC12

Dimensions

325.0 mm × Φ202.0 mm (12.80" × Φ7.95")

Net Weight

4.4 kg (9.70 lb)

Gross Weight

6.4 kg (14.11 lb)

Ceiling Mount Bracket of PTZ camera

Model

DH-PFB301C

General

Material

Aluminum alloy

Dimension (W×H×D)

φ128.8 mm × 35.5 mm (5.07" × 1.40") (D × H)

Weight

0.21 kg (0.46 lb)

Load Bearing

10.0 kg (22.04 lb)

Mount Adapter

Model

PFA111

General



Material

Aluminum

Dimension (W×H×D)

Φ60 mm x 49 mm (Φ2.36" × 1.93")

Weight

0.25 kg (0.55 lb)

Load Bearing

7.0 kg (15.43 lb)

Documentation

KITKIT_DH-PFM378-B125-CB_DH-SD6C3432XB-HNR-AGQ-PV_DH-PFB301C_PFA111_Datasheet.pdf
PFM372-L45-4S14P_datasheet_2348e2fc-53db-438e-a500-8ae6e66e85e7.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua 120W Integrated Solar Monitoring System with Lithium Battery Kit

$4,150.00 AUD

THIS PRODUCT HAS A 6-8 WEEK LEAD TIME

The integrated solar monitoring system, designed with a lithium battery, combines solar power with 4G data transfer in an all-in-one design. It is easy and quick to install, minimizing wiring needs, and consists of a 4G network camera, an integrated solar power system, and a camera mounting bracket, making it convenient for sale, ordering, and transportation. The integrated solar power system includes solar panels, a maximum power point tracking (MPPT) charging controller, and mounting brackets, providing stable power to the 4G network camera through a high-conversion charging device.

This compact and portable system is easier to install, disassemble, and maintain compared to conventional systems. Featuring Starlight technology and a 1/2.8" CMOS, the camera delivers high-quality images even in low-light conditions and supports round-the-clock data services.

It includes AI functions for enhanced detection accuracy through its built-in neural network processor and is compatible with solar power supplies, making it ideal for long working hours. The camera supports behavior detection such as tripwire and intrusion, multiple alarm linkage actions like white light warning, audio playing, and target tracking, and features target filtering, face detection, foreign object detection, 4G network transmission, and waking up from sleep mode.

Features

Integrated Aluminum Die Casting Casing

  • Compact structure integrated with solar panel, lithium battery pack, and charging controller to enhance appearance, installation, and maintenance of the system.

RS-485 Port

  • RS-485 port and standard Modbus protocol to meet communication requirements in various scenarios.

Electronic Protection

  • Comprehensive electronic protection including:
    • Current limiting, short circuit, and reverse current protection of solar panel.
    • Reverse connection, overvoltage, over-discharge, and over-temperature protection of lithium battery.
    • Overload and short circuit protection of load.

Perimeter Protection

  • Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc.
  • Enables secondary recognition for targets, improving alarm accuracy.

Protection (IP66, Wide Voltage)

  • IP66 rating; TVS 6000V lightning proof; surge protection; voltage transient protection.
  • Wide voltage range: The camera allows –10% to +25% input voltage tolerance, making it suitable for outdoor environments with unstable voltage.

Siren and Light Active Deterrence

  • Supports up to 13 customizable audio files with a built-in speaker.
  • Supports alarm linkages such as white light warning, audio playing, and target tracking.

Smart H.265+ & Smart H.264+

  • Advanced scene-adaptive rate control algorithm.
  • Dahua smart encoding technology achieves higher encoding efficiency than H.265 and H.264, providing high-quality video and reducing storage and transmission costs.

PFA Technology

  • PFA technology introduces new methods of judgment to ensure the accuracy and predictability of subject distance adjustment.
  • Advanced focusing algorithms ensure image clarity throughout the zooming process and shorten focus time.
  • PFA technology substantially improves user experience and increases product value.

Functions:

  • Solar-Powered Operation: This system utilizes solar panels combined with a lithium battery to provide a sustainable energy source for the 4G network camera. The integrated solar solution ensures reliable performance, reducing dependence on traditional power sources and enabling deployment in remote locations.
  • High-Quality Imaging: Equipped with Starlight technology, the camera delivers clear and vibrant images even in low-light conditions. The use of a 1/2.8" CMOS sensor further enhances image quality, making it suitable for continuous monitoring, day or night.
  • Advanced AI Detection: The built-in neural network processor enables the camera to perform intelligent functions such as tripwire and intrusion detection. This capability enhances the accuracy of security alerts by effectively distinguishing between genuine threats and false triggers.
  • Perimeter Protection: The system features advanced algorithms that filter out common false alarms caused by animals and environmental factors. This function ensures that users receive only relevant alerts, which enhances the efficiency of the monitoring system.
  • Active Deterrence Mechanisms: The Dahua system supports customizable audio alerts and visual deterrents, including sirens and white light warnings. These features allow for proactive responses to potential intrusions, potentially scaring off intruders before they can act.
  • Remote Access and Management: Users can easily monitor and control the entire system remotely via compatible mobile applications. This functionality provides peace of mind, allowing users to check on their property from anywhere in the world, anytime.
  • Robust Environmental Protection: With an IP66 rating, the system is designed to withstand harsh weather conditions, making it suitable for outdoor use. Additionally, it features comprehensive electronic protections against surges, overvoltage, and short circuits, ensuring durability and safety.
  • Efficient Storage Management: The Dahua system employs Smart H.265+ and Smart H.264+ encoding technologies to enhance video compression while maintaining high image quality. This efficient encoding reduces storage requirements and transmission costs, allowing for prolonged recordings without sacrificing quality.

Videos

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.

REQUEST A QUOTE OR SEND US AN ENQUIRY
