Dahua 10 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security Kit with 16CH PRO NVR 2.8mm lens

Model: 10xHDW3866EMP/DHI-NVR5216-16P-4KS2E

Who This Is For

For property managers and installers who need a complete, scalable 4K surveillance system without the guesswork of component matching, this 10-camera kit pairs the Dahua HDW3866EMP-S-AUS turret cameras with the DHI-NVR5216-16P-4KS2E 16-channel Pro NVR in a pre-validated configuration. It suits medium-sized commercial properties - warehouses, childcare centres, small industrial yards, and multi-tenancy sites - where consistent 8MP coverage across multiple zones is the priority. The 2.8mm fixed lens delivers a 107-degree horizontal field of view, making it well suited to corridors, carparks, and entry areas where wide-angle detail at short-to-medium range matters. With 16 PoE ports on the NVR and only 10 cameras in the kit, 6 channels remain open for future expansion without replacing any infrastructure. SMD 4.0 AI filtering across all 10 cameras reduces operator fatigue from false alarms at properties where passing animals or foliage movement would otherwise trigger constant notifications.

What This System Actually Does

Who Buys This Model

• Childcare and Education Facilities: Operators needing 4K coverage across multiple rooms, corridors, and outdoor play areas value the SMD 4.0 filtering that separates genuine intrusion events from constant movement throughout the day.
• Small Industrial and Warehouse Sites: Sites with 6-12 monitored zones benefit from the pre-matched PoE system - cameras and NVR confirmed compatible out of the box, with IP67-rated housings suited to dusty or wet environments.
• Commercial Property Managers: Multi-tenancy buildings with carparks, lobbies, stairwells, and perimeter access points use the 10-camera spread across the 16-channel NVR and retain spare channels for future additions as tenancies change.
• Security Integrators Quoting Mid-Tier Commercial Jobs: A pre-configured kit eliminates camera-NVR compatibility verification, accelerates quoting on 8-12 camera scopes, and the H.265+ compression reduces the HDD capacity discussion with the client.
• Retail Owners Upgrading from Analogue: Business owners moving from DVR-based analogue systems to IP infrastructure find PoE delivery simpler to run during a staged fit-out, and the 4K resolution provides evidentiary-grade detail at point-of-sale and entry zones.

Honest Assessment

This kit genuinely delivers on resolution - 8MP at 25/30fps across 10 cameras is a significant upgrade over 4MP or 5MP alternatives at a comparable price point, and the SMD 4.0 filtering makes that resolution practically useful by cutting false alarm volume on busy sites. The 16-channel NVR with up to 8 HDD bays and H.265+ compression means storage planning is flexible, and PoE delivery across all 16 ports keeps the install clean. The 2.8mm lens suits wide-angle coverage at short-to-medium range, but it is not the right choice for monitoring long driveways, perimeter fences beyond 30 metres, or car parks requiring licence plate reads at distance - those scenarios call for a longer focal length or a bullet-style camera with extended IR range. This kit, supplied by Security Australia, also lacks built-in colour night vision; sites needing full-colour after-dark footage should consider a TiOC or full-colour variant instead.

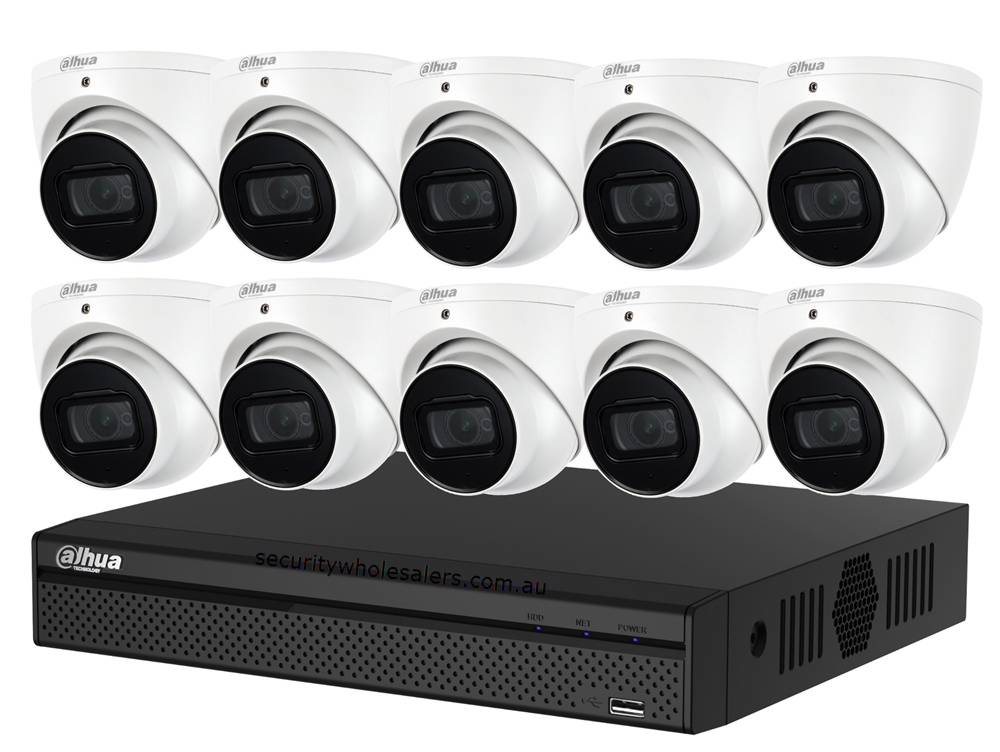

Complete Package Contents

• 10 x Dahua DH-IPC-HDW3866EMP-S-AUS - 8MP 4K turret camera, 2.8mm fixed lens, 30m IR, SMD 4.0, IP67, H.265+, PoE, built-in mic
• 1 x Dahua DHI-NVR5216-16P-4KS2E - 16-channel 4K Pro NVR, 16 PoE ports, H.265 Pro, up to 8 HDD bays, 1U rackmount

Before You Buy

Quick Fit Check

• Good match if: You need 4K coverage across 8-10 zones with AI false-alarm filtering and want cameras and NVR confirmed compatible from a single purchase - the SMD 4.0 turrets and 16-channel NVR are a pre-validated Dahua configuration.
• Good match if: Your site has 10 primary camera positions now but is likely to add 2-6 more within 12-24 months - the 6 unused PoE channels on the NVR allow expansion without replacing any core infrastructure.
• You may need a different model if: Your primary requirement is long-range monitoring beyond 30 metres, colour night vision, or licence plate capture at distance - a bullet camera kit with varifocal lenses or a full-colour system would be more appropriate for those use cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a pre-validated 4K turret kit with AI filtering across 10 positions and room to grow to 16 channels without touching the NVR - the H.265+ compression and SMD 4.0 classification across all cameras make this a practical mid-commercial system.
• You may need a different model if: Your site requires colour night vision without IR, long-range monitoring beyond 30 metres, or varifocal lens flexibility at specific positions - a full-colour kit or bullet camera system with varifocal optics would be more appropriate for those scenarios.
• Pairs well with: A compatible PoE network switch if cameras need to be distributed across areas beyond the NVR's direct cable reach, or a UPS unit to maintain recording continuity during brief power interruptions.

Common Questions

1. Does this kit include HDDs for the NVR?

   No. The DHI-NVR5216-16P-4KS2E ships without hard drives. HDDs need to be purchased separately and sized based on your required retention period, number of cameras recording, and whether you plan continuous or event-triggered recording. With 10 cameras at 8MP using H.265+ compression, storage consumption is significantly lower than with standard H.265 or H.264 - but still substantial for 24/7 continuous recording. The NVR supports up to 8 HDDs, giving you flexibility to start with fewer drives and add capacity as needed.

2. Will these cameras work with my existing Dahua NVR if I don't need the included recorder?

   Yes, in most cases. The DH-IPC-HDW3866EMP-S-AUS is a standard Dahua WizSense IP camera and is compatible with a wide range of current Dahua NVRs that support 8MP channels and SMD event search. However, to use SMD 4.0 Quick Pick functionality - which allows fast search and retrieval of human and vehicle events from recorded footage - you need a compatible AI-capable NVR. The included DHI-NVR5216-16P-4KS2E is confirmed to support this workflow.

3. What does SMD 4.0 actually do differently from standard motion detection?

   SMD 4.0 classifies detected moving objects as human or vehicle before generating an alert, rather than triggering on any pixel change. Standard motion detection alarms on wind-blown foliage, animals, lighting changes, and passing shadows - SMD 4.0 filters these at the camera's onboard processor before any alert is sent to the NVR or connected app. On a 10-camera system at a busy commercial site, this distinction can mean the difference between hundreds of meaningless daily notifications and a manageable list of genuine events worth reviewing. When paired with the AI NVR in this kit, Quick Pick allows you to search SMD event recordings and surface the highest-confidence human or vehicle matches rapidly.

4. Does this system support remote viewing on a phone or tablet?

   Yes. The DHI-NVR5216-16P-4KS2E supports remote access via Dahua's DMSS mobile application and DSS platform. Live view, playback, and alert notifications are accessible remotely provided the NVR has an active network connection and appropriate port forwarding or P2P cloud access is configured. Remote streaming resolution is adjustable - most users select a sub-stream for mobile viewing to reduce data consumption while retaining full 4K main-stream recording locally.

5. What is the DORI detection distance for these cameras at 2.8mm?

   At 2.8mm, the HDW3866EMP-S-AUS has a confirmed Detect distance of 87.7m, Observe at 35.1m, Recognise at 17.5m, and Identify at 8.8m. In practice this means the camera can flag that a person is present at nearly 88 metres, provide enough detail to observe behaviour at 35 metres, and allow feature-level recognition at 17.5 metres. For licence plate or facial identification purposes, subjects need to be within approximately 8-9 metres of the camera - which is important context when positioning cameras at entry points or reception areas where identification-grade footage is required.

6. Does this kit support audio recording?

   Partially. Each DH-IPC-HDW3866EMP-S-AUS has a confirmed built-in microphone, so ambient audio is captured and recorded to the NVR. There is no built-in speaker in the camera, so two-way audio communication is not supported. If intercom-style two-way audio is a requirement at a specific position, a separate audio-capable device would be needed at that point. Audio recording via the built-in microphone is subject to local privacy laws regarding consent and notification - confirm compliance requirements with a legal adviser before enabling audio recording in your state. This kit is available through Security Australia.

7. How does AI SSA affect camera performance in outdoor Australian conditions?

   AI SSA (Scene Self-Adaptation) uses deep learning to detect environmental conditions including rain, fog, strong backlight, low light, and fluorescent flicker, then automatically adjusts image parameters to compensate. For Australian outdoor installs - where bright midday sun, dust haze, and rapid light transitions between covered and open areas are common - this means the camera adjusts its own settings continuously rather than requiring manual intervention. The result is more consistent image quality across variable conditions without the operator needing to reconfigure cameras seasonally or when site conditions change. AI SSA operates independently of the SMD 4.0 filtering and runs simultaneously on the camera's onboard processor.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs. Cat6 provides additional headroom for 4K data throughput and reduces interference on longer runs in electrically noisy industrial environments.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera. Runs exceeding this distance require a PoE extender or intermediate PoE switch to maintain reliable power delivery and data integrity.
• PoE Notes: All 16 ports on the DHI-NVR5216-16P-4KS2E deliver PoE. Verify the NVR's total PoE power budget before connecting all 10 cameras simultaneously, particularly if higher-wattage accessories are also connected to the remaining ports.
• Wiring Tips: Use outdoor-rated UV-resistant Cat6 for any external cable runs exposed to sunlight. Where cables pass through exterior walls, seal penetrations with appropriate weatherproof gland fittings to maintain IP67 integrity at the camera mounting point. Run cables through conduit in areas subject to vehicle or mechanical movement.
