Dahua 10 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security Kit with 16CH AI NVR 2.8mm lens

Model: 10xHDW3866EMP/DHI-NVR4216/AIANZ

Who This Is For

When covering a full property with a single purchase is the priority, this 10-camera, 16-channel AI kit removes the guesswork from system sizing. The bundle pairs 10 x Dahua DH-IPC-HDW3866EMP-S-AUS 8MP WizSense turret cameras with a Dahua 16-channel AI NVR, giving installers a matched, tested system ready for medium-scale residential or small commercial deployment. The 2.8mm wide-angle lens suits eave, soffit, and corner mounting where a broad field of view is needed at shorter distances - entry points, driveways, car parks, and yard perimeters. With 6 spare NVR channels included in the build, expanding the system later requires no recorder upgrade. Ideal for property managers, small business owners, and security integrators who need to cover 8-12 locations on a single site without mixing brands or troubleshooting compatibility.

What This System Actually Does

Who Buys This Model

• Small Business Owners: Retail stores, cafes, warehouses, and workshops needing full perimeter coverage at 8MP without managing multiple separate purchases or mismatched brands.
• Security Integrators: Installers specifying a complete, channel-matched Dahua system for a single-site job where the client wants a clean handover with room to expand later using the 6 spare NVR channels.
• Property Managers: Residential complexes and commercial strata requiring coverage of car parks, entry gates, common areas, and corridors - where 10 cameras cover the site footprint and AI filtering keeps notification load manageable.
• Construction and Trades Businesses: Yard and depot operators who need wide-angle coverage of multiple entry points and storage areas, and want IR night vision operating without requiring additional lighting infrastructure.

Honest Assessment

This kit performs well where the priority is broad coverage at high resolution across a medium-sized site. The SMD 4.0 filtering is a genuine operational advantage - reducing alert fatigue on a 10-camera system is not a minor point. The 16-channel NVR gives the system room to grow without a hardware swap, and all components are matched Dahua hardware certified for the Australian market. The 2.8mm lens is the right choice for most installation points on a typical residential or small commercial site. Where this kit will not serve as well is on sites needing longer-range identification - driveways deeper than 10-12 metres or perimeter fences benefit from a varifocal or bullet-style camera with more reach. It also does not include full-colour night imaging; sites where colour detail after dark is operationally important should look at TiOC or full-colour models available through Security Australia.

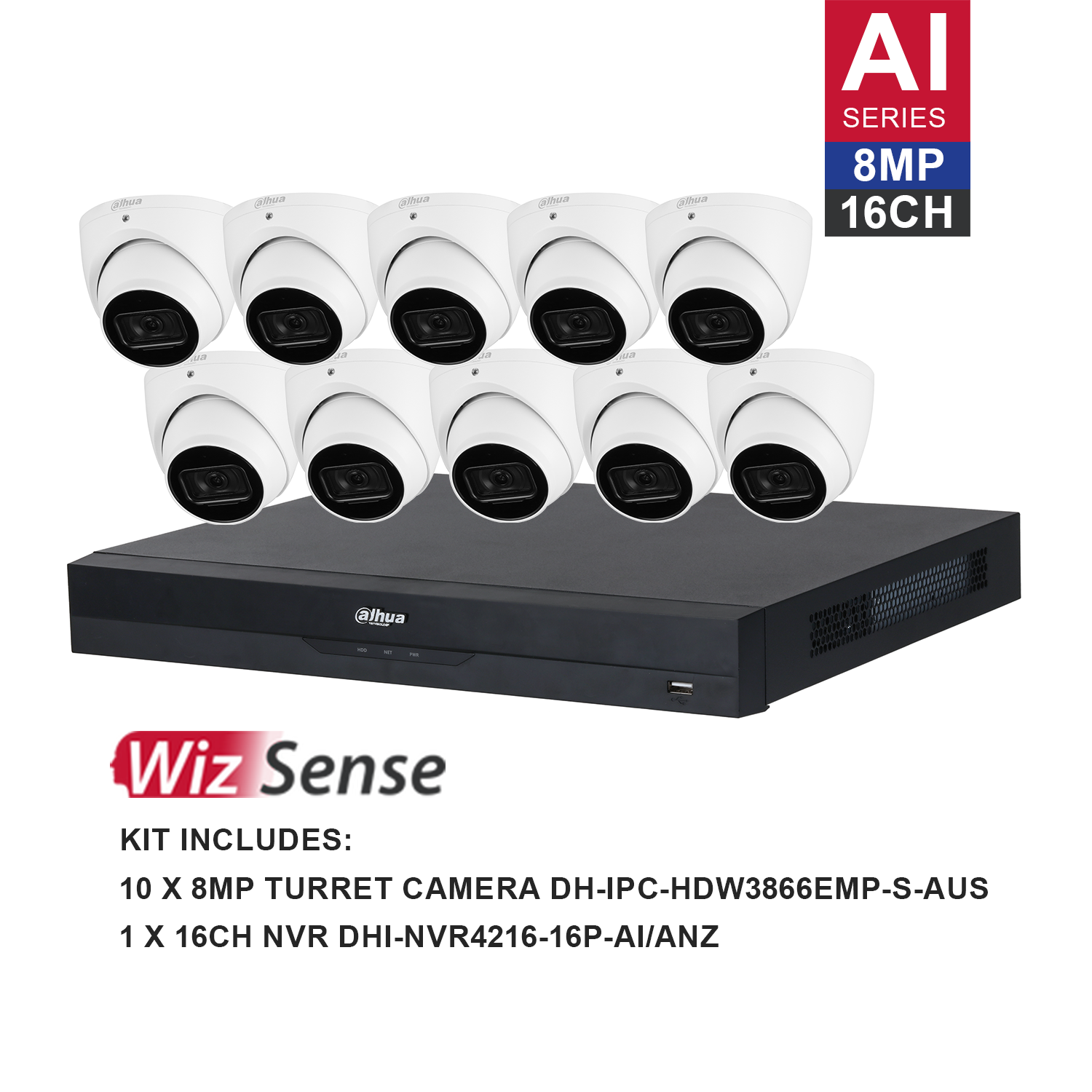

Complete Package Contents

• 10 x Dahua DH-IPC-HDW3866EMP-S-AUS - 8MP WizSense SMD 4.0 turret camera, 2.8mm fixed lens, IR, Australian certified
• 1 x Dahua DHI-NVR4216-AI - 16-channel AI network video recorder

Before You Buy

Quick Fit Check

• Good match if: You need 8-10 cameras on a single site and want a matched Dahua system with AI-filtered alerts, 4K resolution, and 6 spare NVR channels ready for future expansion without swapping hardware.
• Good match if: Your mounting positions are on eaves, soffits, or building corners at short-to-medium range, where the 2.8mm wide-angle lens covers entry points, driveways, and yard areas effectively.
• You may need a different model if: Your site has long outdoor approaches, perimeter fences, or car parks requiring identification at 15 metres or more - a kit including varifocal or bullet-style cameras with longer IR range will be a better fit for those positions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8-10 camera positions covered at 8MP with AI-filtered alerts on a matched Dahua system, and want 6 NVR channels available for future expansion without replacing any hardware.
• You may need a different model if: Your site includes long outdoor approaches, boundary fencing, or vehicle entry lanes where identification at distance is the primary requirement - a kit with varifocal or bullet-style cameras and extended IR range will serve those positions better.
• Pairs well with: A PoE network switch if the NVR does not include built-in PoE ports, plus surveillance-rated HDDs sized to 8MP bitrate across 10 channels for your required retention period.

Common Questions

1. Does this kit include hard drives for the NVR?

   Hard drive inclusion is not confirmed in the kit specification - confirm this at point of purchase before ordering. At 8MP across 10 cameras, storage consumption is significantly higher than with 4MP or 5MP systems. A surveillance-rated HDD (not a standard desktop drive) is required. Calculate your required storage based on resolution, frame rate, and retention days before selecting drive capacity.

2. Will this system work if I want to add more cameras later?

   Yes. The 16-channel NVR has 6 spare ports beyond the 10 cameras included in this kit. Additional Dahua IP cameras compatible with the NVR can be added to those ports without replacing or upgrading the recorder. Ensure any additional cameras added are WizSense-compatible if you want SMD 4.0 filtering to extend to the new channels.

3. What does SMD 4.0 actually do differently from standard motion detection?

   SMD 4.0 classifies moving objects as people or vehicles before triggering an alert, rather than reacting to any pixel change in the scene. Standard motion detection will alert on a tree branch, a cat, headlight sweep, or rain. SMD 4.0 ignores those and only triggers when a human or vehicle shape is confirmed by the camera's on-board processing. Across 10 cameras, this difference in alert quality is operationally significant.

4. Does the 2.8mm lens suit all camera positions on a typical site?

   For most positions within 8-12 metres of the area being monitored, yes. The 2.8mm lens delivers a wide field of view well suited to entry doors, driveways at close range, corridors, and yard areas near buildings. For positions covering longer approaches - a driveway of 15+ metres, a loading dock with depth, or a boundary fence line - a 3.6mm or varifocal lens option would maintain better identification detail at distance.

5. Do these cameras record in colour at night?

   No. The DH-IPC-HDW3866EMP-S-AUS uses infrared (IR) illumination for night vision, which produces black and white footage after dark. If colour detail at night is operationally important - for example, identifying clothing colour or vehicle colour in low-light conditions - a full-colour or TiOC camera model is the appropriate alternative. Those options are available through Security Australia if your brief requires colour night imaging.

6. Does the NVR require PoE switches to power the 10 cameras?

   This depends on whether the DHI-NVR4216-AI model included has built-in PoE ports. If the NVR does not include integrated PoE, a separate PoE switch will be required to power each camera. Confirm the NVR's PoE capability before planning cabling. If a switch is needed, size it to handle 10 x 8MP cameras with appropriate total PoE wattage across all ports - an 8MP turret camera typically draws under 10W, but confirm per camera spec.

7. Are the cameras in this kit suitable for outdoor installation?

   Yes. The DH-IPC-HDW3866EMP-S-AUS turret is designed for outdoor use. Confirm the IP ingress protection rating in the detailed camera datasheet to match it against your specific installation environment - for example, high-pressure wash-down areas or coastal exposure may require additional housing considerations beyond the standard outdoor IP rating.

Downloads & Resources

No downloads available for this product.
