Dahua 10 x [Black] 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 16CH NVR Wizsense AI

Model: DH-IPC-HDW3666EM-AS-KIT10Cam16CH-BLACK-NOHDD

Who This Is For

For security installers and business owners who need to cover a large site with AI-capable cameras in a single purchase, the Dahua 10-Camera 6MP WizSense AI Turret Kit delivers a complete, channel-matched system ready to deploy. The 10 black turret cameras suit sites where a low-profile, non-white finish matters - commercial warehouses, manufacturing facilities, hospitality venues, and multi-tenancy retail where aesthetics are part of the brief. Each camera runs 6MP resolution with Starlight low-light performance and 50m IR, while the 16-channel WizSense NVR handles SMD 4.0 filtering across every connected camera - separating genuine human and vehicle events from wind, foliage, and insects before an alert is sent. With 16 built-in PoE ports, cabling is Cat5e or Cat6 only, with no separate power runs required. The kit ships without a hard drive, so storage capacity is selected to suit the site's retention requirements.

What This Kit Actually Does

Who Buys This Model

• Commercial Fitout Installers: Contractors specifying a complete 10-camera AI system for a retail strip, hospitality venue, or office complex where the black housing suits a darker or industrial aesthetic and the 16-channel NVR leaves room to grow.
• Warehouse and Light Industrial Operators: Facilities managers covering loading docks, internal aisles, and perimeter fence lines with cameras that deliver 50m IR and SMD 4.0 filtering - reducing overnight false alarm callouts from security monitoring companies.
• Multi-Site Business Owners: Owners deploying a matched system at each location who want WizSense AI search capability via the Easy4ip mobile app - reviewing human and vehicle events remotely without sitting through full-length recordings.
• Strata and Property Managers: Managers specifying a camera count and resolution that meets insurance requirements, with IP67-rated cameras that handle exposed eave and soffit mounting across apartment complexes or mixed-use buildings.
• Security Integrators on Fixed Budgets: Integrators pricing a complete NVR-and-camera package for mid-sized sites who need the NVR's incoming bandwidth (200Mbps) and PoE capacity to match 10 x 6MP cameras without over-specifying hardware.

Honest Assessment

This kit does several things genuinely well. Buying cameras and NVR together as a channel-matched bundle removes the compatibility guesswork and the SMD 4.0 filtering is a meaningful operational benefit - sites that have run standard motion detection know how quickly event logs fill with irrelevant triggers. The 2.8mm lens provides a 97-degree horizontal field of view that suits corridor monitoring, room coverage, and entry points without requiring a varifocal adjustment. Starlight performance at 0.005 lux and 50m IR gives solid nighttime coverage for most outdoor mounting heights between 3m and 6m. The black housing is a genuine differentiator for sites where white cameras look out of place. What this kit will not do: it does not include a hard drive, so storage must be budgeted and purchased separately before the system is operational. The fixed 2.8mm lens means it cannot be adjusted post-installation - sites needing variable coverage distances across different camera positions should consider a varifocal turret kit instead. Available through Security Australia with the NVR's 6 spare PoE ports providing straightforward future expansion.

Complete Package Contents

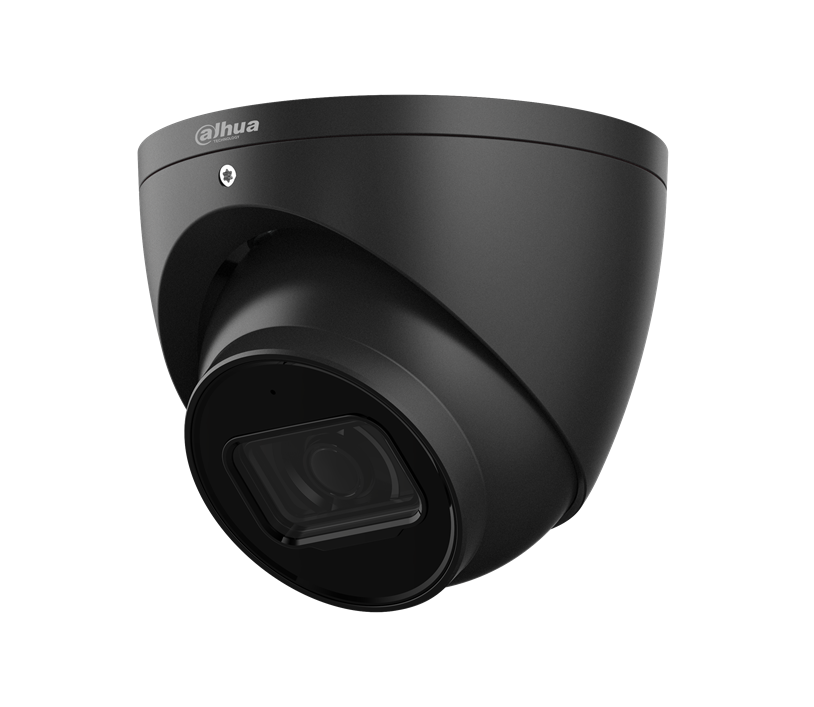

• 10 x Dahua DH-IPC-HDW3666EMP-S-AUS (Black) - 6MP WizSense AI Turret Camera, 2.8mm fixed lens, 50m Smart IR, SMD 4.0, IP67, built-in microphone, PoE
• 1 x Dahua WizSense AI 16-Channel NVR - 16 built-in PoE ports, 200Mbps incoming bandwidth, SMD Plus AI search, HDMI 4K output, ANR support, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You are covering a commercial site with 8 to 10 camera positions and want SMD 4.0 AI filtering on every channel from day one - the NVR's WizSense engine supports SMD Plus across all 16 channels, and the 6 spare ports give room to add cameras as the site grows.
• Good match if: The site requires black-housing cameras for aesthetic or specification reasons - the matching black turret finish suits hospitality, retail, and commercial fitouts where white cameras are not permitted or not preferred.
• You may need a different model if: Your site requires cameras covering long approaches of 40m or more with tight identification-level detail - a bullet camera kit with varifocal or longer fixed lens would provide better DORI recognition and identification distances for those specific positions. Browse the bullet camera kits on securityaustralia.com.au for suitable alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 10 matched AI cameras and a WizSense NVR in a single purchase, with SMD 4.0 filtering reducing false alerts across every channel and 6 spare PoE ports available for future site expansion - all in a black housing that suits non-white specification requirements.
• You may need a different model if: The site includes long driveway approaches or fence lines requiring identification-level detail beyond 15m - a kit pairing varifocal or telephoto-lens bullet cameras with a WizSense NVR would provide the tighter field of view and extended DORI recognition distances those positions require.
• Pairs well with: A surveillance-grade 3.5-inch hard drive (4TB or 8TB) for NVR storage, microSD cards (up to 256GB) for per-camera ANR backup, and a PoE extender for any cable runs that exceed 100m on large or spread-out sites.

Common Questions

1. Does this kit include a hard drive?

   No. The NOHDD designation in the SKU confirms this kit ships without a hard drive. You will need to purchase a compatible surveillance-grade HDD separately before the system can record to the NVR. At 6MP across 10 cameras using Smart H.265+, a 4TB or 8TB drive typically provides between 7 and 21 days of continuous recording depending on scene complexity and the frame rate configured - calculate your exact requirement before ordering.

2. Will this system work if I only need 8 cameras now but want to add more later?

   Yes. The 16-channel NVR has 16 built-in PoE ports, and this kit uses 10 of them. The remaining 6 ports can accept additional Dahua WizSense-compatible cameras at any point without replacing the NVR. Cameras up to 8MP resolution are supported by the NVR, so you are not locked into adding the same 6MP model if you later need higher resolution at specific positions.

3. What does SMD 4.0 actually do, and how is it different from standard motion detection?

   SMD 4.0 classifies detected movement as human or vehicle before an alert is triggered - standard motion detection does not. Standard pixel-change motion detection fires on anything that moves: tree branches, passing headlights, birds, rain. SMD 4.0 uses onboard AI at the camera level to determine whether the moving object is a person or vehicle and only passes that classified event to the NVR's event log. The practical result is a dramatically shorter alert list containing only events relevant to security. The NVR's SMD Plus AI search then lets you filter recorded events by human or vehicle classification across all 16 channels, retrieving relevant footage by event type rather than scrubbing through full recordings.

4. What are the DORI detection distances for the 2.8mm cameras in this kit?

   At 2.8mm, the confirmed DORI distances are: Detect at 63.6m, Observe at 25.4m, Recognise at 12.7m, and Identify at 6.4m. This means the cameras will detect a person-sized object moving at up to 63.6m, but for recognition-level detail sufficient to distinguish facial features you need the subject within approximately 12.7m, and for positive identification-level detail within 6.4m. When planning camera positions, mounting height and angle should be set to ensure subjects pass through the recognition zone at the points most critical to your security brief.

5. Can I view live footage remotely on my phone?

   Yes. The NVR supports remote access via the Easy4ip app on iOS and Android. The app allows live viewing across all connected cameras, event notification push alerts, and recorded footage search - including searching by SMD event type. Remote access requires the NVR to have an active internet connection through your router, with port forwarding or P2P cloud access configured during setup.

6. Will the cameras continue recording if the network connection to the NVR drops?

   Yes, provided microSD cards are installed in the cameras. The NVR's ANR (Automatic Network Replenishment) function stores footage locally on each camera's microSD card during any network outage of up to 256GB per camera. Once the connection is restored, the NVR automatically retrieves and integrates the stored footage into the continuous recording timeline. Without microSD cards installed, cameras will not record independently during a network interruption.

7. Are these cameras suitable for outdoor installation in rain or high-humidity environments?

   Yes. Each camera is rated IP67, meaning it is fully protected against dust ingress and can withstand submersion in 1m of water for 30 minutes. For standard outdoor mounting on eaves, soffits, or external walls in Australian weather conditions, IP67 provides sufficient ingress protection. The metal housing adds structural durability. The cameras do not carry an IK impact rating listed in the confirmed spec data, so if a camera position is within easy reach of the public and vandal resistance is a concern, consider a dome camera with a confirmed IK rating for that specific location. The range of vandal-resistant options at Security Australia includes IK10-rated models suited for those positions.

8. Does the NVR support third-party IP cameras, or is it limited to Dahua cameras only?

   No, it is not limited to Dahua cameras. The NVR is ONVIF 2.4 compliant and the confirmed compatible third-party brands include Panasonic, Sony, Samsung, Axis, Pelco, Arecont, and Canon. However, SMD Plus AI search, WizSense perimeter protection, and ANR functionality operate specifically with Dahua WizSense-compatible cameras. Third-party cameras connected via ONVIF will provide standard recording and playback but will not deliver the AI classification and event search features that are part of the WizSense ecosystem.
