Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR

Model: DH-IPC-HDW3666EM-AS-KIT10Cam16CH-NOHDD

Who This Is For

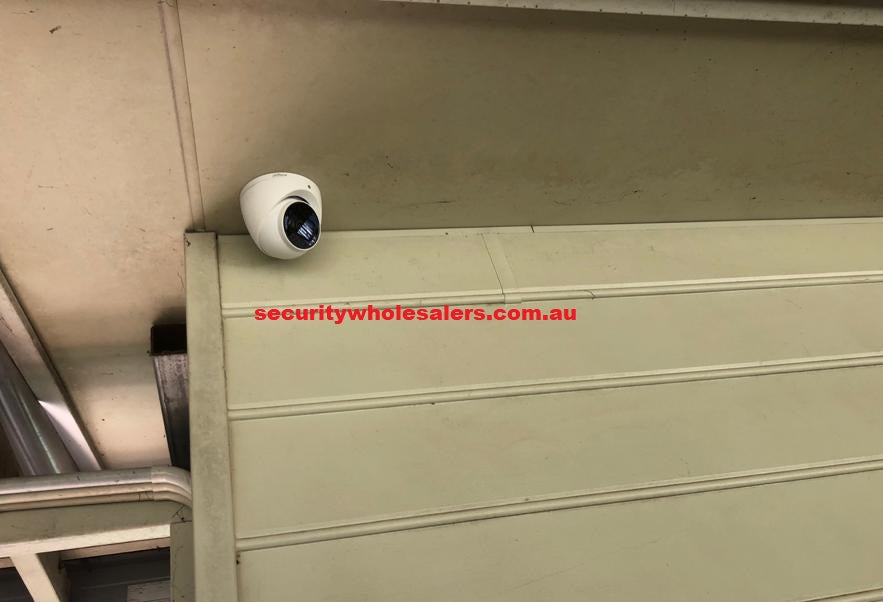

When covering a full commercial or residential site with AI-verified motion filtering is the priority, this 10-camera kit is built for that outcome. Installers deploying across warehouses, retail centres, medium-density residential complexes, childcare facilities, or multi-building commercial properties will find the Dahua 10-camera SMD 4.0 kit gives them a complete, pre-matched system rather than a collection of individually sourced components. Each DH-IPC-HDW3666EMP-S-AUS turret delivers 6MP resolution, 50m IR range, and Dahua's SMD 4.0 AI engine, which separates human and vehicle targets from general motion - reducing false alerts significantly on busy sites. The 16-channel NVR handles all 10 cameras via its built-in PoE switch, with 6 channels spare for future expansion. The 2.8mm wide-angle lens suits eave, soffit, and corner mounting positions where broad coverage of entry points, car parks, and open yards is needed.

What This System Actually Does

Who Buys This Model

• Commercial property managers: Covering car parks, loading areas, and perimeter fencing across warehouse, office, or mixed-use sites where 10 camera positions are needed and AI-filtered alerts reduce after-hours false call-outs to security personnel.
• Retail and hospitality operators: Multi-entry venues - shopping centres, pubs, service stations - where 6MP resolution supports identification at entry points and SMD 4.0 filters out motion from shopping trolleys, flags, and signage movement.
• Residential complex owners: Medium-density apartment buildings, townhouse estates, and strata properties requiring complete perimeter and common-area coverage from a single, pre-matched system that a single installer can deploy on one job.
• Schools and childcare centres: Sites requiring wide-angle outdoor coverage at entry gates, playgrounds, and car drop-off zones, where SMD 4.0 human detection alerts staff to after-hours perimeter activity without constant false triggers from foliage or pets.
• Security integrators on fixed-scope installs: Installers quoting a complete 10-camera system who need cameras and NVR pre-matched for SMD 4.0 compatibility, with 6 channels held in reserve for client-requested additions post-handover.

Honest Assessment

This kit does several things well: SMD 4.0 genuinely reduces actionable false alerts compared to standard motion-triggered cameras, the 6MP resolution holds meaningful detail at distance on a 2.8mm lens, and the 16-channel PoE NVR simplifies cabling by eliminating the need for a separate PoE switch across 10 cameras. The NVR's 200Mbps access bandwidth handles all 10 streams at full resolution without bottlenecking. The 6-channel buffer for expansion is a practical advantage on commercial sites where scope tends to grow after handover. What this kit will not do: there is no HDD included, so storage must be budgeted and ordered separately before commissioning - this is not optional. The 2.8mm lens is a wide-angle option; sites requiring facial identification beyond 6-7 metres or long-approach coverage on driveways will be better served by a 3.6mm variant or a dedicated bullet camera system. Available through Security Australia, this kit suits mid-size commercial and residential installs where a complete, AI-capable system is needed in a single order.

Complete Package Contents

• 10 x DH-IPC-HDW3666EMP-S-AUS - 6MP SMD 4.0 AI turret camera, 2.8mm fixed lens, 50m IR, IP67, built-in mic, PoE
• 1 x 16-channel PoE NVR - Smart H.265+, 16 PoE ports, HDMI/VGA output, SMD Plus AI search, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need to cover 10 camera positions across a commercial or residential site and want SMD 4.0 human/vehicle AI filtering built in from the start - the cameras and NVR are pre-matched for this function without additional licensing.
• Good match if: You are installing on a site with mixed indoor and outdoor positions where eave, soffit, or wall-mounted turrets suit the architecture - IP67 rating and metal housing mean all 10 cameras can be placed outdoors without a weather enclosure.
• You may need a different model if: Your site has long driveway approaches, fence lines, or perimeter runs where IR distance beyond 50m is required - a bullet camera kit with longer IR range would be a more suitable product type for those positions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 10 outdoor cameras with AI human and vehicle classification built in, PoE simplicity from the NVR, and 6 spare channels for future growth - all from a single matched system order.
• You may need a different model if: Your site has extended perimeter runs, driveways, or fence lines where IR beyond 50m is required - a bullet camera kit with long-range IR is a better product type for those positions.
• Pairs well with: A surveillance-grade NVR HDD (required before the system can record), a PoE-capable Cat5e or Cat6 cabling run per camera position, and a compatible Dahua video management software deployment for multi-site monitoring.

Common Questions

1. Does this kit include a hard drive?

   No. This kit ships without a hard drive. The NVR has an internal HDD bay and requires a surveillance-grade SATA drive before it can record. You will need to select and purchase an appropriate capacity drive separately based on your retention requirements and recording schedule across 10 cameras at 6MP with Smart H.265+ compression.

2. What does SMD 4.0 actually do and how is it different from standard motion detection?

   SMD 4.0 (Smart Motion Detection 4.0) classifies detected movement targets as human or vehicle rather than triggering an alert on any pixel change. Standard motion detection generates alerts when any object - a branch, an animal, a car shadow - crosses the detection threshold. SMD 4.0 processes the detected shape and motion pattern on the camera's own processor and only sends an alert when the target matches a human or vehicle profile. At the NVR level, SMD Plus then allows you to search recorded footage specifically for human or vehicle events by channel and time, significantly cutting down review time after an incident. This classification runs on the camera itself, not the NVR, so it is not dependent on NVR processing load.

3. Will the SMD Plus AI search function on the NVR work if I add third-party ONVIF cameras to the spare channels?

   No, not for third-party cameras. SMD Plus AI search relies on AI metadata generated by Dahua cameras and transmitted to the NVR via Dahua's native protocol. ONVIF-connected cameras - whether Dahua or third-party - pass video only; they do not transmit the AI classification metadata that SMD Plus requires. The 10 included cameras will work correctly on native protocol. If you add cameras from other brands to the 6 spare channels, those channels will record normally but will not contribute to SMD Plus AI search results.

4. Will this camera work at night without any external lighting?

   Yes. Each camera has 2 IR LEDs rated to 50 metres, providing illumination in complete darkness without any external light source. The cameras also feature Starlight low-light sensitivity down to 0.005 lux for colour imaging in very low ambient conditions - such as dusk, streetlit areas, or poorly lit car parks - before the IR activates. In total darkness with IR active, the image switches to black and white to maximise usable detail at range.

5. How many cameras can the NVR support if I want to expand beyond 10?

   Up to 16 cameras total on this NVR. It has 16 built-in PoE ports, and this kit uses 10 of them, leaving 6 ports available. Any additional cameras must be Dahua-compatible and within the NVR's 200Mbps access bandwidth. Adding 6 more cameras at 6MP would need to be verified against available bandwidth headroom, and you would also need to confirm your HDD has sufficient capacity to cover the additional recording streams at your chosen retention period.

6. Can I access live and recorded footage remotely on a phone?

   Yes. The NVR supports remote access via the DMSS app (for end users) and Easy4ip (also available on iOS and Android). Both allow live view, event notification, and recorded footage playback. Remote access requires the NVR to have a stable internet connection - either wired Ethernet or via a router on site. The part of the Security Australia range supplied with this kit is configured to support Dahua's P2P connection method, which simplifies remote setup without requiring port forwarding in most cases.

7. How far can I run the Cat cable from the NVR to each camera?

   Up to 100 metres per cable run is the standard Ethernet limit for PoE. The NVR's built-in PoE switch powers each camera over Cat5e or Cat6 within that 100m limit. Runs beyond 100m will require a PoE extender or an intermediate PoE switch - the NVR cannot push power or data reliably beyond that distance. For most commercial installs where the NVR is positioned in a comms room or equipment cupboard, 100m is sufficient to reach most camera positions on the same floor or building level.

8. What is the DORI identification distance for the 2.8mm lens on these cameras?

   At the 2.8mm focal length, the confirmed DORI identification distance is 6.4 metres. Detection (presence of a person) is confirmed at 63.6 metres, observation at 25.4 metres, and recognition at 12.7 metres. The 2.8mm lens is optimised for wide-area coverage, not facial identification at distance. If identification beyond 6-7 metres is a requirement for a specific camera position - such as a narrow entry gate or a corridor where faces need to be read - a 3.6mm lens variant or a higher focal length camera would be a more appropriate product type for those positions.

Downloads & Resources

No downloads available for this product.
