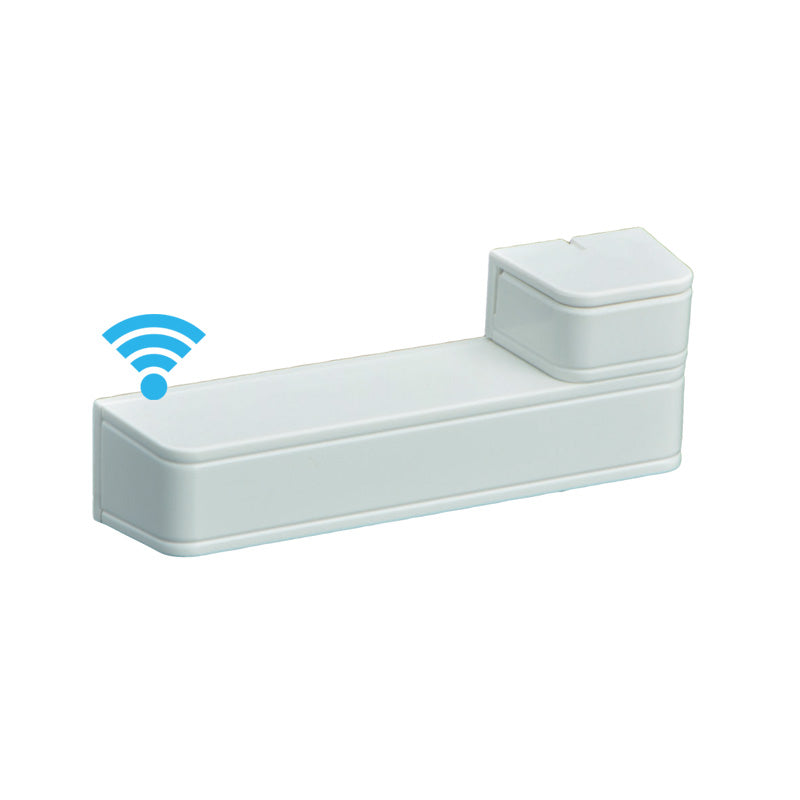

Bosch RADION Wireless Surface Mount Contact Magnetic Reed Switch RFDW-SM

$112.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

  • Magnetic Reed Switch: Built-in internal magnetic reed switch contact for secure and reliable detection.
  • Supervised Monitoring: Continuously monitored for low battery, cover tamper, and removal from the mounting surface.
  • Long Battery Life: Operates for up to 5 years using a single, user-replaceable Lithium AAA battery.

Note: This is a wireless reed switch and requires a RADION wireless receiver such as the B810 or RFRC-STR2 for operation.

Specifications

PropertiesDimensions: Transmitter 19.5 mm x 82.55 mm x 12.8 mm (0.76 in x 3.25 in x 0.50 in)Dimensions: Magnet 18.5 mm x 24.5 mm x 12.5 mm (0.72 in x 0.97 in x 0.49 in)Weight: 0,073 kg (0.160 lb)PowerPower/Voltage: 1.5 VDCBattery type: AAA LithiumBattery life: Up to 5 yearsUpon power-up, factory test mode lasts approximately 10 sec.Environmental ConsiderationsTemperature: Functional range: -10゚C to +55゚UL only: 0゚C to +49゚CEN 50130-5 Class II only: -10゚C to 55゚CIP30/IK04Environment Complies with EN50130-5 Class IIRelative Humidity: Up to 93% non-condensingCover and Wall Tamper Switch: Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the ceiling.Frequency: 433.42 MHzUse: Intended for indoor use.

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Bosch RADION Wireless Surface Mount Contact Magnetic Reed Switch RFDW-SM

$112.00 AUD
 per

Bosch RADION Wireless Reed Switch – Requires RADION Wireless Receiver

The **Bosch RADION Wireless Reed Switch** is a **high-performance door and window sensor** designed for seamless integration with Bosch’s **RADION wireless security solution**. This device provides **reliable perimeter monitoring**, detecting unauthorized openings with an internal reed switch that activates when separated from the magnet assembly. Featuring a **built-in tamper switch**, **long battery life**, and **advanced wireless connectivity**, this sensor is an essential component of any Bosch security system.

Key Features:

  • Wireless Operation: Requires a **RADION wireless receiver** such as **B810** or **RFRC-STR2** for integration.
  • Dual Reed Switches: Allows the magnet assembly to be placed on **either side** of the transmitter.
  • Secure Tamper Protection: Built-in **wall and cover tamper switch** alerts when the device is removed from its base or wall.
  • Reliable Alarm Triggering: When the magnet moves more than **20mm (0.78 in)** away from the reed switch, an alarm signal is transmitted.
  • Advanced Wireless Performance: Provides **exceptional range, scalability, and battery life** for reliable operation.
  • Simple Installation & Maintenance: Advanced diagnostics and multiple device enrollment options simplify setup.

Mounting Recommendations:

  • Install the **transmitter** on the interior **door or window frame**.
  • Place the **magnet assembly** on the interior **moving portion** of the door or window.
  • Ensure the device is **protected from extreme weather conditions** such as humidity, rain, or snow.
  • For best performance, **avoid installing on metal surfaces**, as they may affect RF signal propagation.

Specifications Summary:

Feature Details
Detection Type Wireless Reed Switch Contact
Compatible Receivers **B810**, **RFRC-STR2** (RADION wireless receivers required)
Activation Distance Triggers when magnet moves beyond **20mm (0.78 in)**
Battery One **AAA Lithium 1.5V DC**
Tamper Protection Wall and cover tamper detection
Mounting Location Interior **door or window frame**

The **Bosch RADION Wireless Reed Switch** is a **reliable, easy-to-install solution for perimeter security**. Its **tamper protection, long battery life, and advanced wireless connectivity** make it ideal for securing **residential and commercial** properties.
