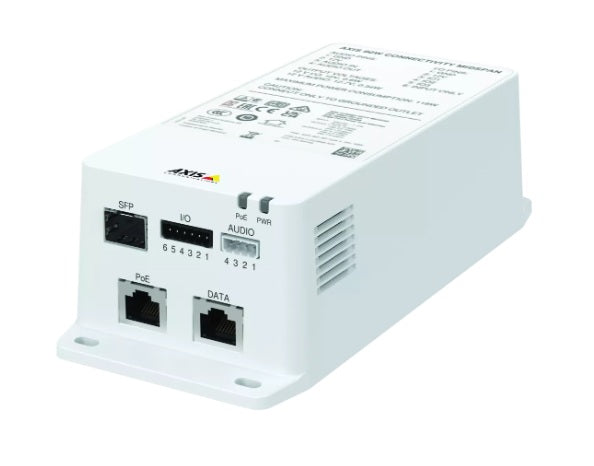

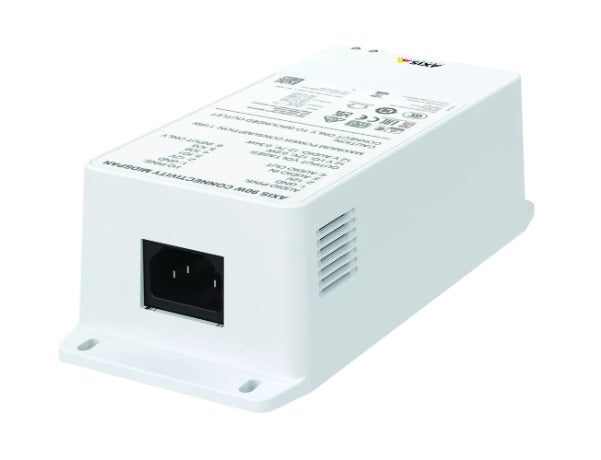

AXIS TU8003 90W PoE Midspan | 02027-006
- Sku: TU8003
- Vendor: SecurityAustralia
The AXIS TU8003 delivers reliable 90W PoE midspan power injection for installers adding PoE to existing non-PoE network infrastructure. Designed for single-device deployments, it supplies up to 90W to power demanding devices such as PTZ cameras or high-draw network equipment without replacing the existing switch. A practical solution where upgrading to a full PoE switch is not feasible or cost-effective.
Why This Model
- 90W power output: Supplies enough wattage to run high-demand devices like PTZ cameras and multi-sensor units that standard 30W PoE ports cannot support.
- Midspan design: Adds PoE to an existing non-PoE switch without costly infrastructure upgrades, protecting your current network investment.
- AXIS ecosystem compatibility: Engineered to work seamlessly with Axis network devices, ensuring stable, certified power delivery for dependable operation.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: AXIS TU8003
Who This Is For
When retrofitting a high-power device into an existing network infrastructure is the priority, the AXIS TU8003 90W PoE Midspan solves the gap between a switch that cannot deliver enough power and a camera or peripheral that demands it. Installers specifying IEEE 802.3bt devices - high-wattage PTZ cameras, pan-tilt units, or multi-sensor heads - onto legacy PoE switches frequently hit a power ceiling. Rather than replacing the entire switching infrastructure, the TU8003 inserts inline between the switch and the device, injecting up to 90W per port without touching the network configuration. It suits integrators working on staged upgrades, facilities teams adding a single high-draw device to a site, and any deployment where the switch is undersized for one specific run but otherwise fit for purpose.
What This Midspan Actually Does
90W IEEE 802.3bt Output
The TU8003 delivers up to 90W on a single PoE port, meeting the full IEEE 802.3bt Type 4 specification. This covers the power budget of demanding devices - high-wattage PTZ cameras, pan-tilt heads, and multi-sensor units - that exceed what standard PoE or PoE+ switches provide.
Inline Midspan Injection
The midspan sits between the existing switch port and the end device on the same Cat5e or Cat6 cable run. No network reconfiguration is required. Data passes through unchanged while power is injected onto the cable, preserving existing VLAN and QoS settings on the upstream switch.
Switch Compatibility
Works with non-PoE switches and lower-class PoE switches alike. If the switch provides PoE at a lower wattage, the midspan supplements the difference up to the 90W ceiling, making it a practical bridging solution rather than a full infrastructure replacement.
Single-Port Form Factor
The single-port design means the TU8003 is deployed per device rather than per rack. This gives installers granular control - adding power exactly where it is needed without committing to a multi-port unit that introduces unused capacity and a larger footprint at the switch cabinet.
Who Buys This Model
- Security Integrators on Staged Upgrades: Sites upgrading to high-power PTZ or multi-sensor cameras in phases often hit a power gap mid-project. The TU8003 resolves individual camera runs without forcing a full switch replacement ahead of schedule.
- Facilities Managers Adding a Single PTZ: A warehouse or carpark adding one high-draw camera to an otherwise functional network avoids a costly switch upgrade by inserting the TU8003 on that single run.
- IT Teams with Legacy Network Infrastructure: Organisations running older PoE switches that cannot meet 802.3bt demands use the TU8003 to extend the usable life of that hardware while still deploying current-generation AXIS devices.
- AXIS Ecosystem Installers: Installers already specifying AXIS PTZ cameras, pan-tilt units, or other high-wattage AXIS peripherals use the TU8003 as a confirmed-compatible power solution within the same ecosystem.
Honest Assessment
The TU8003 does one job well: it delivers 90W of IEEE 802.3bt power to a single device inline, without disrupting the data path or requiring switch replacement. For any site deploying a high-wattage AXIS device onto infrastructure that cannot meet the power budget, this is a straightforward and confirmed-compatible solution. The single-port design keeps it targeted - it is not a cost-effective answer when multiple devices need power upgrades simultaneously, where a multi-port PoE++ switch or a rack-mounted multi-port midspan will provide better value per port. The TU8003 also does not provide network management, VLAN configuration, or any switching function - it is purely a power injector. Available through Security Australia, it suits installers who need to solve one specific power problem on one specific cable run without redesigning the wider network.
Before You Buy
Power Budget Note: The TU8003 draws its own operating power from the mains connection in addition to the 90W delivered to the end device. Confirm the total mains power draw at the cabinet or desk installation point. Also verify the end device's actual PoE class requirement - not all 802.3bt devices draw the full 90W, but the midspan must be rated to the device's maximum negotiated power class to operate correctly.
Cable Run Reminder: The TU8003 passes data inline on the existing cable run. The full cable length from switch to device - including the midspan insertion point - still counts toward the 100m Ethernet distance limit. Position the midspan accordingly, and use Cat5e minimum with Cat6 preferred for 90W operation over longer runs.
Quick Fit Check
- Good match if: You are deploying a single high-power AXIS PTZ or pan-tilt device onto an existing switch that does not support 802.3bt, and replacing the switch is not part of the current scope.
- Good match if: The site already has an AXIS ecosystem and you need a confirmed-compatible 90W power source for one specific cable run without adding switching complexity.
- You may need a different model if: You have 4 or more devices requiring 802.3bt power - a multi-port PoE++ switch or multi-port midspan will deliver better value per port and a cleaner installation at the same Security Australia budget.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need 90W PoE on one specific cable run and the existing switch infrastructure is otherwise adequate - the TU8003 solves that single point without a broader infrastructure spend.
- You may need a different model if: Multiple ports need 802.3bt power simultaneously - a multi-port PoE++ switch or rack-mounted multi-port midspan will be more cost-effective and produce a cleaner installation across several devices.
- Pairs well with: High-wattage PTZ cameras, motorised pan-tilt units, or multi-sensor camera heads requiring IEEE 802.3bt power on existing cable infrastructure.
Common Questions
-
Will the TU8003 work with my existing non-PoE switch?
Yes. The TU8003 operates as a midspan injector, meaning it sits inline between any Ethernet switch port and the end device. The switch does not need to support PoE at all - the midspan draws its power from mains and injects it onto the cable run independently of what the switch provides on the data side. -
Does this support IEEE 802.3bt, and what does that mean for my camera?
Yes, the TU8003 is rated to IEEE 802.3bt Type 4, which allows up to 90W delivered to the end device. Standard PoE (802.3af) delivers 15.4W and PoE+ (802.3at) delivers 30W. If your AXIS PTZ camera or pan-tilt unit is classified as a high-power 802.3bt device, the TU8003 can meet its full power budget where lower-class switches cannot. -
Will inserting the TU8003 inline affect my network data or VLAN configuration?
No. The TU8003 passes Ethernet data through transparently without any switching, routing, or packet modification. Your existing VLAN assignments, QoS policies, and network settings on the upstream switch remain completely unchanged. The midspan only adds power to the cable - it has no management interface and no effect on data. -
Does the 100m Ethernet cable distance limit still apply when using the TU8003?
Yes. The TU8003 is not a signal repeater. The full cable distance from the switch port to the end device - including any cable between the switch and the midspan plus the cable from the midspan to the device - must not exceed 100m total. Plan the midspan position accordingly when measuring your runs. -
Is the TU8003 only compatible with AXIS cameras, or will it power other 802.3bt devices?
It will power any IEEE 802.3bt-compliant device. The TU8003 uses standard PoE negotiation, so it is not locked to AXIS hardware. However, it is designed within the AXIS accessory range and has confirmed compatibility with AXIS PTZ cameras and pan-tilt units. If you are sourcing it through Security Australia for a mixed-brand installation, confirm the end device's 802.3bt class before ordering. -
Is the TU8003 the right choice if I have 6 cameras needing 802.3bt power?
No, not cost-effectively. The TU8003 is a single-port unit, so powering 6 devices would require 6 separate units, each with its own mains connection and physical footprint. At that scale, a multi-port PoE++ managed switch or a multi-port rack-mounted midspan will cost less per port, reduce cable clutter, and provide centralised power management. The TU8003 is most practical for 1 to 2 isolated high-power device runs.
Downloads & Resources
No downloads available for this product.
