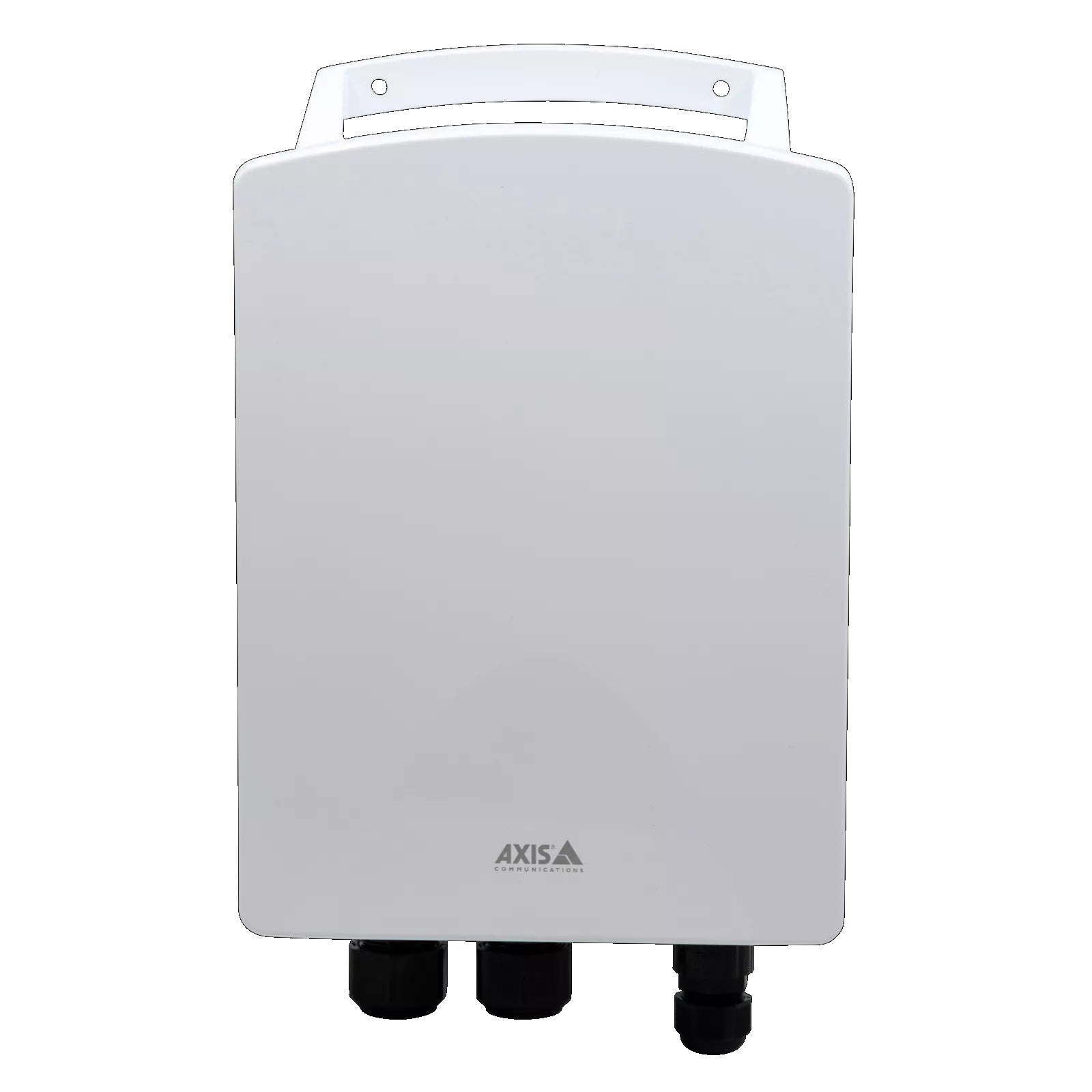

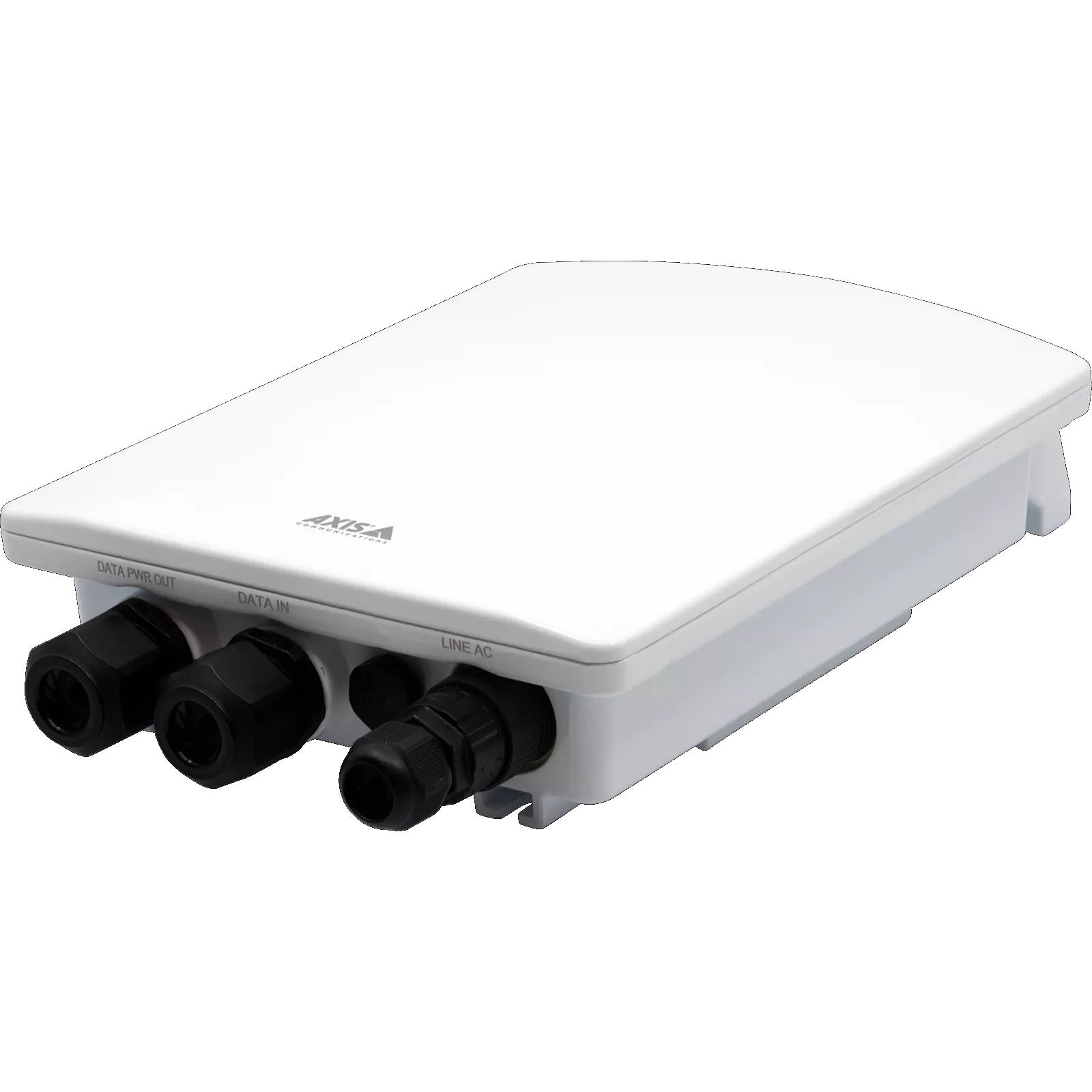

AXIS TU8002-E 90W PoE Midspan | 02453-001

Model: TU8002-E

Who This Is For

When powering a high-draw AXIS device is the priority and running a new switch or upgrading existing network infrastructure is not practical, the AXIS TU8002-E 90W PoE Midspan fills that gap directly. Designed for installers who need to deliver up to 90W of IEEE 802.3bt-compliant power to a single connected device, this midspan sits between an existing non-PoE switch and the powered device - no switch replacement required. The outdoor-rated enclosure makes it well suited to installations where the midspan needs to be located close to the camera or device rather than in a rack or comms room. It is a targeted solution for integrators adding high-power AXIS cameras, intercoms, or access control hardware to existing network infrastructure where the switch does not support the required PoE wattage.

What This Device Actually Does

Who Buys This Model

• Security integrators adding high-power AXIS PTZ cameras: Where an existing non-PoE switch is already in place and pulling a separate power circuit to the camera location is not feasible, this midspan provides the 90W required without touching the switch.
• Installers retrofitting AXIS intercoms or video door stations: Entry-point devices with built-in displays, audio, and access control relays often draw more than a standard PoE port allows - this midspan bridges that gap at the door location itself.
• Commercial and industrial site managers upgrading CCTV incrementally: Staged upgrades where one high-spec camera replaces an older analogue unit benefit from this midspan - no full switch replacement needed, just a targeted power upgrade at that point.
• IT departments supporting AXIS access control hardware: Multi-door controllers and reader interfaces with significant power demands can be powered directly via this midspan without requiring a new PoE++ switch procurement and configuration cycle.

Honest Assessment

The AXIS TU8002-E does one job well: it delivers 90W of IEEE 802.3bt-compliant power to a single device at the point of installation, in an enclosure that can be mounted outdoors. For retrofit scenarios where replacing a switch is not justified by a single high-power device, this is a straightforward and practical answer. The outdoor-rated housing genuinely extends where this unit can be deployed - close to the camera or intercom rather than locked away in a rack.

What it will not do is power multiple devices. If you have 4, 8, or more high-power cameras to connect, a PoE++ managed switch will be more cost-effective and manageable than multiple individual midspans. This unit is also purpose-designed for the AXIS ecosystem, so while it is IEEE 802.3bt compliant, integrators running mixed-brand environments should confirm device compatibility before specifying. Available through Security Australia as part of the broader AXIS accessories range.

Before You Buy

Quick Fit Check

• Good match if: You are powering a single high-draw AXIS device (PTZ, multi-sensor, or intercom) from an existing switch that does not support IEEE 802.3bt, and the installation point is outdoors or in an unprotected location.
• Good match if: You need to avoid replacing a functional managed switch just to support one new high-power device - this midspan adds 90W capability at that single port without disrupting the rest of the network.
• You may need a different model if: You have multiple high-power devices to connect across a site - a PoE++ managed switch will centralise power management, reduce cabling complexity, and provide better long-term value than multiple individual midspans.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to power a single high-draw AXIS device at an outdoor location where your existing switch cannot deliver IEEE 802.3bt wattage, and replacing that switch is not practical or cost-justified.
• You may need a different model if: You are connecting 4 or more high-power devices across a site - a PoE++ managed switch will centralise power delivery, provide per-port monitoring, and cost considerably less per port than individual midspans at each camera location.
• Pairs well with: AXIS PTZ cameras, AXIS multi-sensor panoramic cameras, and AXIS video intercoms that specify IEEE 802.3bt power requirements in their product documentation.

Common Questions

1. Will this midspan work with any PoE device, or only AXIS products?

   It will work with any IEEE 802.3bt-compliant powered device, not exclusively AXIS hardware. The TU8002-E follows the IEEE 802.3bt standard for power negotiation, so any device that supports that standard should operate correctly. That said, it is designed and tested within the AXIS ecosystem, and Security Australia stocks it specifically as part of the AXIS accessories range - confirm compatibility with third-party devices against the manufacturer's own documentation before deploying.

2. Does this midspan pass data through as well as power?

   Yes. As a midspan, it passes Ethernet data through unchanged while adding power to the cable. Your switch still handles all network traffic. The midspan simply sits inline between the switch port and the device, adding the power that the switch port cannot supply on its own.

3. What cable type and termination does this unit require at 90W?

   Cat5e or Cat6 with all 8 conductors (4 pairs) fully and correctly terminated at both ends. IEEE 802.3bt uses all 4 pairs to carry power at this wattage level. Cables that are wired for data only using 2 pairs, or cables with broken or bridged conductors, will not support correct power negotiation and the device may not power up or may operate below its rated performance.

4. Can I mount the TU8002-E outdoors without an additional weatherproof enclosure?

   Yes. The -E designation indicates the unit is built for outdoor installation. This is one of the practical differentiators of this model - it can be positioned at the device end of the cable run, in an external cabinet or mounted under an eave, without requiring a separate weatherproof housing around it. Check the IP rating in the AXIS product datasheet to confirm suitability for your specific environment before installation.

5. Does this unit require any configuration, or is it plug-and-play?

   No configuration is required. The TU8002-E operates as a passive-inject midspan - plug the network cable from your switch into the input port, connect the output port to your powered device, and connect the mains power supply. Power negotiation happens automatically between the midspan and the connected device according to the IEEE 802.3bt standard. There is no management interface or software setup involved.

6. Is it cost-effective to use multiple TU8002-E units across a large site?

   For 1 or 2 high-power devices, yes. Beyond that, a PoE++ managed switch becomes more cost-effective and operationally simpler. Multiple individual midspans across a large site introduce additional mains power points, more maintenance touchpoints, and no central visibility into port-level power status. For sites with 4 or more high-draw devices, specifying a PoE++ switch from the outset is the more practical approach.
