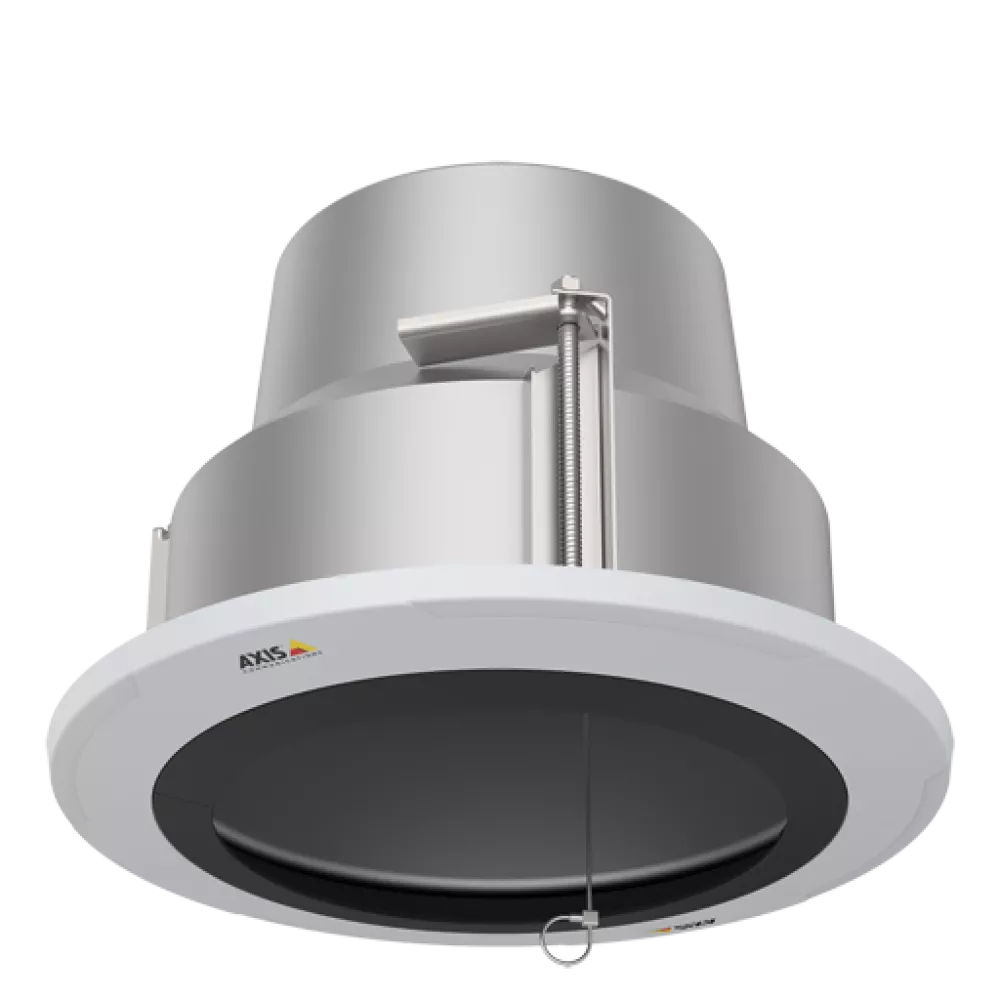

Axis TQ6201-E Recessed Mount – Flush Ceiling Mount for Axis PTZ Cameras

Model: TQ6201-E

Who This Is For

For installers and facilities teams who need a clean, recessed PTZ installation in a suspended or concrete ceiling environment, the Axis TQ6201-E Recessed Mount delivers a flush-finish solution that removes the visual bulk of a pendant or wall-arm arrangement. This mount is engineered specifically for compatible Axis PTZ cameras, allowing the camera head to sit within the ceiling plane rather than hanging below it - an outcome that matters in corporate lobbies, airports, hotel atriums, retail flagships, and any venue where aesthetics and brand presentation are taken seriously. It suits both new-build installations where ceiling access is available during fitout, and refurbishment projects where a clean ceiling profile is required to meet interior design briefs. Installers specifying this mount are typically working on commercial or high-end residential projects where the camera itself must not draw attention to its presence.

What This Camera Actually Does

Who Buys This Model

• Commercial AV and Security Integrators: Specifying PTZ cameras into new-build retail, hospitality, or corporate fitouts where the architect or interior designer requires a flush ceiling finish with no exposed hardware below ceiling level.
• Facilities Managers at Airports and Transport Hubs: Replacing pendant-mounted PTZ units during terminal refurbishments, where a recessed install eliminates snagging risk and satisfies building presentation requirements.
• Hotel and Venue Security Teams: Installing PTZ coverage in lobbies, atriums, and function spaces where surface-mounted cameras would conflict with the interior design brief and recessed installation is the specified standard.
• High-End Residential and Strata Installers: Delivering discrete PTZ surveillance in prestige apartment buildings or residential common areas where owners have stipulated flush-mount finishes as part of the building specification.

Honest Assessment

The TQ6201-E does one job well: it gives a compatible Axis PTZ camera a recessed, flush-ceiling position with a clean finished appearance and all cabling hidden above the ceiling line. For commercial installations where presentation matters as much as coverage, this mount removes the visual disruption of a pendant arm or surface housing. It is a manufacturer-matched accessory, which means the mechanical fitment and dimensional tolerances are precise for the cameras it is designed to support - that matters for PTZ units where alignment and vibration stability directly affect image quality during pan and tilt movements. What this mount will not do is adapt to incompatible camera models, suit outdoor or wet-area installations, or replace a pendant arm where ceiling void access is not available. If the installation site has a shallow ceiling void, concrete slab with no accessible void, or requires an outdoor-rated housing, a different mounting solution is the appropriate path. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are installing a compatible Axis PTZ camera into a suspended ceiling with adequate void depth and the project brief requires a flush, recessed finish with no visible camera body or cabling below the ceiling line.
• Good match if: The installation is in a high-presentation indoor environment - hotel lobby, corporate atrium, airport terminal - where a pendant-arm or surface-mount PTZ installation would conflict with the interior design specification.
• You may need a different model if: Your ceiling void is shallow, inaccessible, or non-existent (concrete slab), or if the installation is outdoors or in a wet area - in those cases a pendant arm, surface mount, or outdoor-rated PTZ housing from the Axis mounts range will be the more appropriate solution.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation site has an accessible ceiling void, the project specification requires a flush recessed PTZ finish, and you are working with a compatible Axis PTZ camera model.
• You may need a different model if: The ceiling is a solid concrete slab with no accessible void, the installation is outdoors, or the camera position requires a pendant arm or wall mount - in those cases an Axis pendant arm, surface mount, or outdoor pole mount will be the appropriate solution for your project.
• Pairs well with: Compatible Axis PTZ cameras requiring a flush indoor ceiling installation, combined with an Axis PoE+ switch or midspan to supply the power and data to the recessed camera position through a single Cat6 cable run.

Common Questions

1. Will the TQ6201-E work with any Axis PTZ camera?

   No - not all Axis PTZ cameras share the same housing diameter or mounting interface. The TQ6201-E is designed for specific compatible Axis PTZ models, and compatibility must be confirmed against Axis Communications' official compatibility documentation before purchase. Assuming universal fit across the Axis PTZ range can result in fitment issues that are not resolvable on site without a different mount.

2. Does this mount work for outdoor PTZ installations?

   No. The TQ6201-E is an indoor recessed ceiling mount and is not rated for outdoor or wet-area use. For outdoor PTZ installations, an outdoor-rated pendant arm, wall mount, or pole mount from the Axis mounts range is required. Installing this mount in an exposed outdoor position would void the camera warranty and risk water ingress to the camera body.

3. How much ceiling void depth is needed for this installation?

   The required void depth is determined by the height of the Axis PTZ camera body you are installing, not solely by the mount itself. The camera must sit completely above the finished ceiling surface with clearance for the cable connections at the top of the camera. Before ordering, measure the available void depth at the installation point and compare it against the height dimension of your specific PTZ model as listed in Axis's product datasheet.

4. Will PTZ pan and tilt performance be affected by a recessed mount versus a pendant arm?

   No - provided the mount is correctly installed into the structural ceiling substrate above the finished ceiling. PTZ pan and tilt performance depends on a vibration-stable, structurally sound mounting base. The TQ6201-E is designed to fix to the building structure above the ceiling tile, not to the lightweight ceiling grid itself. Fixing into ceiling tiles or the grid frame rather than the structural substrate above will introduce vibration and movement that degrades PTZ image quality during movement.

5. Does the recessed install limit the PTZ camera's pan range?

   Yes, in practice the recessed ceiling aperture limits the downward tilt angle available compared to a pendant arm that positions the camera below the ceiling plane. The camera's full 360-degree pan rotation is not affected, but the maximum tilt-down angle achievable before the housing obstructs the view is reduced. For installations where steep downward tilt is required to cover an area directly below the camera, a pendant arm or drop-tube mount that positions the camera further below the ceiling surface will provide better angular coverage.

6. What cable types run through the ceiling void to a recessed PTZ installation?

   For a PoE+ powered Axis PTZ camera, a single Cat5e or Cat6 cable carries both network data and power from the nearest PoE+ switch or midspan injector up through the ceiling void to the camera. Some higher-power Axis PTZ models require PoE+ (IEEE 802.3at) or PoE++ (IEEE 802.3bt) rather than standard PoE - confirm your camera model's power draw against your switch output before cabling. The recessed mount keeps all of this cabling hidden above the ceiling, with no exposed runs visible from the floor. The TQ6201-E and the Axis PTZ cameras it supports are stocked by Security Australia.
