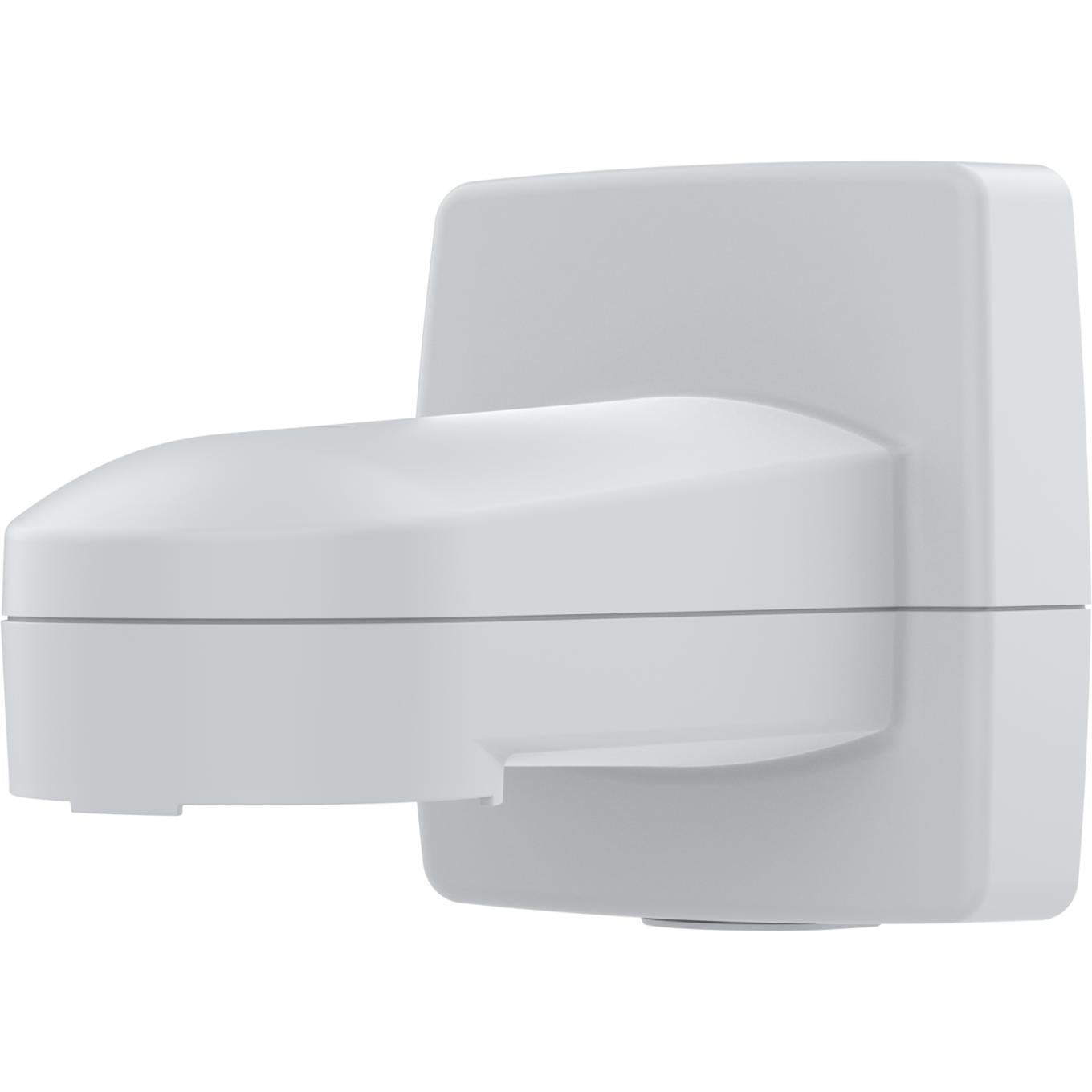

AXIS TQ5001-E Wall / Pole Mount
The AXIS TQ5001-E delivers a flexible, weatherproof mounting solution for installers fitting Axis network cameras to walls, poles, or corners. Built from aluminium with IP66, NEMA 4X, and IK10 ratings, it handles harsh outdoor conditions without compromise. Pole mounting requires AXIS Steel Straps TX30, sold separately.
Why This Model
- Wall or pole in one bracket: Simply flip the bracket to switch between wall and pole configurations, reducing the need to stock separate mount types across different job sites.
- IP66-rated built-in connector: The integrated IP66 RJ45 Ethernet output keeps the cable connection sealed against water and dust ingress, protecting the critical PoE link at the mount itself.
- IK10 impact resistance: The aluminium casing is rated to withstand deliberate physical impact, making it suited to exposed public-area installations where vandalism is a concern.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Model: TQ5001-E
Product Overview
Designed for flexibility, the AXIS TQ5001-E Wall / Pole Mount provides a durable mounting solution for compatible Axis network cameras in both indoor and outdoor environments. The aluminium casing carries IP66, NEMA 4X, and IK10 ratings, making it suitable for demanding conditions across a wide temperature range of -50 °C to 65 °C. It supports wall mounting or, when flipped, pole mounting with the addition of AXIS Steel Straps TX30. Connector options include RJ45 or IDC input, with an IP66-rated RJ45 Ethernet male output. Security Australia supplies this mount for installers seeking a reliable, weatherproof camera positioning accessory.
No downloads available for this product.
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
The AXIS TQ5001-E delivers a flexible, weatherproof mounting solution for installers fitting Axis network cameras to walls, poles, or corners. Built from aluminium with IP66, NEMA 4X, and IK10 ratings, it handles harsh outdoor conditions without compromise. Pole mounting requires AXIS Steel Straps TX30, sold separately.
Why This Model
- Wall or pole in one bracket: Simply flip the bracket to switch between wall and pole configurations, reducing the need to stock separate mount types across different job sites.
- IP66-rated built-in connector: The integrated IP66 RJ45 Ethernet output keeps the cable connection sealed against water and dust ingress, protecting the critical PoE link at the mount itself.
- IK10 impact resistance: The aluminium casing is rated to withstand deliberate physical impact, making it suited to exposed public-area installations where vandalism is a concern.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| General | Supported products | AXIS P55 Series, AXIS P56 Series, AXIS Q37 Series, AXIS Q60 Series, AXIS Q61 Series |
|---|---|---|
| Casing | IP66-, NEMA 4X- and IK10-rated, Aluminum casing, Color: white NCS S 1002-B | |
| Mounting | Back | Cable hole |
| Bottom | ¾” (M25) conduit side entries | |
| Connectors | Output | IP66, RJ45 Ethernet (male) |
| Input | RJ45 Ethernet (female), IDC | |
| Operating conditions | Temperature | -50 °C to 65 °C (-58 °F to 149 °F) |
| Humidity | 10–100% RH (non-condensing) | |
| Storage conditions | Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity | 10–100% RH (non-condensing) | |
| Dimensions | For the overall product dimensions, see the dimension drawing in this datasheet. | |
| Weight | Product | 1960 g (4.3 lb) |
| Maximum load | 40 kg (88.2 lb) | |
| Box content | Mount, wall bracket, installation guide, cable ties, RJ45 mounting tool | |
| Optional accessories | AXIS ACI Conduit Adapters AXIS T91A64 Corner Bracket AXIS Steel Straps TX30 570 mm AXIS Steel Straps TX30 1450 mm | |
