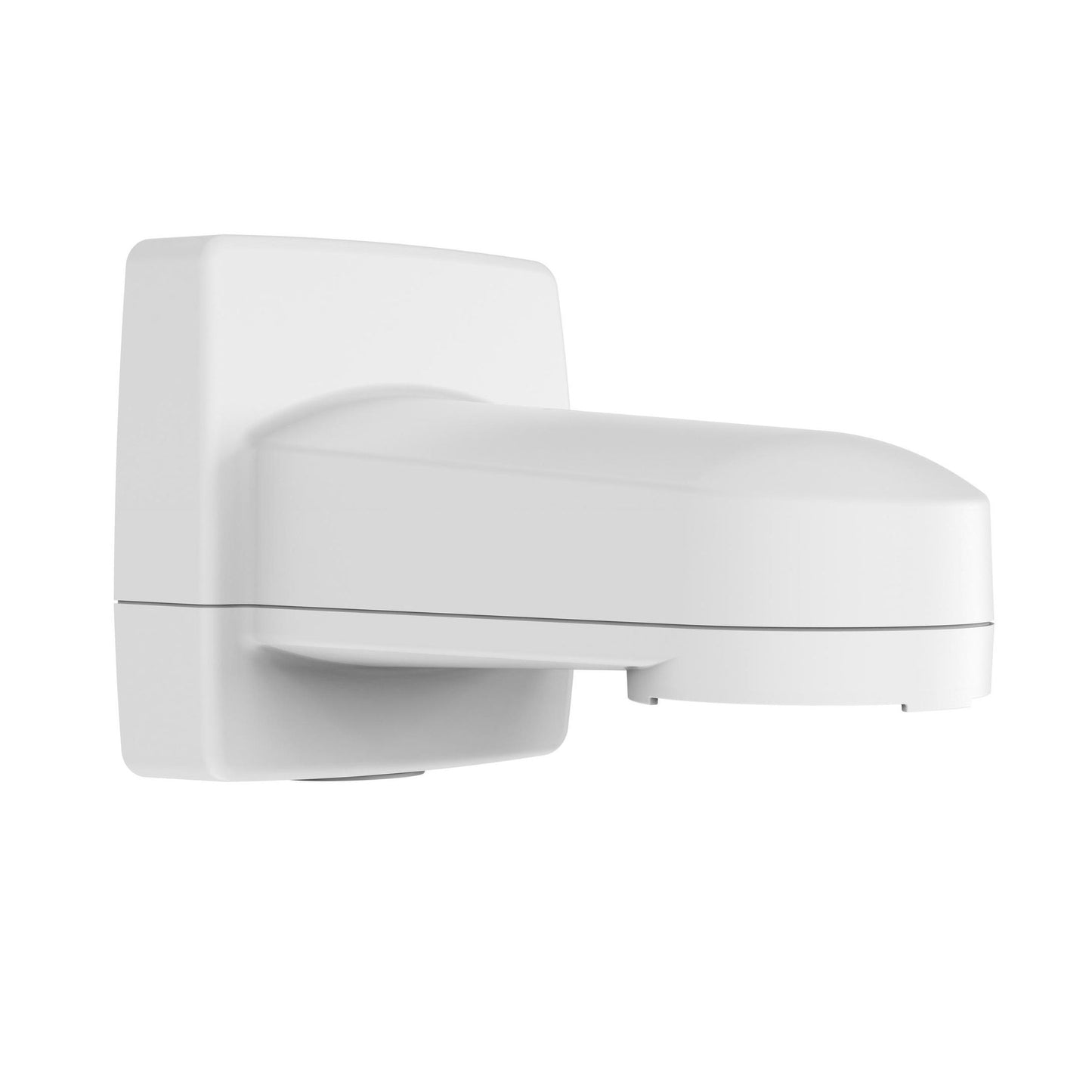

AXIS T91L61 Wall & Pole Mount Bracket to suit PTZ & Multi Sensor Cameras, IP66

Model: AXIS T91L61

Who This Is For

Property managers specifying Axis PTZ or multi-sensor camera deployments in exposed outdoor locations need a mounting solution that handles the mechanical load, weather exposure, and cabling demands those cameras require. The AXIS T91L61 Wall and Pole Mount Bracket is built specifically for that job - supporting compatible Axis Q60, Q61, P55, P56, and Q37 series cameras up to 30 kg on either a wall or pole surface. The bracket includes a built-in Ethernet cable with an IP66-rated RJ45 connector, so the network connection is handled at the mount rather than relying on field-terminated cabling exposed to the elements. It suits installers who need to finalise the camera position during fit-out without compromising on weatherproofing, load rating, or cable management. Rated to IP66, IK10, and tested to MIL-STD 810G, this bracket is built for long-term outdoor service from -50 °C to 65 °C.

What This Camera Actually Does

Who Buys This Model

• Axis-certified installers: Specifying a compatible, manufacturer-matched mount for Axis Q60, Q61, P55, P56, or Q37 series PTZ and multi-sensor cameras where warranty and integration requirements matter.
• Industrial and infrastructure site integrators: Mounting heavy PTZ cameras on light poles, gantries, or external walls at sites where IP66, IK10, and MIL-STD 810G salt fog ratings are required for the mounting hardware - not just the camera.
• Contractors running conduit installations: Using the 3/4" conduit bottom entry to feed pre-laid conduit directly into the bracket base, keeping all cabling fully enclosed from the wall or pole through to the camera connection.
• Projects requiring IDC field termination: Where pre-terminated Cat cable cannot be pulled through the installation path and the IDC connector option avoids the need to fit an RJ45 plug in a confined or exposed location.

Honest Assessment

The AXIS T91L61 does one job with no compromises: giving compatible Axis PTZ and multi-sensor cameras a structurally sound, fully weatherproofed mounting point on a wall or pole. The built-in IP66 RJ45 connector is a genuine time-saver on outdoor installs - it removes a common failure point where aftermarket weatherproof couplers are added and not always rated correctly. The dual cable entry (RJ45 or IDC) and conduit-ready base give installers real flexibility for different site conditions. The IK10 impact rating and -50 °C to 65 °C operating range mean it handles conditions that would degrade lesser mounting hardware over time. Where it will not help is if your camera is not from the Axis Q60, Q61, P55, P56, or Q37 series - this bracket is purpose-built for those platforms and is not a universal mount. For corner mounting, the optional AXIS T91A64 Corner Bracket accessory is required separately. Available through Security Australia for Axis-based PTZ and multi-sensor projects.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Axis Q60, Q61, P55, P56, or Q37 series PTZ or multi-sensor camera on an external wall or pole and need an IP66, IK10-rated bracket with an integrated weatherproof Ethernet connection.
• Good match if: Your installation uses conduit from the structure surface and you need a bracket with a 3/4" conduit entry at the base to keep all cabling fully enclosed, or where IDC field termination is preferred over a pre-fitted RJ45 plug.
• You may need a different model if: Your PTZ or multi-sensor camera is not from one of the compatible Axis series listed - a different manufacturer-specific or universal heavy-duty PTZ mount from the Security Australia range would be more appropriate for non-Axis platforms.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera is from the Axis Q60, Q61, P55, P56, or Q37 series and you need a wall or pole mount with a built-in IP66 RJ45 connection, IK10 impact resistance, and a conduit-ready base - all from the camera manufacturer.
• You may need a different model if: Your PTZ or multi-sensor camera is not from a compatible Axis series - a universal heavy-duty outdoor PTZ bracket from the Security Australia range would be more appropriate for non-Axis platforms or cameras with different mounting interfaces.
• Pairs well with: Compatible Axis PTZ or multi-sensor cameras from the Q60, Q61, P55, P56, or Q37 series, and an Axis PoE switch or midspan that delivers sufficient power for the PTZ camera being installed.

Common Questions

1. Does this bracket work for pole mounting without buying additional parts?

   No. The bracket supports pole installation, but stainless steel straps are required and sold separately. Two strap lengths are available as optional accessories - 700 mm (28 in) for narrower poles and 1450 mm (57 in) for larger diameter poles. The bracket includes wall mounting hardware, so for a wall install no additional parts are needed beyond the bracket itself.

2. Will this bracket handle the weight of a full-size Axis PTZ camera?

   Yes. The AXIS T91L61 is rated to 30 kg maximum load, which covers the camera bodies across the compatible Axis Q60, Q61, P55, P56, and Q37 series. The powder-coated aluminium casing provides structural rigidity, and the bracket is tested to IEC 60721-4 Class 4M3 environmental standards for long-term mechanical integrity in outdoor conditions.

3. What does the IDC connector option actually mean for installation?

   IDC (insulation-displacement contact) allows a Cat cable to be terminated directly into the bracket without crimping an RJ45 plug onto the end of the cable first. In practice, this is useful when pulling cable through conduit or a wall void where fitting a bulky RJ45 plug before the pull is difficult, or where the available cable length after the pull is too short to comfortably crimp a plug.

4. Is this bracket suitable for coastal or salt-air environments?

   Yes. The AXIS T91L61 is tested to MIL-STD 810G 509.5 salt fog, which is specifically a corrosion resistance test for equipment operating in marine and coastal environments. Combined with the powder-coated aluminium casing, IP66 ingress protection, and NEMA 250 Type 4X rating, it is a practical choice for port facilities, coastal infrastructure, and seafront commercial sites where salt-laden air accelerates corrosion on standard mounting hardware.

5. Can I use this bracket for corner mounting on a building?

   No - not without an additional accessory. Corner mounting requires the optional AXIS T91A64 Corner Bracket, which is not included with this product. The T91L61 itself is designed for flat wall or pole surfaces. If corner mounting is part of your installation plan, confirm the T91A64 is in your order before the camera goes up.

6. What is the IP66 rating on the RJ45 connector actually protecting against?

   IP66 means the connector is dust-tight (no ingress) and protected against powerful water jets from any direction. On an outdoor bracket, this matters at the camera-side Ethernet connection point - an unsealed or standard RJ45 connector at that location is a common point of moisture ingress over time, particularly in driving rain or high-pressure wash-down environments. The IP66 RJ45 built into this bracket is a sealed, purpose-rated connector - not a standard plug with an aftermarket boot added. The bracket is stocked by Security Australia for Axis PTZ and multi-sensor projects requiring this level of connection protection.

7. Does this bracket have a conduit entry, and what size?

   Yes. There is a 3/4" conduit entrance at the bottom of the bracket. This accommodates standard 3/4" conduit runs up a wall or pole, allowing all cabling to be fully enclosed from the conduit into the bracket without exposed cable at the base. There is also a cable hole at the back of the bracket for installations where cable is routed through the wall surface rather than via conduit.
