- Sku: AXIS-5504-821
- Vendor: SecurityAustralia

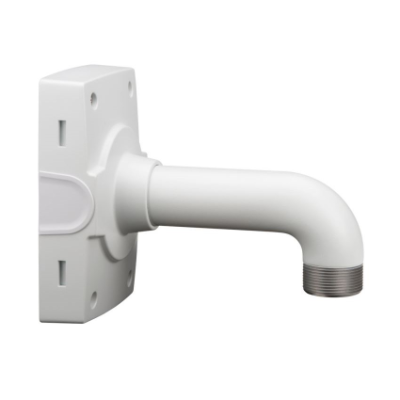

AXIS T91D61 Wall Mount to suit 1.5 NPS Fixed Dome Pendant Kits, Powder Coated Aluminium
The AXIS T91D61 delivers a robust, IK10-rated wall mounting solution for installers deploying Axis fixed dome cameras in pendant configurations. Constructed from powder-coated aluminium, it supports up to 15 kg and suits both indoor and outdoor environments. Compatible with Axis P32, P33, Q35, and Q36 series cameras - note that a camera-specific pendant kit is required and sold separately.
Why This Model
- Flexible cable routing: Cables can exit through the rear hole or side conduit ports (M20/3/4"), giving installers clean, compliant runs regardless of wall construction.
- IK10 impact rating: Certified to withstand 20-joule impacts, making it suitable for exposed or high-traffic outdoor locations where vandal resistance matters.
- Broad camera compatibility: Supports Axis P32, P33, P3707-PE, Q35, and Q36 series with the appropriate pendant kit, making it a versatile stock item across multi-camera projects.
| General | |
|---|---|
| Supported products | AXIS P32 Series (requires camera-specific pendant kit) AXIS P33 Series (requires camera-specific pendant kit) AXIS P3707-PE (requires AXIS T94M02D Pendant Kit) AXIS Q35 Series (requires camera-specific pendant kit) AXIS Q36 Series (requires camera-specific pendant kit) |
| Dimensions | 140 x 268 x 196 mm (5 1/2 x 10 1/2 x 7 3/4 in) |
| Weight | 1.4 kg (3.1 lb) |
| Maximum load | 15 kg (33 lb) |
| Cable routing | Back: Cable hole Side: Cable conduit holes M20 (3/4") |
| Environment | Indoor Outdoor |
| Approvals | IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 EN 50581 IEC 62262 IK10 |
| Included accessories | Installation Guide AXIS T91A6 Pipe Seal |
| Optional accessories | Axis network cable couplers, AXIS Conduit Adapter U-shape 30 mm A |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS T91D61 Wall Mount to suit 1.5 NPS Fixed Dome Pendant Kits, Powder Coated Aluminium
Model: AXIS T91D61 Wall Mount
Who This Is For
When wall-mounting Axis fixed dome pendant kits to masonry, concrete pillars, or steel-framed structures is the priority, the AXIS T91D61 Wall Mount is the correct starting point. Built from powder-coated aluminium with a 1.5-inch NPS thread, it is engineered for permanent outdoor and indoor installations where the pendant camera assembly needs to be held clear of the wall surface - common in car parks, building exteriors, loading areas, and covered walkways. It suits integrators working with the AXIS P32, P33, Q35, and Q36 series dome cameras that require a camera-specific pendant kit, as well as the AXIS P3707-PE paired with the AXIS T94M02D Pendant Kit. Cable routing is handled through a rear cable hole or side M20 conduit entries, keeping runs concealed and weathertight. At 15 kg maximum load capacity, it comfortably accommodates the full weight of supported camera and pendant kit assemblies.
What This Mount Actually Does
1.5-Inch NPS Thread Interface
The 1.5-inch NPS threaded outlet connects directly to compatible Axis pendant kit pipes, creating a rigid mechanical joint between the wall arm and the camera assembly. This is the standard thread size across the Axis T91 pendant accessory range.
Dual Cable Routing Options
Cables can enter through a rear hole directly from the wall cavity or through side M20 conduit entries for surface-run conduit installations. This gives installers flexibility on both masonry and framed structures without reworking cable paths.
IK10 Impact Rating
Rated IK10 under IEC 62262, the mount withstands significant mechanical impact - relevant for car parks, public areas, and any site where deliberate or accidental contact with the mounting arm is a realistic risk.
15 kg Load Capacity
The mount supports up to 15 kg, which comfortably covers the combined weight of all listed compatible Axis dome cameras plus their pendant kit hardware. No reinforcement plate or secondary bracket is needed for standard dome configurations.
Included Pipe Seal
The AXIS T91A6 Pipe Seal is included in the box and seals the pipe joint at the mount, preventing moisture ingress at the connection point between the wall arm and the pendant pipe. Essential for outdoor installations where water entry through the pipe thread is a concern.
Who Buys This Model
- Security integrators completing Axis pendant kit installations: Needed any time an Axis P32, P33, Q35, or Q36 series dome is being wall-mounted rather than ceiling-mounted - the T91D61 is the wall-side component of that pendant assembly.
- Commercial installers working on external building facades: The dual cable routing options and M20 conduit entries suit surface-conduit runs common on concrete and brick facades where chasing cable is not possible.
- Project managers specifying outdoor dome positions in exposed locations: The IK10 rating makes this appropriate for car parks, transport hubs, and public-facing installations where vandal resistance of the mounting hardware itself matters.
- Installers upgrading or replacing existing Axis wall arm hardware: The 1.5-inch NPS thread and compatibility with Axis ACI 3/4-inch conduit adapters means it integrates directly with existing Axis pendant kit infrastructure without requiring new pipe work.
Honest Assessment
The AXIS T91D61 does a specific job well: it provides a solid, weatherproof wall arm for Axis fixed dome pendant assemblies with IK10 impact resistance, 15 kg load capacity, and flexible cable entry for both in-wall and conduit installations. The inclusion of the AXIS T91A6 Pipe Seal is a practical detail that removes one step from the outdoor installation checklist. It is not a universal camera mount - it is designed specifically for Axis pendant kit systems using the 1.5-inch NPS thread standard. If the camera being installed does not require a pendant kit, or if a different mounting format such as a pole mount or ceiling plate is required, a different accessory from the Axis T91 range will be the appropriate choice. Confirm the required pendant kit for the specific camera model before ordering. The T91D61 is available through Security Australia alongside the full range of compatible Axis pendant kit accessories.
Before You Buy
Installer Note: The T91D61 is the wall arm only - it does not include the camera-specific pendant kit. Each supported camera series (P32, P33, Q35, Q36) requires its own pendant kit purchased separately, and the AXIS P3707-PE specifically requires the AXIS T94M02D Pendant Kit. Confirm the pendant kit for the camera model before completing the order. Also verify conduit adapter requirements: the mount accepts M20 side entries natively, and Axis ACI 3/4-inch conduit adapters are listed as optional accessories if the site uses that conduit standard.
Structural Note: The mount weighs 1.4 kg and has a footprint of 140 x 268 x 196 mm. For masonry or concrete installations, ensure fixing bolts are rated for the combined load of mount, pendant pipe, and camera assembly. The 15 kg maximum load rating applies to the mount itself - substrate fixings must be specified to suit the wall material independently.
Quick Fit Check
- Good match if: You are wall-mounting an Axis P32, P33, Q35, or Q36 series dome camera using the correct camera-specific pendant kit and need a 1.5-inch NPS wall arm with IK10 impact resistance for an outdoor or exposed location.
- Good match if: The installation involves surface-run conduit and you need side M20 conduit entry points rather than a rear cable hole - both routing options are built into this mount.
- You may need a different model if: The camera is being mounted to a pole, parapet, or ceiling rather than a wall surface - the Axis T91 accessory range includes pole adapters, parapet mounts, and ceiling plates better suited to those installation types, available on securityaustralia.com.au.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You are wall-mounting an Axis fixed dome camera that requires a pendant kit and need an IK10-rated, outdoor-rated wall arm with a 1.5-inch NPS thread and dual cable routing options.
- You may need a different model if: The camera needs to be mounted to a pole, parapet, corner, or ceiling - the Axis T91 mounting accessory range includes purpose-built solutions for each of those configurations, available on securityaustralia.com.au.
- Pairs well with: Camera-specific Axis pendant kits for the P32, P33, Q35, and Q36 series, and the AXIS T94M02D Pendant Kit for the P3707-PE multi-sensor dome.
Common Questions
-
Does the T91D61 include a pendant kit for the camera?
No. The T91D61 is the wall arm only - it does not include a camera pendant kit. Each supported camera series requires its own pendant kit ordered separately. The AXIS P32, P33, Q35, and Q36 series each have their own camera-specific pendant kits, and the AXIS P3707-PE requires the AXIS T94M02D Pendant Kit specifically. Confirm which pendant kit your camera model needs before completing the order. -
Will this wall mount work for outdoor installations?
Yes. The T91D61 is rated for both indoor and outdoor environments, and meets IEC/EN/UL 60950-22 which covers outdoor electrical equipment. The included AXIS T91A6 Pipe Seal protects the pipe joint from moisture ingress, making it suitable for exposed outdoor wall positions including building facades and covered external areas. -
What does the IK10 rating mean for this mount?
IK10 is the highest impact protection rating under IEC 62262, indicating the enclosure can withstand 20 joules of impact force. For a wall arm, this means the mount itself resists forceful contact from people, equipment, or projectiles - not just the camera dome. This is particularly relevant in car parks, public spaces, and industrial sites where the mounting hardware is at accessible heights. -
How do I route cables if I cannot run them through the wall?
Use the M20 side conduit entries. The mount has M20 (3/4-inch) conduit holes on the side of the arm body, allowing surface-mounted conduit to connect directly to the wall arm. Axis ACI 3/4-inch conduit adapters are listed as optional accessories if the existing conduit infrastructure uses that standard. This makes the T91D61 practical for concrete or masonry walls where in-wall cabling is not possible. -
What is the maximum weight this mount can support?
The rated maximum load is 15 kg (33 lb). This covers the combined weight of all compatible Axis dome cameras and their pendant kit hardware under normal conditions. The mount itself weighs 1.4 kg. For installations on masonry or concrete, the substrate fixing bolts must be independently specified to suit the wall material and total combined load - the 15 kg rating applies to the mount structure, not the wall fixings. -
Is the AXIS T91A6 Pipe Seal already included or do I need to order it separately?
It is included in the box. The AXIS T91A6 Pipe Seal ships with every T91D61 wall mount and should be installed at the threaded joint between the wall arm and the pendant pipe to seal against water ingress. No separate order is required for the pipe seal. The product is part of the Security Australia range of Axis mounting accessories.
Downloads & Resources
No downloads available for this product.
