AXIS T91B67 Pole Mount
When pole-mounting Axis fixed dome cameras without a nearby wall or ceiling is the requirement, the T91B67 Pole Mount delivers a purpose-built solution for poles between 65-165 mm in diameter, including beams. Built from NEMA 4X- and IK10-rated powder-coated aluminium, it handles demanding outdoor environments while supporting loads up to 15 kg.
Why This Model
- Wide pole compatibility: Fits poles and beams from 65-165 mm in diameter, covering everything from standard street poles to structural columns without needing a separate adapter.
- NEMA 4X and IK10 rated: The powder-coated aluminium casing resists corrosion, water ingress, and physical impact, making it genuinely suited to harsh Australian outdoor conditions rather than just technically "outdoor rated".
- Protected cable management: Side 3/4" conduit entries combined with a closed back and cable gasket keep cable runs tidy and protected from both the elements and insect infestation.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Model: T91B67
Product Overview

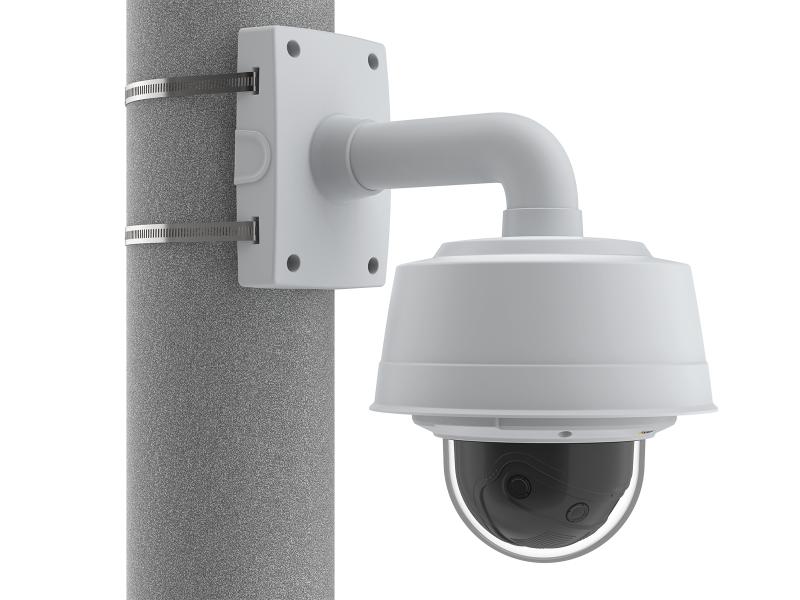

Specifically designed for pole and beam installations, the AXIS T91B67 Pole Mount secures Axis fixed dome cameras and 1.5" NPS threaded Axis pendant kits to poles ranging from 65-165 mm in diameter. Constructed from NEMA 4X- and IK10-rated powder-coated aluminium, it supports loads up to 15 kg and suits both indoor and outdoor environments. Cable management is handled via a rear cable hole and 3/4" conduit side entries, with a closed back and cable gasket protecting against insect ingress. PVC free and RoHS compliant, it is a practical choice for installers sourcing reliable mounting hardware through Security Australia.
No downloads available for this product.
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
When pole-mounting Axis fixed dome cameras without a nearby wall or ceiling is the requirement, the T91B67 Pole Mount delivers a purpose-built solution for poles between 65-165 mm in diameter, including beams. Built from NEMA 4X- and IK10-rated powder-coated aluminium, it handles demanding outdoor environments while supporting loads up to 15 kg.
Why This Model
- Wide pole compatibility: Fits poles and beams from 65-165 mm in diameter, covering everything from standard street poles to structural columns without needing a separate adapter.
- NEMA 4X and IK10 rated: The powder-coated aluminium casing resists corrosion, water ingress, and physical impact, making it genuinely suited to harsh Australian outdoor conditions rather than just technically "outdoor rated".
- Protected cable management: Side 3/4" conduit entries combined with a closed back and cable gasket keep cable runs tidy and protected from both the elements and insect infestation.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| General | |
|---|---|
| Supported Products | Axis fixed dome cameras compatible with 1.5” NPS threaded, Axis pendant kits |
| Pole Diameter | 65–165 mm (2 1/2–6 1/2 in) |
| Maximum Load | 15 kg (33 lb) |
| Cable Routing | Back: cable hole, Sides: 3/4" Conduit entrance |
| Casing | NEMA 4X- and IK10-rated powder-coated aluminum mount, Color: white NCS S 1002-B, Interface: 1.5" NPS |
| Sustainability | PVC free |
| Environment | Indoor, Outdoor |
| Approvals | |
| Safety | IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 |
| Environment | IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, RoHS, WEEE |
| Impact | IEC 62262 IK10 |
| Dimensions | |
| Dimensions | 252 x 134 x 194 mm (9.9 x 5.3 x 7.6 in) |
| Weight | 1.2 kg (2.6 lb) |
| Included Accessories | |
| Included Accessories | Installation Guide, Stainless steel straps, Insect-proof cable gasket |
| Required Accessories | |
| Required Accessories | 1.5” NPS threaded Axis pendant kit |
