Axis T91B57 wall mount bracket

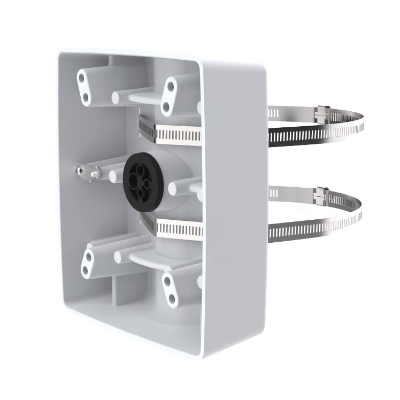

The Axis T91B57 delivers a secure pole-mounting solution for installers deploying Axis wall mounts and cabinet enclosures on round poles from 100 to 410 mm in diameter. Compatible with the T91G61, T91H61, and T98A-VE series, it supports loads up to 30 kg and suits both indoor and outdoor installations. Stainless steel straps and an insect-proof cable gasket are included.
Why This Model
- Wide pole compatibility: Accommodates poles from 100 to 410 mm in diameter, so installers aren't limited to a narrow range of street furniture or mounting structures.
- IK10-rated aluminium casing: Powder-coated and impact-resistant, meaning the bracket stands up to accidental knocks and deliberate vandalism without compromising the mounted equipment.
- Insect-proof cable gasket included: The closed back and supplied gasket block pest ingress at the cable entry point - a practical detail that matters in long-term outdoor deployments.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Model: T91B57
Product Overview
Designed for demanding installations, the Axis T91B57 is an IK10-rated powder-coated aluminium pole mount bracket compatible with the AXIS T91G61 Wall Mount, AXIS T91H61 Wall Mount, AXIS T98A-VE Cabinet Series, and AXIS A9188-VE Network I/O Relay Module. It accommodates poles with a diameter of 100-410 mm and supports a maximum load of 30 kg. The closed back and cable gasket protect against insect infestation, and stainless steel straps are included for secure fitment. Suitable for both indoor and outdoor use, it is available from Security Australia for professional surveillance deployments.
No downloads available for this product.
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
The Axis T91B57 delivers a secure pole-mounting solution for installers deploying Axis wall mounts and cabinet enclosures on round poles from 100 to 410 mm in diameter. Compatible with the T91G61, T91H61, and T98A-VE series, it supports loads up to 30 kg and suits both indoor and outdoor installations. Stainless steel straps and an insect-proof cable gasket are included.
Why This Model
- Wide pole compatibility: Accommodates poles from 100 to 410 mm in diameter, so installers aren't limited to a narrow range of street furniture or mounting structures.
- IK10-rated aluminium casing: Powder-coated and impact-resistant, meaning the bracket stands up to accidental knocks and deliberate vandalism without compromising the mounted equipment.
- Insect-proof cable gasket included: The closed back and supplied gasket block pest ingress at the cable entry point - a practical detail that matters in long-term outdoor deployments.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| General | |||
|---|---|---|---|
| Supported products | AXIS T91G61 Wall Mount AXIS T91H61 Wall Mount AXIS T98A-VE Cabinet Series AXIS A9188-VE Network I/O Relay Module | ||
| Pole diameter | 100–410 mm (4–16 in) | ||
| Maximum load | 30 kg (66 lb) | ||
| Cable routing | Back | Cable hole | |
| Bottom | AXIS T91G61 or AXIS T98A required | ||
| Casing | IK10-rated powder-coated aluminum mount | ||
| Color | White NCS S 1002-B | ||
| Sustainability | PVC free | ||
| Environment | Indoor | Outdoor | |
| Approvals | Safety | IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 | |
| Environment | EN 50581 | ||
| Impact | IEC 62262 IK10 | ||
| Dimensions | 190 x 214 x 67 mm (7 1/2 x 8 7/16 x 2 5/8 in) | ||
| Weight | 1.4 kg (3.2 lb) | ||
| Included accessories | Installation Guide Insect-proof cable gasket Stainless steel straps | ||
