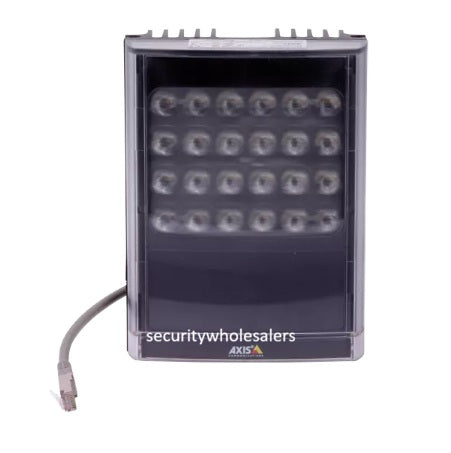

AXIS T90D40 IR LED Illuminator | 01214-001

Model: T90D40

Who This Is For

For installers and integrators who need to extend or supplement the IR performance of an existing AXIS camera deployment, the AXIS T90D40 IR LED Illuminator is a purpose-designed accessory that adds dedicated infrared illumination without replacing the camera itself. It suits scenarios where a camera's built-in IR falls short - long driveways, wide loading dock approaches, perimeter fence lines, and outdoor corridors where ambient light drops to near zero at night. The T90D40 is built to the same outdoor and environmental standards expected from AXIS infrastructure, making it a straightforward addition to sites already running AXIS hardware. Installers specifying new builds or retrofitting underperforming night-time coverage on existing AXIS systems will find this illuminator a direct, compatible solution that avoids the cost of replacing cameras purely for improved IR range.

What This Product Actually Does

Who Buys This Model

• AXIS System Integrators: Installers running established AXIS camera deployments who need to improve night-time coverage at specific camera positions without replacing hardware.
• Industrial Site Managers: Facilities with long unlit approaches - loading docks, perimeter fences, vehicle entry lanes - where camera-only IR is insufficient to cover the required distance.
• Cold Storage and Refrigeration Operators: Environments where extreme temperature ranges (-40°C) would disqualify standard illuminator accessories, and a confirmed-rated unit is required.
• Retrofit Installers: Technicians upgrading the night-time performance of an existing AXIS installation without a full camera replacement - the T90D40 adds illumination capacity to cameras that already perform well in daylight.

Honest Assessment

The T90D40 does one thing well: it adds a reliable, IP66-rated, 850nm IR illumination source to an AXIS camera position where built-in IR is not enough. The extreme temperature rating (-40°C to 50°C) is a genuine differentiator that makes it usable on sites where most accessories would not be specified. PoE power simplifies cable routing, and the AXIS ecosystem alignment means fewer compatibility headaches on managed installations. Where this will not serve you: it is not a standalone product and provides no value without a compatible camera pointed at the same scene. It will not add colour night-time imaging - that requires a white-light illuminator or a full-colour camera with its own illumination. It is also not a substitute for correct camera selection. If your camera's sensor is underperforming in low light, additional IR illumination helps but does not fix a sensor limitation. Available through Security Australia as part of the AXIS accessories range.

Before You Buy

Quick Fit Check

• Good match if: You are running an AXIS camera on a dark outdoor approach or perimeter line and the camera's built-in IR does not cover the full depth of the scene you need to monitor at night.
• Good match if: The installation site experiences extreme temperatures - below -20°C or above 40°C - where the T90D40's -40°C to 50°C rated housing is required to maintain reliable operation year-round.
• You may need a different model if: You need full-colour night-time imaging rather than monochrome IR footage - a white-light illuminator or a TiOC/full-colour camera with integrated strobe illumination would be the more suitable product type for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to extend 850nm IR illumination on an existing AXIS camera deployment and want a PoE-powered accessory that is rated to -40°C for extreme-environment installations.
• You may need a different model if: Your requirement is full-colour night-time imaging rather than monochrome IR - a white-light illuminator accessory or a full-colour TiOC camera with integrated strobe would be a more suitable product type for that use case.
• Pairs well with: AXIS fixed cameras with standard IR that are underperforming at distance, mounted on the same pole or eave bracket using AXIS T-series mounting accessories.

Common Questions

1. Will the T90D40 work with any IP camera or only AXIS cameras?

   It is designed and optimised for use within the AXIS ecosystem. While the 850nm IR output is a standard wavelength that any IR-sensitive camera sensor can utilise, the T90D40's mounting hardware, PoE control integration, and accessory compatibility are built around AXIS camera infrastructure. Using it with non-AXIS cameras may require additional third-party mounting arrangements and removes access to any AXIS-native synchronisation or control features.

2. Does the T90D40 produce visible light or is the IR completely invisible?

   The 850nm wavelength is largely invisible to the human eye. At 850nm there is a faint red glow visible from the LEDs at close range when the unit is active, but it does not produce meaningful visible illumination in a scene. If you need covert illumination with zero visible output, a 940nm illuminator would be more appropriate, though 940nm produces reduced range for the same power draw.

3. Does this illuminator have its own on/off control or does it operate continuously?

   The T90D40 is a PoE-powered accessory and operates when powered. Control over when it activates depends on how it is integrated within your AXIS system setup - it can be managed alongside compatible AXIS cameras rather than requiring a separate manual switch. Confirm your specific AXIS camera model's accessory control capability if timed or triggered activation is a requirement for your installation.

4. What PoE standard does the T90D40 require?

   The T90D40 is powered via IEEE 802.3af PoE, which is the standard PoE class supported by the majority of managed and unmanaged PoE switches and PoE NVR ports. It does not require the higher-power PoE+ (802.3at) standard, so it will operate from any standard 802.3af PoE port without needing a higher-output switch. This makes it straightforward to add to existing PoE infrastructure without requiring switch upgrades.

5. Is the T90D40 suitable for an outdoor installation in a hot Australian summer environment?

   Yes. The T90D40 is rated to 50°C operating temperature, which covers typical Australian outdoor summer ambient temperatures including in exposed northern and inland locations. The IP66 housing also protects against dust and driving rain, making it appropriate for exposed outdoor mounting on poles, eaves, and wall brackets without requiring additional weatherproofing. The unit is stocked by Security Australia as part of the AXIS T-series accessory range.

6. Will adding this illuminator improve my camera's footage quality during the day?

   No. The T90D40 is an IR illuminator and has no effect on daytime image quality. Its output is only relevant in low-light or zero-light conditions where the camera sensor is operating in its IR-sensitive mode. Any daytime image quality improvements would need to be addressed through camera selection, lens choice, or positioning adjustments rather than illuminator accessories.

Downloads & Resources

No downloads available for this product.
