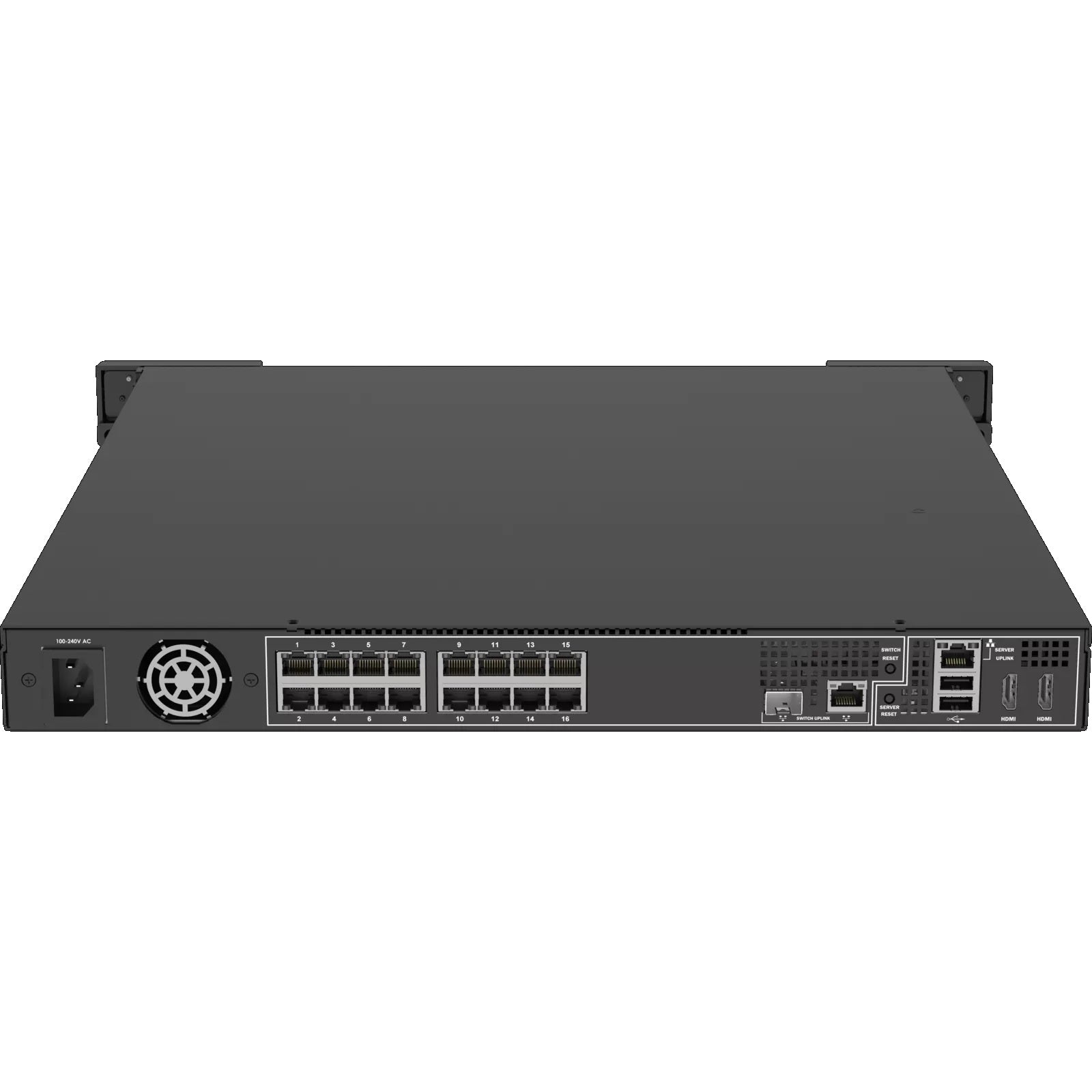

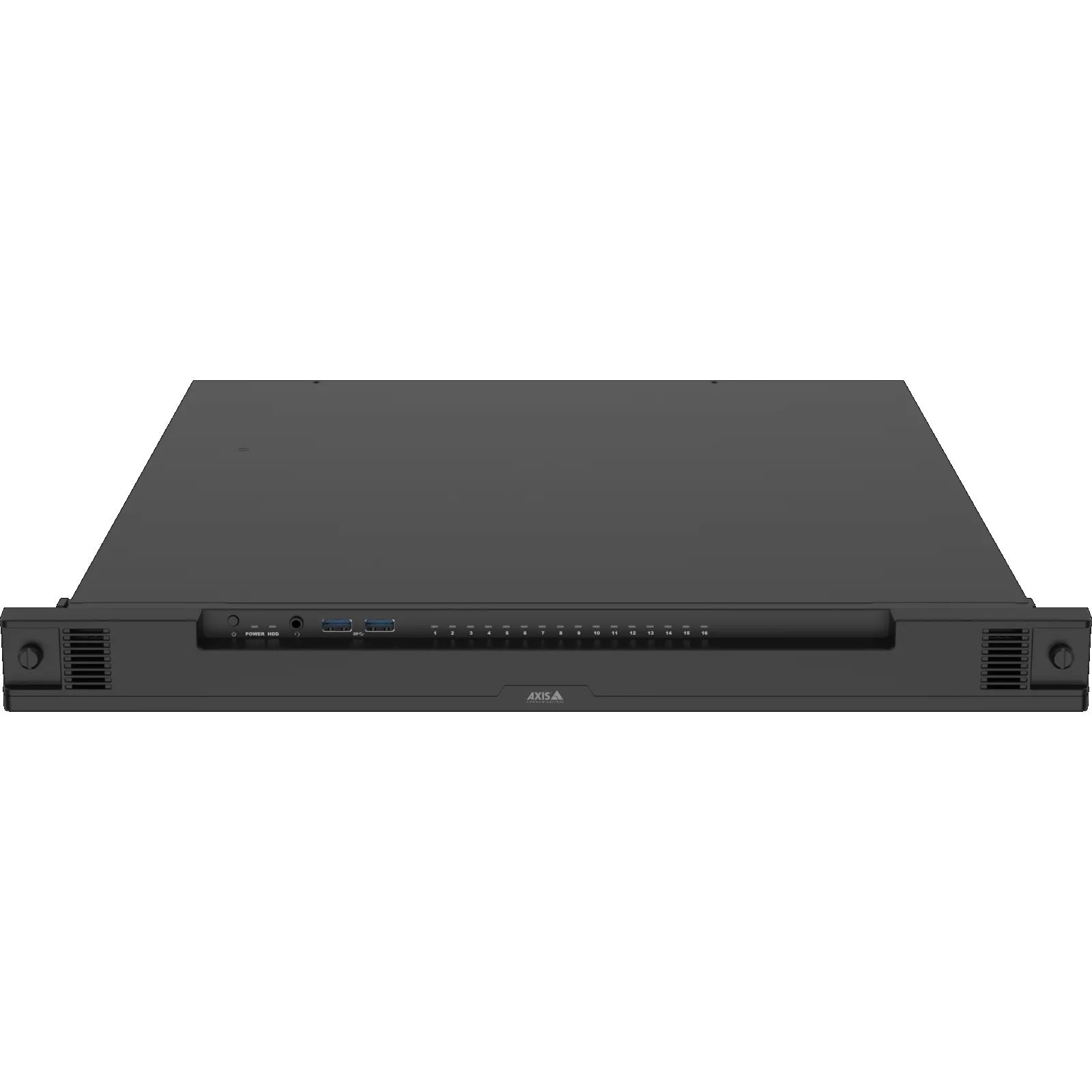

AXIS S2216 Mk II 8TB Rack Appliance for 16-Channel Surveillance with Integrated 16-Port PoE+ Switch, 260W PoE Budget, AXIS Camera Station Pro Licences

Model: AXIS S2216 Mk II

Who This Is For

For IT managers and security integrators specifying a rack-mounted surveillance appliance for 16-channel deployments who need power, switching, recording, and software bundled into a single 1U unit. The AXIS S2216 Mk II integrates a 16-port PoE+ switch with a 260W PoE budget, 8TB of onboard storage, and AXIS Camera Station Pro licences for all 16 channels - eliminating the need for a separate NVR, PoE switch, and VMS licensing purchase. It is suited to corporate offices, multi-tenancy buildings, education facilities, and retail environments where rack infrastructure already exists and where a clean, auditable installation with a single-vendor software ecosystem is preferred over pieced-together components.

What This Product Actually Does

Who Buys This Model

• Security Integrators: Installers delivering turnkey 16-channel systems to commercial clients who want rack-based infrastructure with VMS software already licenced and ready to commission on arrival.
• Corporate IT Departments: IT managers responsible for building security who need a rack-mount appliance that fits their existing server room and produces a clear per-channel software licencing record for compliance and audit purposes.
• Education Facilities: Schools and tertiary campuses with comms rooms and 16 or fewer camera positions who want a managed, single-vendor platform rather than a mix of consumer NVR hardware and third-party VMS licences.
• Multi-Tenancy Property Managers: Building managers specifying a professional recording system with AXIS Camera Station Pro for centralised live view, playback access, and event logging across a single building's camera network.

Honest Assessment

The AXIS S2216 Mk II does a specific job well: it consolidates a 16-channel PoE+ switch, 8TB recording appliance, and full AXIS Camera Station Pro VMS licences into a single rack-mount unit. For integrators and IT teams who would otherwise source these three components separately, the bundled approach simplifies procurement, reduces rack space, and removes software licensing complexity. The 260W PoE budget is generous enough to run a full 16-camera load of standard PoE+ devices without headroom concerns in most configurations. Where this appliance will not be the right fit is on smaller deployments of 4-8 cameras where the 16-channel platform is more than required, or on sites that have already invested in a third-party VMS and do not want to migrate to AXIS Camera Station Pro. Sites needing more than 16 channels will also require a larger platform. Available through Security Australia, this appliance is positioned at professional and commercial deployments - not entry-level surveillance budgets.

Before You Buy

Quick Fit Check

• Good match if: You are deploying up to 16 Axis IP cameras in a facility with a 19-inch rack, and you want PoE switching, recording, and AXIS Camera Station Pro licensing handled by a single appliance without additional component purchases.
• Good match if: The site already operates within the Axis ecosystem and the client or IT team wants unified firmware management, a single support contact, and VMS licences tied directly to the recording hardware.
• You may need a different model if: Your deployment exceeds 16 channels, requires non-Axis VMS software, or operates from a site without rack infrastructure - a higher-channel Axis recording server or a separate PoE switch and NVR combination may be a better fit for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 16-channel rack-mount recording platform with PoE+ switching and professional VMS software included, and your camera selection is within the Axis ecosystem.
• You may need a different model if: Your site requires more than 16 channels, or you are working with a mixed-brand camera system where a third-party VMS and a separate managed PoE switch may offer broader device compatibility.
• Pairs well with: Axis fixed dome, turret, and bullet cameras connected directly to the integrated PoE+ ports, and a rack-mounted UPS to protect the appliance and PoE-powered cameras during power interruptions.

Common Questions

1. Do I need to buy separate VMS licences for all 16 channels?

   No. The S2216 Mk II includes 16 AXIS Camera Station Pro channel licences as part of the appliance. There is no additional per-channel licence cost to get all 16 cameras recording and managed through the software. The licences are tied to the appliance hardware, so there is nothing to activate or purchase separately before installation begins.

2. Will the 260W PoE budget run 16 cameras without issues?

   It depends on the cameras specified. 260W across 16 ports gives an average of 16.25W per port, which covers the majority of standard Axis fixed cameras. However, higher-draw devices - including multi-sensor cameras, PTZ cameras, or cameras with built-in heaters - can draw 25W or more each. If your mix includes several high-draw models, calculate the total watt draw across all 16 positions before confirming the appliance. If the total exceeds 260W, some cameras will not receive consistent power.

3. How long will 8TB of storage last across 16 cameras?

   It varies significantly based on resolution, frame rate, bitrate setting, and whether recording is continuous or motion-triggered. As a general reference point, 16 cameras recording at 1080p with H.265 compression on motion-triggered recording can achieve several weeks of retention on 8TB. Continuous recording at high bitrates across all 16 channels will reduce that figure considerably. Use Axis's online storage calculator with your specific camera models and settings to get an accurate retention estimate before deployment.

4. Does this appliance work with non-Axis cameras?

   Primarily no, not in a fully supported configuration. The S2216 Mk II is designed as an Axis ecosystem appliance running AXIS Camera Station Pro, which is optimised for Axis cameras. While AXIS Camera Station Pro can connect to some ONVIF-compliant third-party cameras, full feature support - including advanced analytics, firmware-level integration, and guaranteed compatibility - applies to Axis cameras. If your deployment involves a significant number of non-Axis cameras, a platform-agnostic VMS with a separate recorder and PoE switch is likely a better fit.

5. What does AXIS Camera Station Pro offer that a basic NVR interface does not?

   Significantly more. AXIS Camera Station Pro is a full video management system - not a firmware-level playback interface. It supports multi-site management, granular user permission controls, integrated access control, event rules and automation, audit logs, and remote access from desktop and mobile clients. For corporate, education, and multi-tenancy environments where security footage access needs to be structured and auditable, this matters more than it does for a small single-site install that only needs live view and basic playback. The appliance is part of the Security Australia range and is positioned for professional deployments where these features are requirements, not extras.

6. Can the storage be expanded beyond 8TB?

   Axis Recording Appliances are designed with a fixed internal storage configuration as supplied. For sites that anticipate storage growth - such as those adding cameras over time or increasing recording bitrates - it is worth confirming whether additional internal drive bays are available in this model or whether an external network-attached storage device connected to the appliance is the recommended path. Confirm the storage expansion options directly with your Axis reseller before deployment if long-term retention growth is a requirement.

7. Does the appliance require a 19-inch rack, or can it be installed differently?

   Yes, a 19-inch rack is required. The S2216 Mk II is purpose-built as a rack-mount unit and is not designed for wall-box, desktop, or shelf mounting. If your site does not have an existing rack, you will need to factor in a suitable rack enclosure as part of the installation cost and plan. This is a key distinction from desktop NVR units or small-form-factor recorders that can be placed in a cabinet or on a shelf.

Downloads & Resources

No downloads available for this product.
