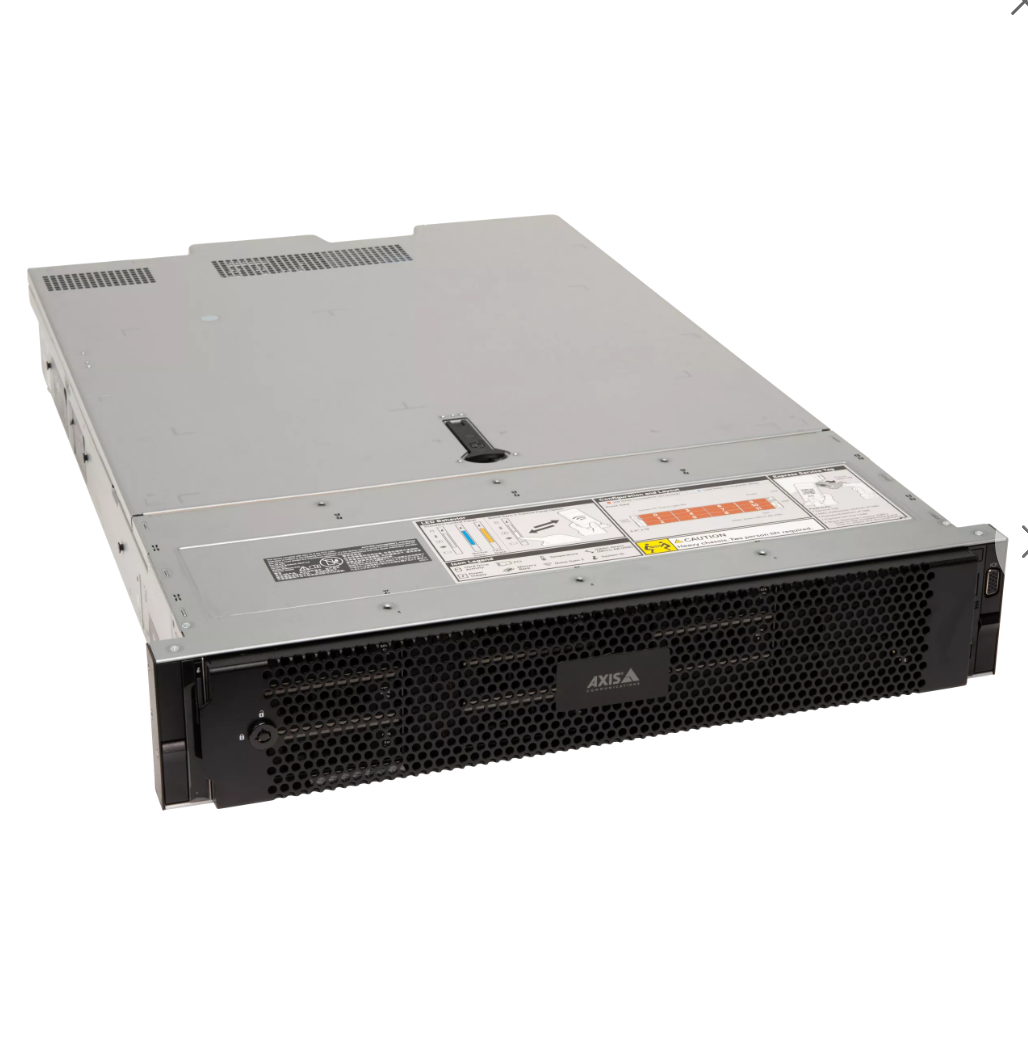

AXIS S1264 Rack 24TB Network Video Recorder (NVR) – Enterprise-Grade Surveillance Storage

Model: AXIS S1264

Who This Is For

Property managers specifying enterprise surveillance infrastructure for multi-site commercial operations, large facilities, or high-camera-count environments will find the AXIS S1264 purpose-built for that scale. This is a rack-mounted 64-channel NVR with 24TB of onboard storage, designed to sit inside a server room or IT cabinet and integrate directly with existing network infrastructure. It runs AXIS Camera Station software natively, making it the logical recording backbone for any deployment already using Axis cameras - or for integrators standardising on a single management platform across a large site. The rack form factor suits installations where space is managed, power is conditioned, and the recorder is expected to run continuously without intervention. This is not a unit for a small retail fit-out. It suits airports, hospitals, university campuses, logistics facilities, and large commercial premises where channel count, storage depth, and software integration matter as much as hardware reliability.

What This NVR Actually Does

Who Buys This Model

• Enterprise IT and security integrators: Specifying a centralised recording solution for large commercial or institutional sites where the recorder lives in a server room and must integrate with existing rack infrastructure.
• Facilities managers at hospitals or universities: Running 30 to 64 cameras across a campus or multi-building complex where extended retention, compliance, and centralised playback access are non-negotiable requirements.
• Logistics and warehousing operators: Needing high-channel-count recording across loading docks, warehouse floors, and perimeter cameras without the cost and complexity of a custom-built server running third-party VMS software.
• Existing Axis camera deployments scaling up: Sites already running Axis cameras that want native AXIS Camera Station integration and a manufacturer-supported hardware platform rather than a generic NVR or PC-based recorder.

Honest Assessment

The AXIS S1264 does the job it was built for with very little compromise - 64 channels, 24TB of storage, rack form factor, and native AXIS Camera Station software in a single unit. For integrators deploying Axis cameras at scale, the out-of-the-box software integration alone removes a significant portion of commissioning time. The hardened OS and rack design also suit facilities teams who need the recorder treated as infrastructure rather than a consumer appliance. What it will not do is serve a small or mid-sized installation economically - the channel count and storage capacity represent significant overhead for a 6 or 10 camera site, and the rack form factor is impractical without a server cabinet. If the installation is under 16 cameras or the recorder needs to sit on a shelf rather than in a rack, a desktop-form NVR is the more proportionate choice. The S1264 is available through Security Australia for sites where enterprise-grade recording infrastructure is the brief.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 30 or more Axis IP cameras at a single site and need a manufacturer-supported recorder with native AXIS Camera Station software and rack-mount form factor.
• Good match if: Your site has an existing server room or IT cabinet and requires the NVR to be managed as part of the network infrastructure rather than as a standalone consumer device.
• You may need a different model if: Your installation is under 16 cameras or you do not have a server rack - a desktop-form NVR will provide equivalent recording functionality at a more proportionate scale and cost.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 64-channel capacity, 24TB of storage, rack-mount deployment, and native AXIS Camera Station integration in a single manufacturer-supported unit.
• You may need a different model if: Your installation is under 16 cameras or you do not have a server rack available - a desktop-form NVR from the same range will cover the same recording requirements at a more appropriate scale.
• Pairs well with: Axis IP cameras (fixed, PTZ, or multi-sensor) and a managed PoE network switch to feed camera power and data from the same rack infrastructure.

Common Questions

1. Will this NVR work with cameras from other brands, or does it only support Axis cameras?

   It works with cameras from other brands, provided they are ONVIF-compliant. The S1264 is optimised for Axis cameras and delivers the most complete feature set when used within an all-Axis deployment, but ONVIF support allows non-Axis cameras to be added to the same recording platform. Note that advanced Axis-specific analytics and deep software integration features may not be available for third-party cameras.

2. How long will 24TB of storage last across 64 camera channels?

   It depends entirely on your stream settings. At 64 channels, retention days vary significantly based on resolution, frame rate, compression codec, and whether motion-triggered or continuous recording is used. High-resolution continuous recording across all 64 channels will consume 24TB faster than a motion-triggered configuration at moderate resolution. Always calculate your expected daily storage consumption at your intended settings before assuming a specific retention period.

3. Does the S1264 come with AXIS Camera Station software included?

   Yes. The S1264 comes pre-loaded with AXIS Camera Station, so there is no need to purchase a separate VMS licence or build a server to run the software. The system is ready to configure and connect cameras out of the box, which reduces commissioning time compared to deploying a custom server-based solution.

4. Does this NVR fit a standard 19-inch server rack?

   Yes. The S1264 is designed for standard 19-inch rack installation. Confirm the available U space in your cabinet before deployment and ensure your rack has appropriate depth, ventilation, and a power circuit capable of supporting continuous operation. A UPS is strongly recommended for any enterprise recorder installation to protect against data loss from power interruptions.

5. Will this work for a site that currently only has 20 cameras but plans to expand?

   It will record 20 cameras without issue, but at that scale the S1264 represents significant overhead in both cost and unused capacity. If expansion beyond 32 to 40 cameras is planned within a reasonable timeframe, purchasing the S1264 now avoids a recorder replacement later. If the site is unlikely to grow beyond 20 to 30 cameras, a lower-channel NVR is a more proportionate fit - the range available through Security Australia includes options better suited to that scale.

6. What operating system does the S1264 run, and does it need regular IT maintenance like a Windows server?

   No, it does not require the same level of ongoing maintenance as a Windows-based server. The S1264 runs a hardened Linux-based OS purpose-built for surveillance recording. This reduces the attack surface, minimises vulnerability patching complexity, and means the unit is not exposed to the same category of OS-level threats as a general-purpose server running Windows. It is designed to operate continuously with minimal IT intervention once configured.
