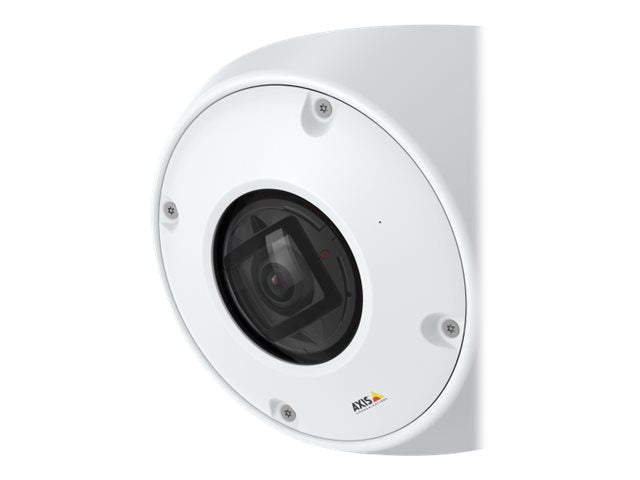

AXIS Q9216-SLV White Anti-Ligature Corner-Mount IP Camera – 4 MP Invisible IR, IK11, IP66/IP6K9K

Model: Q9216-SLV-WHITE

Who This Is For

For security specifiers and facilities managers who need a camera that can be safely installed in environments where standard housings create risk, the AXIS Q9216-SLV is purpose-built around a single requirement: no protruding parts a person can grip, loop, or use as a ligature point. The corner-mount design eliminates the need for a standard ceiling bracket, removing another potential anchor point from the room entirely. With an IK11 impact rating - the highest on the IEC scale - and a sealed IP66/IP6K9K housing, the camera is suited to psychiatric inpatient wards, secure mental health facilities, youth detention centres, and correctional facilities where both the physical safety of occupants and continuous covert monitoring are non-negotiable. The invisible IR keeps surveillance discreet, and the 4 MP sensor captures usable detail without drawing attention to the unit.

What This Camera Actually Does

Who Buys This Model

• Psychiatric Facility Managers: Specifying in-room cameras for acute inpatient wards where ligature risk assessments are mandated and standard camera hardware fails clinical safety requirements.
• Correctional and Detention Facility Designers: Installing cameras in cells and secure rooms where IK11-rated, grip-free housings are required to prevent tampering and reduce opportunistic self-harm risk.
• Youth Justice and Secure Care Operators: Monitoring common rooms and single-occupancy rooms in facilities bound by duty-of-care obligations, where every camera mount point is reviewed during safety audits.
• Healthcare Infrastructure Contractors: Delivering turnkey security systems for hospital builds and refits that include secure mental health wings, where the camera spec must satisfy both security requirements and clinical governance standards.

Honest Assessment

The AXIS Q9216-SLV does one thing better than almost any other camera on the market: it removes itself as a risk factor in high-vulnerability environments. The anti-ligature housing, IK11 rating, corner-mount design, and invisible IR are a combination built around a specific clinical and correctional requirement, not a set of general-purpose features. The 4 MP sensor delivers usable resolution for room-level monitoring, and the sealed IP66/IP6K9K rating handles washdown environments without compromise. Available through Security Australia, this camera is specified by healthcare and justice sector projects where standard product simply cannot be used. Where it does not apply: standard commercial or retail sites have no need for this level of engineering, and the cost reflects the specialised construction. If your application is a general office, warehouse, or retail environment, a standard vandal-resistant dome will serve you better at a lower price point.

Before You Buy

Quick Fit Check

• Good match if: You are specifying cameras for an in-room installation in a psychiatric ward, secure mental health unit, or detention facility where a ligature risk assessment requires grip-free, protrusion-free hardware and the site safety documentation needs an IK11-rated unit.
• Good match if: The room is subject to washdown cleaning procedures between occupants and requires a camera housing sealed to IP6K9K high-pressure water resistance without any visible gaps or exposed fixings that could trap contamination.
• You may need a different model if: Your application is a standard commercial, retail, or general-purpose indoor environment - a conventional vandal-resistant dome or turret camera will deliver equivalent image quality at significantly lower cost, and the anti-ligature engineering adds no practical value outside secure care or correctional settings. Browse the full AXIS dome range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation environment requires a camera that passes a formal ligature risk assessment - the anti-ligature housing, IK11 rating, and corner-mount design are specifically engineered for secure care and correctional applications where standard domes cannot be specified.
• You may need a different model if: Your site is a standard commercial, retail, or general-purpose indoor environment - a conventional IK10-rated vandal dome delivers equivalent 4 MP imaging at a lower price point without the specialised anti-ligature construction you are paying for here.
• Pairs well with: A PoE-capable NVR with ONVIF Profile T support and sufficient channel capacity for the number of secure rooms being monitored, paired with a VMS platform that supports AXIS Object Analytics event rules for after-hours alert management.

Common Questions

1. Does this camera actually pass ligature risk assessments for psychiatric wards?

   Yes, the Q9216-SLV is specifically engineered to meet anti-ligature requirements. The housing has no protruding parts, no exposed fixings, and no surfaces that provide a grip or anchor point. The corner-mount design also eliminates a standard bracket from the room. Whether a specific facility's risk assessment process accepts this camera should be confirmed with the assessing clinician, but the housing is designed precisely for this use case.

2. What does IK11 actually mean - is it higher than IK10?

   Yes. The standard IEC 62262 impact protection scale runs to IK10, which represents resistance to 20 joules of impact. AXIS rates the Q9216-SLV to IK11, which goes beyond that published scale. In practical terms, this means the housing is tested to withstand impacts beyond what a standard vandal-resistant camera is required to survive - relevant in environments where deliberate, sustained physical force against fixtures is a realistic scenario.

3. Will this camera work in complete darkness without a visible glow?

   Yes. The Q9216-SLV uses invisible IR illumination that operates outside the visible light spectrum, producing no red glow that would be visible to a room occupant. This allows continuous low-light monitoring in overnight clinical rooms without any visible indication that IR is active, supporting discreet observation without disturbing the patient or alerting the occupant to camera activity.

4. Does IP6K9K mean it can handle a facility washdown hose?

   Yes. IP6K9K is a specific rating that covers high-pressure, high-temperature water jets directed from close range - beyond what standard IP66 alone covers. IP66 handles sustained water jets from any direction; IP6K9K adds the high-pressure variable. For rooms cleaned with commercial pressure washers or hoses between occupants, this sealing standard means the camera housing does not need to be removed or protected during the cleaning process.

5. Does this camera support standard PoE, or does it require PoE+?

   Standard PoE is sufficient. The Q9216-SLV operates on IEEE 802.3af, which is the standard 15.4W PoE specification. It does not require the higher-power 802.3at (PoE+) standard. This means it can be powered from any standard PoE switch or NVR with PoE ports without needing to verify PoE+ availability - a relevant consideration when specifying switch infrastructure for a multi-room installation. The team at Security Australia can assist with switch and NVR selection to match channel requirements.

6. Does the corner-mount design cover the whole room from a single camera?

   In most standard room sizes, yes. Mounting in the corner positions the camera diagonally across the room, which is the longest sightline available from a fixed position. The wide-angle lens and 4 MP sensor combined with the corner placement means a single unit typically covers the full floor area of a standard inpatient room or cell. For larger spaces or rooms with alcoves, additional cameras or a different mounting position should be assessed during the design phase.
