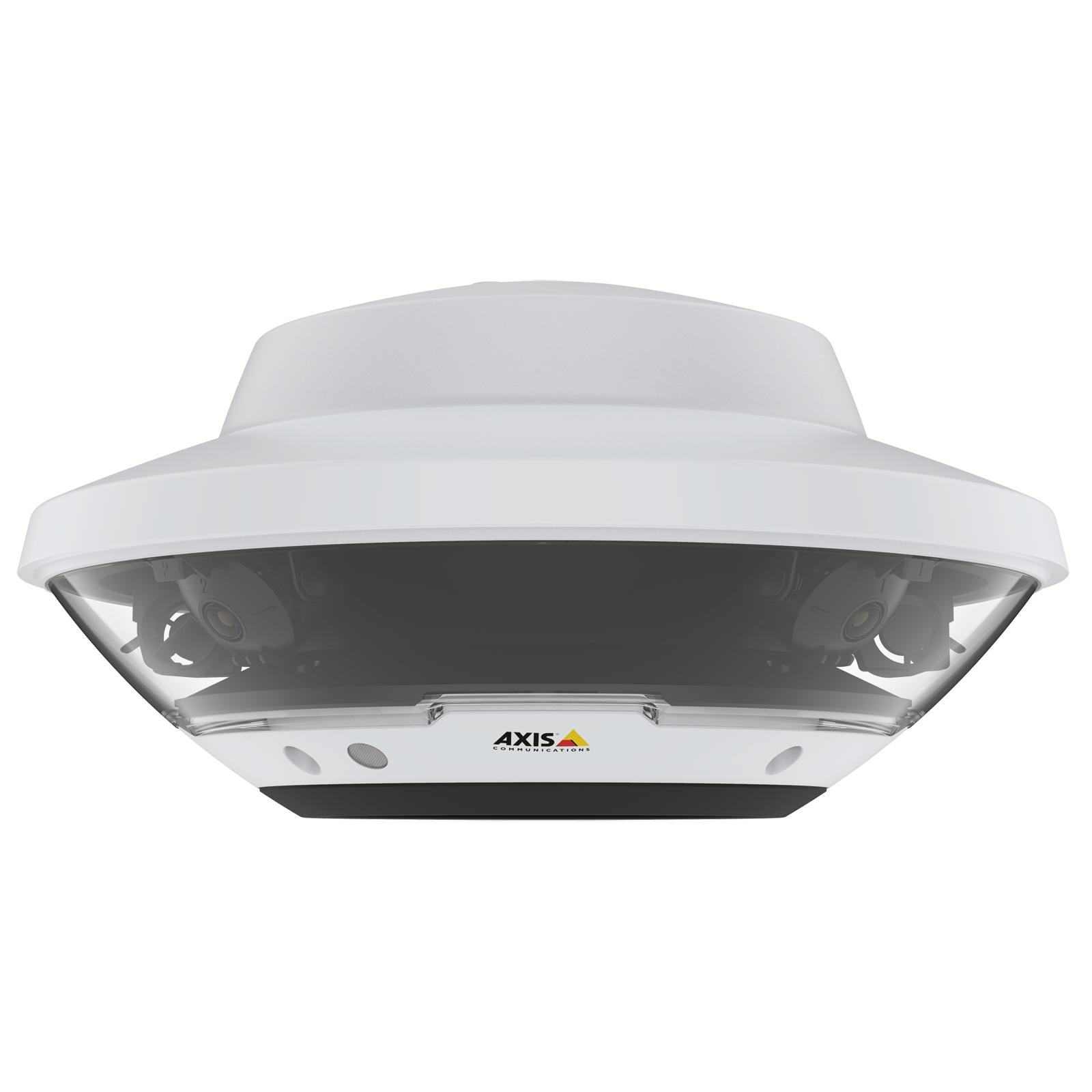

AXIS Q6300-E Panoramic Camera 360° Multi-Sensor Security with PTZ Integration

Model: Q6300-E

Who This Is For

For security integrators and end-user operators who need simultaneous wide-area situational awareness and the ability to zoom in on specific incidents without sacrificing the panoramic overview. The AXIS Q6300-E is a multi-sensor outdoor panoramic camera engineered for large open spaces - car parks, transit hubs, stadiums, and commercial forecourts - where a single fixed camera leaves too many blind spots and deploying multiple independent cameras creates monitoring complexity. By combining a multi-sensor 180° panoramic view with native PTZ integration, a control room operator can maintain full scene context while a linked PTZ drills into detail on demand. This is not a consumer-grade wide-angle install; it is a coverage-planning tool for professional surveillance designs where reducing camera count without reducing coverage quality is a core brief.

What This Camera Actually Does

Who Buys This Model

• Security integrators designing large-site surveillance: Professionals specifying camera layouts for airports, universities, or industrial campuses where reducing total camera count while maintaining perimeter coverage is a measurable project outcome.
• Transport and transit operators: Bus depots, rail station forecourts, and ferry terminals where a 180° overview of passenger flow zones needs to be paired with the ability to zoom into incidents without losing the broader scene.
• Retail centre and stadium security managers: High-footfall environments where a single mounting position needs to cover wide open concourses or car park entry points, and where post-incident review requires both context and detail from the same installation point.
• Critical infrastructure operators: Utilities, data centres, and port facilities that already operate Axis PTZ cameras and want to add a panoramic overview layer that integrates natively into an existing Axis ecosystem and VMS setup.

Honest Assessment

The Q6300-E does what multi-sensor panoramic cameras are designed to do well: it eliminates the coverage gaps you get from placing multiple independent fixed cameras side by side, while giving operators a continuous context view that single-PTZ deployments cannot provide. The native Axis PTZ integration is a genuine system advantage for sites already running Axis infrastructure, and ACAP support means the unit can run edge analytics without an additional server footprint. Available through Security Australia, this is a professional-grade unit priced and specified accordingly.

What it will not do: it does not replace a dedicated PTZ for long-range optical zoom or for high-speed auto-tracking of moving subjects - those applications still need a proper PTZ with motorised zoom optics. It also carries a higher per-unit cost and installation complexity than a standard fixed camera, so it is not the right choice for single-room or simple two-camera small business installs where a turret or bullet camera solves the problem at a fraction of the cost.

Before You Buy

Quick Fit Check

• Good match if: You need continuous 180° outdoor coverage from a single mounting position and your site already runs Axis PTZ cameras that can be integrated for detail zoom on triggered events.
• Good match if: Your VMS or security platform supports ACAP applications and you want edge-based analytics running on the panoramic camera itself without adding a separate analytics processing server.
• You may need a different model if: Your primary requirement is long-range optical zoom or active auto-tracking of fast-moving targets - a dedicated PTZ camera with high optical zoom ratio is better suited to those tasks than a multi-sensor panoramic unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need persistent 180° outdoor overview coverage combined with native PTZ integration from a single mounting position, and your site runs an Axis-compatible VMS with ACAP support.
• You may need a different model if: Your priority is long-range optical zoom with active auto-tracking of moving subjects - a dedicated high-zoom PTZ camera is better matched to that specific task than a multi-sensor panoramic unit.
• Pairs well with: A compatible Axis PTZ camera for the zoom and detail layer, a PoE+ managed switch for reliable power delivery, and an ONVIF-compatible NVR or VMS platform with multi-channel recording capacity.

Common Questions

1. Does this camera work as a standalone unit or does it require a PTZ to function?

   Yes, the Q6300-E works as a standalone panoramic camera. The PTZ integration is an optional paired configuration, not a dependency. The multi-sensor panoramic streams operate independently regardless of whether a PTZ camera is connected. The integration feature adds a zoom-detail layer when a compatible Axis PTZ is present, but the Q6300-E records and monitors normally without one.

2. Will this camera work with non-Axis VMS platforms?

   Yes, in most cases. The Q6300-E supports ONVIF Profile S, Profile G, and Profile T, which means it is compatible with any VMS platform that supports these standard profiles. However, the native PTZ integration feature - where the panoramic and PTZ cameras behave as a coordinated system - is optimised for Axis-native VMS environments such as AXIS Camera Station or certified Axis-partner platforms. Basic recording and streaming will work on third-party ONVIF systems; tightly coupled PTZ-panoramic coordination may require Axis-native software.

3. How many camera channels does this unit consume on my NVR or VMS licence?

   This depends on your VMS platform and how it handles multi-sensor cameras. Some platforms count the Q6300-E as a single channel device; others count each individual sensor stream as a separate channel. Before purchasing NVR storage or VMS licences, confirm with your VMS vendor how multi-sensor Axis panoramic cameras are counted in their channel licensing model. Getting this wrong is a common and costly oversight on larger site deployments.

4. What PoE standard does the Q6300-E require, and can I use a standard PoE switch?

   No - the Q6300-E requires PoE+ (IEEE 802.3at), not standard PoE (IEEE 802.3af). Standard 802.3af delivers a maximum of 15.4W per port, which is insufficient for a multi-sensor panoramic camera running multiple image sensors and potentially active ACAP analytics simultaneously. Your switch must have 802.3at-capable ports on the specific ports you plan to use. Check your switch's per-port power budget, not just its total power budget, before installation.

5. What does the panoramic stitching look like - is the 180° view a single joined image or separate sensor windows?

   The Q6300-E presents both options depending on your VMS configuration. The individual sensor streams can be viewed as separate channels, each covering its own arc, or the VMS can display them as a continuous stitched panoramic view. The stitching is handled at the display or VMS layer rather than entirely in-camera, so the quality of the joined panoramic view depends partly on your VMS's dewarping and stitching capability. For forensic post-event review, working with individual sensor streams is often more practical than relying on a stitched overview.

6. What DORI distances can I expect from the Q6300-E sensors at typical mounting heights?

   DORI distances on a multi-sensor panoramic camera are significantly shorter than those of a dedicated fixed lens camera pointed at a specific target. The wide field of view that makes this camera valuable for overview coverage means each pixel covers a larger ground area, which reduces Detection, Observation, Recognition, and Identification distances compared to a narrower lens camera. The Q6300-E is best specified for Detection and Observation tasks at range - if you need face-level Identification quality at a specific point, a dedicated fixed or PTZ camera aimed at that zone is a better tool. Site-specific DORI calculations using the Axis lens calculator are recommended before finalising mounting positions. The Q6300-E is part of the Security Australia range and the team can assist with coverage planning queries.

7. Can I run analytics applications on the Q6300-E itself, or do I need a separate server?

   Yes, analytics can run directly on the camera. The Q6300-E supports the AXIS Camera Application Platform (ACAP), which allows compatible analytics applications - such as perimeter crossing detection, crowd density monitoring, or object classification - to execute at the edge on the camera's own processor. This removes the requirement for a dedicated analytics server for many common use cases. The range of available ACAP applications is extensive and includes both Axis-developed and certified third-party applications, but confirm that any specific application you intend to deploy lists the Q6300-E as a supported device before purchasing.

Downloads & Resources

No downloads available for this product.
